Trevoli 3S-102UV Underbench UV Water Filter - 3 Stage, 99.9% Bacteria and Parasite Reduction NZ

Three-stage filtration and UV sterilisation for clean, treated drinking water at the kitchen tap — for mains and rainwater supplies.

The Trevoli 3S-102UV is a three-stage underbench water filter with 6W UV sterilisation, designed for point-of-use treatment at the kitchen tap. It removes sediment and particles in Stage 1, reduces chlorine and odour in Stage 2, and neutralises 99.9% of bacteria and parasites using UV sterilisation in Stage 3 — no chemicals, no additives.

Connection fittings are not included. This system uses 6mm push-fit connections — fittings are available separately or from your local plumbing supplier.

A pressure reducing valve is included with the system. This is required where inlet pressure exceeds 250 kPa.

Bore water quality varies significantly. We recommend testing your bore water before selecting a filtration system — get in touch and we'll help you choose the right configuration for your supply.

A surge protector is strongly recommended to protect the ballast and lamp from power surges and outages. Fitting a surge protector is a condition of the ballast and lamp warranty. Add one using the dropdown above.

Key specs at a glance

• 3-stage filtration + 6W UV sterilisation
• Neutralises 99.9% of bacteria and parasites
• UV dose: 40 mJ/cm² at 3 L/min (rated treatment flow)
• Flow-switch ballast — lamp runs only when tap is open, shuts off 5 minutes after tap closes
• Connection size: 6mm push-fit (fittings not included)
• Max flow rate: 9 L/min
• Operating temperature: 4–40°C
• Pressure reducing valve included (required above 250 kPa)
• Surge protector strongly recommended — add via dropdown
• Optional stainless steel faucet — add via dropdown
• 2-year warranty

How it works

Stage	What it does
Stage 1 — Spun PP sediment filter	Removes particles, sediment, silt, sand, and algae — anything visible suspended in the water.
Stage 2 — 5 micron carbon block filter	Reduces chlorine, odour, sand, salt, and rust particles for noticeably better-tasting water.
Stage 3 — 6W UV sterilisation	Neutralises 99.9% of bacteria and parasites — including E. coli and Salmonella — using UV light. Flow-switch ballast, 5-minute delay-off.

Why choose the 3S-102UV

• Point-of-use treatment — clean drinking water at the kitchen tap without filtering the whole house
• Neutralises 99.9% of bacteria and parasites without chemicals
• Flow-switch ballast — lamp runs only when needed, extending lamp life and reducing power use
• Dual-filter housing for extra sediment capacity
• Optional stainless steel faucet — add a dedicated drinking water tap alongside your main kitchen tap
• Pressure reducing valve included — ready for high-pressure mains connections
• Suits mains and rainwater supplies
• 2-year warranty

UV dosage performance

UV Dose	Flow Rate
40 mJ/cm²	3 L/min
30 mJ/cm²	5 L/min
16 mJ/cm²	9 L/min

For full UV treatment effectiveness, flow should be kept at or below 3 L/min. Flow rate can be managed at the tap.

Full technical specifications

Specification	Detail
Filtration stages	3 (sediment + carbon block + UV)
UV lamp power	6W
UV ballast	Flow-switch (5-minute delay-off)
UV dose (rated)	40 mJ/cm² @ 3 L/min
Maximum flow rate	9 L/min
Connection size	6mm push-fit (fittings not included)
Max inlet pressure	250 kPa (pressure reducing valve included)
Operating temperature	4–40°C
Warranty	2 years

What's in the box

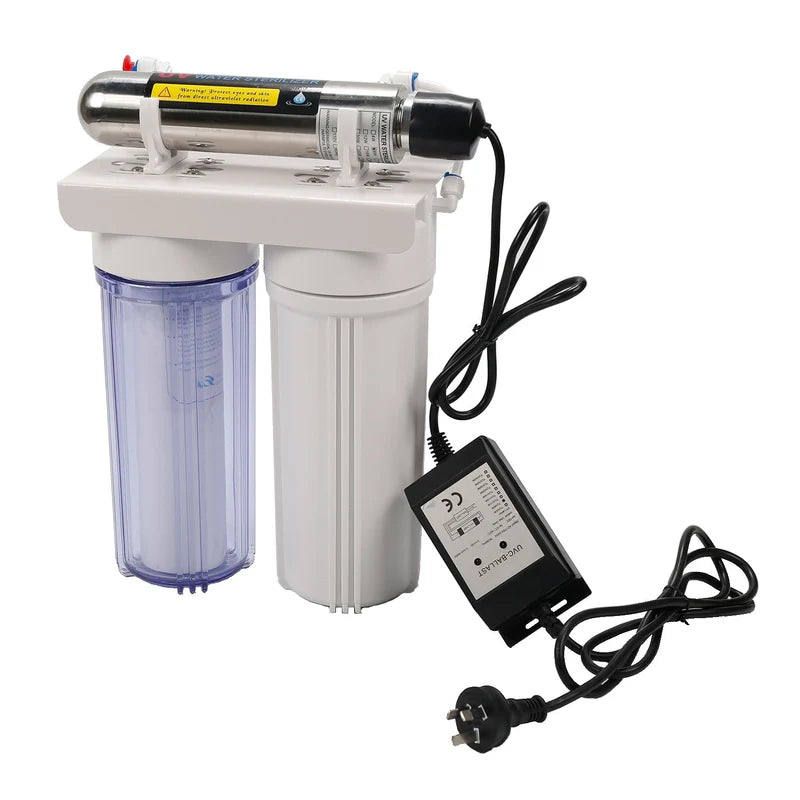

• Trevoli 3S-102UV underbench unit (twin housing, UV chamber)
• Spun PP sediment filter cartridge
• 5 micron carbon block filter cartridge
• 6W UV lamp
• Quartz sleeve
• 6W flow-switch ballast
• Pressure reducing valve
• Tubing

Not included: 6mm push-fit connection fittings.

Optional extras (add via dropdown)

• Surge protector — strongly recommended to protect the ballast and lamp. Required for ballast and lamp warranty.
• 1m of 1/4" tube
• Stainless steel faucet — dedicated drinking water tap for installation alongside your main kitchen tap

Frequently asked questions

Is the 3S-102UV right for my home?

It suits anyone who wants treated drinking water at the kitchen tap without filtering the whole house. If you mainly want better-tasting, UV-sterilised drinking water, the 3S-102UV does that job efficiently and compactly. If you want treated water at every tap — laundry, bathrooms, outdoor taps — a whole-house system is the better fit.

Are connection fittings included?

No. The system uses 6mm push-fit connections but fittings are not included. These are available separately via the dropdown above or from your local plumbing supplier.

Do I need a surge protector?

Yes — strongly recommended. Power surges and outages can damage the ballast and UV lamp. Fitting a surge protector is a condition of the ballast and lamp warranty. Add one using the dropdown above.

Does it need to be installed by a plumber?

The system connects via 6mm push-fit fittings to the cold-water supply under the sink. For anyone confident with this style of plumbing, the install is straightforward. If you'd prefer to have it done, a plumber can fit it quickly.

What does the UV lamp do?

The 6W UV lamp neutralises 99.9% of bacteria and parasites — including E. coli and Salmonella — in the water passing through the UV chamber. UV light inactivates microorganisms without adding any chemicals to the water.

How does the flow-switch ballast work?

The ballast starts the UV lamp when the tap is opened and shuts it off 5 minutes after the tap is closed. The lamp doesn't run continuously — it only operates when needed, which extends lamp life and reduces power use. The 5-minute delay-off keeps the UV chamber sterilised between uses.

Can I use it with rainwater?

Yes. The 3S-102UV is designed for both mains and rainwater supplies. The three-stage system handles the sediment and microbial load typical of rainwater tank supply.

Can I use it with bore water?

Bore water quality varies significantly. We recommend testing your bore water before selecting a filtration system — get in touch and we'll help you choose the right configuration for your supply.

What is the pressure reducing valve for?

The included pressure reducing valve is required where inlet pressure exceeds 250 kPa. Fit it on the inlet line before the filter housing if your supply pressure is high.

Can I add a dedicated drinking water faucet?

Yes. An optional stainless steel faucet is available via the dropdown above. This gives you a separate drinking water tap alongside your main kitchen tap.

How often do I replace the cartridges and UV lamp?

Filter cartridge replacement intervals depend on water quality and usage — check flow and pressure regularly and replace when performance drops. The UV lamp should be replaced annually regardless of appearance, as UV output reduces over time even if the lamp still glows.

What warranty applies?

The Trevoli 3S-102UV carries a 2-year warranty. Fitting a surge protector is a condition of the ballast and lamp warranty.
