Trevoli BAH Series – High-Head Stainless Steel Submersible Pumps for Drainage & Dripline Irrigation

Trevoli BAH Series – High-Head Stainless Steel Submersible Pumps for Drainage & Dripline Irrigation

$749.00 NZD
$0.00 NZD $749.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Easy Returns
  • Fast Shipping

The Trevoli BAH Series are robust stainless steel submersible pumps designed to deliver high head pressure for demanding applications. Ideal for construction sites, industrial drainage, clean and dirty water transfer, and dripline irrigation systems, these pumps are built to perform under pressure.

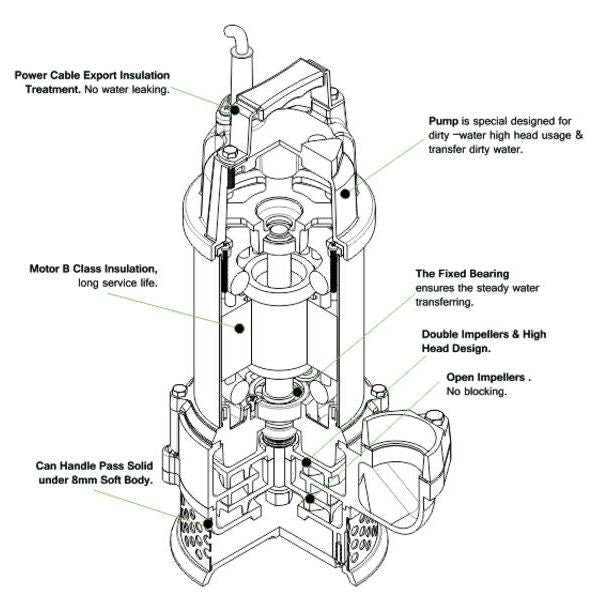

With a corrosion-resistant stainless steel housing, double mechanical seals in an oil chamber, and thermal overload protection, the BAH Series is engineered for long-lasting, continuous-duty performance in tough New Zealand conditions.

Available in two models – the BAH-400A (0.4kW) and the BAH-750A (0.7kW) – this series is a proven choice for farms, worksites, and domestic users needing higher output pressures.

Features

  • High Head Pressure – Perfect for dripline irrigation, construction drainage, and industrial use

  • Stainless Steel Housing – Strong, corrosion-resistant build

  • Float Switch – Automatic start/stop and run-dry protection

  • Double Mechanical Seals – With oil chamber for maximum durability

  • Oil-Filled Motor – Reliable cooling for continuous use

  • Thermal Overload Protection – Motor safety under heavy demand

  • Continuous Duty Rated – Built for ongoing operation

  • 10m Power Cable – With 3-pin plug for fast installation

  • Large Carry Handle – Easy to transport and set up

Specifications

Model Motor Power (hp / kW) Outlet Size Phase Voltage Amps Max Solids Dimensions (A × B × C × D × E) Weight
BAH-400A 0.7 hp / 0.4 kW 32mm 1 220–240 V 4.0A 8mm 369 × 141 × 227 × 220 × 151 mm 16 kg
BAH-750A 1.0 hp / 0.7 kW 50mm 1 220–240 V 6.9A 8mm 474 × 165 × 245 × 233 × 170 mm 17 kg

Technical Features

  • Liquid Temperature: 0°C – 40°C

  • Protection Class: IP68 (fully submersible)

  • Maximum Immersion Depth: 6m

  • pH Range: 6 – 8

  • Duty: Continuous use rated

Why Choose the Trevoli BAH Series?

The BAH Series is purpose-built for high head applications, making it the go-to choice for dripline irrigation systems, construction drainage, and industrial water transfer. With its durable stainless steel build and continuous-duty rating, it’s engineered for long-term reliability in NZ’s toughest conditions.

FAQs

Q: Is this pump good for dripline irrigation?
A: Yes – it’s specifically designed to provide the higher head pressure required for driplines.

Q: Can it handle dirty water?
A: Yes – it’s suitable for both clean and dirty water, handling up to 8mm solids.

Q: Does it come with a float switch?
A: Yes – all BAH models include a float switch for automatic operation.

Q: What’s the warranty?
A: The Trevoli BAH Series comes with a 2-year warranty.
