Trevoli EF Series – High-Head Submersible Pumps for Effluent & Dripline Irrigation

Trevoli EF Series – High-Head Submersible Pumps for Effluent & Dripline Irrigation

$496.00 NZD
$0.00 NZD $496.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Easy Returns
  • Fast Shipping

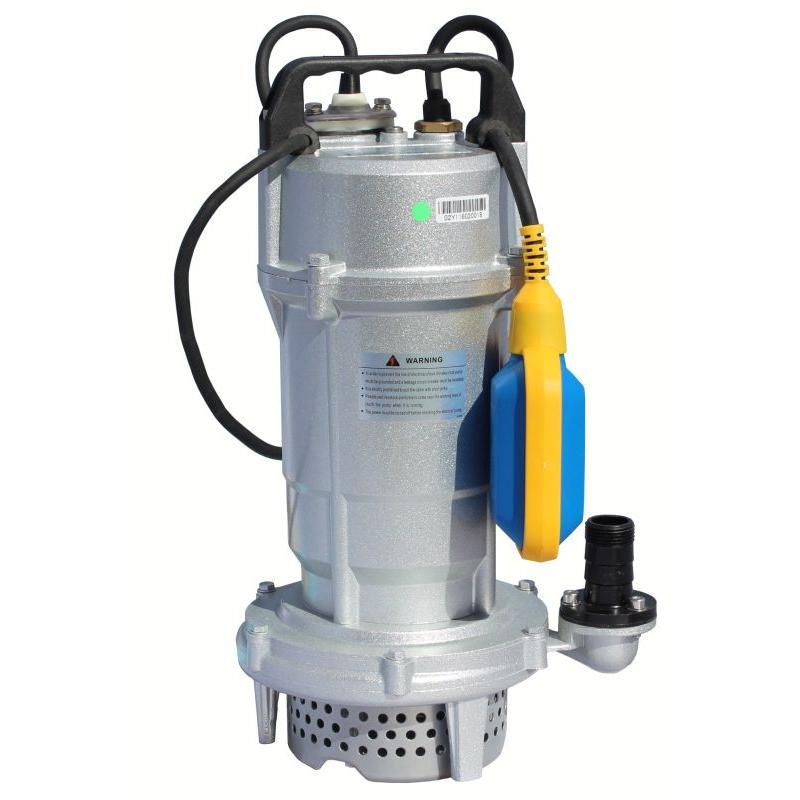

The Trevoli EF Series are single impeller submersible pumps engineered for high head performance with low to medium flow rates, making them ideal for effluent systems. Specifically designed to pump from the final chamber of septic tanks to dripline irrigation systems, the EF range offers reliable and efficient operation for New Zealand rural and residential applications.

Built with thermal overload protection, float switch control, and a durable stainless steel and polymer construction, the EF Series ensures long-term reliability while meeting the specific requirements of dripline systems.

Available in three models – EF15-25 (0.55kW), EF15-32 (0.75kW), and EF30-30 (1.1kW) – these pumps deliver consistent performance in effluent transfer where higher delivery heads are needed.

Features

  • High Head Capability – Perfect for dripline irrigation systems

  • Effluent-Specific Design – Pumps from final chamber of septic tanks

  • Float Switch – Run-dry protection and automatic operation

  • Thermal Overload Protection – Safeguards motor for durability

  • Standard NZ Power Connection – 220–240V with 3-pin plug

  • Compact & Reliable – Easy installation, lightweight but robust build

  • Max Immersion Depth – 5m for flexible setup

  • Handles Solids Up to 2mm – Designed for effluent clarity levels

Specifications

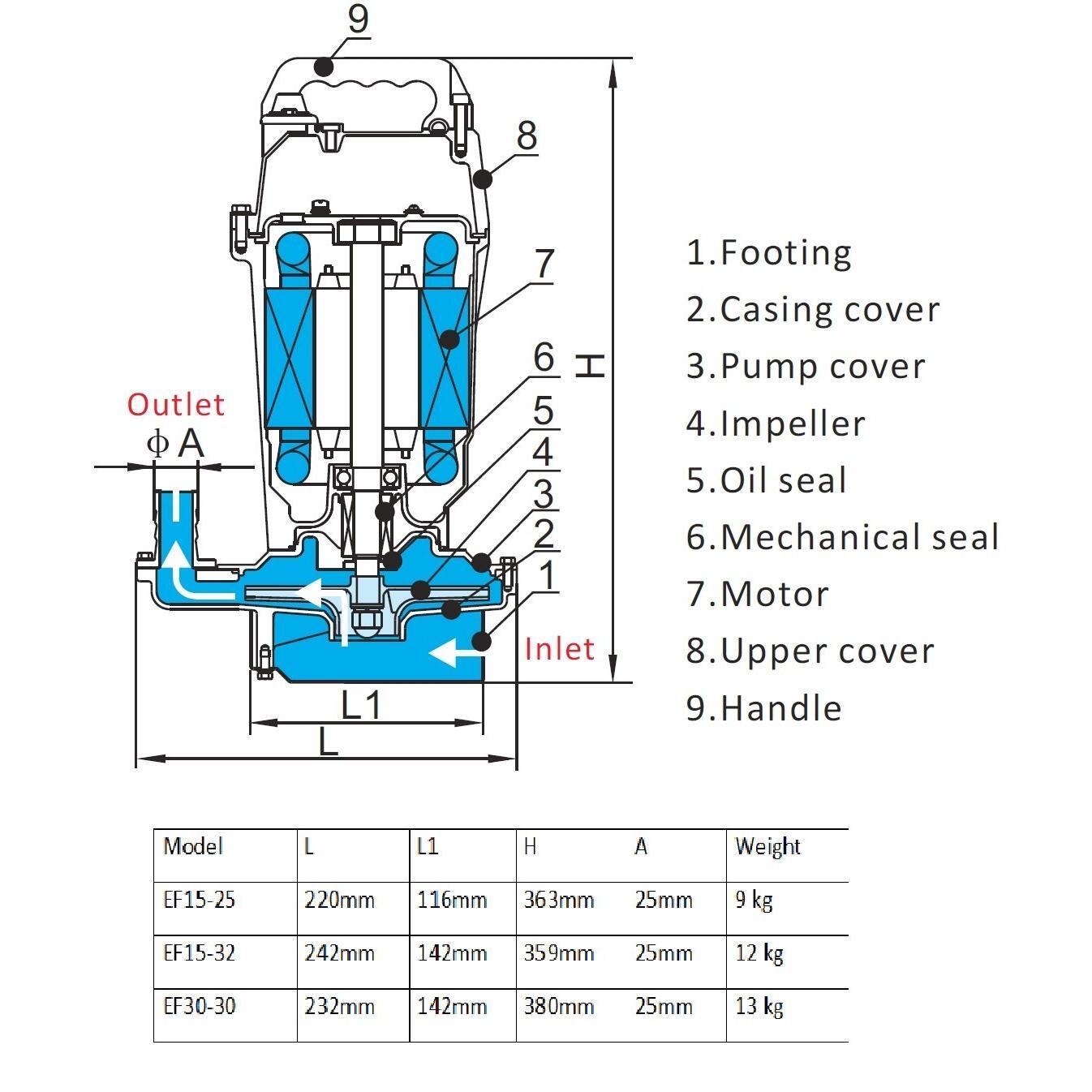

Model Motor Power (hp / kW) Amps Outlet Size Phase Voltage Max Solids Dimensions (L × L1 × H × A) Weight
EF15-25 0.7 hp / 0.55 kW 3.9A 25mm 1 220–240 V 2mm 220 × 116 × 363 × 25 mm 9 kg
EF15-32 1.0 hp / 0.75 kW 5.1A 25mm 1 220–240 V 2mm 242 × 142 × 359 × 25 mm 12 kg
EF30-30 1.5 hp / 1.1 kW 7.0A 25mm 1 220–240 V 2mm 232 × 142 × 380 × 25 mm 13 kg

Technical Features

  • Motor Speed: 3000 rpm

  • Insulation Class: B

  • Protection Class: IP68 (fully submersible)

  • pH Range: 6.5 – 8.5

  • Liquid Temperature: 0 – 40°C

  • Duty: Continuous use rated

Why Choose the Trevoli EF Series?

The EF Series is purpose-built for effluent pumping into dripline irrigation systems. With high head pressure, reliable float switch operation, and protection against thermal overload, these pumps are a dependable solution for septic system outflow in New Zealand conditions.

FAQs

Q: Are these pumps designed for effluent only?
A: Yes – they are specifically developed for septic tank effluent to dripline irrigation.

Q: Can they handle solids?
A: Yes – up to 2mm, as they are designed for clarified effluent.

Q: Do they come with a float switch?
A: Yes – all EF Series pumps include a float switch for automatic and safe operation.

Q: What’s the warranty?
A: All Trevoli EF Series pumps include a 2-year warranty.
