Trevoli Whole House UV Filtration System - Option 1, Rainwater & Tank Water, 55W NZ

Single-housing UV filtration for rainwater and tank water. This system combines a Big Blue 10 inch jumbo filter housing with a 55W UV chamber to destroy bacteria, viruses, and micro-organisms including E.coli, Cryptosporidium, Campylobacter, and Giardia — without chemicals.

The Pentair Dual Gradient 25-1 cartridge in the filter housing does the work of two sediment stages in one — filtering at 25 micron on the outside and progressively finer toward the centre, finishing at 1 micron. This prepares the water for the UV chamber downstream.

The UV unit uses a Deluxe Countdown Timer Ballast that tracks hours of lamp operation and counts down remaining lamp life — so you always know when the lamp is due for replacement.

Suited to medium homes on rainwater or tank supply. Note: bore water quality varies significantly — we recommend testing your bore water before purchasing to ensure this configuration suits your supply.

Ships as two separate items. Connection fittings are not included — a licensed plumber will need to make the connections between the filter housing and UV unit.

Configure your system

Surge protector (select from dropdown):

• No surge protector
• Surge protector (recommended — protects the ballast and lamp from power surges and cuts)

Bracket type (select from dropdown):

• Standard powder-coated bracket (included)
• Stainless steel bracket (upgrade)

Pressure gauge (select from dropdown):

• No pressure gauge
• Pressure gauge (add-on)

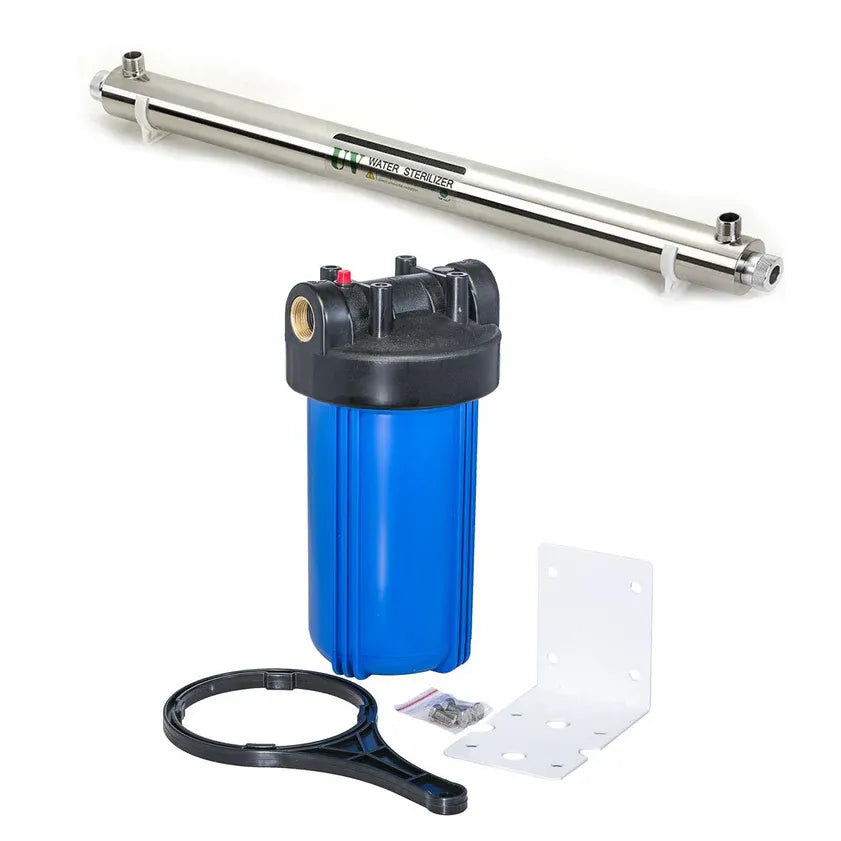

What's in the system

Filter Housing — 10 Inch Big Blue with Pentair Dual Gradient 25-1

• 1x 10 inch Big Blue jumbo filter housing
• 1x Pentair Dual Gradient 25-1 filter (25 to 1 micron dual gradient sediment)
• Powder-coated bracket
• Housing spanner
• 25mm BSP (1 inch) connection

UV Unit — 12GP 55W UV Chamber with Countdown Timer Ballast

• 1x 12GP UV chamber (910mm long, 2.5 inch diameter)
• 1x 55W replaceable UV lamp
• 1x Deluxe Countdown Timer Ballast
• UV port: 20mm (3/4 inch)

Note: connection fittings between the filter housing and UV unit are not included.

How the system works

Stage 1 — Dual Gradient Sediment Filtration

The Pentair Dual Gradient 25-1 combines two stages of sediment filtration in one cartridge. Water enters at 25 micron on the outer layer and is progressively filtered to 1 micron toward the centre, removing sediment, silt, and fine particles before reaching the UV chamber.

Stage 2 — UV Sterilisation

Water flows through the 55W UV chamber where it is exposed to ultraviolet light, destroying 99.99% of harmful micro-organisms including E.coli, Cryptosporidium, Campylobacter, and Giardia. No chemicals are added.

The Deluxe Countdown Timer Ballast tracks hours of UV lamp operation and counts down the remaining lamp life. When the countdown reaches zero, the lamp needs replacing — regardless of whether it is still glowing. UV output degrades before the lamp visibly fails.

For best results, install cartridge filtration before the UV chamber. The Dual Gradient 25-1 cartridge ensures clear water enters the UV chamber, which is essential for effective UV treatment.

Important — surge protector recommended

Power surges and cuts can damage the UV ballast and lamp. Installing a surge protector is strongly recommended to protect the unit — and note that damage caused by power surges may affect the outcome of your warranty claim on the ballast and lamp. Select the surge protector option in the dropdown to add one to your order.

A note on bore water

Bore water quality varies significantly from site to site. Filtration and UV treatment alone may not be sufficient depending on your bore's mineral content, bacterial load, or other characteristics. We recommend having your bore water tested before selecting a filtration system — get in touch and we'll help you interpret the results and confirm this is the right configuration for your supply.

Key specs at a glance

Housing size	10 inch jumbo
Filter cartridge	Pentair Dual Gradient 25-1 (25–1 micron)
Filter connection	25mm BSP (1 inch)
Max filter pressure	125 PSI
UV lamp	55W
UV chamber	12GP (910mm x 2.5" diameter)
UV port size	20mm (3/4 inch)
Recommended flow	45 LPM (30 mJ/cm²)
Max flow	84 LPM (16 mJ/cm²)
Temperature range	2–40°C
Ballast	Deluxe Countdown Timer
Connection fittings	Not included
Warranty	2 years back to base / Pro rata on UV lamp

What's in the box

Filter housing (ships separately):

• 10 inch Big Blue jumbo filter housing
• Pentair Dual Gradient 25-1 cartridge
• Powder-coated bracket (unless stainless steel selected)
• Housing spanner

UV unit (ships separately):

• 12GP 55W UV chamber
• 55W UV lamp
• Deluxe Countdown Timer Ballast
• Surge protector (if selected)

Frequently asked questions

What micro-organisms does the UV unit treat?

The 55W UV chamber destroys 99.99% of harmful micro-organisms including E.coli, Cryptosporidium, Campylobacter, and Giardia — without chemicals or additives.

What is the Countdown Timer Ballast?

The Deluxe Countdown Timer Ballast tracks the total hours of UV lamp operation and counts down the remaining lamp life. When the countdown reaches zero, replace the lamp — don't wait for the lamp to stop glowing. UV output degrades before the lamp visibly fails, so the countdown is the most reliable indicator of when replacement is due.

How is this different from a flow-activated UV system?

This system uses a Countdown Timer Ballast — the UV lamp runs continuously while the unit is powered, accumulating hours of operation. A flow-activated system only runs the UV when water is moving. Both are effective — this system is suited to applications where continuous operation is acceptable and the countdown timer approach to lamp management is preferred.

Why do I need a surge protector?

Power surges and sudden power cuts can damage the UV ballast and lamp. A surge protector prevents this. It is strongly recommended — and note that damage caused by power surges may affect the outcome of your warranty claim. Select the surge protector option in the dropdown.

Does it include connection fittings?

No — connection fittings between the filter housing and UV unit are not included. A licensed plumber will need to make these connections. The filter housing uses 25mm BSP (1 inch) connections and the UV port is 20mm (3/4 inch).

Do I need a plumber to install it?

Yes — we recommend a licensed plumber for installation. The filter housing and UV unit need to be plumbed in sequence, and the UV unit must be the last stage before water enters the home. Connection fittings are not included.

Is this suitable for bore water?

It can be, but bore water varies significantly from site to site. We recommend testing your bore water before ordering — get in touch and we'll help you confirm this is the right configuration for your supply.

What warranty does it come with?

2 years back to base on the system. The UV lamp carries a pro rata warranty. Damage caused by power surges may affect warranty outcomes on the ballast and lamp — a surge protector is strongly recommended.
