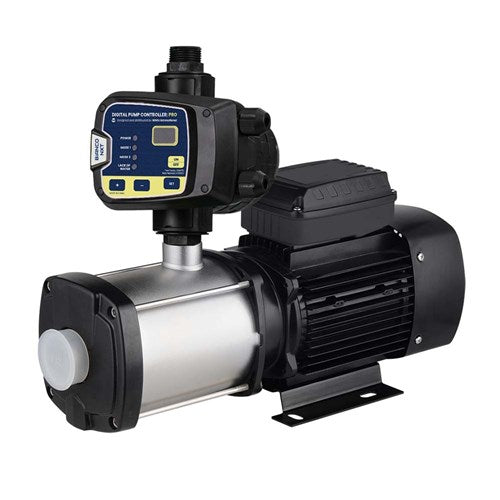

Bianco NXT Multi Series – Horizontal Multistage Pressure Systems

The Bianco NXT Multi Series offers high-performance horizontal multistage pressure systems designed for both domestic and light commercial water supply. With a durable stainless steel build and corrosion-resistant internals, these pumps provide consistent water pressure for everything from home water supply to garden irrigation and car washing. Each system comes pre-fitted with a Bianco NXT Pro controller, delivering plug-and-play functionality, intelligent pressure management, and protection from dry running. These units are specifically suited for flooded suction setups and deliver long-lasting, whisper-quiet performance.

Models Available (Dropdown Selection)
BIA-MULTI36PRO: 0.75kW, Max Head 55m, Max Flow 70L/min
BIA-MULTI56PRO: 1.3kW, Max Head 60m, Max Flow 108L/min
BIA-MULTI103PRO: 2.2kW, Max Head 49m, Max Flow 233L/min

Specifications
Power supply: 230V single-phase
Controller: NXT Pro with adjustable Mode 1 and Mode 2 settings
Start pressure (Mode 1): Adjustable
Start/stop pressure (Mode 2): Adjustable (requires pressure tank)
Pump body, diffuser, and impeller: Corrosion-resistant stainless steel
Motor: TEFC with in-built auto reset thermal overload protection
Check valve: Integrated non-return valve
Connection sizes:
– BIA-MULTI36PRO: 1" BSPF x 1" BSPM
– BIA-MULTI56PRO: 1¼" BSPF x 1" BSPM
– BIA-MULTI103PRO: 1½" BSPF x 1¼" BSPM
Application: Suitable for flooded suction only
Controller mounting: Pre-fitted, plug-and-play

Why You Should Choose the Bianco NXT Multi Series
These systems offer reliable and powerful water delivery for homes of all sizes. Their corrosion-resistant construction ensures longevity, and the dual-mode controller provides the flexibility to adapt the system to your preferred pressure setup. The plug-and-play installation simplifies setup, while quiet operation and intelligent features like dry run protection make them a standout choice for modern domestic and garden systems.

FAQs

Can this pump be used for drinking water?
Yes, the materials used are suitable for clean water and meet domestic water supply standards.

Does the pump need a pressure tank?
Only if you plan to use Mode 2 for adjustable stop pressure. Mode 1 can operate without a pressure tank.

Is it easy to install?
Yes, the system is pre-wired and features plug-and-play leads for straightforward installation.
