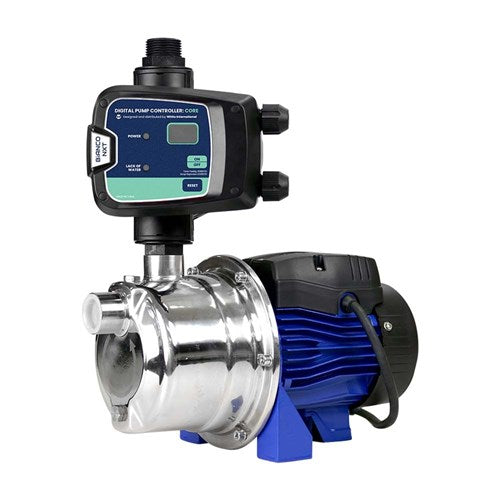

Bianco NXT Stainless Steel Jet Pump with Electronic Pump Controller

The Bianco NXT Stainless Steel Jet Pump is a self-priming, surface-mounted pressure system designed for domestic water supply applications where suction lift is required. With a suction capability of up to 6 meters, it efficiently supplies water to households and small irrigation systems. Equipped with the advanced NXT electronic pump controller, it offers automatic starting, stopping, and restarting after power or water loss, ensuring consistent water pressure and protection against dry running.

Models Available (Dropdown Selection)

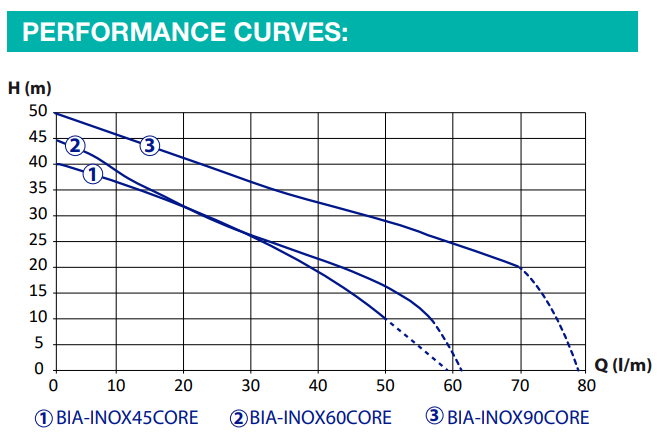

BIA-INOX45CORE: 0.45kW, Max Head 40m, Max Flow 58L/min, Suitable for up to 5 taps
BIA-INOX60CORE: 0.6kW, Max Head 45m, Max Flow 62L/min, Suitable for up to 6 taps
BIA-INOX90CORE: 0.75kW, Max Head 50m, Max Flow 78L/min, Suitable for up to 7 taps

Specifications
Power Supply: 230V single-phase
Motor: TEFC with in-built auto reset thermal overload protection
Controller: NXT electronic controller with digital display
Start Pressure: 2.2 bar (user adjustable)
Suction Lift: Up to 6 meters
Pump Body: Stainless Steel 304
Impeller: Glass-reinforced Noryl
Jet, Venturi, Diffuser: Glass-reinforced Noryl
Mechanical Seal: Carbon/Ceramic/Nitrile
Inlet/Outlet Ports: 1" BSPF inlet, 1" BSPM outlet
Applications: Household water supply, irrigation, water transfer, washing systems, pressure boosting

Why You Should Choose the Bianco NXT Stainless Steel Jet Pump
This pump offers reliable and efficient water supply solutions for domestic applications. Its self-priming capability and corrosion-resistant construction ensure durability and ease of use. The NXT electronic controller provides intelligent features such as dry run protection, automatic restart, and real-time pressure monitoring, enhancing system longevity and user convenience.

FAQs

Can this pump be used for drinking water?
Yes, the materials used are suitable for clean water applications, making them appropriate for supplying potable water.

Is a pressure tank required for operation?
While not mandatory, a pressure tank is recommended to enhance system performance and reduce pump cycling.

What maintenance is required for this pump?
Regular inspection for leaks, ensuring the suction line is airtight, and checking the controller's display for any alerts will help maintain optimal performance.
