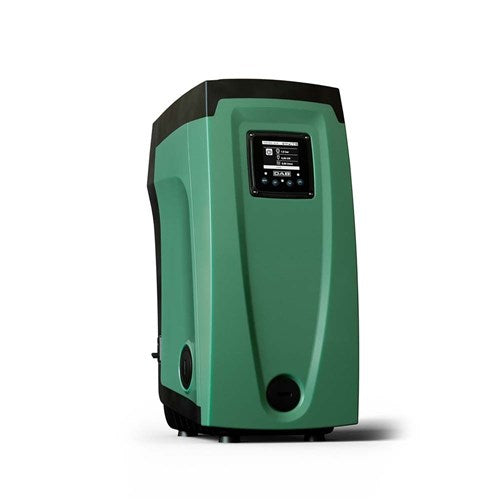

DAB ESYBOX Variable Speed Pressure System – 1.4kW, 120L/min, 61m Head

The DAB ESYBOX sets the benchmark in high-capacity domestic and light commercial water pressure systems. With a 1.4kW self-priming multistage pump, this integrated system delivers a maximum flow of 120 litres per minute and a head of 61 metres, making it ideal for properties with higher water demand and up to 12 outlets. Its built-in inverter technology ensures constant water pressure across all taps while minimising power consumption.

Housed in a sleek, compact body, the ESYBOX includes onboard electronics, flow and pressure sensors, a 2-litre expansion vessel, and a rotatable high-resolution LCD display for intuitive control. Designed for quiet operation at just 45 decibels, this premium booster system combines advanced performance with a modern, space-saving form factor.

Specifications
Motor Power: 1.4kW (2.1HP)
Voltage: 240V
Max Flow Rate: 120L/min
Max Head: 61 metres
Pressure Range: Adjustable up to 6.1 bar
Connections: 1" BSPF inlet and outlet
Expansion Vessel: Integrated 2L
Operating Noise: 45dB
Installation: Horizontal or vertical, with minimal footprint
Protection: IPX4 | Class F motor insulation
Applications: Clean water pressure boosting for larger homes, residential complexes, or light commercial use

Why You Should Choose This Pump
The ESYBOX is engineered to deliver high performance and reliability in environments where demand is greater. Whether it’s multi-storey residential properties, shared dwellings, or light commercial setups, this Italian-made system ensures efficient water delivery with intelligent diagnostics, reduced energy costs, and whisper-quiet operation. No additional components are required for setup, ensuring easy installation and hassle-free maintenance.

FAQs

Q: How quiet is this unit in everyday use?
At just 45 decibels, the ESYBOX is exceptionally quiet and can be installed indoors or in noise-sensitive environments.

Q: Is it suitable for larger homes or multiple outlets?
Yes, it comfortably supports up to 12 taps and is ideal for large properties or shared water systems.

Q: Can it be installed outdoors?
It should be installed in a ventilated, weather-protected area. It can operate in horizontal or vertical orientation to suit available space.

Q: What is the difference between the ESYBOX and the MINI3?
The ESYBOX offers a higher flow and head capacity with a 2L expansion vessel, making it better suited for larger or more demanding water systems.
