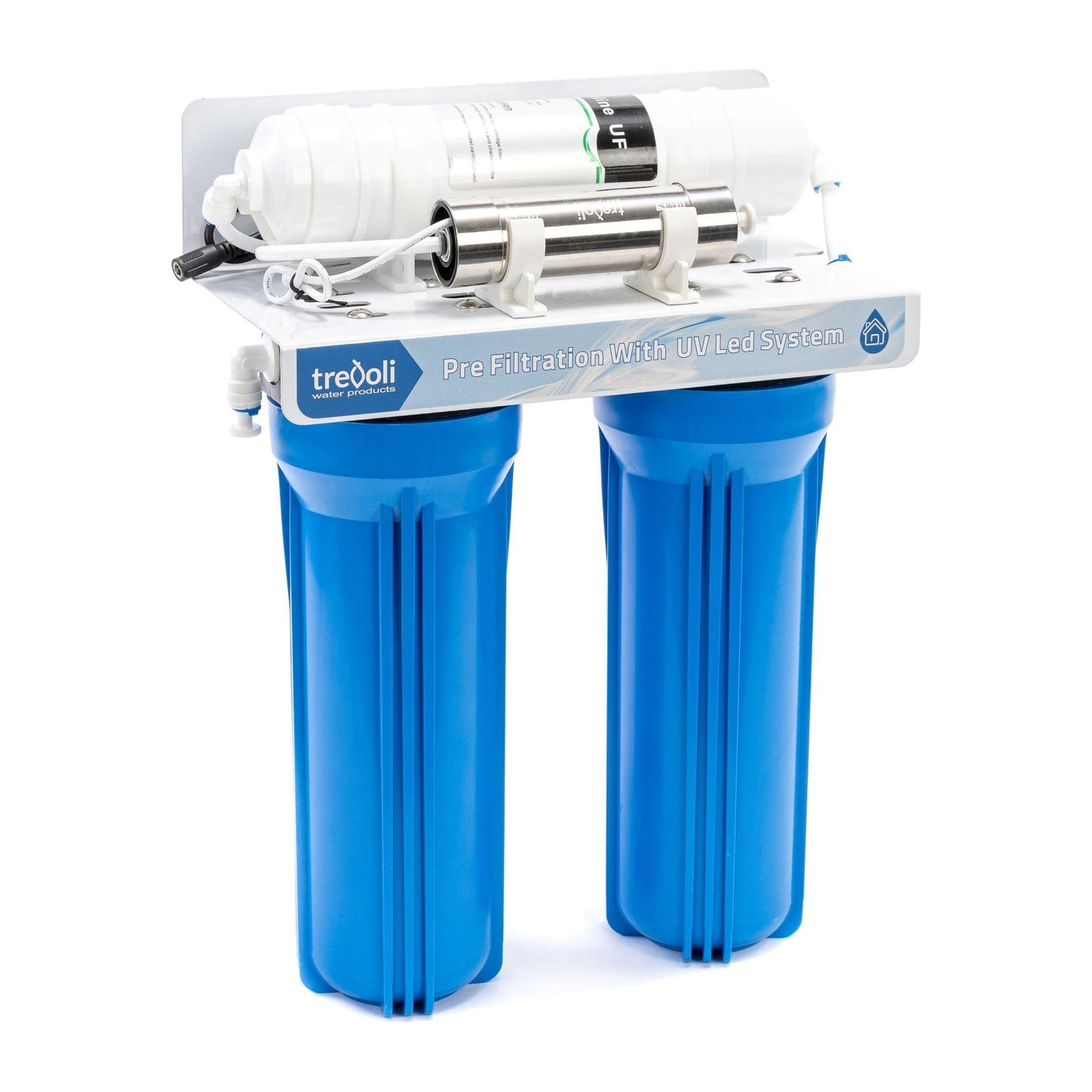

Trevoli Underbench 4-stage Filtration & LED UV System

The Underbench 4-Stage Filtration & LED UV System offers advanced water purification with cutting-edge filtration and sterilisation technology. Designed for both mains and rainwater supplies, this system neutralises 99.99% of harmful bacteria and parasites while effectively reducing sediment, chlorine, taste, and odours. Compact and efficient, this system provides safe and clean water for residential use.

Key Features and Benefits

• Four-Stage Filtration and Sterilisation:
  • Stage 1: 1-micron spun polypropylene (PP) filter removes sediment, silt, dirt, and rust particles.
  • Stage 2: 5-micron carbon block filter reduces chlorine, taste, odours, sand, salt, and rust.
  • Stage 3: Ultrafiltration (UF) filter with 0.1–0.01 micron pores removes bacteria, viruses, parasites, and other organic molecules.
  • Stage 4: UV LED steriliser neutralises 99.99% of harmful microorganisms, including E. coli and Salmonella.
• Eco-Friendly: No chemicals added, preserving water chemistry.
• Advanced LED Technology: Long-lasting UV LED lamp with smart flow switch for energy-efficient operation.
• Robust and Compact Design: Stainless steel bracket, clamps, and a compact footprint for easy underbench installation.

Technical Information

• Operating Temperature: 2°C – 40°C
• Maximum Operating Pressure: 116 psi (8 bar)
• Maximum Flow Rate: 9 Lpm
• Connection Size: 6mm
• Lamp Wattage: 8W
• UV Dosage:
  • 40 mJ/cm²: 3 Lpm
  • 30 mJ/cm²: 5 Lpm
  • 16 mJ/cm²: 9 Lpm

Included Components

• Twin water filter housing kit with PP and carbon block filters.
• Ultrafiltration (UF) filter.
• LED UV steriliser.
• Stainless steel bracket with clamps.
• 1.5m of 1/4" tubing, spanner, faucet, and take-off valve.
• Power adapter for the UV LED system.

Applications

• Perfect for residential properties using mains or rainwater supplies.
• Provides clean and safe drinking water by removing bacteria, viruses, sediment, and chlorine.
• Ideal for underbench installations in kitchens.
