The Aquano Klarify M-220 is a high-flow 2-stage whole house mains water filtration system designed for medium to large homes.

Built around large-capacity 20" Jumbo filter housings, the M-220 combines 5 micron sediment filtration with carbon block filtration to help reduce sediment, chlorine, chemicals, pesticides, unpleasant taste and odour before water is distributed throughout the home.

With a maximum flow rate of 120 L/min, the M-220 provides significantly greater flow capacity for homes with higher simultaneous water demand.

Choose between two system versions:

Premium — AKM220 provides the complete package with additional accessories including pressure gauges, a pressure regulating valve and weather-protection housing covers.

Standard — AKTEM220 is the streamlined version, providing the core two-stage filtration system without the additional premium accessories.

Both versions use the same PS2005J 5 micron sediment filter and CB2010J carbon block filter.

Product Options

Option Name: System Version

Premium — Aquano Klarify M-220 AKM220

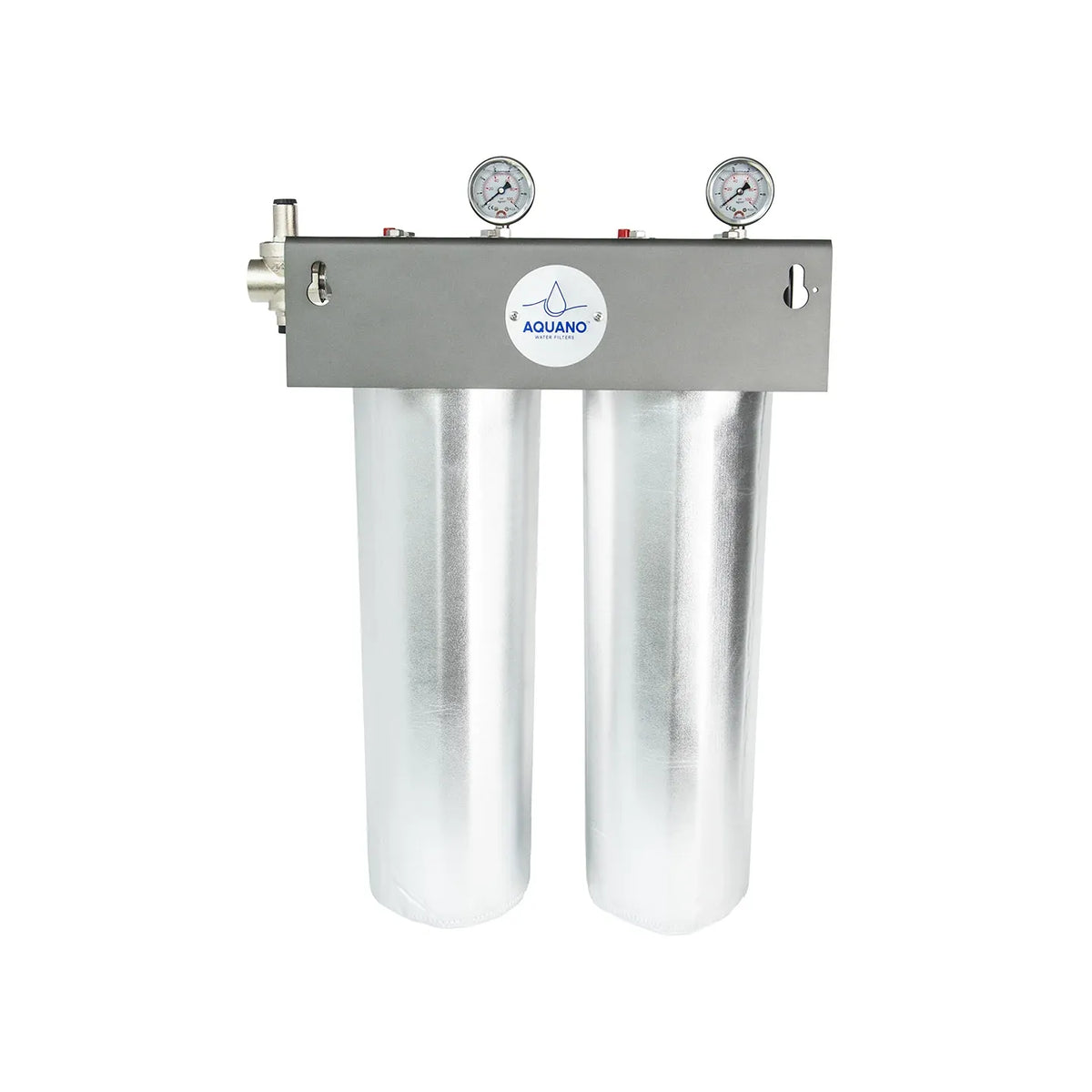

The Premium Aquano Klarify M-220 is the complete version of Aquano's 20" Jumbo two-stage mains water filtration system.

It combines high-flow whole-house filtration with additional equipment for pressure monitoring, pressure regulation and weather protection.

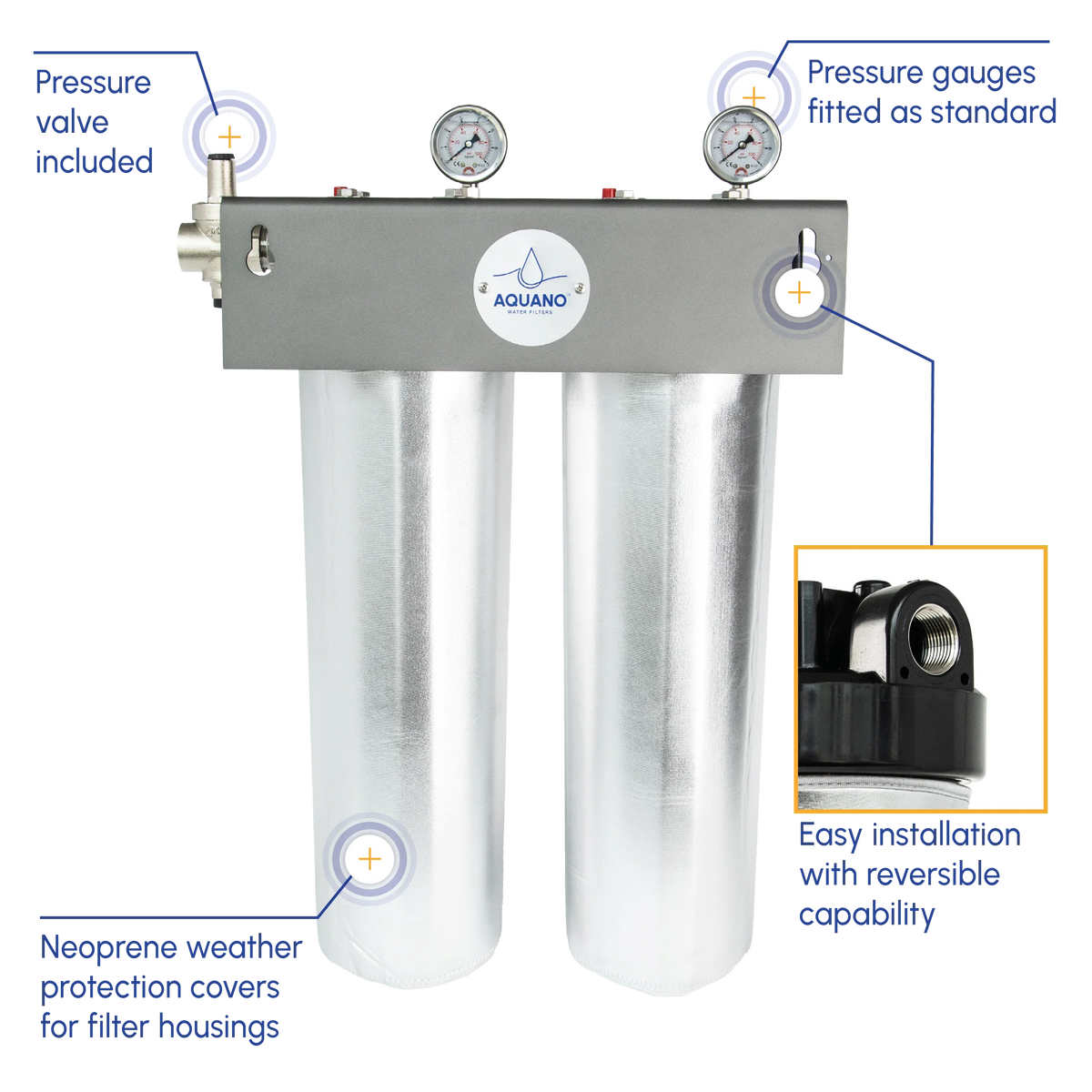

Along with the core filtration system, the Premium AKM220 includes:

• Pressure gauges
• Pressure regulating valve
• Weather-protection housing covers

This makes the Premium version ideal for customers wanting the complete M-220 setup with the additional system accessories already included.

Stage 1 — PS2005J 5 Micron Polyspun Sediment Filter

The first stage uses the Aquano PS2005J 20" Jumbo polyspun sediment cartridge.

Its graded-density construction provides depth filtration down to 5 microns, helping capture:

• Dirt
• Rust
• Silt
• Sand
• Other suspended sediment

Removing sediment at the first stage also helps protect the downstream carbon cartridge from excessive particulate loading.

Stage 2 — CB2010J Carbon Block Filter

Water then passes through the Aquano CB2010J 20" Jumbo carbon block cartridge.

The carbon filtration stage helps reduce chlorine, chemicals, pesticides, unpleasant taste and odour, improving the quality and taste of mains water supplied throughout the home.

Premium M-220 Specifications

Model / SKU: AKM220
System Version: Premium
Housing Size: 20" Jumbo
Filtration: 2 Stage
Sediment Filter: PS2005J
Carbon Filter: CB2010J
Maximum Flow Rate: 120 L/min
Connections: 1" BSP
Operating Pressure: 200–875 kPa
Operating Temperature: 0–52°C
Pressure Gauges: Included
Pressure Regulating Valve: Included
Weather-Protection Housing Covers: Included

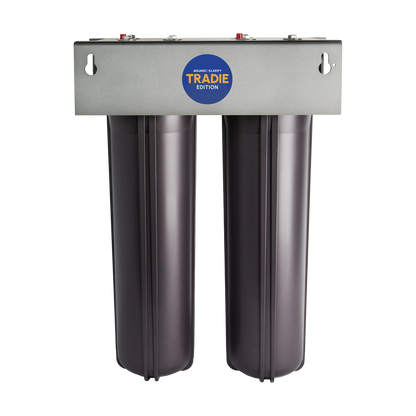

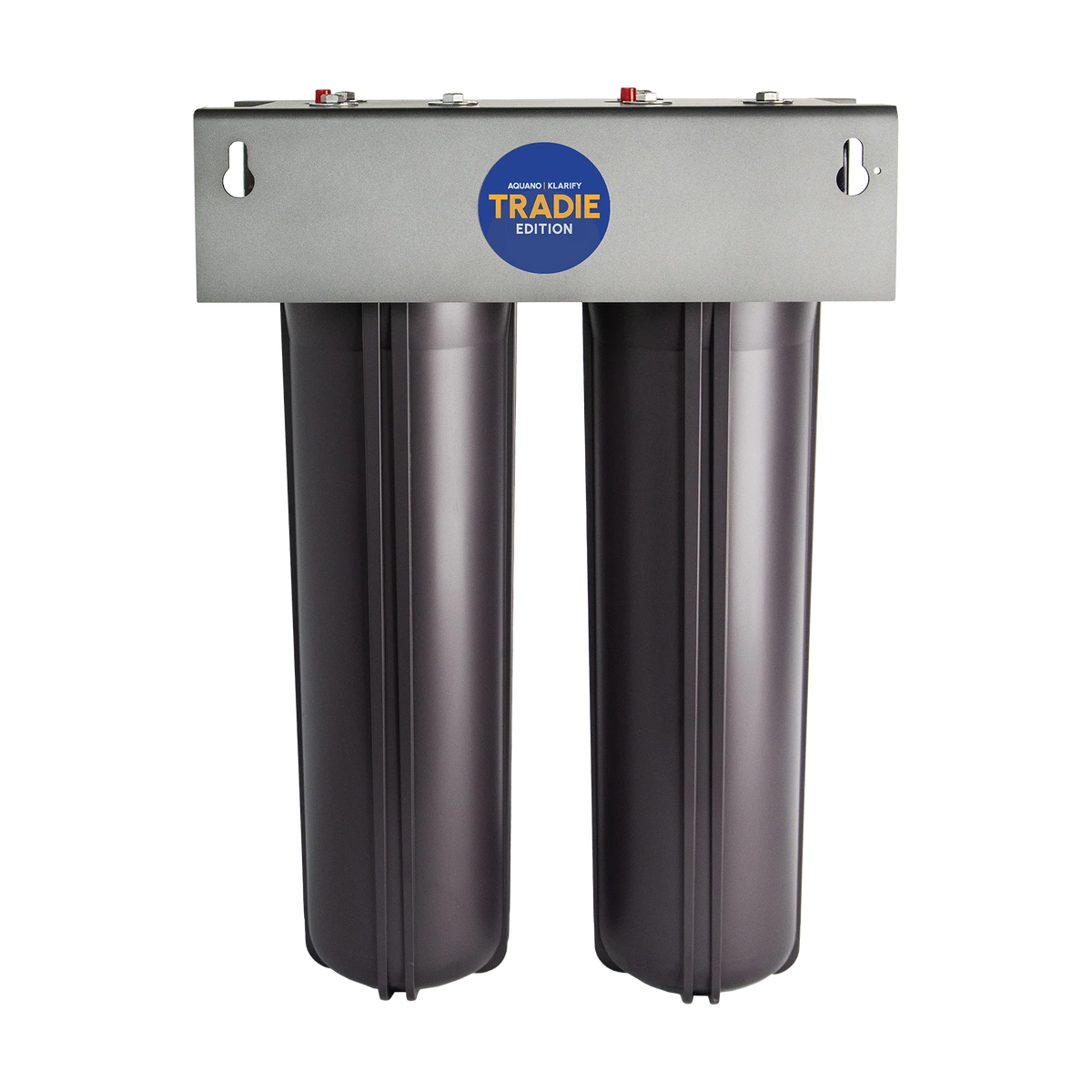

Standard — Aquano Klarify M-220 AKTEM220

The Standard Aquano Klarify M-220 provides the core high-flow two-stage filtration system in a more streamlined package.

Aquano identifies this model as the Tradie Edition M-220. It is designed as a more affordable alternative for customers and installers who want the essential filtration system without all of the additional accessories supplied with the Premium AKM220.

The Standard system retains the same 20" Jumbo filtration format, PS2005J sediment cartridge, CB2010J carbon cartridge and maximum flow rate of 120 L/min.

Stage 1 — PS2005J 5 Micron Polyspun Sediment Filter

The first stage provides 5 micron sediment filtration, helping capture dirt, rust, silt, sand and other particulate contamination from the incoming mains supply.

Stage 2 — CB2010J Carbon Block Filter

The second stage provides carbon filtration to help reduce chlorine, chemicals, pesticides, unpleasant taste and odour.

Standard M-220 Specifications

Model / SKU: AKTEM220
System Version: Standard / Tradie Edition
Housing Size: 20" Jumbo
Filtration: 2 Stage
Sediment Filter: PS2005J
Carbon Filter: CB2010J
Maximum Flow Rate: 120 L/min
Connections: 1" BSP
Operating Pressure: 200–875 kPa
Operating Temperature: 0–52°C
Pressure Gauges: Not Included
Pressure Regulating Valve: Not Included
Weather-Protection Housing Covers: Not Included

Premium vs Standard

Which Version Should I Choose?

Choose the Premium AKM220 if you want the complete M-220 package with pressure gauges, pressure regulation and weather-protection housing covers already included.

Choose the Standard AKTEM220 if you want the same core 20" Jumbo sediment and carbon filtration configuration in a simpler, more economical package without the Premium accessories.

Why Choose the Aquano Klarify M-220?

• High-flow whole house mains water filtration
• Large-capacity 20" Jumbo housings
• Advanced 2-stage filtration
• 5 micron sediment filtration
• Helps capture dirt, rust, silt and sand
• Carbon filtration for chlorine reduction
• Helps reduce chemicals and pesticides
• Improves unpleasant taste and odour
• Maximum flow rate of 120 L/min
• Designed for medium to large homes
• Durable anti-corrosion metal construction
• 1" BSP plumbing connections
• Reversible installation for greater plumbing flexibility
• Initial sediment and carbon cartridges included
• Choice of Premium or Standard
• Premium version includes additional monitoring, pressure-management and weather-protection accessories
• Aquano Hassle Free Warranty

How the 2-Stage Filtration Works

The Klarify M-220 uses two complementary filtration stages to treat incoming mains water before it is distributed throughout the property.

Stage 1 — 5 Micron Sediment Filtration

Water first passes through the PS2005J 20" Jumbo polyspun sediment cartridge.

The graded-density filter provides depth filtration down to 5 microns, helping capture sediment such as dirt, rust, silt and sand.

This first stage also helps reduce the amount of particulate matter reaching the carbon block cartridge.

Stage 2 — Carbon Block Filtration

After sediment filtration, water passes through the CB2010J 20" Jumbo carbon block cartridge.

The carbon stage helps reduce chlorine, chemicals, pesticides, unpleasant taste and odour.

Filtration Process

Mains Water → 5 Micron Sediment Filtration → Carbon Block Filtration → Filtered Water Throughout the Home

High-Flow 20" Jumbo Filtration

The M-220 uses 20" Jumbo housings, providing a larger filtration format for homes with greater water demand.

The system has a stated maximum flow rate of 120 L/min, making it particularly well suited to medium and larger households where multiple taps, showers or appliances may require water at the same time.

The larger filter format also provides substantially more filtration media than smaller cartridge systems.

Whole House Mains Water Filtration

The Aquano Klarify M-220 is designed for installation on the incoming mains water supply.

Rather than treating water at a single kitchen tap, the M-220 filters incoming water before it is distributed throughout the home.

This provides a whole-house solution for customers wanting sediment and carbon filtration across multiple water outlets.

Best Suited For

• Medium to large homes
• Mains water supplies
• Higher household water demand
• Whole-house water filtration
• Chlorinated mains water
• Water with unpleasant taste or odour
• Sediment reduction
• Dirt, rust, silt and sand
• Chlorine reduction
• Reducing selected chemicals and pesticides
• Protecting downstream equipment from sediment
• Customers wanting 20" Jumbo filtration
• Customers requiring higher whole-house flow capacity
• Homes wanting a choice between a full-accessory and streamlined system

Key Specifications

System Dimensions

430 × 600 × 210 mm

The taller M-220 configuration accommodates its 20" Jumbo filtration housings while retaining a compact twin-housing whole-house layout.

Premium Accessory Package

The Premium AKM220 adds the full accessory package to the core filtration system.

Pressure Gauges

The Premium system includes pressure gauges, allowing convenient pressure monitoring at the filtration system.

Pressure Regulating Valve

A pressure regulating valve is included for pressure management as part of the system installation.

Weather-Protection Housing Covers

The Premium system includes weather-protection housing covers to provide additional protection for the 20" Jumbo filter housings.

These accessories make the AKM220 the more complete option for customers who want the full M-220 setup.

Reversible Installation

The Klarify M-220 features reversible installation capability, providing flexibility when integrating the filtration system with existing plumbing.

This can be useful where incoming pipe direction or the available installation location determines the preferred orientation of the system.

Installation

The Aquano Klarify M-220 is designed for installation on a mains water supply using 1" BSP connections.

Installation should account for:

• Incoming water-flow direction
• Suitable mounting location
• Available vertical clearance
• Operating pressure
• Access to the housings for future cartridge replacement

The system operates within a specified pressure range of 200–875 kPa and temperature range of 0–52°C.

Professional installation is recommended where required to ensure the system is correctly integrated with the property's mains water plumbing.

Filter Maintenance

Both the Premium and Standard M-220 use the same replacement cartridges:

Stage 1: Aquano PS2005J — 20" Jumbo 5 Micron Polyspun Sediment Cartridge
Stage 2: Aquano CB2010J — 20" Jumbo Carbon Block Cartridge

Replacement frequency will depend on incoming water quality, household consumption, sediment loading and local mains-water conditions.

Monitor water flow and filtration performance and replace cartridges when required.

What's Included

Premium — AKM220

Premium M-220 system including:

• Aquano Klarify M-220 two-stage filtration system
• 1 × PS2005J 20" Jumbo 5 Micron Polyspun Sediment Cartridge
• 1 × CB2010J 20" Jumbo Carbon Block Cartridge
• Pressure gauges
• Pressure regulating valve
• Weather-protection housing covers

Standard — AKTEM220

Standard M-220 system including:

• Aquano Klarify M-220 two-stage filtration system
• 1 × PS2005J 20" Jumbo 5 Micron Polyspun Sediment Cartridge
• 1 × CB2010J 20" Jumbo Carbon Block Cartridge

The Standard version is the trimmed-down package without the Premium model's pressure gauges, pressure regulating valve or weather-protection housing covers.

Frequently Asked Questions

What is the difference between the Premium and Standard M-220?

The Premium AKM220 is the full-accessory system and includes pressure gauges, a pressure regulating valve and weather-protection housing covers.

The Standard AKTEM220 provides the core filtration system without those additional premium accessories.

Do both versions use the same filters?

Yes. Both versions use the PS2005J 5 micron polyspun sediment cartridge followed by the CB2010J carbon block cartridge.

Does the Standard version have the same flow rate?

Yes. Both versions have a stated maximum flow rate of 120 L/min.

What does the M-220 help filter?

The system helps reduce sediment, dirt, rust, silt, sand, chlorine, chemicals, pesticides, unpleasant taste and odour.

What size are the filter housings?

The M-220 uses 20" Jumbo filter housings.

Is this system suitable for mains water?

Yes. The Klarify M-220 is specifically designed for mains water filtration.

What size home is it suitable for?

Aquano positions the M-220 for medium to large homes.

What plumbing connections does it use?

The system uses 1" BSP connections.

Can the system be installed in either direction?

The M-220 features reversible installation capability, providing greater flexibility when connecting it to existing plumbing.

Are the initial filters included?

Yes. Both versions include their initial PS2005J sediment and CB2010J carbon filter cartridges.

Which version should I choose?

Choose Premium if you want the complete system with pressure gauges, pressure regulation and weather-protection accessories.

Choose Standard if you want the core high-flow M-220 filtration system in a more streamlined and economical package.
