The Aquano Klarify Tradie Edition UV-210 is an all-in-one 2-stage whole house filtration and UV water treatment system designed for mains and rainwater supplies.

Combining two 10" Jumbo sediment filtration stages with a powerful 46W ultraviolet system, the UV-210 helps remove sediment before exposing the filtered water to UV treatment for an additional barrier against microorganisms.

With a maximum flow rate of 70 L/min, the system is well suited to small and medium-sized homes requiring whole-house filtration and UV treatment.

Choose between the Indoor UV-210I or the Outdoor UV-210C. Both provide the same core filtration and UV performance, while the outdoor model adds a lockable anti-tamper and weather-protection lid for exposed installations.

Product Options

Option Name: Installation Type

Indoor — Aquano Klarify Tradie Edition UV-210I

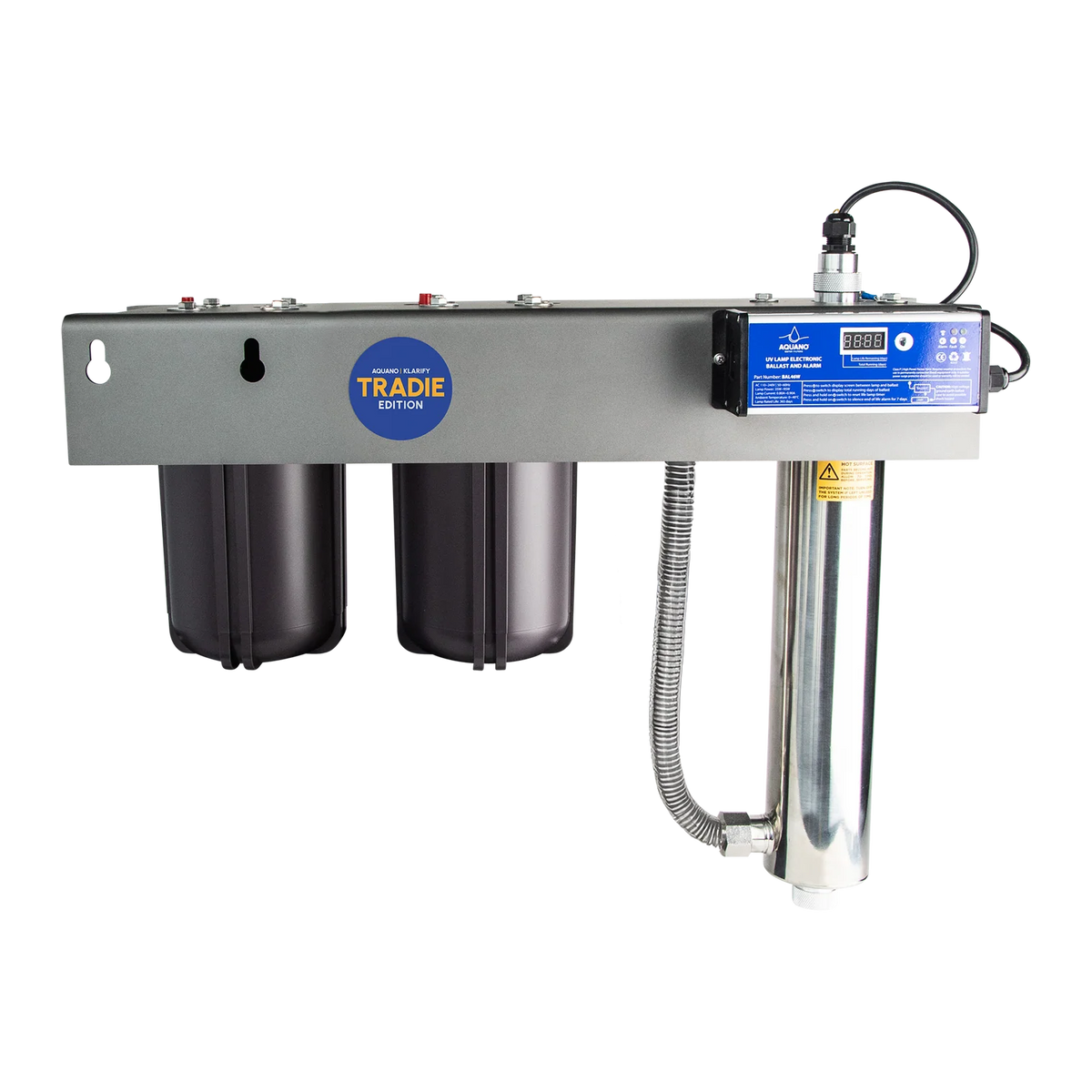

The Aquano UV-210I is designed for homes with suitable space for an indoor or otherwise protected installation.

It combines two 10" Jumbo sediment filtration stages with Aquano's UVS46W ultraviolet system, providing whole-house filtration and UV treatment in one integrated unit.

Stage 1 — PC1020J 20 Micron Pleated Sediment Filter

Incoming water first passes through the Aquano PC1020J 20 micron pleated sediment cartridge.

This coarse pre-filtration stage helps capture larger suspended particles such as:

• Dirt
• Rust
• Silt
• Sand
• Other suspended sediment

The pleated cartridge provides a large filtration surface area and helps reduce sediment loading on the finer second-stage cartridge.

Stage 2 — PS1001J 1 Micron Polyspun Sediment Filter

Water then passes through the Aquano PS1001J 1 micron polyspun sediment cartridge.

Its graded-density depth filtration provides finer sediment removal before water reaches the UV chamber.

UV Stage — UVS46W

After the two filtration stages, water passes through the Aquano UVS46W ultraviolet system fitted with a UVL46W lamp.

UV treatment uses ultraviolet light as a chemical-free method of treating microorganisms in the water.

Aquano states that the system provides a UV dose of 30 mJ/cm² at 70 L/min and can kill up to 99.99% of bacteria under the specified operating conditions.

The system is also equipped with:

• UV lamp countdown timer
• Audible failure alarm
• Visible failure alarm

These features make it easier to monitor the UV lamp and identify a lamp or system fault.

Indoor UV-210I Specifications

Model / SKU: TEUV210I
Installation: Indoor / Protected
Housing Size: 10" Jumbo
Filtration Stages: 2 + UV
Stage 1 Filter: PC1020J — 20 Micron Pleated
Stage 2 Filter: PS1001J — 1 Micron Polyspun
UV System: UVS46W
UV Lamp: UVL46W
UV Dose: 30 mJ/cm² @ 70 L/min
Maximum Flow Rate: 70 L/min
Connections: 1" BSP
Operating Pressure: 300–875 kPa
Operating Temperature: 0–52°C
System Dimensions: 680 × 700 × 210 mm

Outdoor — Aquano Klarify Tradie Edition UV-210C

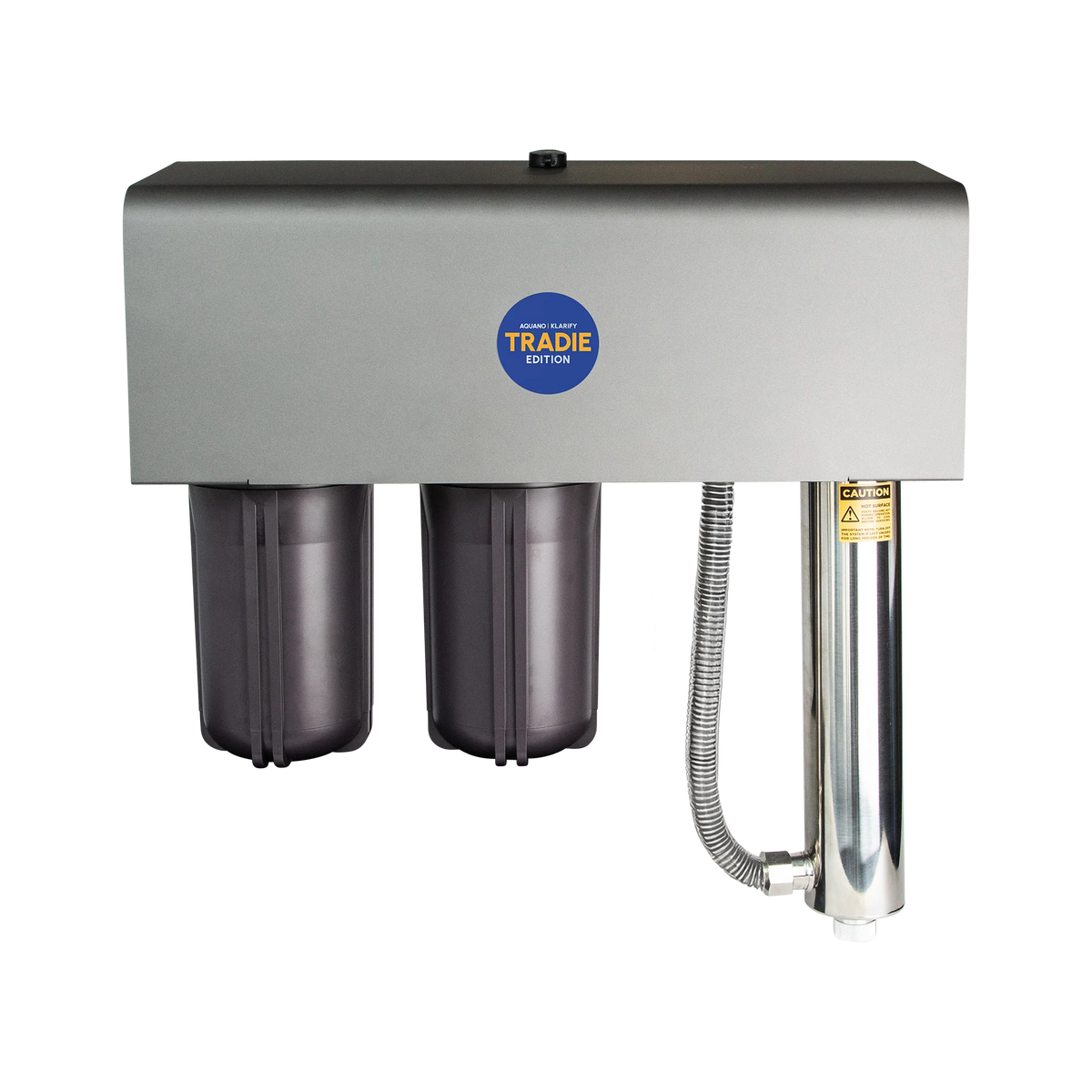

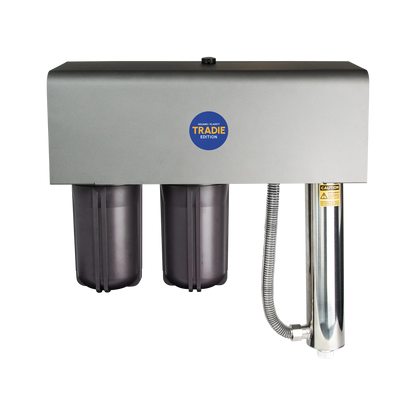

The Aquano UV-210C provides the same core two-stage filtration and 46W UV treatment as the indoor system, while adding protection specifically suited to outdoor installation.

The key difference is its lockable anti-tamper and weather-protection lid, which helps protect the filtration and UV equipment when installed outdoors.

Stage 1 — PC1020J 20 Micron Pleated Sediment Filter

The first filter captures larger dirt, rust, silt, sand and other suspended sediment before the water moves to finer filtration.

Stage 2 — PS1001J 1 Micron Polyspun Sediment Filter

The second stage provides 1 micron depth filtration, further reducing fine particulate matter before the UV treatment stage.

UV Stage — UVS46W

Filtered water then passes through the 46W UV system for chemical-free ultraviolet treatment.

The outdoor system uses the same:

• UVS46W UV system
• UVL46W replacement lamp
• 30 mJ/cm² UV dose at 70 L/min
• 70 L/min maximum flow
• UV lamp countdown timer
• Audible failure alarm
• Visible failure alarm

Outdoor Weather Protection

The UV-210C includes a lockable anti-tamper and weather-protection lid.

This makes it the appropriate choice where the system will be installed outside and exposed to environmental conditions.

Outdoor UV-210C Specifications

Model / SKU: TEUV210C
Installation: Outdoor
Housing Size: 10" Jumbo
Filtration Stages: 2 + UV
Stage 1 Filter: PC1020J — 20 Micron Pleated
Stage 2 Filter: PS1001J — 1 Micron Polyspun
UV System: UVS46W
UV Lamp: UVL46W
UV Dose: 30 mJ/cm² @ 70 L/min
Maximum Flow Rate: 70 L/min
Connections: 1" BSP
Operating Pressure: 300–875 kPa
Operating Temperature: 0–52°C
System Dimensions: 680 × 700 × 210 mm
Weather Protection: Lockable anti-tamper weather-protection lid

Indoor vs Outdoor

Which Version Should I Choose?

Choose the Indoor UV-210I when the filtration system can be installed inside a suitable protected area.

Choose the Outdoor UV-210C when the system needs to be installed outside. It includes the additional lockable anti-tamper and weather-protection lid designed for exposed installations.

The filtration cartridges, UV system and maximum treatment flow are otherwise the same.

Why Choose the Aquano Klarify Tradie Edition UV-210?

• All-in-one whole house filtration + UV treatment
• Suitable for mains and rainwater
• Designed for small to medium-sized homes
• Two-stage sediment filtration
• 20 micron pleated pre-filter
• 1 micron polyspun fine sediment filter
• Powerful 46W UV system
• UV dose of 30 mJ/cm² at 70 L/min
• Maximum flow rate of 70 L/min
• Chemical-free UV treatment process
• Helps control microorganisms in the water
• UV lamp countdown timer
• Audible and visible UV failure alarms
• Durable anti-corrosion metal construction
• 1" BSP connections
• Initial filter cartridges included
• Choice of Indoor or Outdoor
• Outdoor version includes lockable weather protection
• Aquano Hassle Free Warranty

How the System Works

The UV-210 combines physical filtration with ultraviolet water treatment.

Stage 1 — 20 Micron Pleated Filtration

Incoming Water → PC1020J

The first stage captures larger sediment with a 20 micron washable pleated cartridge.

This helps remove larger suspended particles and reduces the sediment load reaching the finer downstream filter.

Stage 2 — 1 Micron Depth Filtration

PC1020J → PS1001J

Water then passes through a 1 micron polyspun depth filter, providing finer sediment removal.

Fine pre-filtration is particularly useful before UV treatment because reducing suspended material helps provide clearer water entering the UV chamber.

Stage 3 — Ultraviolet Treatment

PS1001J → UVS46W

The pre-filtered water then enters the UV chamber, where it is exposed to ultraviolet light.

Unlike chemical treatment, UV does not require disinfectant chemicals to be added to the water.

Complete Treatment Sequence

Water Supply → 20 Micron Pleated Sediment → 1 Micron Polyspun Sediment → 46W UV Treatment → Treated Water Throughout the Home

UV Treatment Performance

The UV-210 uses Aquano's UVS46W UV system with a UVL46W lamp.

At the rated system flow, Aquano specifies:

UV Dose: 30 mJ/cm²
Flow at Rated Dose: 70 L/min
Maximum Flow Rate: 70 L/min

Aquano states the system can kill up to 99.99% of bacteria.

The manufacturer's product description also identifies E. coli, Giardia and Cryptosporidium cysts among the microorganisms targeted by the UV treatment system.

Actual UV treatment performance depends on the system being correctly installed, maintained and operated within its specified conditions, with water of suitable quality for effective UV transmission.

Suitable for Mains and Rainwater

Unlike filtration systems designed specifically for one water source, the Klarify Tradie Edition UV-210 is suitable for both:

• Mains water
• Rainwater

For rainwater applications, the combination of sediment filtration and UV treatment provides a useful multi-barrier approach.

For mains water, the system can provide additional sediment filtration and UV treatment where required.

UV Monitoring and Alarm System

The UV-210 includes built-in monitoring features to help ensure the UV system is maintained correctly.

UV Lamp Countdown Timer

The countdown timer helps monitor the operating life of the UV lamp and indicates when lamp replacement is approaching.

Audible Failure Alarm

An audible alarm provides an alert if the UV lamp or system experiences a detected failure.

Visible Failure Alarm

A visible warning provides an additional indication of a UV system fault.

These features are important because a UV lamp may not provide effective treatment indefinitely simply because the system remains powered.

Best Suited For

• Small to medium-sized homes
• Whole-house water filtration
• Rainwater supplies
• Mains water supplies
• Homes requiring UV water treatment
• Sediment-heavy water
• Dirt, rust, silt and sand
• Properties wanting chemical-free UV treatment
• Indoor filtration installations
• Outdoor filtration installations
• Homes requiring up to 70 L/min
• Customers wanting filtration and UV treatment in one integrated system

Key Specifications

Indoor & Outdoor Installation

Indoor UV-210I

The UV-210I is designed for installations where the system can be kept indoors or in an appropriately protected location.

It provides the full filtration and UV treatment system without the external weather-protection lid found on the C model.

Outdoor UV-210C

The UV-210C is designed for outdoor installations and includes a:

Lockable anti-tamper and weather-protection lid

This provides additional protection for the filtration and UV equipment while also helping prevent unauthorised access.

Installation

The Klarify UV-210 uses 1" BSP connections and is designed as an integrated whole-house treatment system.

Installation should allow for:

• Correct inlet and outlet orientation
• Appropriate mounting and support
• Suitable power supply for the UV system
• Access for filter replacement
• Access for UV lamp servicing
• Adequate clearance around the system
• Operation within the specified pressure range
• Suitable protection for the installation environment

The system operates between 300 and 875 kPa and within a water temperature range of 0–52°C.

Professional installation is recommended to ensure the filtration and UV components are correctly integrated with the property's water supply.

Filter & UV Maintenance

The system uses two replaceable filtration cartridges:

Stage 1: Aquano PC1020J — 20 Micron Pleated Sediment Filter
Stage 2: Aquano PS1001J — 1 Micron Polyspun Sediment Filter

Filter replacement frequency depends on:

• Incoming water quality
• Sediment loading
• Household water usage
• Water source
• Flow restriction through the cartridges

The UVL46W lamp is also a replaceable service component.

The built-in UV lamp countdown timer assists with monitoring lamp service life, while the audible and visible alarms help alert users to detected UV system failures.

What's Included

Indoor — TEUV210I

• 1 × Aquano Klarify Tradie Edition UV-210I system
• 1 × PC1020J 20 Micron Pleated Sediment Cartridge
• 1 × PS1001J 1 Micron Polyspun Sediment Cartridge
• 1 × UVS46W UV system
• 1 × UVL46W UV lamp
• UV lamp countdown timer
• Audible and visible failure alarm

Outdoor — TEUV210C

• 1 × Aquano Klarify Tradie Edition UV-210C system
• 1 × PC1020J 20 Micron Pleated Sediment Cartridge
• 1 × PS1001J 1 Micron Polyspun Sediment Cartridge
• 1 × UVS46W UV system
• 1 × UVL46W UV lamp
• UV lamp countdown timer
• Audible and visible failure alarm
• Lockable anti-tamper and weather-protection lid

Frequently Asked Questions

What is the difference between the UV-210I and UV-210C?

The core filtration and UV components are the same.

The UV-210I is intended for indoor/protected installation, while the UV-210C includes a lockable anti-tamper and weather-protection lid for outdoor installation.

What filters are included?

Both versions include:

PC1020J — 20 micron pleated sediment cartridge
PS1001J — 1 micron polyspun sediment cartridge

What UV system does it use?

Both systems use the Aquano UVS46W UV system with a UVL46W lamp.

What is the maximum flow rate?

The maximum stated flow rate is 70 L/min.

What UV dose does it provide?

Aquano specifies 30 mJ/cm² at 70 L/min.

Is it suitable for rainwater?

Yes. The UV-210 is suitable for mains and rainwater supplies.

Does it use chemicals for UV treatment?

No disinfectant chemicals are added by the UV process itself. The system uses ultraviolet light to treat microorganisms as water passes through the UV chamber.

Does it remove sediment?

Yes. The system includes a 20 micron pleated cartridge followed by a 1 micron polyspun cartridge before the UV stage.

Does the system have a UV lamp alarm?

Yes. It includes both audible and visible failure alarms.

Does it tell me when the UV lamp needs attention?

The system includes a UV lamp countdown timer to assist with lamp maintenance.

Which version should I choose?

Choose Indoor when the system will be installed in an appropriately protected indoor location.

Choose Outdoor when the system will be installed outside and requires the additional lockable weather-protection lid.
