The Aquano Klarify Tradie Edition UV-220 is a high-flow 20" Jumbo whole house filtration and UV water treatment system designed for medium to large homes.

Combining two stages of sediment filtration with a 46W ultraviolet system, the UV-220 helps remove sediment before water enters the UV chamber for chemical-free treatment against microorganisms.

The system has a maximum flow rate of 120 L/min, with the UV system delivering a specified 30 mJ/cm² UV dose at 70 L/min.

Choose between the Indoor UV-220I for protected installations or the Outdoor UV-220C, which adds a lockable anti-tamper and weather-protection lid for outdoor use.

Both versions use the same 20" Jumbo filter cartridges, UV system and UV lamp.

Product Options

Option Name: Installation Type

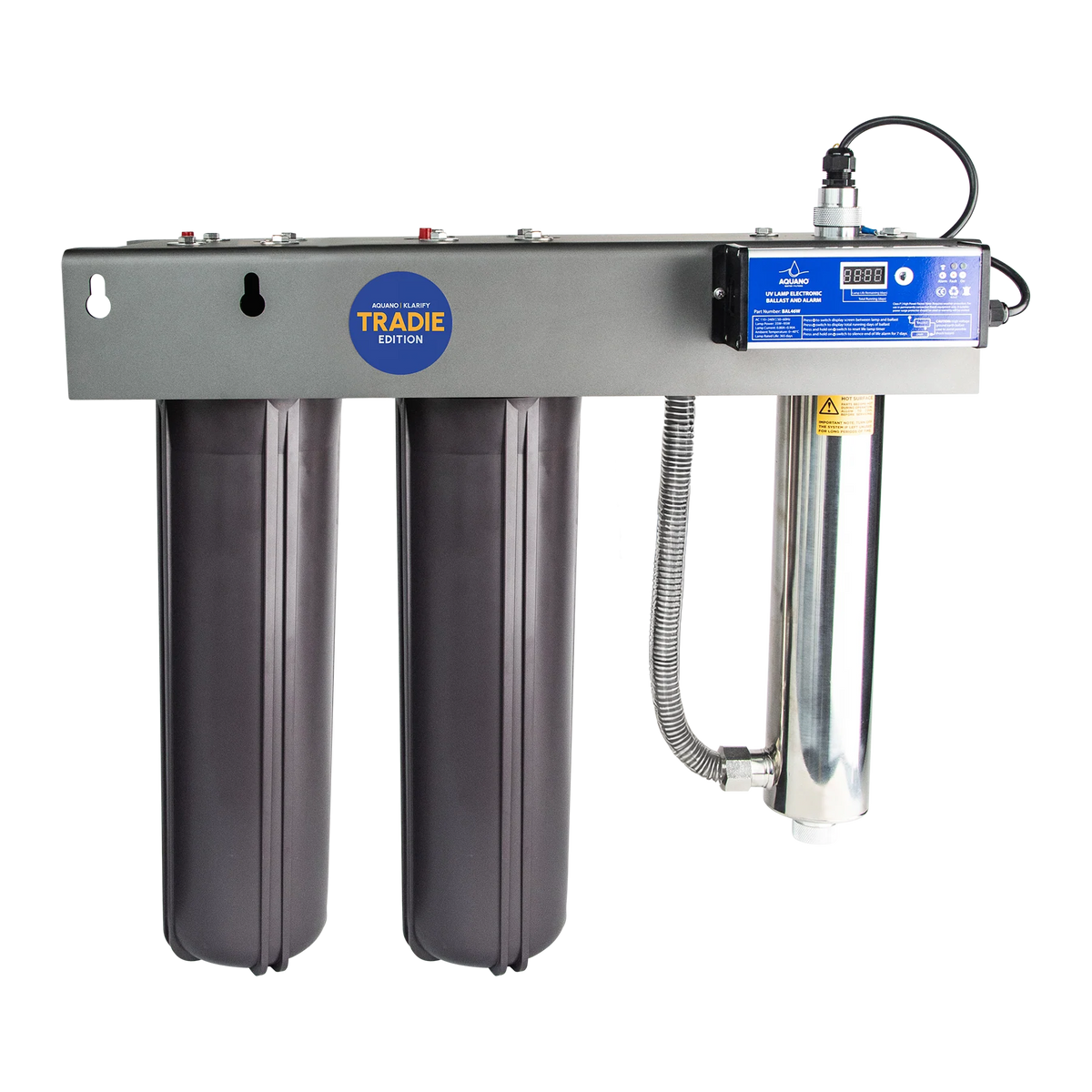

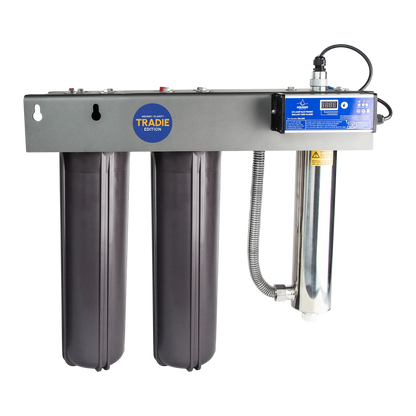

Indoor — Aquano Klarify Tradie Edition UV-220I

The Aquano UV-220I is designed for medium to large homes with suitable space for an indoor or protected installation.

It combines two large-capacity 20" Jumbo sediment cartridges with Aquano's UVS46W ultraviolet system, creating an integrated filtration and UV treatment solution suitable for both mains and rainwater supplies.

Stage 1 — PC2020J 20 Micron Pleated Sediment Filter

Incoming water first passes through the Aquano PC2020J 20" Jumbo pleated sediment cartridge.

The 20 micron pleated filter captures larger suspended sediment such as:

• Dirt
• Rust
• Silt
• Sand
• Other particulate matter

Its pleated design provides high sediment-holding capacity and helps protect the finer second-stage cartridge.

Stage 2 — PS2001J 1 Micron Polyspun Sediment Filter

Water then passes through the Aquano PS2001J 20" Jumbo polyspun cartridge.

This second stage provides 1 micron graded-density depth filtration, capturing finer sediment before the water reaches the UV chamber.

UV Stage — UVS46W

After filtration, water passes through the Aquano UVS46W ultraviolet system fitted with a UVL46W lamp.

The UV system provides chemical-free treatment against microorganisms and is specified to deliver a 30 mJ/cm² UV dose at 70 L/min.

Aquano rates the system to kill up to 99.99% of bacteria under suitable operating conditions.

The UV system also includes:

• UV lamp countdown timer
• Audible failure alarm
• Visible failure alarm

Indoor UV-220I Specifications

Model / SKU: TEUV220I
Installation: Indoor / Protected
Housing Size: 20" Jumbo
Filtration: 2 Stage + UV
Stage 1: PC2020J — 20 Micron Pleated
Stage 2: PS2001J — 1 Micron Polyspun
UV System: UVS46W
UV Lamp: UVL46W
UV Dose: 30 mJ/cm² @ 70 L/min
Maximum System Flow: 120 L/min
Connections: 1" BSP
Operating Pressure: 300–875 kPa
Operating Temperature: 0–52°C
System Dimensions: 680 × 770 × 210 mm

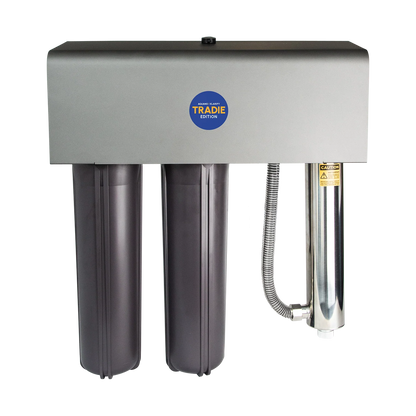

Outdoor — Aquano Klarify Tradie Edition UV-220C

The Aquano UV-220C provides the same core filtration and UV treatment system as the indoor model while adding protection specifically designed for outdoor installation.

Its key addition is a lockable anti-tamper and weather-protection lid, helping protect the filtration and UV equipment from outdoor exposure while restricting unauthorised access.

Stage 1 — PC2020J 20 Micron Pleated Sediment Filter

The first stage uses a 20 micron washable pleated sediment cartridge to capture larger dirt, rust, silt, sand and suspended particles.

Stage 2 — PS2001J 1 Micron Polyspun Sediment Filter

The second stage provides 1 micron depth filtration, removing finer sediment before UV treatment.

UV Stage — UVS46W

Pre-filtered water then enters the 46W UV system, where it is exposed to ultraviolet light.

The outdoor model uses the same:

• UVS46W UV system
• UVL46W UV lamp
• 30 mJ/cm² UV dose at 70 L/min
• 120 L/min maximum system flow
• UV lamp countdown timer
• Audible failure alarm
• Visible failure alarm

Outdoor Weather Protection

The UV-220C includes a lockable anti-tamper and weather-protection lid, making it the appropriate choice where the filtration system needs to be installed outdoors.

Outdoor UV-220C Specifications

Model / SKU: TEUV220C
Installation: Outdoor
Housing Size: 20" Jumbo
Filtration: 2 Stage + UV
Stage 1: PC2020J — 20 Micron Pleated
Stage 2: PS2001J — 1 Micron Polyspun
UV System: UVS46W
UV Lamp: UVL46W
UV Dose: 30 mJ/cm² @ 70 L/min
Maximum System Flow: 120 L/min
Connections: 1" BSP
Operating Pressure: 300–875 kPa
Operating Temperature: 0–52°C
System Dimensions: 680 × 770 × 210 mm
Weather Protection: Lockable anti-tamper weather-protection lid

Indoor vs Outdoor

Which Version Should I Choose?

Choose the Indoor UV-220I when the system can be installed inside a suitable building, plant room, garage or other protected location.

Choose the Outdoor UV-220C when the system will be exposed to outdoor conditions and requires the additional lockable anti-tamper and weather-protection lid.

The core filtration cartridges, UV equipment and treatment specifications remain the same.

Why Choose the Aquano Klarify Tradie Edition UV-220?

• 20" Jumbo whole-house filtration
• Designed for medium to large homes
• All-in-one 2-stage filtration + UV treatment
• Suitable for mains and rainwater
• 20 micron pleated sediment pre-filter
• 1 micron polyspun fine sediment filter
• 46W ultraviolet system
• UV dose of 30 mJ/cm² at 70 L/min
• Maximum system flow of 120 L/min
• Kills up to 99.99% of bacteria
• Chemical-free UV treatment
• Helps treat E. coli, Giardia and Cryptosporidium cysts
• UV lamp countdown timer
• Audible and visible failure alarms
• Durable anti-corrosion metal construction
• 1" BSP connections
• Initial filters included
• Choice of Indoor or Outdoor
• Outdoor version includes lockable weather protection
• Aquano Hassle Free Warranty

How the System Works

The Aquano Klarify UV-220 combines progressive sediment filtration with ultraviolet treatment.

Stage 1 — 20 Micron Pleated Sediment Filtration

Incoming Water → PC2020J

Water first passes through a 20 micron pleated filter that captures larger suspended particles.

The pleated cartridge helps remove coarse sediment while reducing the load placed on the finer downstream cartridge.

Stage 2 — 1 Micron Depth Filtration

PC2020J → PS2001J

Water then passes through a 1 micron graded-density polyspun cartridge.

This stage captures finer particulate matter and helps provide cleaner water entering the UV chamber.

Effective sediment pre-filtration is particularly important for UV systems because clearer water allows ultraviolet light to reach microorganisms more effectively.

Stage 3 — Ultraviolet Treatment

PS2001J → UVS46W

The filtered water then enters the UV chamber and is exposed to ultraviolet light.

UV treatment works without adding disinfectant chemicals to the water.

Complete Treatment Sequence

Water Supply → 20 Micron Pleated Sediment → 1 Micron Polyspun Sediment → 46W UV Treatment → Treated Water Throughout the Home

Understanding the Flow Ratings

The UV-220 has two important flow specifications.

Maximum System Flow — 120 L/min

The filtration system has a stated maximum flow rate of 120 L/min.

UV Dose — 30 mJ/cm² at 70 L/min

The UVS46W UV stage is specified to deliver a UV dose of 30 mJ/cm² when water is flowing at 70 L/min.

These figures should not be treated as the same measurement.

For applications where the specified 30 mJ/cm² UV dose is required, water flow through the UV stage should be kept at or below the corresponding 70 L/min rated dose flow.

UV Treatment Performance

The UVS46W system is designed to provide a chemical-free treatment barrier against microorganisms.

The system is suitable for treating organisms including:

• E. coli
• Giardia
• Cryptosporidium cysts
• Other susceptible microorganisms

Aquano rates the system to kill up to 99.99% of bacteria under appropriate operating conditions.

UV performance depends on factors including:

• Water clarity
• UV transmission
• Flow rate
• Lamp condition
• Quartz sleeve cleanliness
• Correct system installation and maintenance

This is why the two sediment filtration stages are positioned before the UV chamber.

Suitable for Mains & Rainwater

The Klarify Tradie Edition UV-220 is suitable for both:

• Mains water supplies
• Rainwater supplies

For rainwater systems, the combination of progressive sediment filtration and UV treatment provides a multi-stage approach before water is supplied throughout the property.

For mains water installations, the system provides additional sediment filtration and ultraviolet treatment where required.

High-Capacity 20" Jumbo Filtration

The UV-220 uses 20" Jumbo filter cartridges, providing greater cartridge capacity than the smaller 10" UV-210 system.

This makes the UV-220 particularly well suited to medium and larger homes, higher water consumption and applications where greater sediment-holding capacity is desirable.

UV Monitoring & Alarm System

The UV-220 includes built-in monitoring features to assist with system maintenance.

UV Lamp Countdown Timer

The countdown timer tracks UV lamp service time and helps indicate when lamp replacement is approaching.

Audible Failure Alarm

The controller provides an audible warning if a UV system or lamp failure is detected.

Visible Failure Alarm

A visual warning provides an additional indication of a detected UV fault.

These monitoring features make it easier to identify when the UV system requires attention.

Best Suited For

• Medium to large homes
• Whole-house water treatment
• Rainwater supplies
• Mains water supplies
• Homes requiring UV treatment
• Higher household water demand
• Sediment-heavy water
• Dirt, rust, silt and sand
• Chemical-free microorganism treatment
• 20" Jumbo filtration
• Indoor filtration installations
• Outdoor filtration installations
• Properties wanting filtration and UV in one integrated system

Key Specifications

Indoor & Outdoor Installation

Indoor UV-220I

The UV-220I is designed for homes with sufficient space for an indoor or otherwise protected installation.

It provides the complete two-stage filtration and UV treatment system without the outdoor enclosure supplied with the C model.

Outdoor UV-220C

The UV-220C includes a:

Lockable anti-tamper and weather-protection lid

This protects the filtration and UV equipment when installed outdoors and helps restrict unauthorised access to the system.

Installation

The Klarify UV-220 uses 1" BSP connections and is designed for whole-house installation.

Installation should provide:

• Correct inlet and outlet orientation
• Appropriate mounting support
• Suitable electrical supply for the UV system
• Access for cartridge replacement
• Access for UV lamp servicing
• Sufficient clearance around the 20" housings
• Operation within the specified pressure range
• Suitable protection for the installation environment

The system operates within a water pressure range of 300–875 kPa and temperature range of 0–52°C.

Professional installation is recommended to ensure the filtration and UV components are correctly integrated with the property's water supply.

Filter & UV Maintenance

The UV-220 uses the following replacement cartridges:

Stage 1: Aquano PC2020J — 20" Jumbo 20 Micron Pleated Sediment Filter
Stage 2: Aquano PS2001J — 20" Jumbo 1 Micron Polyspun Sediment Filter

Filter maintenance frequency depends on:

• Incoming water quality
• Sediment loading
• Household water consumption
• Water source
• Flow restriction through the cartridges

The UVL46W lamp is also a replaceable service component.

The UV lamp countdown timer assists with monitoring lamp life, while the audible and visible alarms help alert the user to detected UV system faults.

The UV chamber and quartz sleeve should also be maintained as required to keep the system operating effectively.

What's Included

Indoor — TEUV220I

• 1 × Aquano Klarify Tradie Edition UV-220I system
• 1 × PC2020J 20" Jumbo 20 Micron Pleated Sediment Cartridge
• 1 × PS2001J 20" Jumbo 1 Micron Polyspun Sediment Cartridge
• 1 × UVS46W UV system
• 1 × UVL46W UV lamp
• UV lamp countdown timer
• Audible and visible UV failure alarm

Outdoor — TEUV220C

• 1 × Aquano Klarify Tradie Edition UV-220C system
• 1 × PC2020J 20" Jumbo 20 Micron Pleated Sediment Cartridge
• 1 × PS2001J 20" Jumbo 1 Micron Polyspun Sediment Cartridge
• 1 × UVS46W UV system
• 1 × UVL46W UV lamp
• UV lamp countdown timer
• Audible and visible UV failure alarm
• Lockable anti-tamper and weather-protection lid

Frequently Asked Questions

What is the difference between the UV-220I and UV-220C?

The filtration and UV components are the same.

The UV-220I is designed for indoor or protected installation, while the UV-220C includes a lockable anti-tamper and weather-protection lid for outdoor installation.

What filters are included?

Both versions include:

PC2020J — 20" Jumbo 20 micron pleated sediment filter
PS2001J — 20" Jumbo 1 micron polyspun sediment filter

What UV system does it use?

Both models use the Aquano UVS46W system with a UVL46W lamp.

What is the maximum flow rate?

The system has a stated maximum flow rate of 120 L/min.

Does it provide a 30 mJ/cm² UV dose at 120 L/min?

No. The specified UV dose is 30 mJ/cm² at 70 L/min.

The 120 L/min figure is the maximum system flow specification and should not be interpreted as the flow rate for the stated 30 mJ/cm² UV dose.

Does it treat bacteria?

The UV system is rated to kill up to 99.99% of bacteria under suitable operating conditions.

Does it treat E. coli?

Yes. E. coli is among the microorganisms targeted by the UV treatment system when correctly installed and operated under suitable conditions.

Is it suitable for Giardia and Cryptosporidium?

The UV treatment system is designed to target Giardia and Cryptosporidium cysts along with other susceptible microorganisms.

Is it suitable for rainwater?

Yes. The UV-220 is suitable for both mains and rainwater supplies.

Does it remove sediment?

Yes. Water passes through a 20 micron pleated filter followed by a 1 micron polyspun filter before entering the UV system.

What size filter cartridges does it use?

Both sediment stages use 20" Jumbo cartridges.

Does it have a lamp alarm?

Yes. The UV controller includes audible and visible failure alarms.

Which version should I choose?

Choose Indoor when the filtration system will be installed in a suitable protected location.

Choose Outdoor when the system will be exposed to outdoor conditions and requires the additional lockable weather-protection lid.
