Protect your household water with the Aquano Klarify UV-320, an all-in-one whole-house system combining three-stage cartridge filtration with ultraviolet water treatment.

Designed for larger New Zealand homes using rainwater, bore water or mains water, the UV-320 progressively filters sediment, unwanted chemicals, chlorine, unpleasant taste and odour before the water passes through a high-intensity UV-C chamber. Aquano states that the system can deactivate up to 99.9% of E. coli, Giardia and Cryptosporidium cysts under suitable operating conditions.

Both versions use three 20-inch Jumbo filter housings, an Aquano UVS46W ultraviolet system and a UVL46W lamp. They provide a maximum system flow rate of 120 L/min, with a validated UV dose of 30 mJ/cm² at 70 L/min.

Choose between:

• UV-320I Indoor Version – Designed for indoor installation in garages, pump sheds or plant rooms.
• UV-320C Outdoor Version – Includes a lockable weather-resistant enclosure for outdoor installations.

Choose Your Installation Version

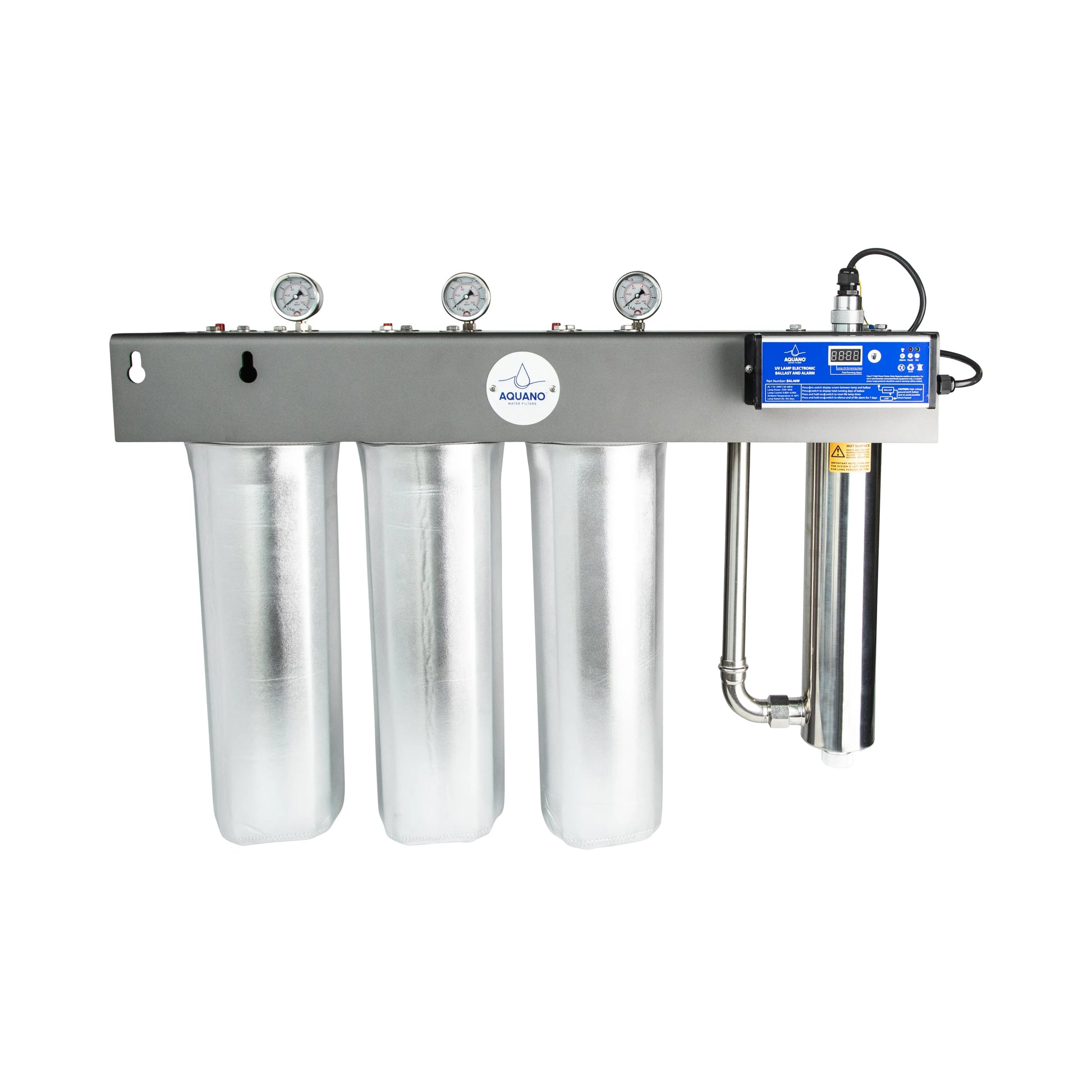

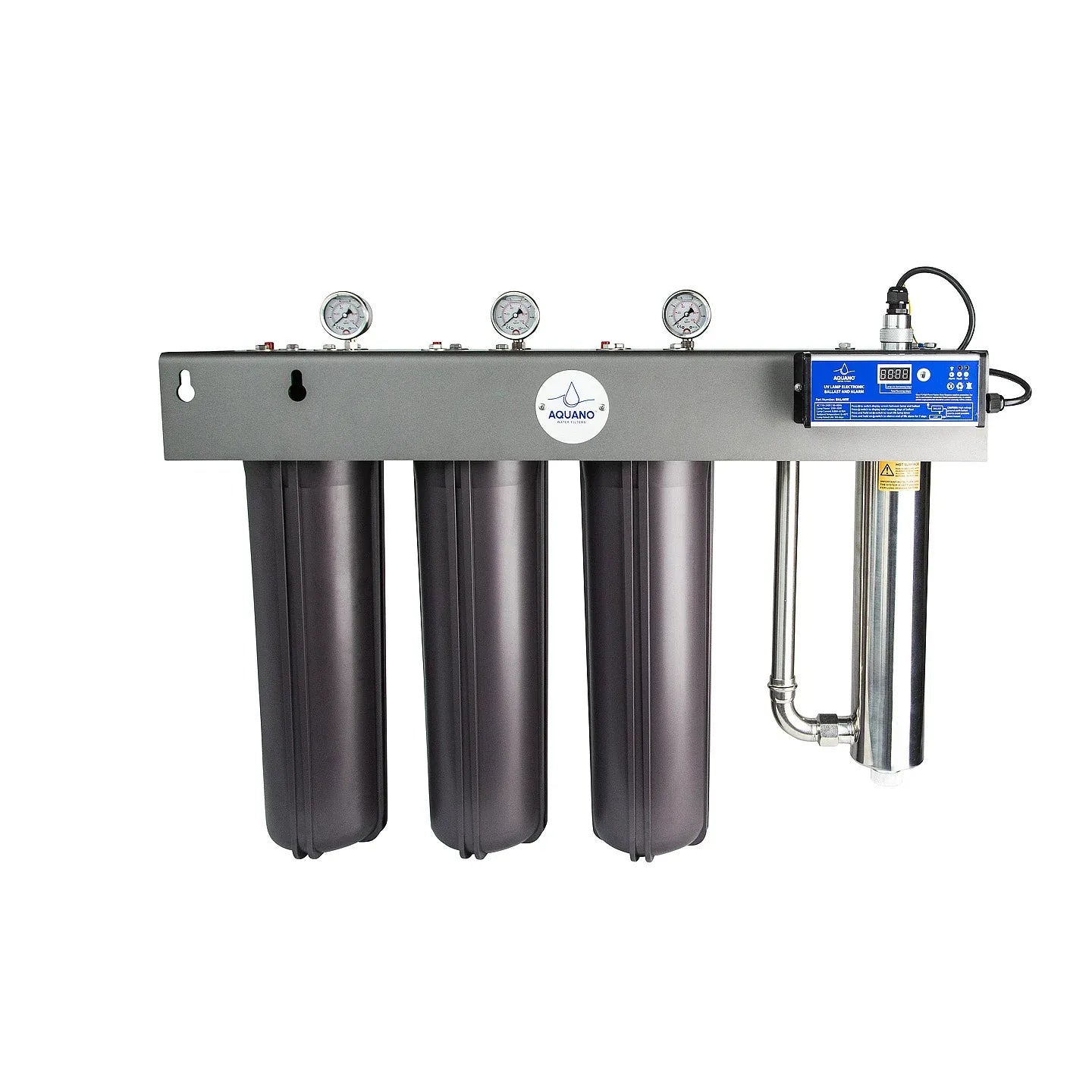

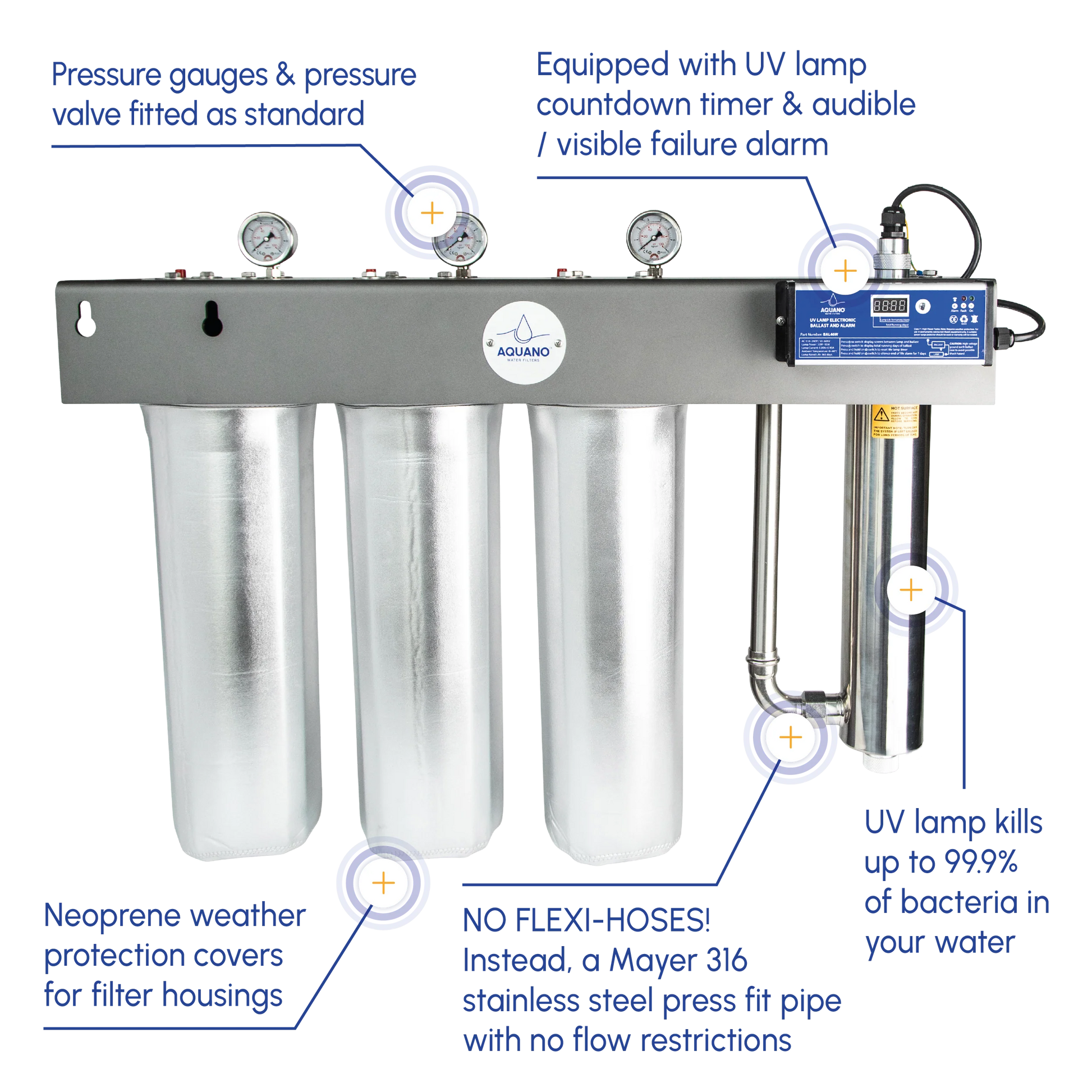

UV-320I – Indoor

The UV-320I is ideal for installations inside a garage, pump shed or utility room.

Its open-frame design provides easy access to the filter housings and UV chamber for servicing while allowing reversible pipework installation to suit your plumbing layout.

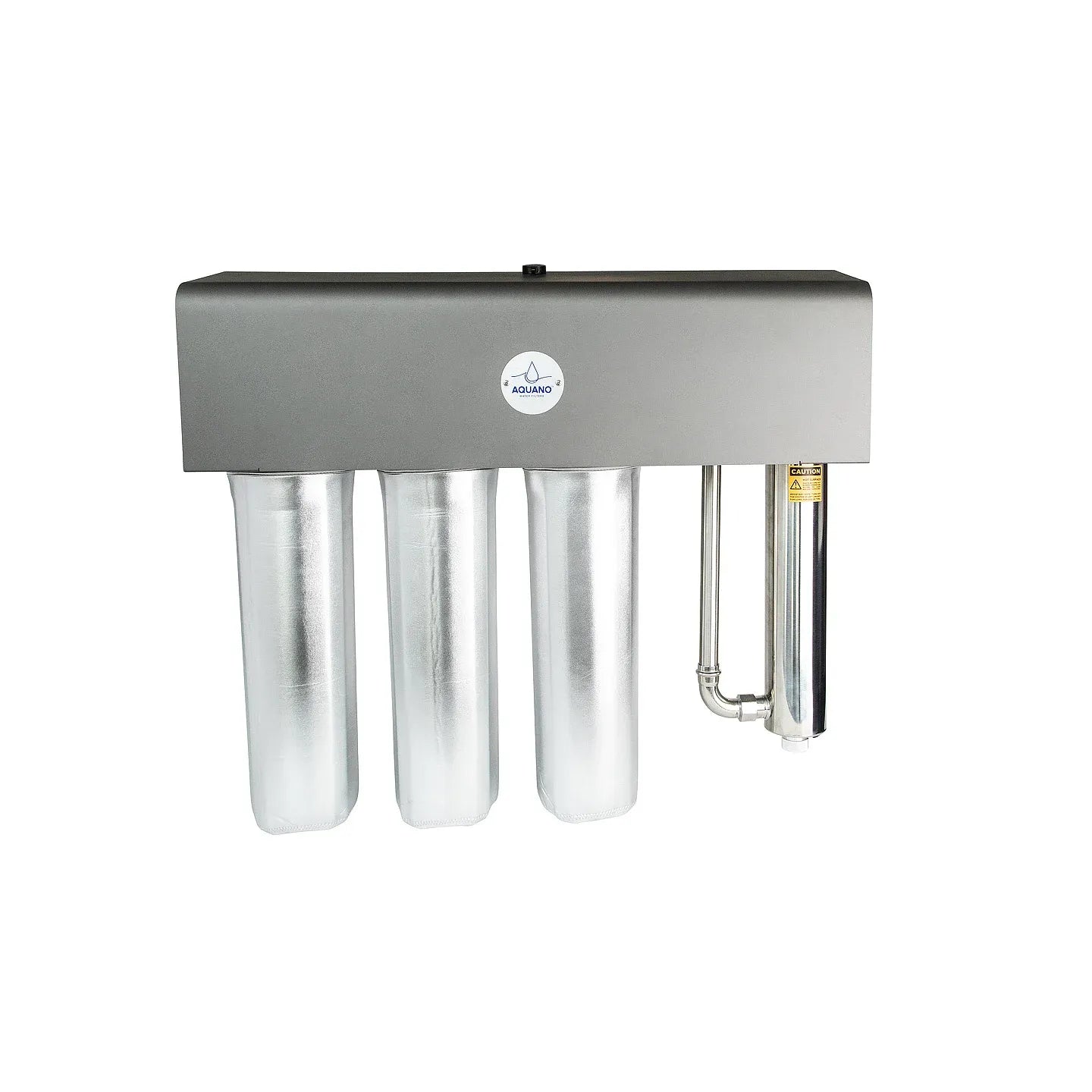

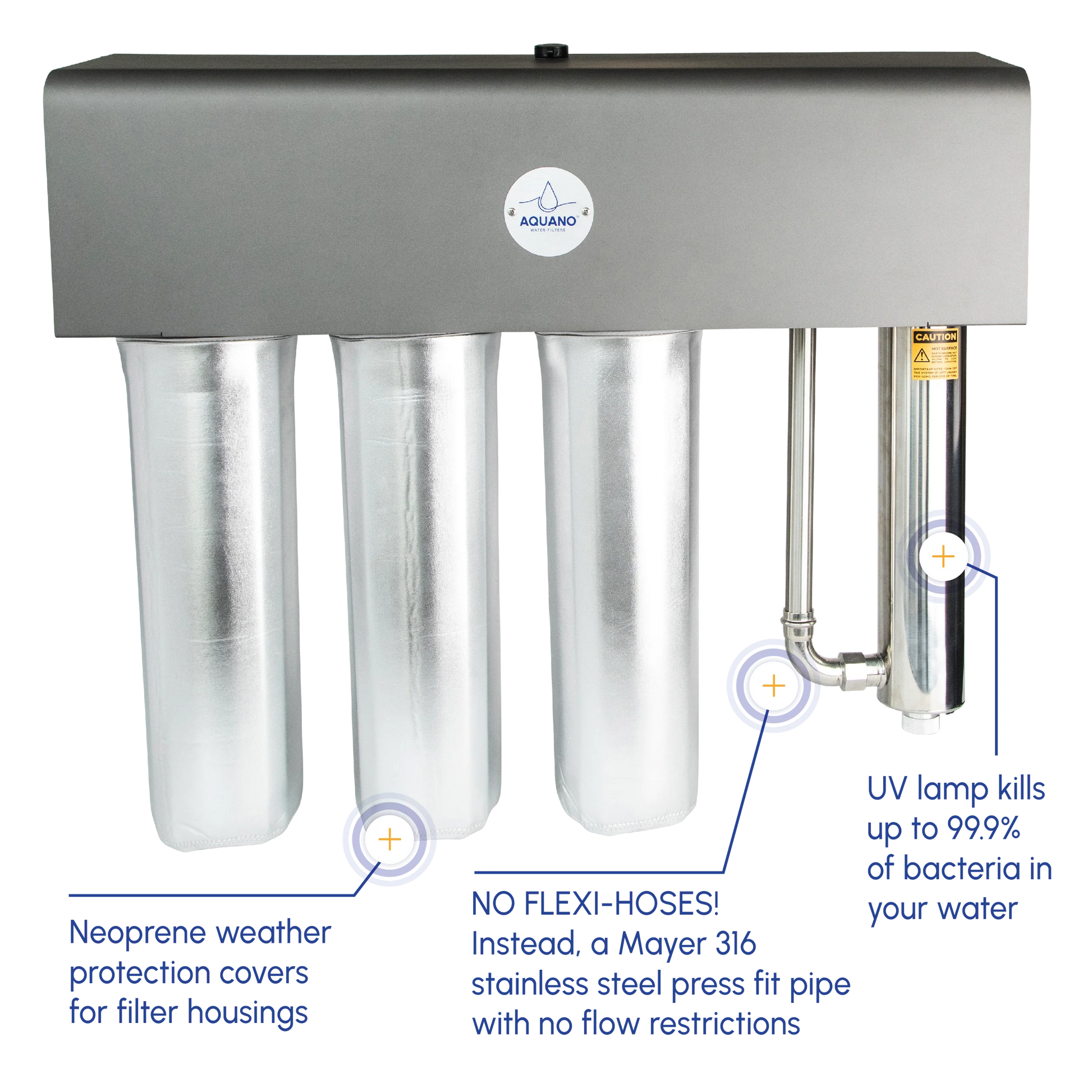

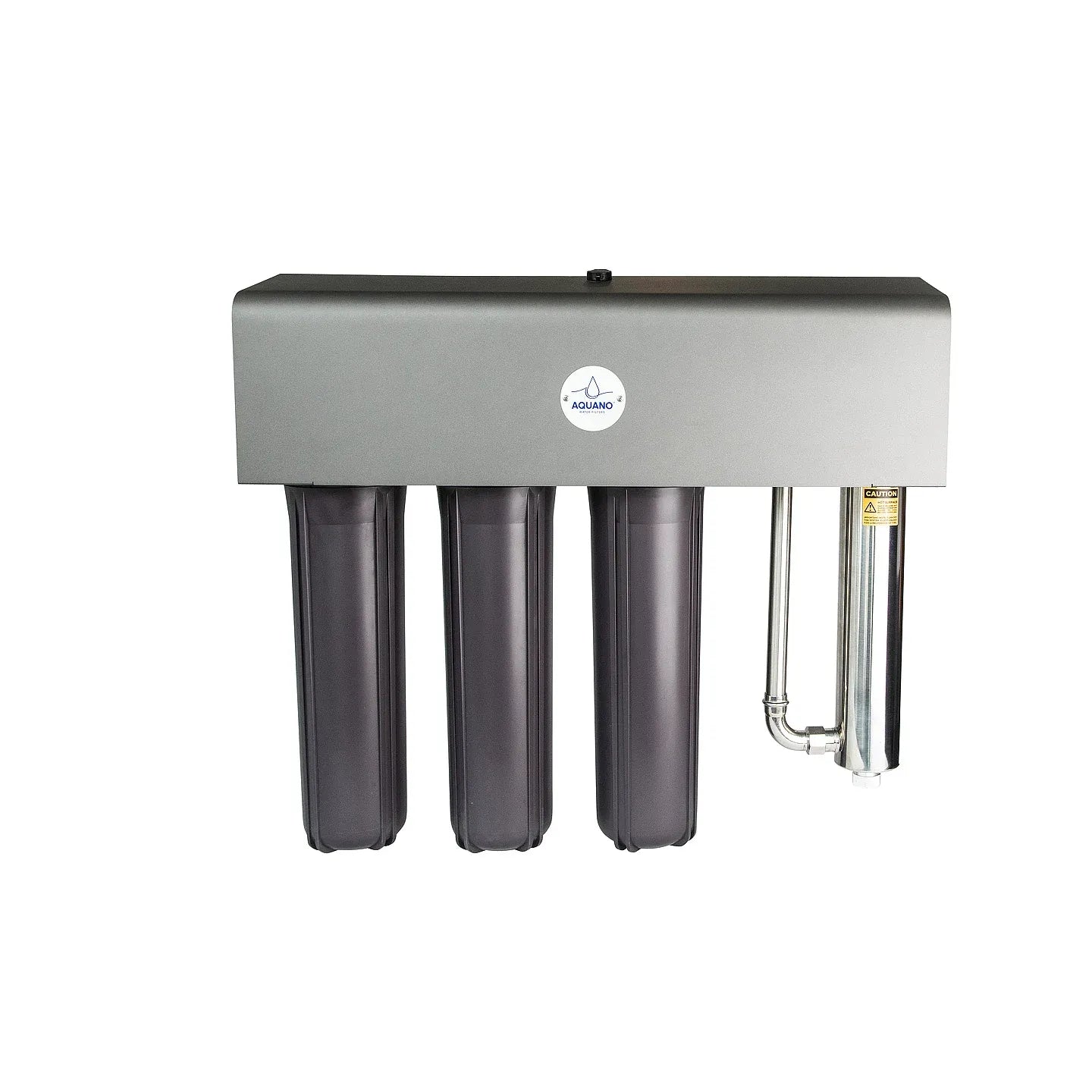

UV-320C – Outdoor With Lockable Cover

The UV-320C is designed for outdoor installations.

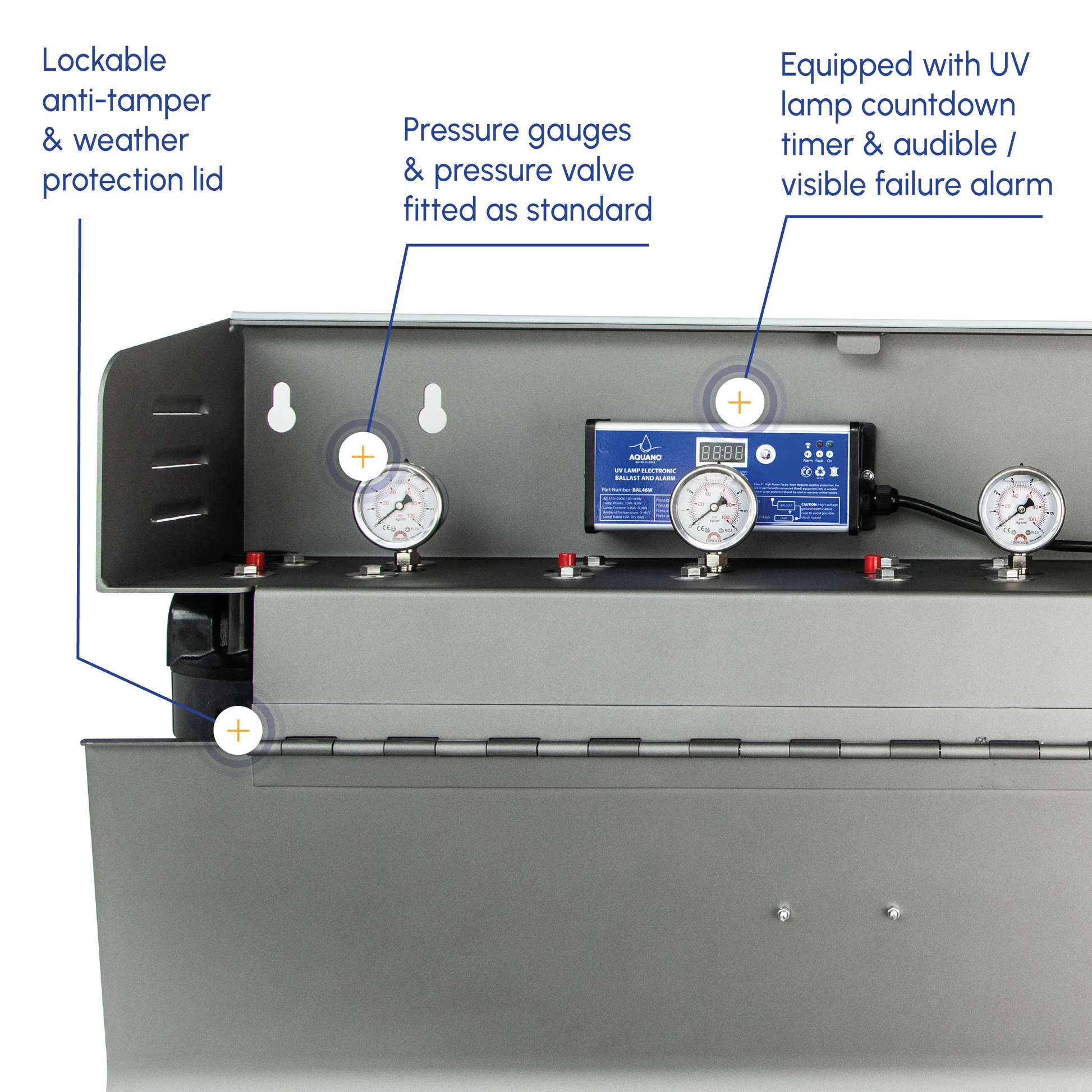

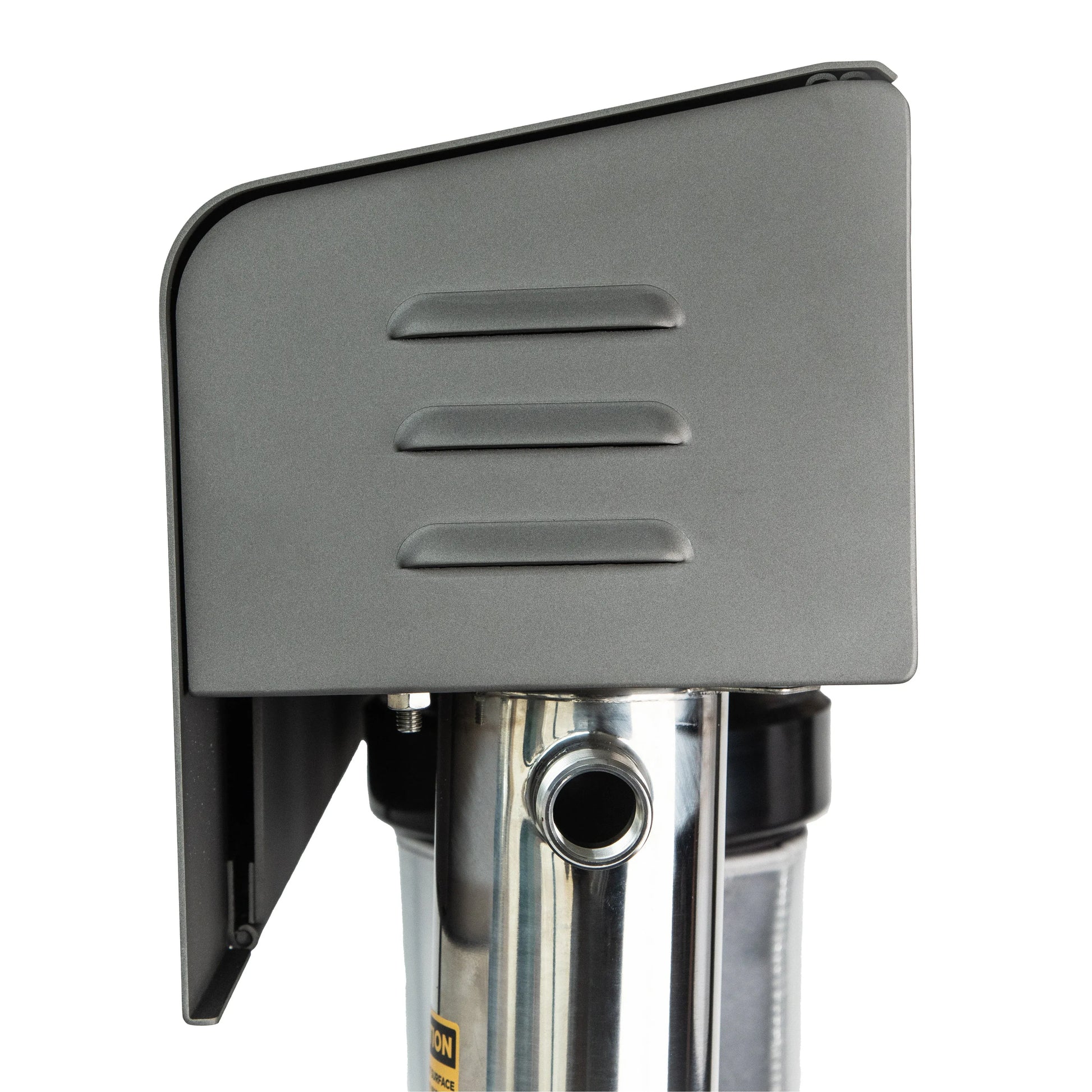

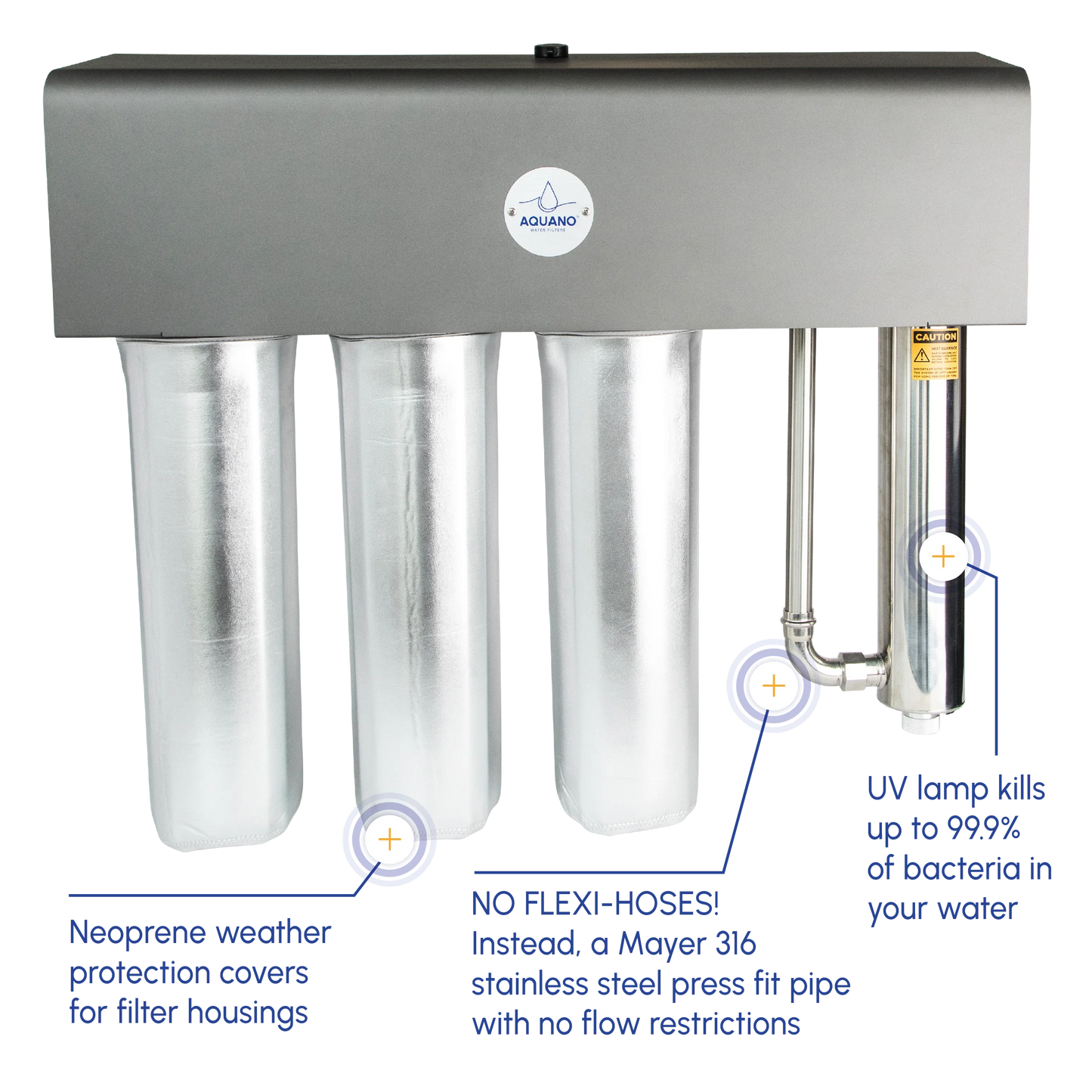

It includes a durable, lockable weather-resistant enclosure that protects the filtration system and UV components from the elements while helping prevent tampering. Neoprene housing covers are also supplied for additional weather protection.

Why Choose the Aquano Klarify UV-320?

Whole House Filtration and UV Protection

Installed where water enters your property, the UV-320 treats your water before it reaches every tap, shower and appliance.

Four Stages of Water Treatment

The system combines:

• Washable pleated sediment filtration
• Fine polyspun sediment filtration
• Carbon-impregnated filtration
• High-intensity UV disinfection

This multi-stage process improves water quality before UV treatment provides an additional barrier against harmful microorganisms.

Suitable for Rainwater and Mains Water

Designed for both rainwater and mains water supplies, the UV-320 provides whole-house filtration and UV treatment for a wide range of residential applications.

Built for Medium to Large Homes

Three 20-inch Jumbo housings provide high filtration capacity while maintaining a maximum system flow rate of 120 litres per minute.

UV Monitoring System

The UV controller includes:

• Countdown timer
• Audible alarm
• Visual warning indicators

These features make it easy to know when the UV lamp requires replacement or if a fault occurs.

Chemical-Free Water Treatment

Ultraviolet light disinfects the water without adding chemicals, helping preserve the natural taste of your water.

Ready to Install

Supplied pre-assembled with filter cartridges, UV lamp, pressure gauges, housing spanner, surge protector and weather covers.

The UV-320C also includes the lockable outdoor enclosure.

How It Works

Water passes through four treatment stages before entering your home's plumbing.

Stage 1 – Washable Pleated Sediment Filter

The washable pleated cartridge removes larger particles including:

• Dirt
• Rust
• Grit
• Leaves
• Tank sediment

The cartridge can be cleaned and reused, helping reduce running costs.

Stage 2 – Fine Polyspun Sediment Filter

The second cartridge removes fine suspended particles including:

• Sand
• Silt
• Fine rust
• Dirt

This stage filters particles down to 1 micron while helping protect the UV system.

Stage 3 – Carbon-Impregnated Filter

The carbon cartridge helps reduce:

• Chlorine
• Unwanted chemicals
• Taste
• Odour

It also provides final polishing before UV treatment.

Stage 4 – UV Disinfection

Filtered water passes through the stainless-steel UV chamber where high-intensity UV-C light disinfects the water.

Under the manufacturer's operating conditions, the system can deactivate up to 99.9% of:

• E. coli
• Giardia
• Cryptosporidium cysts

Best Suited For

The Aquano Klarify UV-320 is ideal for:

• Medium to large homes
• Rainwater systems
• Bore water supplies
• Mains water requiring additional UV treatment
• Whole-house filtration
• Rural properties
• Lifestyle blocks
• Homes wanting added microbiological protection

Key Features

• Four-stage filtration and UV treatment
• Three 20-inch Jumbo filter housings
• UVS46W UV system
• UVL46W UV lamp
• Maximum flow rate of 120 L/min
• UV dose of 30 mJ/cm² at 70 L/min
• Washable pleated first-stage filter
• 1-micron sediment filtration
• Carbon-impregnated cartridge
• Three pressure gauges
• UV countdown timer
• Audible and visual UV alarm
• Anti-corrosion metal frame
• Reversible installation
• Surge protector included
• Housing spanner included
• Neoprene weather covers included
• Lockable outdoor enclosure included with UV-320C

Variant Comparison

Key Specifications

Installation

Professional installation by a licensed plumber is recommended.

The system should be installed at the property's water entry point to provide filtered and UV-treated water throughout the entire home.

Allow sufficient clearance above the UV chamber and below the filter housings to simplify servicing and cartridge replacement.

For outdoor installations, choose the UV-320C with its lockable weather-resistant enclosure.

Maintenance

For optimum performance:

• Replace filter cartridges every 6–12 months
• Clean the washable pleated cartridge as required
• Replace the UV lamp every 12 months
• Inspect and clean the quartz sleeve during servicing
• Check pressure gauges regularly
• Replace worn O-rings when required

What's Included

Both Models Include

• Aquano Klarify UV-320 filtration system
• Three 20-inch Jumbo housings
• UVS46W UV chamber
• UVL46W UV lamp
• Three pressure gauges
• PC2010J washable pleated cartridge
• PS2001J polyspun cartridge
• CIM20J carbon cartridge
• Housing spanner
• Surge protector
• Neoprene weather covers

UV-320C Outdoor Version Also Includes

• Lockable weather-resistant enclosure
• Cabinet key

Frequently Asked Questions

What is the difference between the UV-320I and UV-320C?

Both systems use identical filtration and UV components. The UV-320C includes a lockable weather-resistant enclosure for outdoor installations, while the UV-320I is designed for indoor installation.

Does the UV system filter sediment?

No. The three filter cartridges remove sediment before the water reaches the UV chamber.

Does it remove bacteria?

The UV chamber is designed to deactivate up to 99.9% of E. coli, Giardia and Cryptosporidium cysts under the manufacturer's specified operating conditions.

Can it be used on rainwater?

Yes. The UV-320 is designed for rainwater systems and is also suitable for qualifying mains water supplies.

How often should the UV lamp be replaced?

Aquano recommends replacing the UV lamp every 12 months, even if it still illuminates.

How often should the filters be replaced?

The disposable cartridges should generally be replaced every 6–12 months, while the washable pleated cartridge should be cleaned whenever required.

Does it require electricity?

Yes. The UV system operates from a standard 240V AC power supply.

Is professional installation recommended?

Yes. Installation should be completed by a licensed plumber, with electrical work carried out by a qualified electrician where required.
