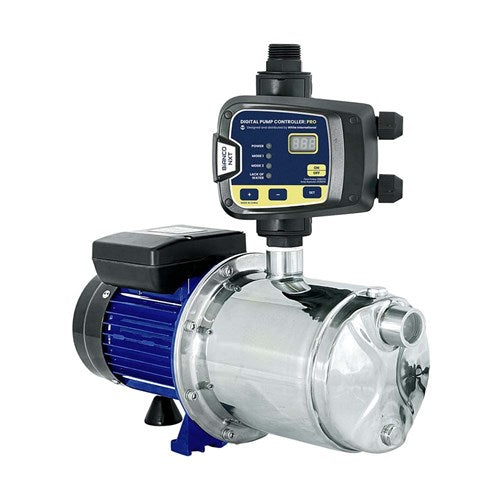

Bianco NXT Multi SP Series – Self-Priming Multistage Pressure Systems

The Bianco NXT Multi SP Series offers robust self-priming horizontal multistage pressure systems designed for a variety of applications, including domestic water supply, general water transfer, and small to medium irrigation. Constructed with corrosion-resistant stainless steel, these pumps ensure quiet operation and stable pressure. Each unit comes pre-wired with the Bianco NXT Pro controller, providing automatic start, stop, and restart functions, along with dual operating modes for customizable pressure settings. These systems are suitable for flooded suction applications and can handle suction lifts up to 5 meters.

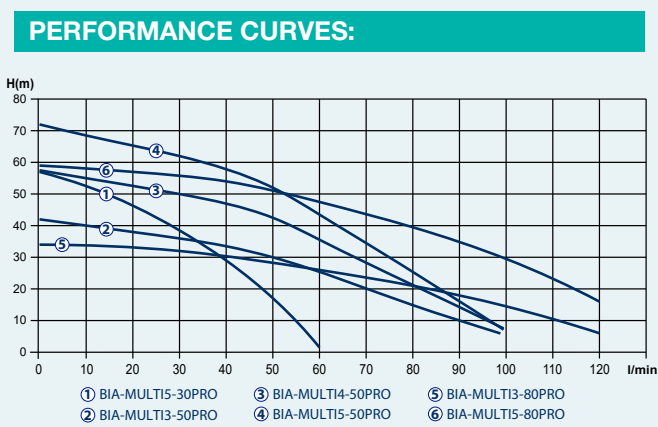

Models Available (Dropdown Selection)
BIA-MULTI5-30PRO: 0.55kW, Max Head 57m, Max Flow 60L/min, Start Pressure 2.2 bar, Suitable for 2–4 taps
BIA-MULTI3-50PRO: 0.75kW, Max Head 42m, Max Flow 98L/min, Suitable for 2–6 taps
BIA-MULTI4-50PRO: 0.75kW, Max Head 57.5m, Suitable for 6+ taps and irrigation
BIA-MULTI5-50PRO: 1.0kW, Max Head 72m, Suitable for 6+ taps and irrigation
BIA-MULTI3-80PRO: 0.55kW, Max Head 34m, Max Flow 120L/min, Suitable for 6+ taps and water transfer
BIA-MULTI5-80PRO: 1.0kW, Max Head 59m, Suitable for 6+ taps and irrigation

Specifications
Power Supply: 230V single-phase
Controller: Bianco NXT Pro with digital display, pre-wired for automatic operation
Operating Modes: Mode 1 (adjustable start pressure), Mode 2 (adjustable start and stop pressures; requires pressure tank)
Pump Body: Stainless steel
Diffuser and Impeller: Corrosion-resistant materials
Suction Lift: Up to 5 meters
Motor: TEFC with in-built thermal overload protection
Mechanical Seal: Silicon Carbide/Carbon
Protection Class: IP45
Applications: Household water supply, pressure boosting, light commercial use, water transfer, washing systems, light irrigation
Inlet/Outlet Connections: 1" BSPF inlet, 1" BSPM outlet

Why You Should Choose the Bianco NXT Multi SP Series
These systems provide reliable and efficient water pressure solutions for a range of applications. Their self-priming capability allows for flexible installation options, and the dual-mode controller offers customizable pressure settings to suit specific needs. The corrosion-resistant construction ensures longevity, while the quiet operation makes them suitable for residential environments.

FAQs

Can these pumps be used for drinking water?
Yes, the materials used are suitable for clean water applications, making them appropriate for supplying potable water.

What is the difference between Mode 1 and Mode 2 on the controller?
Mode 1 allows for adjustable starting pressure, stopping the pump when flow drops. Mode 2 enables adjustment of both starting and stopping pressures, with shutdown governed by pressure, requiring a pressure tank.

Are these pumps suitable for outdoor installation?
While the pumps are designed for durability, it is recommended to install them in a sheltered location to protect them from direct weather exposure.
