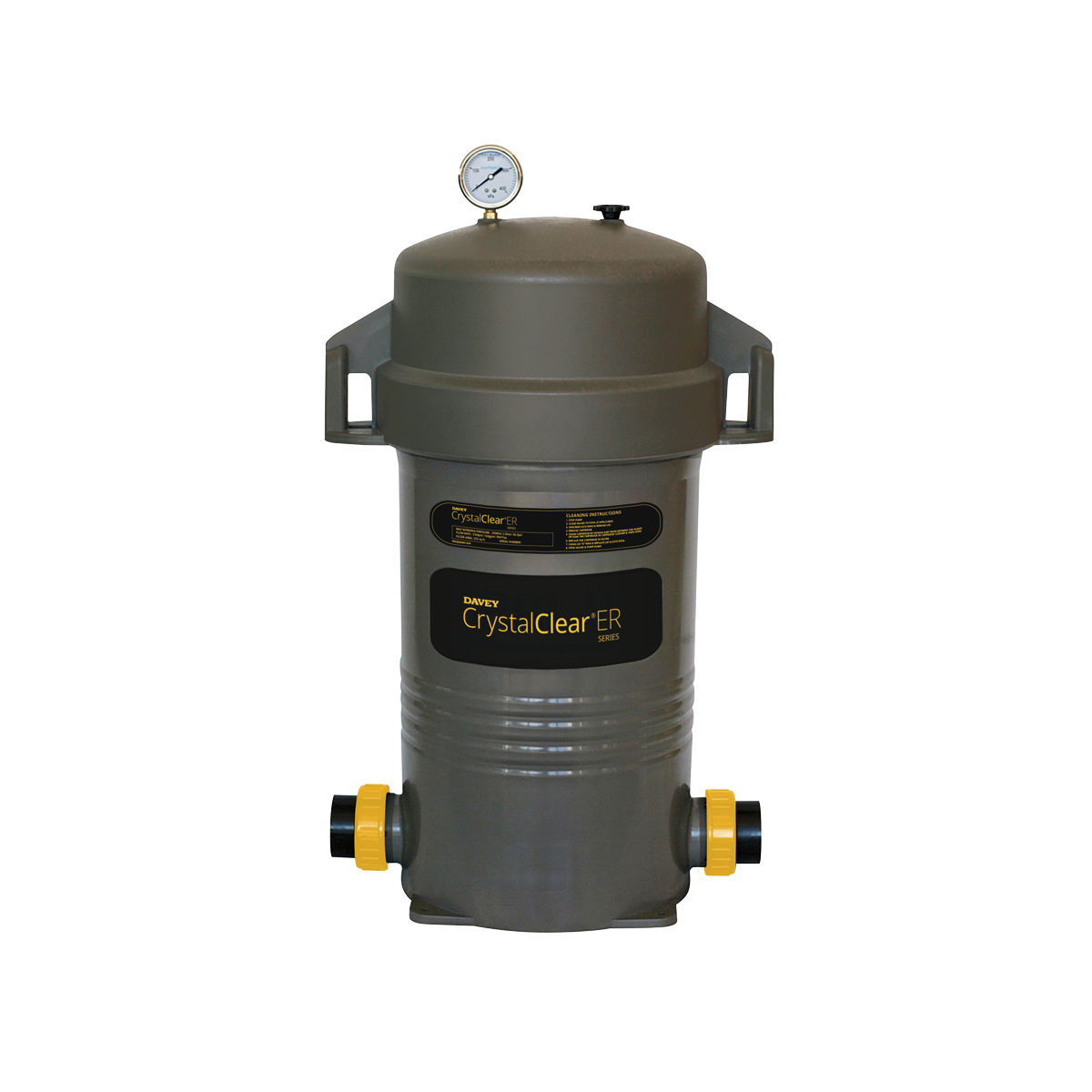

The Davey CrystalClear ER Series is a premium cartridge pool filter designed for efficient filtration without the need for backwashing.
Suitable for in-ground and above-ground pools, the range can be used with fresh water, salt water and mineral salt pools. Four models are available from 135 ft² to 270 ft² filtration area, with maximum flow rates from 381 to 510 L/min.
Unlike a media filter, the CrystalClear ER uses heavy-duty reusable polyester filter elements. When cleaning is required, the element is removed from the housing, washed and reinstalled.
This makes the CrystalClear ER particularly useful where reducing water use is important or where a conventional backwash waste line is impractical.
Product Options
Option Name: Model
| Model | Filtration Area | Maximum Flow | 6-Hour Turnover |
|---|---|---|---|
| DCC135 | 135 ft² / 12.5 m² | 381 L/min | 133,000 L |
| DCC180 | 180 ft² / 16.7 m² | 450 L/min | 157,000 L |
| DCC225 | 225 ft² / 20.9 m² | 480 L/min | 167,500 L |
| DCC270 | 270 ft² / 25.1 m² | 510 L/min | 183,600 L |
Variant-Specific Details
DCC135 — 135 ft²
A compact model for smaller pool systems.
- Filtration area: 12.5 m² / 135 ft²
- Maximum flow: 381 L/min
- 6-hour turnover: 133,000 L
- Maximum water temperature: 50°C
- Maximum operating pressure: 250 kPa
- Maximum pressure drop: 20 kPa
- Inlet / outlet: 40/50 mm
- Replacement element: DCE1039 — 135 ft²
DCC180 — 180 ft²
- Filtration area: 16.7 m² / 180 ft²
- Maximum flow: 450 L/min
- 6-hour turnover: 157,000 L
- Maximum water temperature: 50°C
- Maximum operating pressure: 250 kPa
- Maximum pressure drop: 20 kPa
- Inlet / outlet: 40/50 mm
- Replacement element: DCE1038 — 180 ft²
DCC225 — 225 ft²
- Filtration area: 20.9 m² / 225 ft²
- Maximum flow: 480 L/min
- 6-hour turnover: 167,500 L
- Maximum water temperature: 50°C
- Maximum operating pressure: 250 kPa
- Maximum pressure drop: 20 kPa
- Inlet / outlet: 40/50 mm
- Replacement element: DCE1040 — 225 ft²
DCC270 — 270 ft² Twin Filter
The DCC270 uses a twin-element configuration to provide the largest filtration area in the range.
- Filtration area: 25.1 m² / 270 ft²
- Maximum flow: 510 L/min
- 6-hour turnover: 183,600 L
- Maximum water temperature: 50°C
- Maximum operating pressure: 250 kPa
- Maximum pressure drop: 20 kPa
- Inlet / outlet: 40/50 mm
- Twin filter configuration
- Replacement elements:
- DCE1041 — 90 ft²
- DCE1038 — 180 ft²
Why Choose the CrystalClear ER?
- No backwashing required
- Reduces water lost during routine filter cleaning
- Large filtration area
- High maximum flow rates
- Heavy-duty reusable polyester filter elements
- Wide, deep pleats for efficient filtration
- Large spacing between pleats for easier cleaning
- Solid one-piece moulded polymer tank
- Non-corrosive construction
- Low-profile design
- Easy cartridge access
- Hand-operated lid locking ring
- Manual air bleed
- Integrated pressure gauge
- Quick-connect barrel unions
- Suitable for fresh, salt and mineral salt pools
- Replacement filter elements readily identifiable by model
How It Works

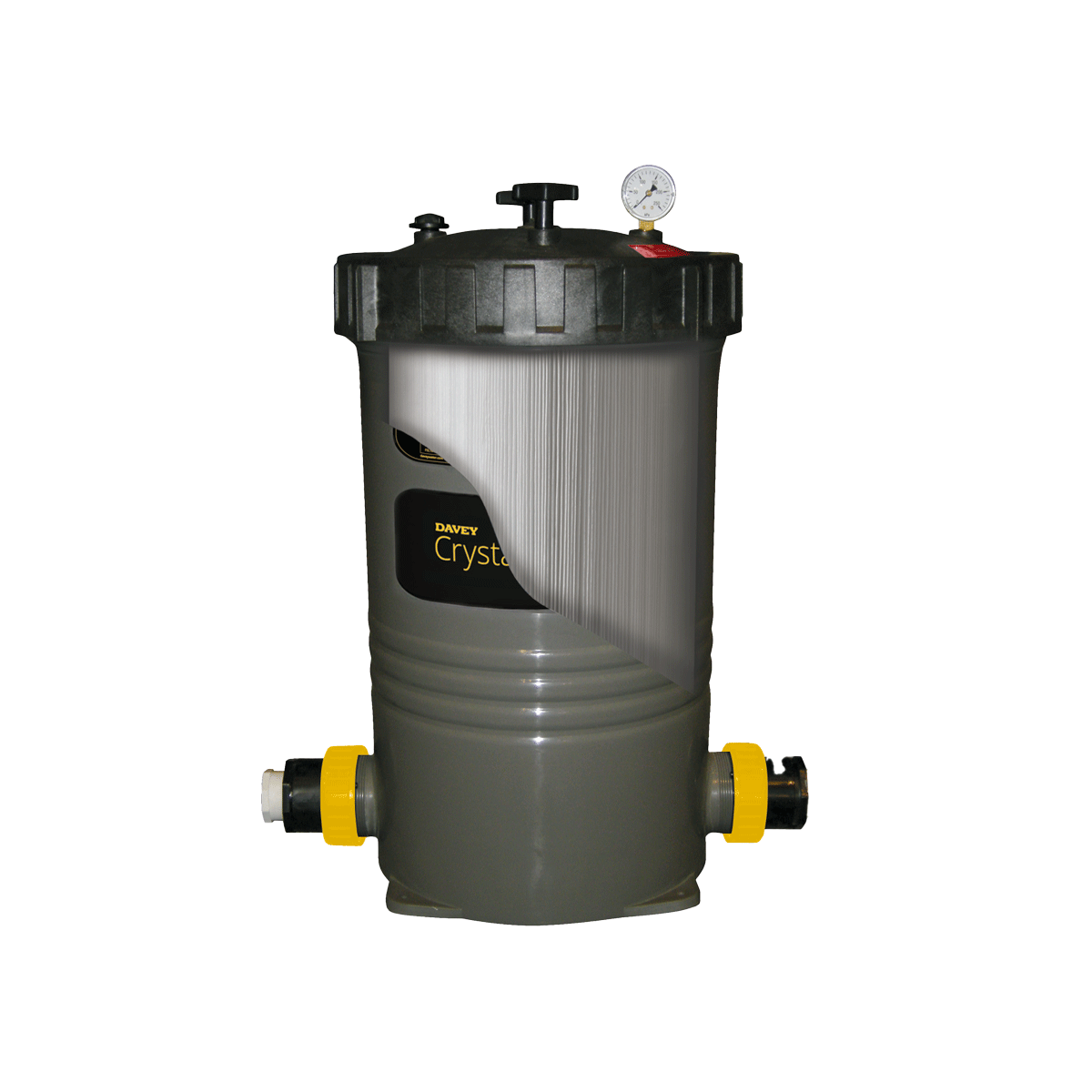

Pool water enters the CrystalClear ER housing and passes through the pleated polyester filter element.
The large surface area of the cartridge captures suspended debris while allowing water to flow back to the pool.
The wide and deep pleats increase the available filtration area without requiring a large media tank. Generous spacing between the pleats also makes the element easier to wash when servicing is required.
As debris accumulates, resistance across the cartridge increases. The pressure gauge helps indicate when the element requires cleaning.
Unlike sand or glass media filters, the CrystalClear ER does not require a backwash cycle. The filter is depressurised using the manual air bleed, opened and the reusable cartridge element removed for cleaning.
Best Suited For
- In-ground residential pools
- Above-ground residential pools
- Fresh-water pools
- Salt-water pools
- Mineral salt pools
- Sites where backwashing is impractical
- Properties where reducing water waste is important
- Pool systems requiring high flow with a compact filter
- Customers wanting washable, reusable filtration elements
The CrystalClear ER range is designed for pool applications up to approximately 180,000 litres, subject to correct model selection and system conditions.
Key Specifications
| Specification | DCC135 | DCC180 | DCC225 | DCC270 |
|---|---|---|---|---|
| Filtration area | 12.5 m² | 16.7 m² | 20.9 m² | 25.1 m² |
| Nominal filter size | 135 ft² | 180 ft² | 225 ft² | 270 ft² |
| Maximum flow | 381 L/min | 450 L/min | 480 L/min | 510 L/min |
| 6-hour turnover | 133,000 L | 157,000 L | 167,500 L | 183,600 L |
| Maximum temperature | 50°C | 50°C | 50°C | 50°C |
| Maximum operating pressure | 250 kPa | 250 kPa | 250 kPa | 250 kPa |
| Maximum pressure drop | 20 kPa | 20 kPa | 20 kPa | 20 kPa |
| Inlet / outlet | 40/50 mm | 40/50 mm | 40/50 mm | 40/50 mm |
Maximum flow figures are based on residential flow conditions with 50 mm pipe.
Cartridge Technology
The CrystalClear ER uses heavy-duty reusable polyester filter fabric.
The elements feature wide, deep pleats to provide a large filtration area within the filter housing. Larger gaps between the pleats make trapped debris easier to remove during cleaning and support longer filtration cycles.
There is no loose sand or glass media to replace.
No Backwashing Required
A key advantage of cartridge filtration is that there is no conventional backwash cycle.
With a media filter, pool water is periodically discharged to waste to clean the filter bed. The CrystalClear ER instead uses a removable cartridge element that can be washed and returned to service.
This can significantly reduce the amount of pool water lost during routine filter maintenance.
Replacement Filter Elements
| Filter Model | Replacement SKU | Element Size |
|---|---|---|
| DCC135 | DCE1039 | 135 ft² |
| DCC180 | DCE1038 | 180 ft² |
| DCC225 | DCE1040 | 225 ft² |
| DCC270 | DCE1041 + DCE1038 | 90 ft² + 180 ft² |
The DCC270 is a twin-filter unit, using the 90 ft² and 180 ft² elements together to provide its 270 ft² total filtration area.
Dimensions
| Model | A | B | C | Minimum Cartridge Removal Clearance | E |
|---|---|---|---|---|---|
| DCC135 | 483 mm | 60 mm | 668 mm | 1000 mm | N/A |
| DCC180 | 483 mm | 60 mm | 668 mm | 1000 mm | N/A |
| DCC225 | 479 mm | 60 mm | 811.5 mm | 1600 mm | 570 mm |
| DCC270 | 479 mm | 60 mm | 941.5 mm | 1600 mm | 570 mm |
Allow enough vertical clearance above the filter to remove the cartridge during servicing.
Choosing the Correct Model
Filter selection should account for:
- Pool volume
- Pump flow rate
- Desired turnover period
- Plumbing size
- Available installation space
- Expected debris load
Moving to a larger model increases filtration area and allows more debris to be captured before the element requires cleaning.
For example, the DCC135 provides 135 ft² of filtration area, while the DCC270 provides 270 ft².
The 6-hour turnover figures describe the theoretical volume circulated at the specified flow conditions. Correct filter sizing should still account for the overall pool system and operating conditions.
Installation
CrystalClear ER models use 40/50 mm inlet and outlet connections.
50 mm quick-connect barrel unions are supplied to simplify installation.
Install the filter on a stable base with sufficient space around the housing for plumbing, pressure-gauge access and servicing.
Vertical clearance is particularly important because the cartridge element must be lifted from the housing for cleaning and replacement.
Maintenance
The cartridge element is reusable and designed to be removed for cleaning.
A typical service process involves:
- Switch off the circulation pump.
- Depressurise the filter using the manual air bleed.
- Open the hand-operated lid locking ring.
- Remove the cartridge element.
- Wash accumulated debris from between the pleats.
- Inspect the element for wear or damage.
- Reinstall the clean element and correctly secure the filter before restarting the system.
Monitor the pressure gauge during normal use. Increasing resistance through the element indicates that cleaning may be required.
What's Included
- Davey CrystalClear ER cartridge filter assembly
- Pressure gauge
- Manual air bleed
- 50 mm quick-connect barrel unions
Warranty
- Tank: 10 years
- Components: 1 year
FAQs
Does the CrystalClear ER need to be backwashed?
No. It uses removable reusable cartridge elements instead of a backwashed media bed.
Does this filter use sand or glass media?
No. The CrystalClear ER is a cartridge filter.
Can it be used with a salt-water pool?
Yes. It is suitable for fresh-water, salt-water and mineral salt pools.
How do I clean the filter?
The filter is depressurised, opened and the cartridge element removed and washed.
Are the filter cartridges reusable?
Yes. The polyester elements are designed to be cleaned and reused until replacement is required.
What is the largest model?
The DCC270 provides 270 ft² of filtration area with a maximum flow of 510 L/min.
Does the DCC270 use one 270 ft² cartridge?
No. It is a twin-filter unit using a 90 ft² DCE1041 element together with a 180 ft² DCE1038 element.
What replacement cartridge fits the DCC225?
The DCC225 uses the DCE1040 225 ft² replacement element.
What size plumbing connection does it use?
The range uses 40/50 mm connections, with 50 mm quick-connect barrel unions supplied.
