Davey EcoPure Fibreglass Pool Media Filter
Davey EcoPure Fibreglass Pool Media Filter
Couldn't load pickup availability
- Easy Returns
- Fast Shipping

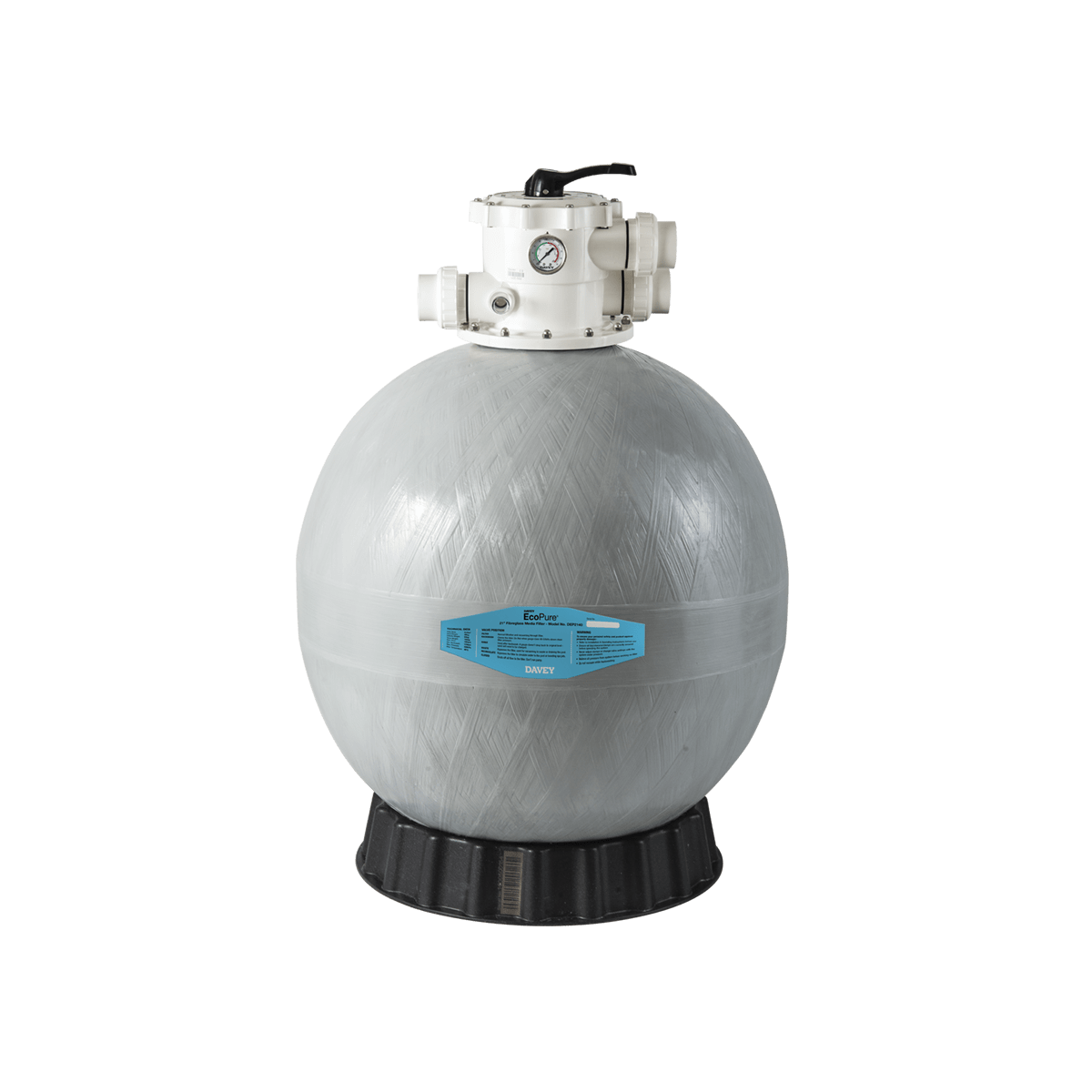

The Davey EcoPure is an economical fibreglass media filter designed for residential swimming pools, swim spas and plunge pools.
Its UV-stabilised, bobbin-wound fibreglass tank provides corrosion-resistant construction, while the large filtration area and media capacity support efficient pool filtration with less frequent backwashing.
The range includes four models from 21" to 40", with maximum filtration flow rates from 185 to 650 L/min. EcoPure filters are suitable for fresh water, salt water and mineral salt pools.
Each model is supplied as a tank and multiport valve kit.
Filter media is not included. Sand, Zelbrite or glass media must be purchased separately.
Product Options
Option Name: Model
| Model | Tank Size | Valve Size | Valve Type | Maximum Flow | 6-Hour Turnover |
|---|---|---|---|---|---|
| DEP2140 | 21" | 40 mm | Clamp | 185 L/min | 66,600 L |
| DEP2540 | 25" | 40 mm | Clamp | 260 L/min | 93,600 L |
| DEP2850 | 28" | 50 mm | Bolt | 325 L/min | 120,960 L |
| DEP4050 | 40" | 50 mm | Bolt | 650 L/min | 234,000 L |
Variant-Specific Details
DEP2140 — 21" / 40 mm
A compact EcoPure model for smaller residential pool filtration systems.
- Tank diameter: 21"
- Valve size: 40 mm
- Filter type: Clamp
- Maximum flow: 185 L/min
- Minimum backwash flow: 123 L/min
- 6-hour turnover: 66,600 L
- Filtration area: 0.22 m²
- Maximum water temperature: 40°C
- Maximum operating pressure: 320 kPa
DEP2540 — 25" / 40 mm
- Tank diameter: 25"
- Valve size: 40 mm
- Filter type: Clamp
- Maximum flow: 260 L/min
- Minimum backwash flow: 173 L/min
- 6-hour turnover: 93,600 L
- Filtration area: 0.32 m²
- Maximum water temperature: 40°C
- Maximum operating pressure: 320 kPa
DEP2850 — 28" / 50 mm
- Tank diameter: 28"
- Valve size: 50 mm
- Filter type: Bolt
- Maximum flow: 325 L/min
- Minimum backwash flow: 217 L/min
- 6-hour turnover: 120,960 L
- Filtration area: 0.41 m²
- Maximum water temperature: 40°C
- Maximum operating pressure: 320 kPa
DEP4050 — 40" / 50 mm
The largest EcoPure model, offering substantially greater filtration area and flow capacity.
- Tank diameter: 40"
- Valve size: 50 mm
- Filter type: Bolt
- Maximum flow: 650 L/min
- Minimum backwash flow: 433 L/min
- 6-hour turnover: 234,000 L
- Filtration area: 0.81 m²
- Maximum water temperature: 40°C
- Maximum operating pressure: 370 kPa
- Suitable for commercial installations
Why Choose the Davey EcoPure?
- Strong bobbin-wound fibreglass tank
- Corrosion-resistant construction
- UV-stabilised tank
- Large media capacity
- High-efficiency filtration design
- Large surface-area lateral underdrain
- Efficient backwashing
- 6-way multiport valve
- Built-in waste-port sight glass
- Oil-filled stainless steel pressure gauge
- Robust ABS barrel unions
- Suitable for sand, Zelbrite and glass media
- Fresh, salt and mineral salt pool compatible
- Four models from 21" to 40"
How It Works
Pool water is pumped into the EcoPure filter and passes through the selected filtration media.
Suspended debris is trapped within the media before filtered water returns to the pool. The large surface-area lateral underdrain distributes water through the tank and supports high filtration flow and efficient backwashing.
As debris builds up, resistance through the media increases. The pressure gauge helps indicate when backwashing is required.
The 6-way multiport valve is then used to reverse the water flow through the media bed, flushing accumulated dirt to waste. The integrated sight glass allows the discharged water to be monitored during the cleaning cycle.
Best Suited For
- In-ground residential pools
- Above-ground residential pools
- Swim spas
- Plunge pools
- Fresh-water pools
- Salt-water pools
- Mineral salt pools
- New pool filtration installations
- Replacement media filter installations
- Sand, Zelbrite or glass-media filtration
The EcoPure range includes models suitable for pools up to 180,000 litres.
The stated 6-hour turnover figures are hydraulic circulation figures and should not automatically be treated as maximum recommended pool sizes.
Key Specifications
| Specification | DEP2140 | DEP2540 | DEP2850 | DEP4050 |
|---|---|---|---|---|
| Tank size | 21" | 25" | 28" | 40" |
| Valve size | 40 mm | 40 mm | 50 mm | 50 mm |
| Valve type | Clamp | Clamp | Bolt | Bolt |
| Maximum flow | 185 L/min | 260 L/min | 325 L/min | 650 L/min |
| Minimum backwash flow | 123 L/min | 173 L/min | 217 L/min | 433 L/min |
| 6-hour turnover | 66,600 L | 93,600 L | 120,960 L | 234,000 L |
| Filtration area | 0.22 m² | 0.32 m² | 0.41 m² | 0.81 m² |
| Maximum water temperature | 40°C | 40°C | 40°C | 40°C |
| Maximum operating pressure | 320 kPa | 320 kPa | 320 kPa | 370 kPa |
Filter Media Requirements
Filter media is not included with any EcoPure model.
The filter is designed for use with:
- Pool filter sand
- Zelbrite
- Glass filter media
Sand Requirements
| Model | Sand Required | Approx. Bags |
|---|---|---|
| DEP2140 | 85 kg | 5 bags |
| DEP2540 | 155 kg | 8 bags |
| DEP2850 | 210 kg | 11 bags |
| DEP4050 | 600 kg | 30 bags |
Zelbrite Requirements
| Model | Zelbrite Required | Approx. Bags |
|---|---|---|
| DEP2140 | 64 kg | 5 bags |
| DEP2540 | 117 kg | 8 bags |
| DEP2850 | 158 kg | 11 bags |
| DEP4050 | 450 kg | 30 bags |
Glass Media Requirements
| Model | Fine / Medium Glass | Bags | Medium / Coarse Glass | Bags |
|---|---|---|---|---|
| DEP2140 | 45 kg | 3 | 30 kg | 2 |
| DEP2540 | 75 kg | 5 | 45 kg | 3 |
| DEP2850 | 90 kg | 6 | 60 kg | 4 |
| DEP4050 | 300 kg | 20 | 150 kg | 10 |
Where glass media is used, both listed grades are required to build the filter bed.
Dimensions
| Model | A | B | C | D | E | Connection Size |
|---|---|---|---|---|---|---|
| DEP2140 | 844 mm | 708 mm | 648 mm | 486 mm | 510 mm | 40 mm |
| DEP2540 | 967 mm | 831 mm | 771 mm | 486 mm | 635 mm | 40 mm |
| DEP2850 | 1080 mm | 926 mm | 846 mm | 486 mm | 700 mm | 50 mm |
| DEP4050 | 1406 mm | 1252 mm | 1172 mm | 720 mm | 1016 mm | 50 mm |
Allow sufficient clearance around the filter for plumbing, operating the multiport valve and future maintenance.
Choosing the Correct Model
Filter selection should account for:
- Pool volume
- Pump flow rate
- Required turnover time
- Plumbing size
- Backwash flow available
- Installation space
- System operating pressure
The DEP2140 and DEP2540 use 40 mm valve connections.
The DEP2850 and DEP4050 use 50 mm valve connections and provide higher filtration capacity.
The DEP4050 has a significantly higher minimum backwash requirement of 433 L/min, so the pump and plumbing system must be capable of delivering adequate flow during backwashing.
Multiport Valve
The EcoPure uses a 6-way multiport valve for filter operation and maintenance.
The valve system includes:
- Integrated waste-port sight glass
- Oil-filled stainless steel pressure gauge
The sight glass helps monitor discharge water during backwashing, while the pressure gauge allows increasing filter resistance to be identified.
Installation
Install the filter on a solid, level base with enough surrounding clearance for servicing and valve operation.
Connection size varies by model:
- DEP2140: 40 mm
- DEP2540: 40 mm
- DEP2850: 50 mm
- DEP4050: 50 mm
The filter, pump and plumbing should be matched so the filter's maximum flow and pressure limits are not exceeded.
The system must also be capable of meeting the model's minimum backwash flow rate for effective cleaning.
Filter media must be purchased separately and added during installation.
Maintenance
EcoPure media filters require routine backwashing as debris accumulates within the filter media.
Monitor the pressure gauge during normal filtration. When increased resistance indicates the media requires cleaning, use the multiport valve to backwash the filter.
The sight glass allows the discharge water to be monitored during the backwash process.
After backwashing, follow the correct rinse procedure before returning the valve to normal filtration.
Media condition should be checked periodically and replaced when required.
What's Included
- 1 × Davey EcoPure fibreglass filter tank
- 1 × 6-way multiport valve kit
The multiport valve assembly incorporates the pressure gauge and waste-port sight glass.
Not Included
Filter media is not included.
Sand, Zelbrite or glass filter media must be purchased separately in the correct quantity for the selected model.
Warranty
- Tank: 10 years
- Multiport valve: 3 years
- Gauge, laterals and labour: 1 year
FAQs
Does the EcoPure come with filter media?
No. Filter media is not included. Sand, Zelbrite or glass media must be purchased separately.
Can it be used with a salt-water pool?
Yes. EcoPure is suitable for fresh-water, salt-water and mineral salt pools.
Can I use glass filter media?
Yes. The range is designed for glass media. Each model has specified fine/medium and medium/coarse quantities.
Can I use Zelbrite?
Yes. Zelbrite is a suitable media option.
What is the difference between DEP2140 and DEP2540?
Both use 40 mm valve connections. The DEP2540 has a larger 25" tank, greater filtration area and higher maximum flow than the 21" DEP2140.
Which models have 50 mm connections?
DEP2850 and DEP4050.
Why is minimum backwash flow important?
The filter needs enough water flow during backwashing to properly clean the media bed. A pump that cannot meet the required backwash flow may not clean the filter effectively.
What is the largest model?
DEP4050 is the 40" model, with a maximum flow of 650 L/min and a 6-hour turnover of 234,000 litres.
Does the 234,000 L turnover figure mean the DEP4050 is rated for a 234,000 L residential pool?
No. The range is specified for pool applications up to 180,000 litres. The 234,000 L figure is the amount of water the DEP4050 can theoretically circulate over six hours at its rated maximum flow.
