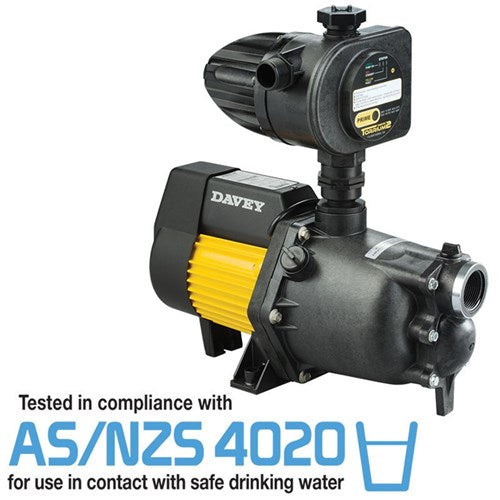

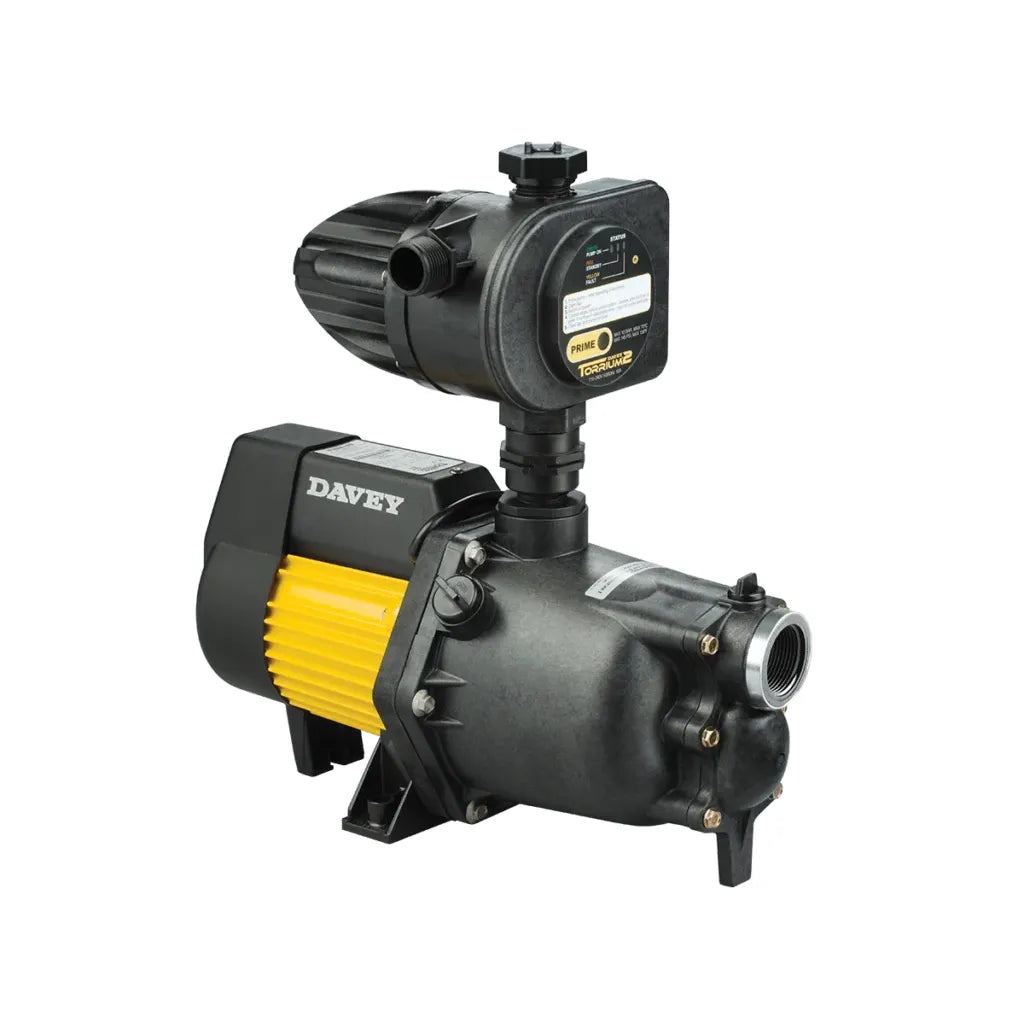

Davey XJ Series Jet Assisted Pump with Torrium2 Controller - Tank & Well Supply, Home Pressure NZ

The Davey XJ Series with Torrium2 controller is a single-stage jet-assisted pressure pump designed to draw water from sources below the pump — wells, tanks, creeks, rivers, and sand spears — and deliver consistent household pressure without cycling.

The jet-assist design gives the XJ a maximum suction head of 7m, making it the right choice when the water source is located below the pump installation point. The Torrium2 controller adapts pump output continuously to maintain constant flow, provides loss of prime protection, and eliminates the pressure variations of conventional on/off cycling.

The discharge outlet rotates a full 360° and can connect vertically or at right angles — useful where space is limited or plumbing direction is fixed. A spanner is included. An optional pressure tank (up to 18L) can be mounted on the vertical outlet for increased draw-off capacity.

Available in three models — XJ50T, XJ70T, and XJ90T. Select your model from the dropdown.

Tested in compliance with AS/NZS 4020 for use in contact with safe drinking water. Manufactured under ISO 9001 quality management and ISO 14001 environmental management systems.

Supplied with a 2-metre power lead and standard NZ 3-pin plug. Professional installation by a licensed plumber is recommended.

Important: the XJ Series is designed for low-pressure water sources (wells, tanks, and similar). For mains or municipal water supplies where line pressure exceeds 100 kPa, a break tank system is required, or use a Davey HS Series pump instead. All applicable local plumbing code requirements must be followed.

Key specs at a glance

• Pump type: Single-stage jet-assisted centrifugal
• Max suction head: 7m
• Max total head: 48m
• Max system pressure: 480 kPa
• Max water temperature: 50°C
• Min water temperature: 1°C
• Enclosure: IP55
• Controller: Torrium2 (fitted), IP56
• Discharge outlet: 360° rotating, vertical or right-angle connection
• Power lead: 2 metres, standard NZ 3-pin plug
• Optional pressure tank: up to 18L (not included)
• Warranty: 2 years
• Tested to AS/NZS 4020

Choosing your model

XJ50T — for smaller homes and standard demand
Output power (P2): 0.56 kW | Input power (P1): 0.84 kW | Full load current: 3.6A
Max flow: 50 lpm | Max pressure: 450 kPa | Inlet: 1" F | Weight: 10 kg
A compact, efficient choice for standard household supply from tanks or wells.

XJ70T — for medium homes with higher flow demand
Output power (P2): 0.80 kW | Input power (P1): 1.15 kW | Full load current: 5.1A
Max flow: 70 lpm | Max pressure: 480 kPa | Inlet: 1" F | Weight: 12 kg
More flow capacity for larger households or properties with multiple outlets running at once.

XJ90T — for larger homes and high-demand applications
Output power (P2): 1.1 kW | Input power (P1): 1.4 kW | Full load current: 6.6A
Max flow: 90 lpm | Max pressure: 450 kPa | Inlet: 1¼" F | Weight: 15 kg
The highest-flow model in the range — suits larger households or properties with demanding simultaneous usage.

Not sure which model suits your setup? Get in touch and we'll help you choose.

Why Kiwi homeowners choose the Davey XJ Series

• Jet-assisted design draws water from up to 7m below the pump — suited to wells, tanks, and surface water sources
• Torrium2 controller eliminates cycling — consistent pressure without on/off switching
• 360° rotating discharge outlet — connects vertically or at right angles to suit your installation
• Loss of prime protection built into the Torrium2
• Compact design — easy to install where space is limited
• Low-drag mechanical shaft seal for long life and reliable starting
• Built-in thermal overload protection with automatic reset
• Reliable starting under low voltage conditions
• Tested to AS/NZS 4020 for use in contact with drinking water
• 2-year warranty backed by Davey's NZ dealer network

How it works

The XJ Series uses a single-stage centrifugal pump with a closed vane impeller and jet assist. The jet venturi creates a low-pressure zone at the suction inlet that allows the pump to draw water from sources up to 7m below the pump body — further than a standard centrifugal pump can achieve without priming assistance.

The Torrium2 controller monitors pressure continuously and adapts pump output to match demand. No cycling, no pressure surges — just consistent flow at every outlet.

Suitable for: household and domestic water supply, irrigation from shallow wells or sand spears, overhead or high tank filling, and general water transfer.

Full technical specifications

Specification	XJ50T	XJ70T	XJ90T
Output power (P2)	0.56 kW	0.80 kW	1.1 kW
Input power (P1)	0.84 kW	1.15 kW	1.4 kW
Supply voltage	220–240V ±6%, single phase, 50Hz
Speed	2,850 rpm
Full load current	3.6A	5.1A	6.6A
Locked rotor current	12A	18A	28A
Inlet	1" BSP F	1" BSP F	1¼" BSP F
Outlet	1" BSP M
Max flow	50 lpm	70 lpm	90 lpm
Max pressure	450 kPa	480 kPa	450 kPa
Max system pressure	480 kPa
Max total head	48m
Max suction head	7m
Max water temperature	50°C
Min water temperature	1°C
Max ambient temperature	50°C
Enclosure	IP55
Insulation class	F
Length (dim. A)	430mm	455mm	505mm
Net weight	10 kg	12 kg	15 kg
Pump casing	Glass-filled noryl
Pump shaft	303 stainless steel
Impellers	Glass-filled polycarbonate
Mechanical seal	Ceramic (stationary) / Carbon synthetic (rotating)
O-rings	Nitrile rubber
Motor shell	Marine grade aluminium
Torrium2 controller	110–240V ±10%, single phase, 50/60Hz, IP56, max 10A
Certifications	Tested to AS/NZS 4020
Quality systems	ISO 9001, ISO 14001
Warranty	2 years

What's in the box

• 1 × Davey XJ Series jet-assisted pump with Torrium2 controller (model per selection)
• Spanner (sized to fit the coupling)
• 2-metre power lead with standard NZ 3-pin plug
• Installation and warranty documentation

Optional pressure tank (up to 18L) available separately — mounts on the vertical discharge outlet.

FAQ

What makes the XJ Series different from other Davey pumps?

The jet-assist mechanism allows the pump to draw water from sources up to 7m below the pump — significantly more than a standard centrifugal pump. This makes it the right choice for shallow wells, sand spears, low-set tanks, and surface water sources. If your water source is at or above pump level, the HS or HM Series may be better suited.

Can I use it with a mains water supply?

The XJ Series is designed for low-pressure water sources. If connected to mains or municipal water supplies where line pressure exceeds 100 kPa, a break tank system is required. For direct mains connection, use a Davey HS Series pump instead. All applicable local plumbing code requirements must be followed.

How deep can it draw water from?

The maximum suction head is 7m. For installations with suction lift, a good quality foot valve is required, and the in-built check valve should be removed.

What does the Torrium2 controller do?

It monitors system pressure and adapts pump output continuously to maintain constant flow — no cycling, no pressure spikes, and built-in loss of prime protection. If the pump runs dry, the Torrium2 shuts it down to prevent damage.

Can I add a pressure tank?

Yes. An optional pressure tank (up to 18L) can be mounted on the vertical discharge outlet to increase draw-off capacity. The tank is available separately.

How does the 360° discharge outlet help?

It means the plumbing can connect vertically or at right angles to the pump, and the outlet can rotate to align with your pipework without needing additional fittings. Useful where space is limited or where the pipe direction is fixed.

Do I need a plumber to install it?

Professional installation by a licensed plumber is recommended. If connecting to mains water, local plumbing code requirements apply — check with your plumber before installation.

Can I pair it with a water filter?

Yes. A whole-house filter installed upstream protects the pump from sediment and extends its service life. Get in touch for filter recommendations suited to your water source.

What warranty applies?

2 years, backed by Davey's NZ dealer network.
