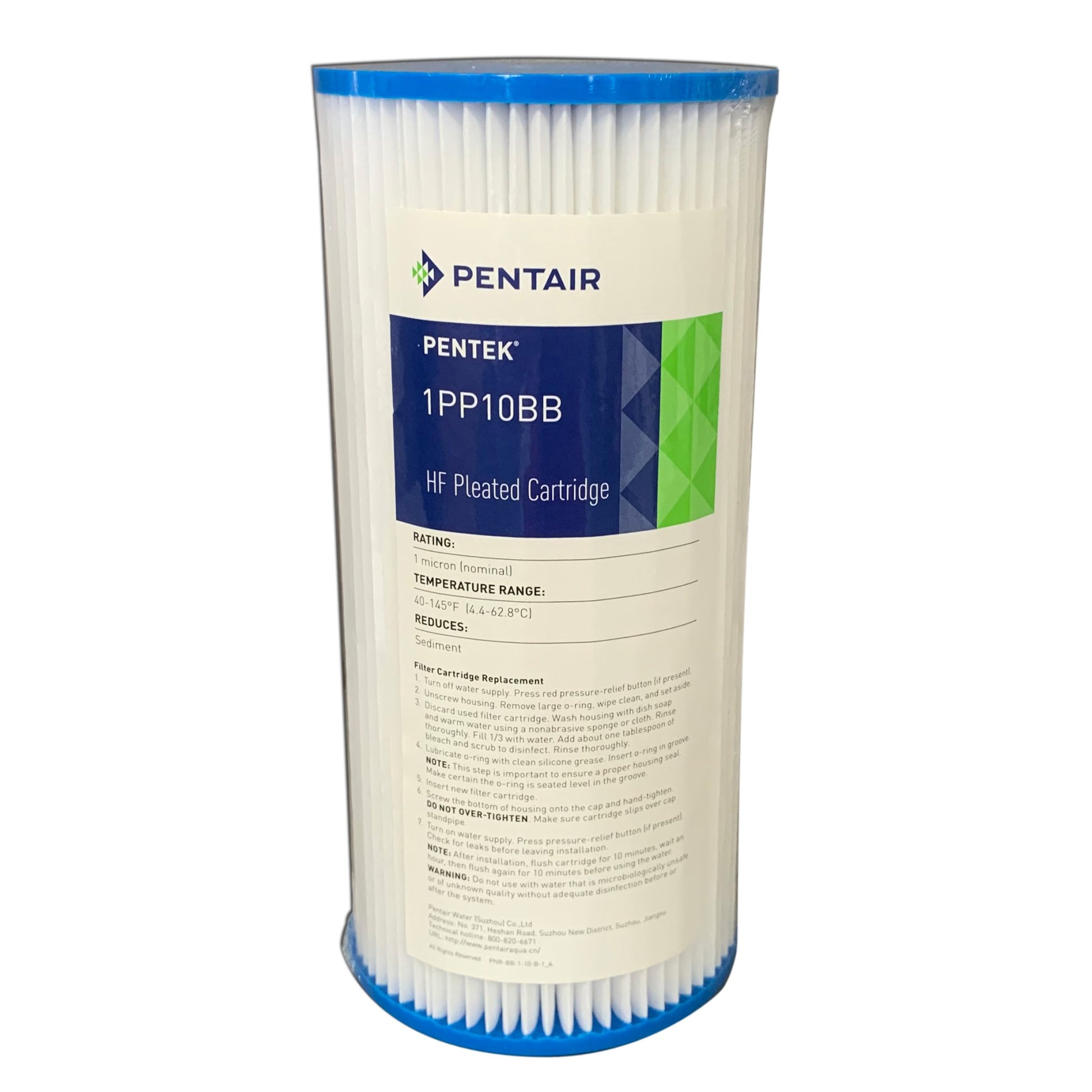

Pentair 10" Jumbo Polypleated Washable Sediment Water Filter Cartridge

A washable, reusable pleated sediment water filter cartridge for 10" Jumbo (Big Blue) housings — ideal for tank, bore and river water supplies.

The Pentair 10" Jumbo Polypleated Sediment Filter is made from durable pleated polyester. Its pleated construction provides a large filtration surface area, allowing the cartridge to hold more sediment before restriction while maintaining good water flow as sediment builds up.

Unlike disposable sediment cartridges, the filter can be removed, rinsed clean and reused, making it an excellent option for water supplies with regular sediment loading.

Choose from 1, 5, 20 or 50 micron filtration using the dropdown above.

Choose Your Micron Rating

Different micron ratings suit different stages of filtration.

Which Micron Rating Should I Choose?

As a general rule, use coarser filtration upstream and finer filtration downstream.

For a two-stage system, a common setup is:

20 or 50 Micron → 1 or 5 Micron

The first cartridge captures larger sediment before the second cartridge provides finer filtration.

If you have a particularly high sediment load, starting with a 50 micron cartridge can help prevent the finer downstream filter from loading too quickly.

Why Choose a Pleated Sediment Filter?

The pleated polyester media folds back and forth inside the cartridge, creating a much larger filtration surface area than a simple flat filter of the same overall dimensions.

This increased surface area provides more room to capture sediment before the cartridge becomes restricted.

For tank, bore and river-water applications where sediment can vary considerably, this makes pleated filtration a practical first or second filtration stage.

Washable & Reusable

One of the major advantages of this cartridge is that it can be washed and reused.

When the cartridge becomes visibly dirty or water flow begins to reduce:

1. Turn off the water supply.
2. Release pressure from the filter housing.
3. Remove the housing sump.
4. Remove the cartridge.
5. Rinse sediment from the pleated media using clean water.
6. Reinstall the cartridge.
7. Reassemble the housing and restore the water supply.
8. Check for leaks.

The number of times the cartridge can be successfully cleaned depends on your incoming water quality and the type of sediment being captured.

Fine silt can become embedded more deeply within the pleats than larger particles such as sand.

Replace the cartridge when cleaning no longer restores adequate flow or when the polyester media becomes degraded or damaged.

Key Features

• 10" Jumbo / Big Blue size
• 4.5" diameter
• Pleated polyester sediment media
• Washable and reusable
• Large filtration surface area
• Designed to capture suspended sediment
• Suitable for tank water
• Suitable for bore water
• Suitable for river and surface-water prefiltration
• Fits standard 10" Jumbo / Big Blue filter housings
• Available in 1, 5, 20 and 50 micron
• Suitable for single and multi-stage filtration systems
• Excellent prefiltration option for downstream water treatment equipment

Product Specifications

Best Suited For

The Pentair 10" Jumbo Polypleated Filter is well suited to:

• Rainwater tanks
• Bore water
• River water
• Surface water
• Sediment-heavy water supplies
• Whole-house prefiltration
• First-stage sediment filtration
• Second-stage fine sediment filtration
• UV system prefiltration
• Protecting downstream water treatment equipment
• Multi-stage filtration systems

Using It Before a UV System

Fine sediment and suspended particles should be filtered before water reaches downstream treatment equipment such as a UV system.

For this application, the 1 or 5 micron options can be used as a finer final sediment stage before the UV treatment system.

For water with heavier sediment loading, use a coarser cartridge upstream first.

For example:

20 Micron Pleated → 1 Micron Pleated → UV

or

50 Micron Pleated → 5 Micron Pleated → UV

The best combination depends on the amount and type of sediment in the incoming water.

What's Included

1 × Pentair 10" Jumbo Polypleated Sediment Water Filter Cartridge

Micron rating supplied according to your selected option.

Frequently Asked Questions

Is this filter washable?

Yes. The pleated polyester cartridge is washable and reusable.

Remove the cartridge when dirty, rinse sediment from the pleated media and reinstall it.

Replace it when cleaning no longer restores adequate flow or when the media becomes degraded or damaged.

What micron ratings are available?

Choose from:

• 1 Micron
• 5 Micron
• 20 Micron
• 50 Micron

Select your required micron rating from the dropdown above.

Which micron rating should I choose?

For heavier sediment and first-stage filtration, choose 20 or 50 micron.

For finer second or final-stage filtration, choose 1 or 5 micron.

In multi-stage systems, install the coarser cartridge first and finer cartridge second.

Is this suitable for bore water?

Yes. Pleated polyester is well suited to bore-water sediment filtration.

For higher sediment loads, 20 or 50 micron is a good starting point for first-stage filtration.

Is it suitable for tank water?

Yes. It is well suited to capturing suspended sediment from rainwater and tank-water systems.

The best micron rating depends on your water quality and whether the cartridge is being used as a first or final filtration stage.

Is it suitable for river water?

Yes. It can be used for sediment prefiltration on river and surface-water supplies.

Water quality can vary significantly, so multi-stage filtration and additional treatment may be required depending on the source.

Will it fit my Big Blue housing?

Yes, provided you have a standard 10" Jumbo / Big Blue housing.

The cartridge is approximately 250mm long and 4.5" diameter.

Is this the same as a 10" Standard cartridge?

No.

This is a 10" Jumbo / Big Blue cartridge with a 4.5" diameter. It is designed for Jumbo housings rather than slim 10" Standard housings.

Can I use two different micron ratings together?

Yes. This is an excellent way to configure a multi-stage sediment filtration system.

For example:

20 Micron → 5 Micron

or

50 Micron → 1 Micron

Using progressively finer filtration helps prevent the fine cartridge from becoming overloaded with larger sediment.
