20 Micron Jumbo Pleated Sediment Filter

First-stage sediment protection for your whole-house filter system — available in premium Davey or value Waimana.

This 20 micron pleated cartridge removes coarse sediment, dirt, rust, sand, and leaf matter from your water supply before it reaches finer downstream filters. The pleated design offers a larger surface area than a flat filter — catching more sediment while maintaining good flow and pressure. Cleanable and reusable, extending its service life before replacement is needed.

Available in two brands and two sizes. Choose Davey for certified, premium performance. Choose Waimana for reliable everyday filtration at a sharper price.

Fits most 10" Jumbo housings (10" x 4.5" cartridge) and 20" Jumbo housings (20" x 4.5" cartridge) — including Davey, Pentair, Puretec, Trevoli, and most other major brands. Jumbo housings take a 4.5" diameter cartridge. If you're unsure whether your housing is Jumbo or Standard, measure the cartridge diameter — Jumbo is 4.5", Standard is 2.5".

Choose Your Brand

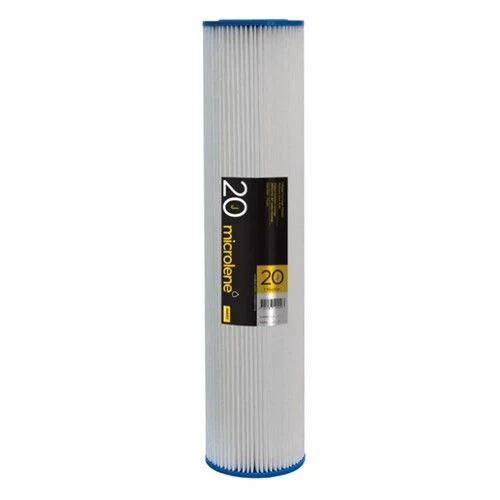

Davey Microlene — Premium

The Davey Microlene 20 micron pleated cartridge is certified to AS/NZS 4020 for use in contact with drinking water. For households who want certified, reliable first-stage protection with confidence in every service interval.

Waimana — Value

Waimana is our straightforward value cartridge — solid sediment removal, reliable performance, fair price. A sensible choice for everyday filtration where budget matters.

Choose Your Size

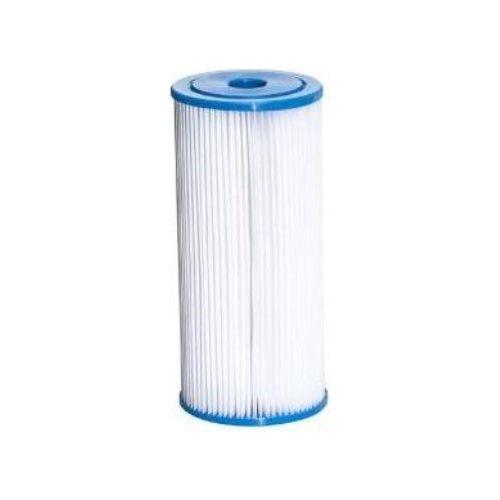

10" Jumbo (10" x 4.5")

Suits 10" Jumbo housings. Good capacity for most household installations. Replace or clean every 6–12 months depending on water quality and sediment load.

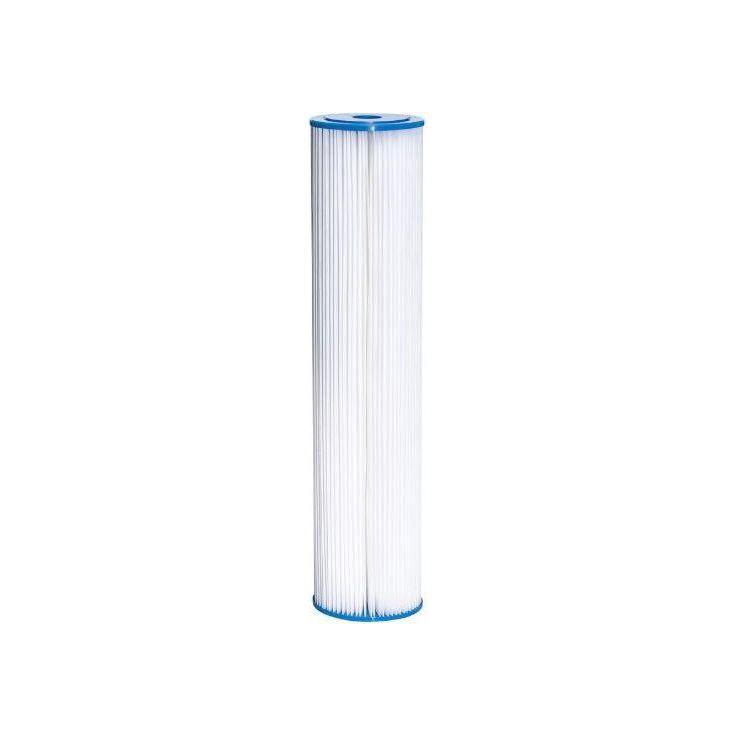

20" Jumbo (20" x 4.5")

Suits 20" Jumbo housings. Longer cartridge holds more sediment media — extends the time between service intervals. The better choice for high-usage households or supplies with heavy sediment loads.

How to Clean and Reuse

This cartridge is cleanable and reusable. When flow rate drops noticeably, clean before replacing:

1. Shut off the water supply and release housing pressure
2. Remove the cartridge from the housing
3. Rinse under a tap or gently hose off visible sediment — work from the inside out
4. For stubborn deposits, soak briefly in a dilute cleaning solution appropriate to the contamination, then rinse thoroughly
5. Sterilise with a dilute bleach solution before reinstalling
6. Reinstall and restore water supply

Replace the cartridge when cleaning no longer restores adequate flow, or at least every 12 months regardless of condition.

Key Specs at a Glance

• Micron rating: 20 micron (coarse sediment)
• Diameter: 4.5" (Jumbo / Big Blue)
• Lengths: 10" or 20"
• Filter type: Pleated
• Cleanable and reusable: Yes
• Replace: Every 6–12 months, or when cleaning no longer restores flow
• Davey certification: AS/NZS 4020 — tested for use in contact with drinking water
• Fits: Most 10" and 20" Jumbo housings

Frequently Asked Questions

Which brand should I choose?

If you want a certified cartridge — particularly for drinking water supplies — choose Davey. The Davey Microlene 20 micron pleated is certified to AS/NZS 4020, which is the NZ and Australian standard for products used in contact with drinking water. If you're filtering for general household use on a tighter budget, Waimana delivers reliable sediment removal at a better price point.

Which size should I choose?

Match the cartridge size to your housing. If your housing takes a 10" x 4.5" cartridge, choose 10" Jumbo. If it takes a 20" x 4.5" cartridge, choose 20" Jumbo. Not sure? Measure the cartridge you're replacing — Jumbo is 4.5" in diameter. If you're still unsure, get in touch and we'll help you identify the right fit.

Will it fit my housing?

This cartridge fits most 10" and 20" Jumbo housings — including Davey, Pentair, Puretec, Trevoli, and most other major brands. The key measurement is diameter: Jumbo housings take a 4.5" diameter cartridge. If your housing takes a 2.5" diameter cartridge, you need the Standard size, not this one.

Can I really clean and reuse this cartridge?

Yes. The pleated design is cleanable — rinse or soak off the accumulated sediment when flow drops, sterilise, and reinstall. Most cartridges can be cleaned multiple times before replacement is needed. Replace at least annually regardless of condition.

How often do I need to replace it?

Every 6–12 months is the general guideline, but it depends heavily on your water quality and sediment load. Tank water with high leaf or dirt contamination will load up a cartridge faster than clean mains water. Clean when flow drops noticeably — replace when cleaning no longer restores adequate flow.

What does AS/NZS 4020 mean?

AS/NZS 4020 is the Australian and New Zealand standard for products used in contact with drinking water. A product certified to this standard has been independently tested and confirmed safe for use in drinking water systems. The Davey Microlene cartridge carries this certification. The Waimana cartridge does not.

Does this cartridge protect against bacteria or cysts?

No. At 20 microns this is a coarse sediment filter — it removes dirt, rust, sand, and leaf matter. For bacteria and virus protection, UV disinfection is required. For cyst protection (Giardia, Cryptosporidium), 1 micron filtration is required downstream of this stage.

What warranty applies?

Filter cartridges are consumable items. If you receive a cartridge that appears damaged or defective on arrival, get in touch and we'll sort it out.
