Inline UV treatment for rainwater, tank and mains supplies — in three sizes, from a single tap to a whole home.
A UV steriliser treats water against harmful micro-organisms as it passes through a stainless steel chamber. There's no chemical added, and no change to the taste or chemistry of your water. Choose the unit that matches your flow rate and your plumbing.
These are UV treatment units only — they don't remove sediment, chlorine or other contaminants. UV works best on water that's already clear, so pair the unit with sediment and carbon filtration upstream for a complete setup.
Bore water quality varies significantly. We recommend testing your bore water before selecting a filtration system — get in touch and we'll help you choose the right configuration for your supply.
Choosing your unit
| Unit | Flow rate | Connection | Best for |
|---|---|---|---|
| 6W | 5 LPM recommended | 6mm inlet and outlet | Point-of-use — a single tap or appliance. Underbench installations, baches, compact spaces. Suits mains, rainwater and tank. |
| 16W | Up to 24 LPM | 1/2" male thread (suits 15mm hose) | Compact inline treatment for smaller whole-property installations and tighter spaces. Suits rainwater and tank. |
| 55W | Up to 45 LPM | 25mm | Whole-home supply where higher flow is needed. Suits rainwater and tank. |
If you're not sure which flow rate your property needs, get in touch and we'll help you work it out.
How UV treatment works
Water passes through a stainless steel chamber containing a UV lamp. The UV light disrupts the DNA of micro-organisms, preventing them from reproducing. Nothing is added to the water and nothing is removed from it.
Two things affect how well this works. The first is flow rate — the faster water moves through the chamber, the less UV it receives. The second is clarity: sediment and turbidity shield micro-organisms from the light. Keeping flow within the unit's rating and filtering sediment upstream both matter.
Alarms and ballasts — what's different
Every unit tells you when the lamp needs attention, but each does it differently.
| Unit | Ballast and alarm |
|---|---|
| 6W | Electronic ballast with a visible and audible alarm if power to the lamp fails. |
| 16W | Ballast controller with an audible alarm when the lamp is due for replacement. |
| 55W | T-Ballast controller with a countdown timer that tracks lamp service life, plus an audible alarm when replacement is due. |
UV lamps lose output over time even while still glowing, which is why all three units should have the lamp replaced every 12 months regardless of what the alarm is doing.
What each unit treats against
The organisms below are those named in each unit's own specification. A shorter list reflects how that specification is written, not a narrower range of treatment.
| Unit | Organisms named in the specification |
|---|---|
| 6W | Bacteria and viruses, including E. coli and Salmonella. |
| 16W | Bacteria and viruses, including E. coli and Salmonella. |
| 55W | Bacteria and viruses, including E. coli and Salmonella. |
Why homeowners choose these units
- UV treatment adds no chemicals and doesn't change the taste of your water
- Stainless steel chambers built for long-term inline use
- Every unit carries a lamp alarm, so maintenance isn't guesswork
- Three sizes covering a single tap through to whole-home flow
- Works alongside existing filtration or as a dedicated treatment stage
- Mounting hardware included on all three units
- 2-year warranty across the range
Technical specifications
| Specification | 6W | 16W | 55W |
|---|---|---|---|
| UV lamp power | 6W | 16W | 55W |
| Recommended flow rate (30 mJ/cm²) | 5 LPM | 13 LPM | 45 LPM |
| Maximum flow rate | 9 LPM | 24 LPM | 84 LPM |
| Connection | 6mm inlet and outlet | 1/2" male thread (suits 15mm hose) | 25mm |
| Inlet to outlet distance | — | 230mm centre to centre | — |
| Temperature range | 2–40°C | 2–40°C | — |
| UV chamber dimensions | — | 370(L) x 64(W) x 82(H)mm | 1020(L) x 70(W) x 100(H)mm |
| Ballast dimensions | — | 118(L) x 58(W) x 31(H)mm | 280(L) x 75(W) x 55(H)mm |
| Chamber material | Stainless steel | Stainless steel | Stainless steel |
| Ballast | Electronic | Ballast controller with alarm | T-Ballast, countdown timer and alarm |
| Lamp supplied | Loose | Loose | Loose |
| Warranty | 2 years | 2 years | 2 years |
What's in the box
6W
- Stainless steel chamber, fully assembled
- UV lamp, supplied loose
- Quartz tube
- Electronic ballast
- Seals
- Mounting clamps
- Power cable

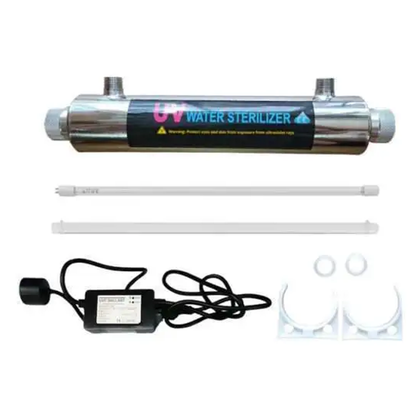

16W
- Stainless steel UV chamber
- 16W UV lamp, supplied loose
- Quartz sleeve
- Ballast controller with alarm
- Mounting clips
- O-rings

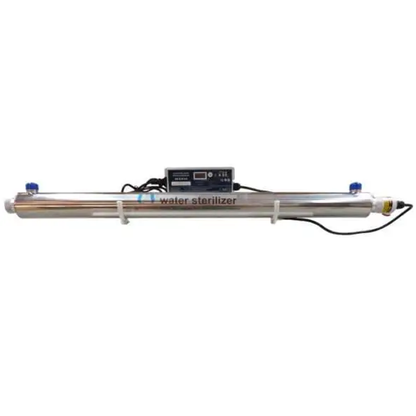

55W
- Stainless steel UV chamber
- 55W UV lamp, supplied loose
- T-Ballast controller with countdown timer and alarm
- Mounting brackets
Frequently asked questions
Which unit do I need?
Match the unit to your flow rate and your plumbing. The 6W is a point-of-use unit for a single tap or appliance, with 6mm connections. The 16W handles up to 24 LPM on 1/2" thread connections suiting 15mm hose. The 55W handles up to 45 LPM on 25mm connections and suits whole-home supply. If you're unsure what your property needs, get in touch and we'll help you work it out.
Do these units include filtration?
No. These are UV treatment units only. They treat water against harmful micro-organisms but don't remove sediment, chlorine or other contaminants. For a complete setup, fit sediment and carbon filtration upstream.
Do I need a sediment pre-filter?
UV treatment works best when water is clear. Sediment and turbidity can shield micro-organisms from the UV light and reduce how well the unit works. If your supply carries sediment, fitting a sediment pre-filter ahead of the UV unit is strongly recommended.
Can I use these on rainwater, tank or bore water?
Yes these units suit mains, rainwater and tank supplies. Bore water quality varies significantly. We recommend testing your bore water before selecting a filtration system — get in touch and we'll help you choose the right configuration for your supply.
How do the alarms differ between units?
The 6W has an electronic ballast with a visible and audible alarm if power to the lamp fails. The 16W has a ballast controller with an audible alarm when the lamp is due for replacement. The 55W adds a countdown timer that tracks lamp service life alongside its audible alarm.
How often do I replace the UV lamp?
Every 12 months, on all three units. UV lamp output degrades over time even when the lamp still appears to be glowing, so annual replacement is the right approach regardless of what the alarm is showing.
Do I need a surge protector?
It's a good idea. UV ballasts are sensitive to power fluctuations, and a surge protector adds a layer of protection for the electronics. We recommend fitting one as part of the installation.
Do I need a plumber to install it?
For most customers, yes — a licensed plumber is the safest path. All three units arrive with mounting hardware and use standard connection sizes. If you're confident with household plumbing, the installation itself is straightforward. If you're not sure, get in touch and we'll help you decide.
What is the quartz sleeve?
The quartz sleeve is a protective glass tube that sits around the UV lamp inside the chamber. It keeps the lamp dry while letting UV light pass through into the water.
What warranty applies?
All three units carry a 2-year warranty.
