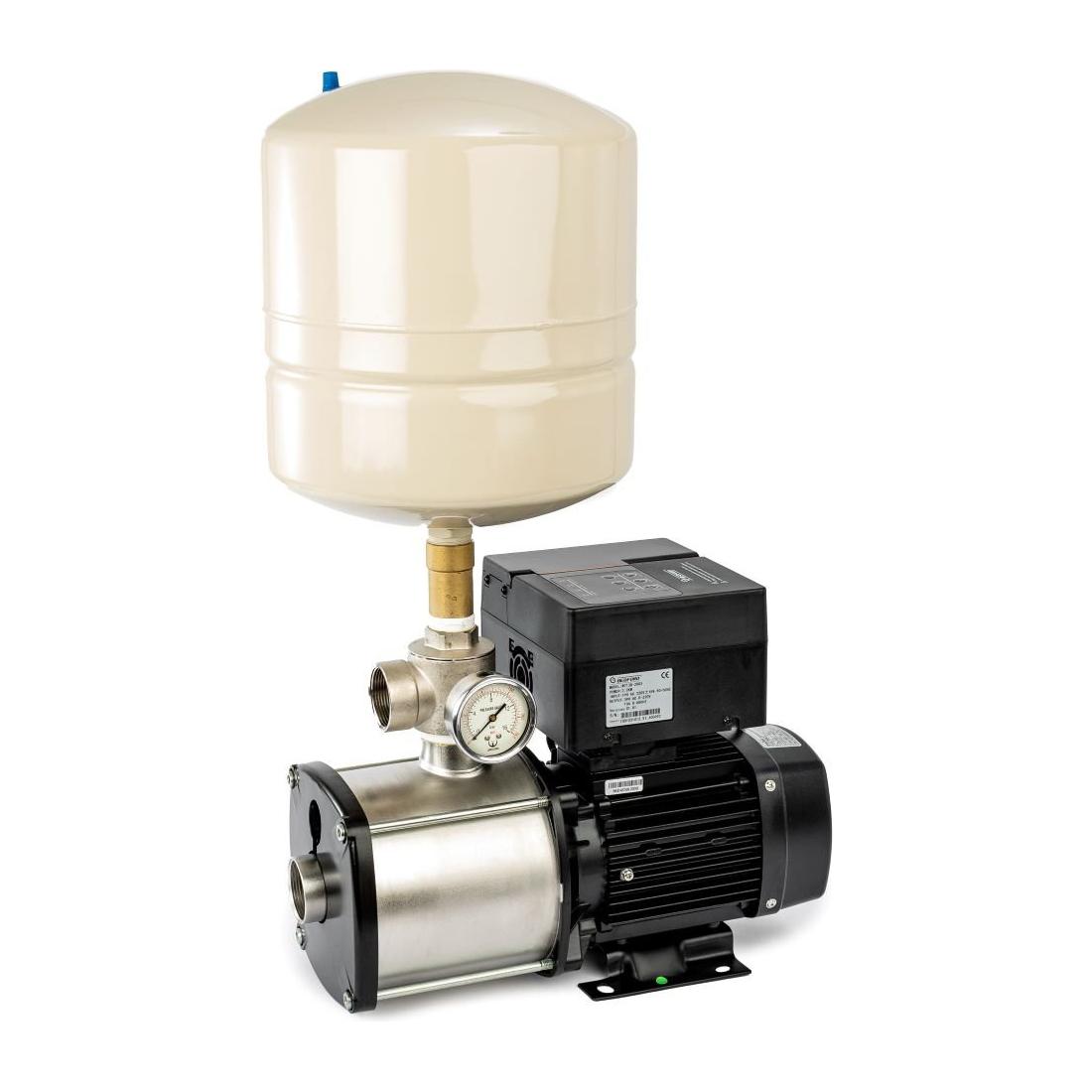

Trevoli CMB8-72VP 2.2kW Variable Speed Stainless Steel Multistage Pressure Pump (Large Home)

The Trevoli CMB8-72 2.2kW Variable Speed Stainless Steel Multistage Pressure Pump (CMB8-72VP) is an advanced water supply solution for large or multi-level homes, farms, and commercial applications. Designed to support up to 15 taps simultaneously, it ensures consistent water pressure with its variable speed controller and 18L pressure tank. Featuring stainless steel construction and energy-efficient operation, this pump is built for reliability, performance, and cost savings.

Key Features and Benefits

• Variable Speed Controller: Adjusts pump speed based on demand, ensuring constant pressure and reducing energy consumption by up to 50%.
• High Capacity: Delivers up to 166 L/min and supports up to 15 taps at once.
• Soft Start Operation: Prevents water hammer and protects plumbing systems.
• Durable Stainless Steel Construction: Corrosion-resistant pump housing, motor shaft, impellers, and chambers for long-lasting reliability.
• Energy-Efficient and Quiet: Designed for continuous duty with low operating noise.
• Integrated Safety Features: Includes built-in thermal overload protection and run-dry protection.

Technical Information

• Power: 2200W / 3 hp
• Max Flow Rate: 166 L/min
• Max Pressure: 102 psi
• Max Discharge Head: 72m
• Max Suction: 1.5m
• Inlet/Outlet Size: 1½ inch BSP (40mm)
• Liquid Temperature Range: -20 to 70°C
• Max Operating Pressure: 10 bar
• Insulation Class: F
• Controller: Variable Speed (IP54 rated)
• Pressure Tank: 18L
• Dimensions: Length 450mm, Height 760mm (with pressure tank)

Applications

• Water supply for large or multi-level homes.
• Farm irrigation systems.
• General water transfer systems.
• Industrial and commercial water applications.

Included Features

• Variable speed constant pressure controller for precise pressure control.
• Soft start to avoid water hammer and plumbing damage.
• Stainless steel pump housing, motor shaft, impellers, and chambers for corrosion resistance.
• Built-in thermal overload protection for motor safety.
• Quiet operation for residential and commercial use.
