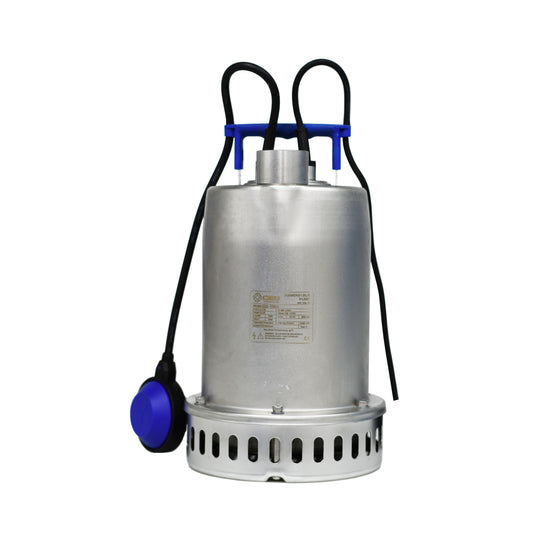

The Davey DCS Series is a heavy-duty submersible dewatering pump built for dirty water removal — sump emptying, basement drainage, septic effluent disposal, flood water removal, and waste water containing small soft solids. The 304 stainless steel outer casing and strainer handle tough, ongoing applications where corrosion resistance matters.

A double mechanical shaft seal in an oil bath with hard-faced silicon carbide/ceramic seal on the pump side provides added motor protection and long service life. A sand slinger lip seal adds a further layer of protection. The double case design channels discharge flow past the internal motor shell — better motor cooling and the ability to operate in partially submerged installations.

An open impeller, semi-vortex centrifugal design passes small soft solids in suspension and is less susceptible to blockage than a closed impeller design.

Available in seven models from 0.4 kW to 1.5 kW. Automatic (A suffix) models include a float switch for unattended operation. Manual (M suffix) models operate on demand. Select your model from the dropdown.

Note: DCS75A, DCS75M, and DCS150 carry a 1-year guarantee. All other models carry a 2-year guarantee.

Important: do not use this pump for recirculating or filtering swimming pools or spas where people are in the water while the pump is operating. Do not lower or retrieve the pump using the power lead — use a rope.

Key specs at a glance

Outer casing: 304 stainless steel
Shaft seal: Double mechanical, silicon carbide/ceramic, oil bath
Outlet: 2" BSP F (all models)
Voltage: 220–240V, single phase, 50Hz
IP rating: X8 (fully submersible)
Power lead: 10m HO7RNF oil-resistant, standard 3-pin plug
Suitable fluids: Sewage or grey water, neutral pH, up to 10% soft solids <10mm OD
Hose tail included for temporary installations
Guarantee: 2 years (DCS40, DCS55) | 1 year (DCS75, DCS150)

Choosing your model

The A suffix models include a preset float switch for automatic operation. M suffix models have no float switch and must be operated manually or via an external level control. DCS150 is manual only.

DCS40A / DCS40M — 0.4 kW
Full load current: 2.70A | Weight: 14 kg | Guarantee: 2 years
Suited to domestic sump drainage and moderate dewatering applications.

DCS55A / DCS55M — 0.55 kW
Full load current: 4.00A | Weight: 25 kg | Guarantee: 2 years
Higher flow capacity — suits heavier domestic and light commercial applications.

DCS75A / DCS75M — 0.75 kW
Full load current: 7.50A | Weight: 25 kg | Guarantee: 1 year
Higher output for demanding dewatering, basement drainage, and semi-commercial use.

DCS150 — 1.5 kW (manual only)
Full load current: 13.00A | Weight: 26 kg | Guarantee: 1 year
The highest-capacity model — suited to large-volume dewatering, construction sites, and commercial applications.

Not sure which model suits your application? Get in touch and we'll help you choose.

Why Kiwi homeowners and contractors choose the Davey DCS

304 stainless steel outer casing and strainer — corrosion resistant, built for ongoing use
Semi-vortex open impeller passes soft solids without blocking
Double mechanical shaft seal in oil bath — added motor protection and long service life
Sand slinger lip seal for additional protection
Double case design allows partial submersion and improves motor cooling
Automatic resetting thermal overload — protects against overloading
In-built automatic thermal overload — protects against blockage and voltage issues
IP X8 rated — fully submersible
Oil-resistant HO7RNF leads — longer life in dirty water
Hose tail included for lay-flat hose temporary installations

Full technical specifications

Specification	DCS40A/M	DCS55A/M	DCS75A/M	DCS150
Output power	0.4 kW	0.55 kW	0.75 kW	1.5 kW
Supply voltage	220–240V, single phase, 50Hz
Full load current	2.70A	4.00A	7.50A	13.00A
Locked rotor current	8.5A	13A	22.50A	48.00A
Speed	2,850 rpm
IP rating	X8
Insulation class	F
Float switch	A = yes, M = no	A = yes, M = no	A = yes, M = no	No
Outlet	2" BSP F
Width (A)	167mm	192mm	192mm	182mm
Height B	280mm	340mm	340mm	441mm
Total height C	370mm	430mm	430mm	531mm
Net weight	14 kg	25 kg	25 kg	26 kg
Outer casing	304 stainless steel
Pump casing	Cast iron
Impeller	Polycarbonate	Cast iron
Pump shaft	304 stainless steel
Motor shell	304 stainless steel
Shaft seal — pump side	Silicon carbide/ceramic
Shaft seal — motor side	Carbon/ceramic mechanical seal in captive oil bath
Power lead	10m HO7RNF oil-resistant
Suitable fluids	Sewage/grey water, neutral pH, up to 10% soft solids <10mm OD
Guarantee	2 years	2 years	1 year	1 year

What's in the box

1 × Davey DCS Series submersible sump pump (model per selection)
Hose tail for temporary lay-flat hose installations
10m HO7RNF oil-resistant power lead with standard 3-pin plug
Installation documentation

FAQ

What's the difference between the A and M suffix models?

A suffix models include a preset float switch — the pump starts automatically when water rises to the trigger level and stops when it drops to the safe operating level. M suffix models have no float switch and must be started and stopped manually, or controlled via an external level switch. DCS150 is manual only.

What does semi-vortex open impeller mean?

The open impeller design allows small soft solids in suspension to pass through without blocking the pump. A semi-vortex flow pattern further reduces the risk of clogging. It's why this pump handles grey water, effluent, and waste water with soft solids — not just clean water.

What fluids can it handle?

Sewage or grey water of neutral pH containing up to 10% small soft organic solids under 10mm OD. Some wear should be expected when pumping hard solids in suspension. Do not pump abrasive materials like sand and grit — these accelerate wear significantly.

Can I use it in a swimming pool?

Not for recirculating or filtering pools or spas where people are in the water while the pump is operating. It is not approved for that use. It can be used to empty a pool when no one is in it.

How do I retrieve it?

Always use a rope. Never lower or retrieve the pump using the power lead — this can damage the cable entry seals, causing water ingress and unsafe operation.

Why does the warranty differ between models?

DCS40 and DCS55 models carry a 2-year guarantee. DCS75 and DCS150 models carry a 1-year guarantee. This is as stated by Davey on the product datasheet.

What is the hose tail for?

The hose tail adapts the 2" outlet for use with lay-flat hose — useful for temporary dewatering or flood removal where you need to run a hose across a floor or out of a window. A hose clamp is not included.

What warranty applies?

2-year guarantee on DCS40 and DCS55 models. 1-year guarantee on DCS75 and DCS150 models. Backed by Davey's NZ dealer network.
