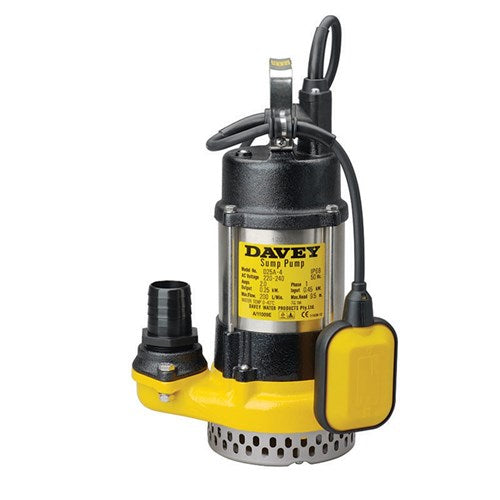

Davey D25A submersible dewatering pump

Davey

Davey D25A Submersible Dewatering Pump – 0.25kW, Auto Float

$1,186.80incl. GST

Our promise: if it's not right, we'll put it right.

Need a hand choosing a pump?

Email us a photo of your current pump or setup and we’ll help you find the right one.

Call us on 0800 209 829 Email a photo

Mon–Fri, 8am–4pmsales@filtrationstation.co.nz

Brand
Davey
Type
Drainage & Flood Pumps
SKU
D25A
Stock
In stock

Fit check

Is it right for my water supply?

A quick check before you buy.

  • Rain, surface and storm water

    Good fit

    These pumps are designed for rainwater, surface water and storm water: cellars, garages, ditches, pits, ponds and sump emptying.

  • Slightly dirty water or small soft solids

    Good fit

    The open impeller handles clean or grey water with up to 10% small soft solids or 1% fine solids. Expect some wear from sand, grit or hard solids.

  • Sewage, effluent, slurry or stringy waste

    Not this one

    We don't recommend these dewatering models for raw sewage, stock effluent, grease traps, hair, stringy materials or slurries. Davey's vortex, cutter and grinder pumps are made for those.

  • Automatic float

    Good fit

    The D25A has a preset float switch that starts the pump as water rises and stops it at a safe level. Leave room in the sump for the float to rise and fall freely.

  • Pit or sump depth

    Consider

    The range has a 10 m lead and 12 m maximum total head.

  • Emptying a swimming pool

    Consider

    These small dewatering models suit emptying pools, but they're not for recirculating or filtering pools or spas, and never with people in the water.

Specs

Specs

Model
D25A (automatic float switch)
Pump type
Submersible general purpose dewatering pump, open impeller centrifugal
Motor output
0.25 kW (250 W)
Range limits
Capacities to 240 lpm, 12 m max total head (D15A–D40 datasheet)
Max operating temperature
50 °C
Suitable fluids
Clean or grey water of neutral pH, up to 10% small soft solids or 1% fine solids
Power supply
240 V, 50 Hz, single phase
Current
12.0 A start, 2.2 A run
Speed
2 pole, 2,850 rpm
Power lead
10 m HO7RN-F oil resistant, 3-pin plug
Outlet
1½" F BSP
Float
Preset float switch for automatic operation
Protection
Automatic resetting thermal overload, IPX8, Class F insulation
Seals
Double mechanical seal in oil bath (silicon carbide/ceramic pump side, carbon/ceramic motor side), sand slinger lip seal
Materials
Cast iron motor top and pump body, polycarbonate impeller; 304 stainless steel motor shell, strainer, handle and fasteners
Weight
9 kg
Warranty
24 months

Compare

Compare the Davey D-series dewatering pumps

Figures for each model.

Common questions

Does it switch itself on and off?

Yes. The D25A has a preset float switch, so it starts as water rises and stops when it has pumped down to the pump's safe operating level. The float needs room to move freely.

What water can it pump?

Clean or grey water of neutral pH with up to 10% small soft solids or 1% fine solids. Some wear should be expected with hard solids, sand or grit. We don't recommend it for sewage, effluent, grease traps or slurries.

How much water can it move?

The D15A to D40 range has capacities to 240 lpm and 12 m maximum total head. The D25A is the 0.25 kW model with a 1½" F BSP outlet; the performance curve shows the figures for each model.

Can it run when it's only partly under water?

These single case pumps rely on water around the motor shell for cooling, so they should only run partly submerged for short periods up to 10 minutes. Don't run the pump dry.

What warranty does it have?

The D25A comes with a 24-month warranty.

Still not sure?

Tell us about your home and water supply and we'll point you to the right pump.

Help me chooseEmail us a photo

Full product details

Read the full description

These general purpose dewatering pumps are designed to move rainwater, surface water and storm water, for dewatering cellars, garages, ditches, pits and ponds, emptying sumps and running decorative water features. The D25A has an open impeller, a 304 stainless steel motor shell and strainer, a sand slinger and a preset float switch for automatic operation.

The D25A is rated at 0.25 kW on 240 V single phase, with a 1½" F BSP outlet and a 10 m oil resistant lead with a 3-pin plug. The D15A to D40 range has capacities to 240 lpm and 12 m maximum total head. It handles clean or grey water with up to 10% small soft solids or 1% fine solids, and weighs 9 kg.

It comes with a 24-month warranty. For sewage, effluent, hair or stringy waste, we recommend Davey vortex, cutter or grinder pumps instead.

Need more power? See the Davey D40A / D40M.
