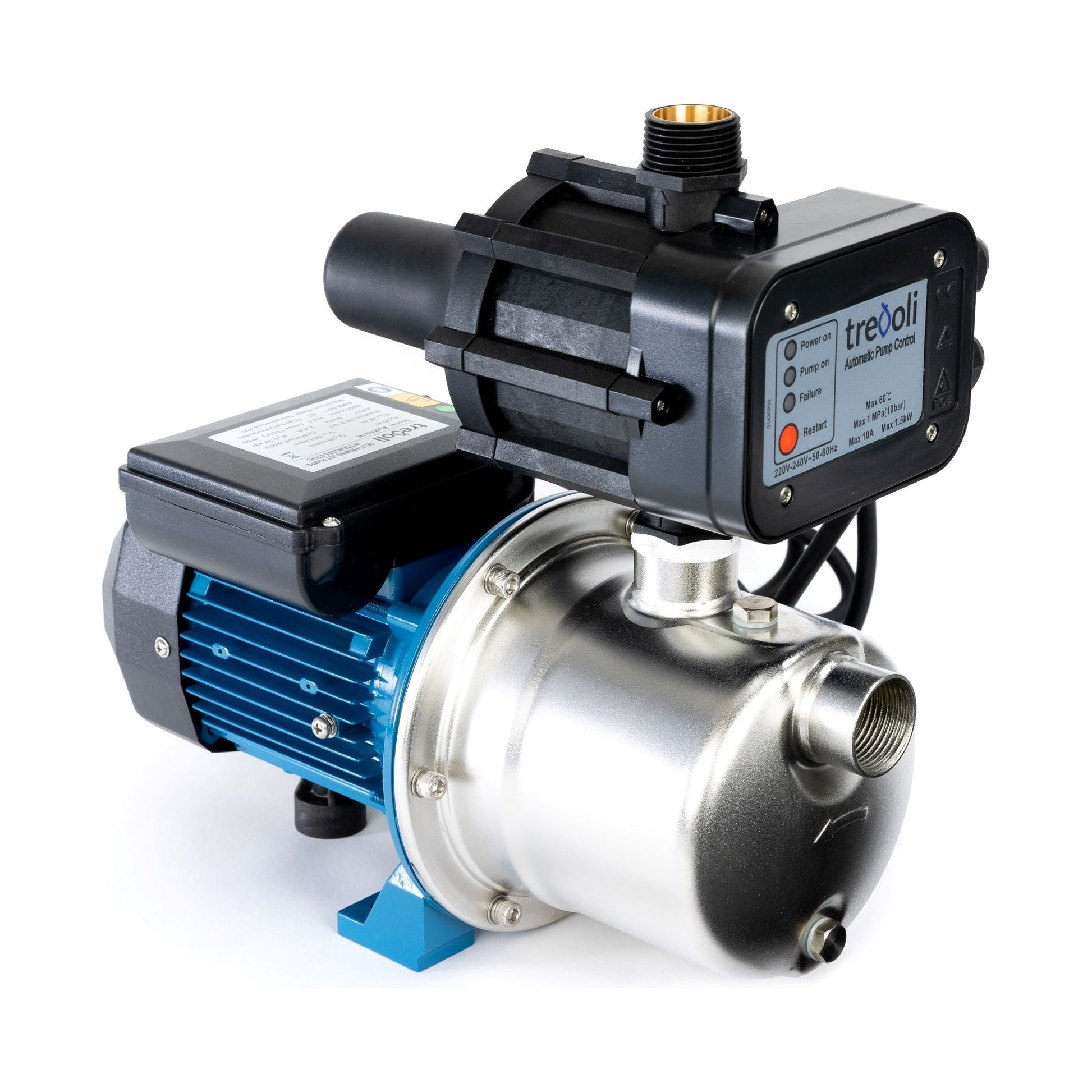

Trevoli BJZ037E 370w Stainless Steel Jet/Suction Pressure Pump for Small Home/Garden

The Trevoli BJZ037E 370W Stainless Steel Jet Pressure Pump offers proven reliability and exceptional self-priming capabilities, making it a perfect choice for small home or garden water systems. Its jet and venturi design enables a suction lift of up to 8m, ideal for drawing water from rivers, dams, shallow wells, underground tanks, and more. Easy to prime and built for durability, this pump ensures consistent performance.

Key Features and Benefits

• Robust jet and venturi design for effective water suction up to 8m.
• Operates at a maximum working pressure of 8 bar.
• Handles liquid temperatures up to +60°C.
• Equipped with a durable TEFC continuous duty motor for long-lasting performance.
• IP55 motor protection and internal overload protector for safety.

Technical Information

• Max Working Pressure: 8 bar
• Max Liquid Temperature: +60°C
• Max Suction Lift: 8m
• Ambient Temperature: ≤50°C

Motor Features

• TEFC continuous duty motor
• Class B insulation
• Internal overload protector
• IP55 protection

Construction Materials

• Pump Casing, Seal Plate, Shaft, and Impeller: 304 Stainless Steel
• Mechanical Seal: Carbon/Ceramic
• Diffuser/Venturi: PPO
• O-Rings: EPDM
• Motor Mount and Casing: Aluminium

Specifications

• Part No.: BJZ037
• Horsepower: 0.5 hp
• Power: 0.3 kW
• Inlet/Outlet: 25mm
• Phase: Single-phase
• Voltage: 220-240V
• Amps: 2.4
