Keep your whole-house filtration and UV system performing reliably with a replacement filter and lamp kit designed for compatible Puretec Hybrid G9, Puretec Hybrid R4 and Puretec WU-UV200 systems.

Choose between two servicing options:

• Waimana Value Kit – Includes two replacement 20-inch filter cartridges and a 46W UV lamp.

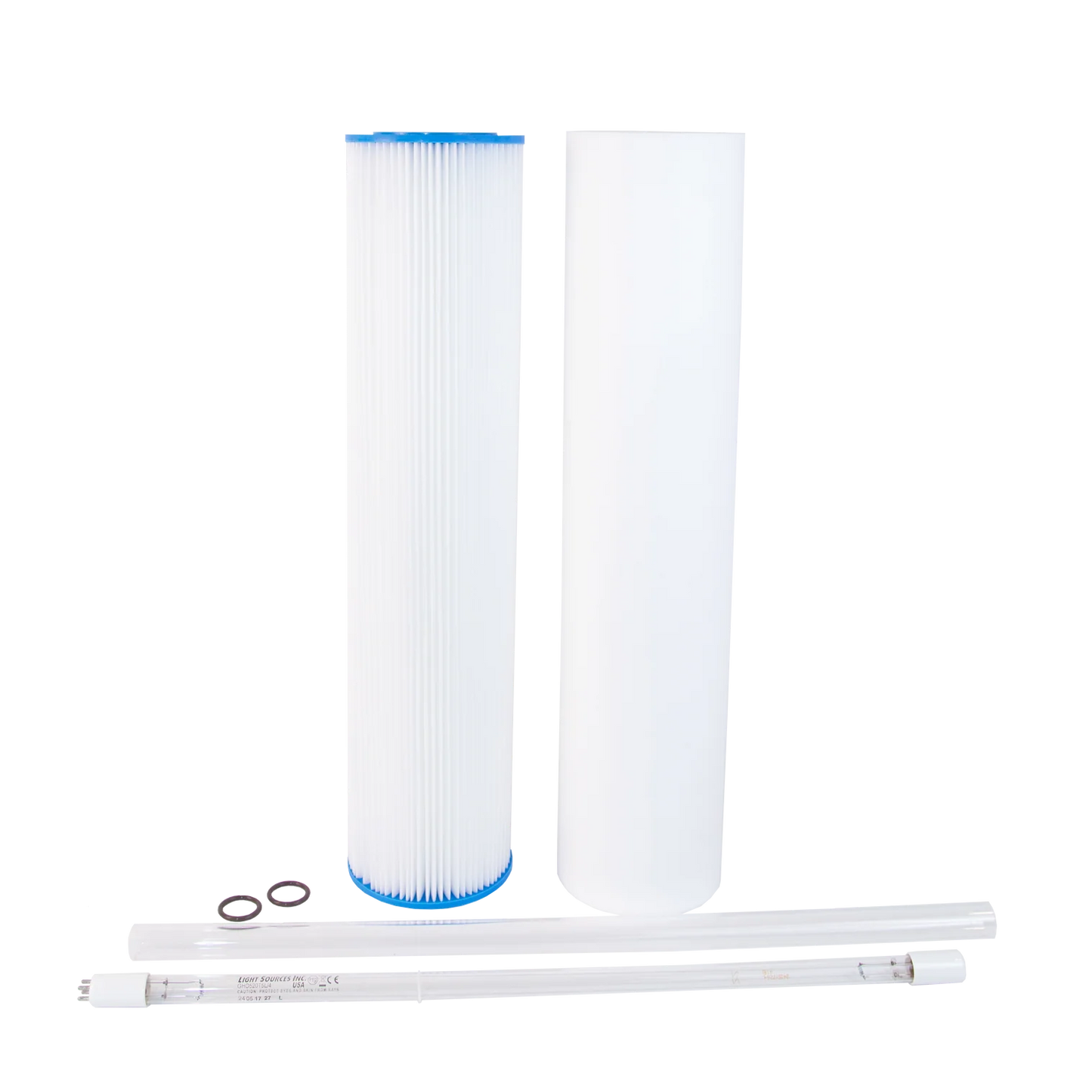

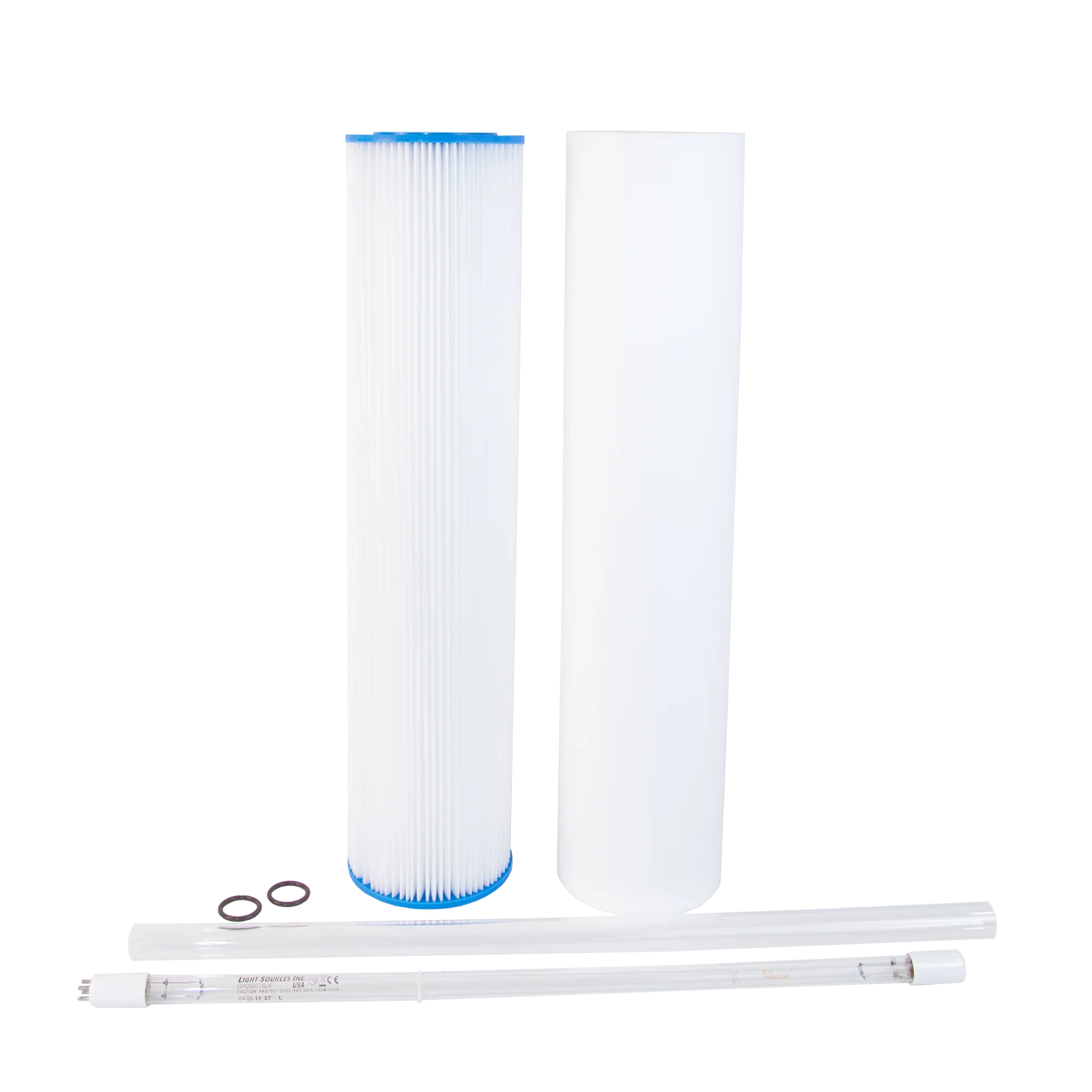

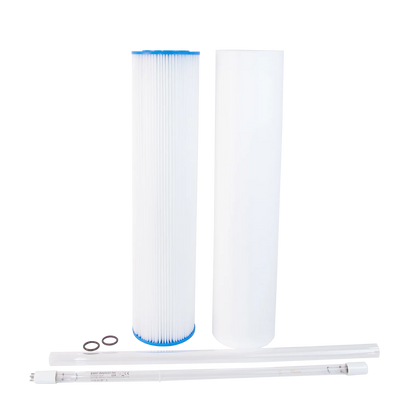

• Aquano Premium Kit – Includes two Aquano replacement filter cartridges, a UV lamp, replacement quartz sleeve and O-rings.

The Aquano Premium option is also the official service kit for the Aquano Klarify UV-220C and UV-220I.

Choose Your Service Kit

Waimana Value Kit

A practical, cost-effective option containing the main consumable parts required for routine filtration and UV servicing.

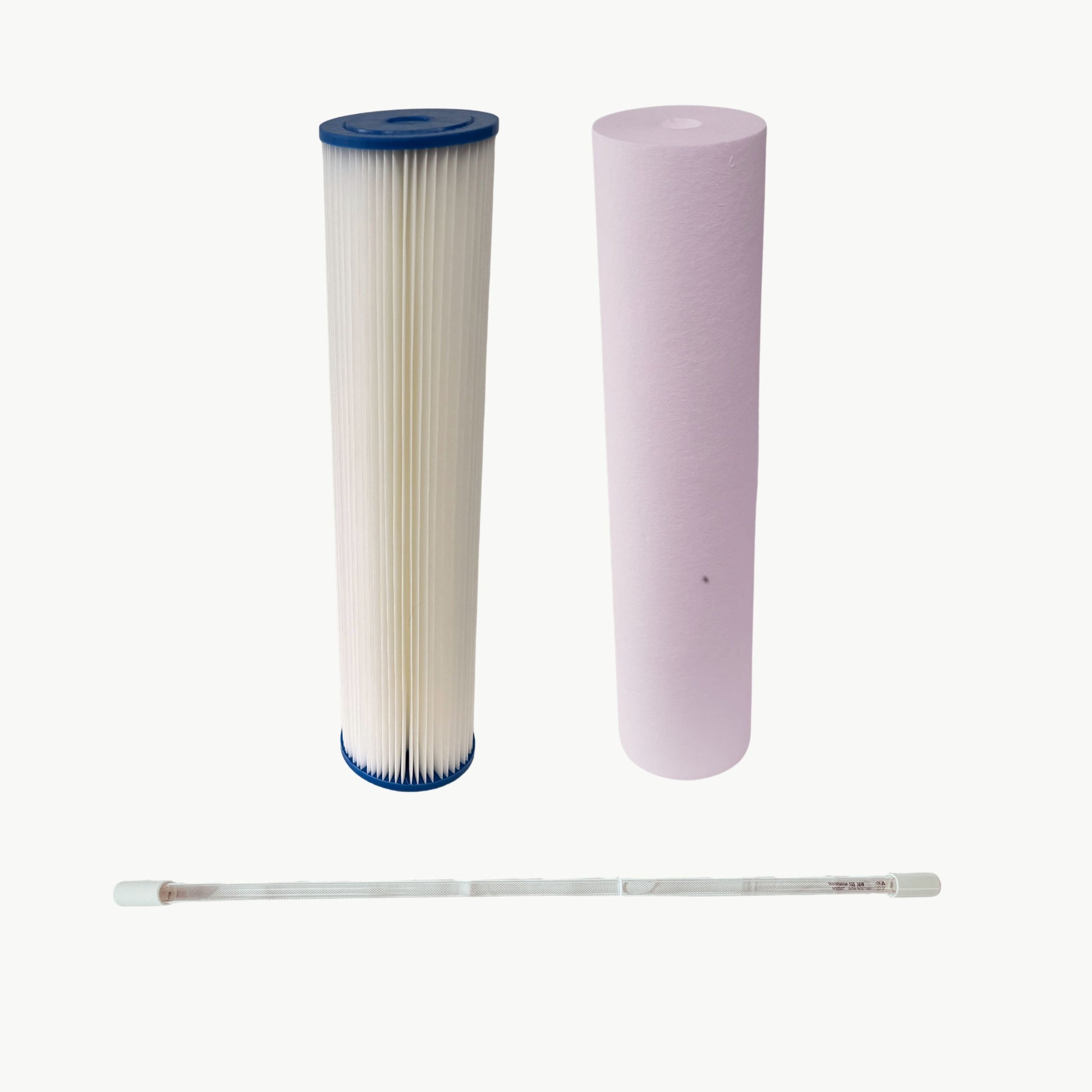

The Waimana Value Kit includes:

• 20PL20 20-micron washable pleated 20-inch filter cartridge
• 20PP01 1-micron polyspun 20-inch sediment filter cartridge
• 46W replacement UV lamp suitable for compatible Puretec RL6 lamp applications

This option is ideal when the existing quartz sleeve and O-rings remain clean, undamaged and serviceable.

Aquano Premium Kit

A more comprehensive service package for customers wanting to replace the filters and UV lamp while also renewing the quartz sleeve and sealing components.

The Aquano Premium Kit includes:

• PC2020J washable pleated sediment filter
• PS2001J 1-micron polyspun sediment filter
• Replacement UV lamp
• Replacement quartz sleeve
• Replacement O-rings

The Aquano Premium Kit is listed under ordering code SKUV220CI and is suitable for the Klarify UV-220C and UV-220I. It is also marketed as a compatible replacement service kit for Puretec Hybrid G9 and R4 systems.

Why Choose This Replacement Kit?

Everything Needed for Routine Servicing

Both options include the two replacement filtration cartridges and UV lamp required for regular system maintenance.

The Aquano Premium Kit also includes a replacement quartz sleeve and O-rings for a more complete UV chamber service.

Designed for Compatible Puretec Systems

This listing is specifically intended for:

• Puretec Hybrid G9
• Puretec Hybrid R4
• Puretec WU-UV200

The Aquano Premium Kit is also suitable for:

• Aquano Klarify UV-220C
• Aquano Klarify UV-220I

Puretec model names are used for compatibility identification only. Check the model number and existing lamp specifications before ordering.

Two Stages of Replacement Filtration

Both kit options provide two sediment-filtration stages:

1. Washable pleated sediment filtration
2. Fine polyspun sediment filtration

This progressive arrangement captures larger debris first, followed by fine suspended particles before the water reaches the UV chamber.

Maintains UV Performance

UV lamps gradually lose effective ultraviolet output, even when they continue to illuminate.

Replacing the lamp at the system manufacturer’s recommended interval helps maintain the intended UV treatment performance.

Premium Kit Includes a New Quartz Sleeve

The quartz sleeve separates the UV lamp from the water while allowing ultraviolet light to pass into the chamber.

Scale, staining, cloudiness or damage can reduce UV transmission. The Aquano Premium Kit includes a replacement sleeve so this component can be renewed during servicing.

Replacement O-Rings Included With the Premium Kit

O-rings help create watertight seals around serviceable UV components.

Replacing worn, flattened or damaged O-rings can help reduce the risk of leaks after maintenance.

Kit Comparison

How the Filtration Stages Work

Stage 1 – Washable Pleated Sediment Filter

The first cartridge captures larger suspended particles before they reach the finer filtration stage.

It helps reduce:

• Dirt
• Grit
• Rust
• Sand
• Tank sediment
• Other larger suspended particles

The pleated construction provides a large filtration surface and can be rinsed during servicing where the cartridge remains in suitable condition.

Waimana Value

• Product code: 20PL20
• Size: 20-inch
• Rating: 20 micron
• Type: Washable pleated sediment cartridge

Aquano Premium

• Product code: PC2020J
• Size: 20-inch Jumbo
• Type: Washable pleated sediment cartridge

Stage 2 – Fine Polyspun Sediment Filter

The second cartridge captures finer suspended sediment before the water reaches the UV chamber.

It helps remove:

• Fine dirt
• Rust
• Sand
• Silt
• Other suspended particles

Waimana Value

• Product code: 20PP01
• Size: 20-inch
• Rating: 1 micron
• Type: Polyspun sediment cartridge

Aquano Premium

• Product code: PS2001J
• Size: 20-inch Jumbo
• Rating: 1 micron
• Type: Polyspun sediment cartridge

Stage 3 – 46W UV Lamp

The replacement lamp restores the ultraviolet light source inside the system's UV chamber.

UV lamps should be replaced at the manufacturer's recommended service interval because effective UV output reduces over time, even when the lamp still appears to be operating.

Best Suited For

This replacement kit is best suited to:

• Puretec Hybrid G9 owners
• Puretec Hybrid R4 owners
• Puretec WU-UV200 owners
• Aquano Klarify UV-220C owners selecting the Premium Kit
• Aquano Klarify UV-220I owners selecting the Premium Kit
• Annual whole-house filtration and UV servicing
• Rainwater filtration and UV systems
• Homes wanting to replace both filters and the UV lamp together
• Customers choosing between routine and comprehensive servicing
• Systems using compatible 20-inch cartridges and a 46W RL6-style lamp

Key Features

• Two service-kit options
• Specifically marketed for Puretec Hybrid G9, R4 and WU-UV200
• Two 20-inch replacement filters included with both options
• 46W UV lamp included with both options
• Washable pleated first-stage cartridge
• 1-micron fine sediment filtration
• Waimana Value option for routine servicing
• Aquano Premium option for comprehensive servicing
• Quartz sleeve included with Aquano Premium
• Replacement O-rings included with Aquano Premium
• Aquano Premium Kit suits Klarify UV-220C and UV-220I
• Aquano ordering code SKUV220CI for the Premium option

Key Specifications

Maintenance Guidance

Regular servicing helps maintain filtration performance and effective UV treatment.

A typical service includes:

1. Disconnect power to the UV system.
2. Shut off the incoming water supply.
3. Open a downstream tap to release pressure.
4. Depressurise the filter housings.
5. Remove the existing filter cartridges.
6. Clean the inside of each filter housing.
7. Inspect the housing O-rings and replace them if damaged.
8. Install the new pleated and polyspun cartridges in the correct order.
9. Remove and replace the UV lamp.
10. Inspect the quartz sleeve for scale, staining, cloudiness or damage.
11. Clean the existing sleeve or replace it when using the Aquano Premium Kit.
12. Fit the replacement O-rings supplied with the Premium Kit.
13. Reassemble the UV chamber carefully.
14. Restore the water supply slowly.
15. Check all housings, seals and UV components for leaks.
16. Flush the new cartridges.
17. Restore power to the UV system.
18. Confirm that the UV lamp and controller are operating normally.

The UV lamp and quartz sleeve are fragile. Avoid touching the UV lamp glass with bare hands and follow the system manufacturer's servicing instructions.

What's Included

Waimana Value Kit

• One 20PL20 20-micron washable pleated 20-inch cartridge
• One 20PP01 1-micron polyspun 20-inch cartridge
• One 46W UV lamp suitable for compatible Puretec RL6 lamp applications

Aquano Premium Kit

• One PC2020J washable pleated sediment cartridge
• One PS2001J 1-micron polyspun sediment cartridge
• One replacement UV lamp
• One replacement quartz sleeve
• Replacement O-rings

Frequently Asked Questions

What is the difference between the Waimana Value and Aquano Premium kits?

The Waimana Value Kit includes two replacement filters and a 46W UV lamp.

The Aquano Premium Kit includes two replacement filters and a UV lamp, plus a replacement quartz sleeve and O-rings for a more comprehensive service.

Which kit should I choose?

Choose Waimana Value when your existing quartz sleeve and O-rings remain clean, undamaged and serviceable.

Choose Aquano Premium when you want to renew the quartz sleeve and sealing components at the same time as the filters and lamp.

Does this kit suit the Puretec Hybrid G9?

Yes. This listing is intended for compatible Puretec Hybrid G9 systems.

Does this kit suit the Puretec Hybrid R4?

Yes. This listing is intended for compatible Puretec Hybrid R4 systems.

Does this kit suit the Puretec WU-UV200?

Yes. This listing is intended for compatible Puretec WU-UV200.

Confirm the system model, existing lamp code and cartridge dimensions before ordering.

Does the Premium Kit suit Aquano Klarify systems?

Yes. The Aquano SKUV220CI is designed for the Klarify UV-220C and UV-220I.

Are the filters identical in both options?

No. They perform the same general filtration roles but use different brands and product codes.

The Waimana option includes:

• 20PL20
• 20PP01

The Aquano option includes:

• PC2020J
• PS2001J

Is the first cartridge washable?

Yes. Both options include a washable pleated first-stage sediment cartridge.

What does the 1-micron polyspun filter remove?

The polyspun cartridge captures fine suspended sediment such as dirt, rust, sand and silt before the water reaches the UV chamber.

How often should the filters be replaced?

Replacement frequency depends on incoming water quality, household usage and sediment loading.

Many whole-house UV systems are serviced every 6–12 months, although cartridges may require earlier replacement where the water contains high levels of sediment.

How often should the UV lamp be replaced?

Follow the service interval specified by the system manufacturer.

UV lamps are commonly replaced every 12 months because effective UV output decreases over time, even when the lamp still illuminates.

Does the Waimana Value Kit include a quartz sleeve?

No. The Waimana Value Kit includes the two filters and 46W UV lamp only.

Does the Aquano Premium Kit include a quartz sleeve?

Yes. It includes a replacement quartz sleeve and O-rings.

Do I need to replace the quartz sleeve every year?

Not necessarily.

A sleeve that remains clear, undamaged and free from permanent staining may be cleaned and reused.

Replace it if it is cracked, heavily stained, cloudy or otherwise damaged.

Can I install the service kit myself?

Servicing requires depressurising the filter system, handling a fragile UV lamp and quartz sleeve, replacing seals correctly and checking for leaks.

Professional servicing is recommended when you are unfamiliar with UV water-treatment systems.
