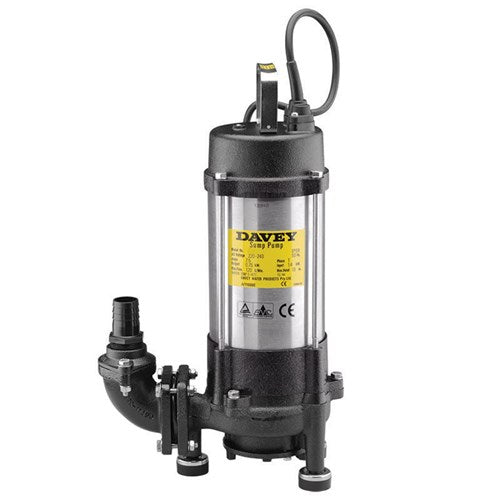

Davey D120G & D120GA Submersible Grinder Pump – 1.2kW

The Davey D120G and D120GA are robust submersible grinder pumps designed for medium-duty applications where wastewater needs to be pumped through small discharge pipe systems. With a hardened shredder and grinder ring, they handle soft organic solids and sanitary products with ease.

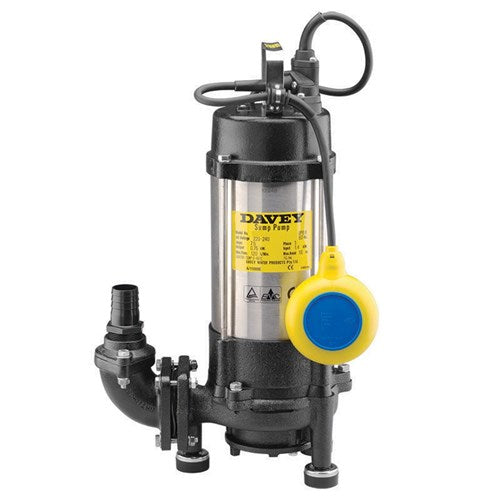

The D120G is manual, while the D120GA includes an automatic float switch for level-based operation.

Applications:

• Sewage and grey water systems

• Wastewater transfer to pressure mains

• Septic tank discharge

Specifications:

• Power: 1.2kW

• Max Flow: 290 L/min

• Max Head: 22m

• Inlet/Outlet: 1¼" BSPF

• Cable: 10m HO7RN-F

• Construction: Cast iron with stainless motor shell

• Float: D120G (Manual), D120GA (Automatic)

• Max Temp: 40°C

• Max Submergence: 20m

Data Sheet
