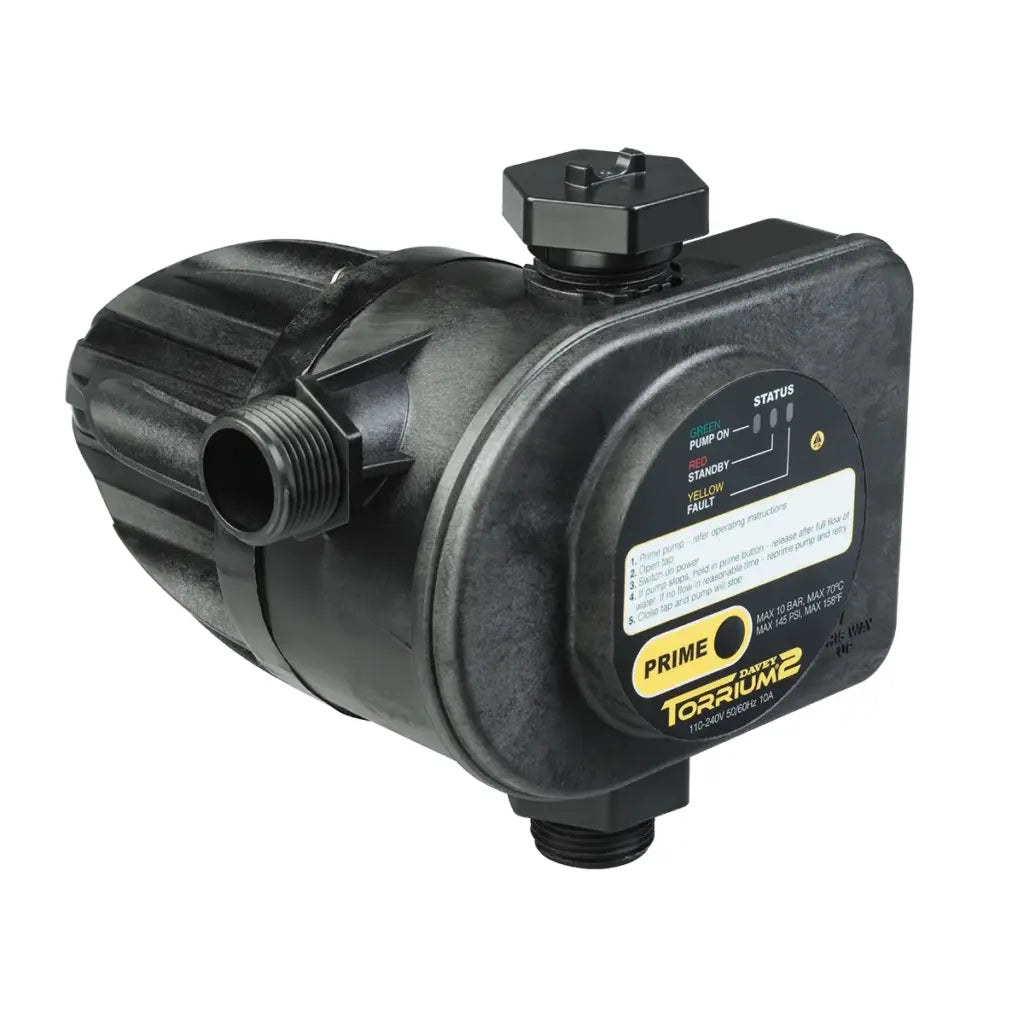

Davey Torrium2 TT45 Pressure Pump Controller – Plug & Play – AS/NZS 4020 Compliant

The Davey Torrium2 TT45 is an intelligent pressure controller designed for domestic water systems using small to medium-sized pumps. It maintains even pressure and flow, protects against dry run, and restarts automatically after interruptions. AS/NZS 4020 compliant, the TT45 is safe for use in drinking water applications.

Pre-wired for plug-and-play compatibility, it suits a wide range of Davey pumps, including the HP45-05T, HM60-06T, HM60-08T, HS50-06T, and HS60-08T.

Features:

• Operating pressure range: 150–450kPa

• AS/NZS 4020 certified – safe for drinking water

• Constant pressure delivery – no pressure or temperature fluctuations

• Dry run protection with automatic retry

• Adaptive cut-in to reduce cycling from small leaks

• Spring-loaded accumulator – no pressure tank needed

• LED indicators for power, pump run and fault status

• Horizontal or vertical outlet connection

• Built-in power surge protection

• Max flow: 200 L/min

• Pre-wired 2m power lead for easy installation

• IP56 rated

• 2-year warranty

Ideal For:
Small to medium homes with up to 4–5 outlets, suitable for tank or bore systems.

Data Sheet
