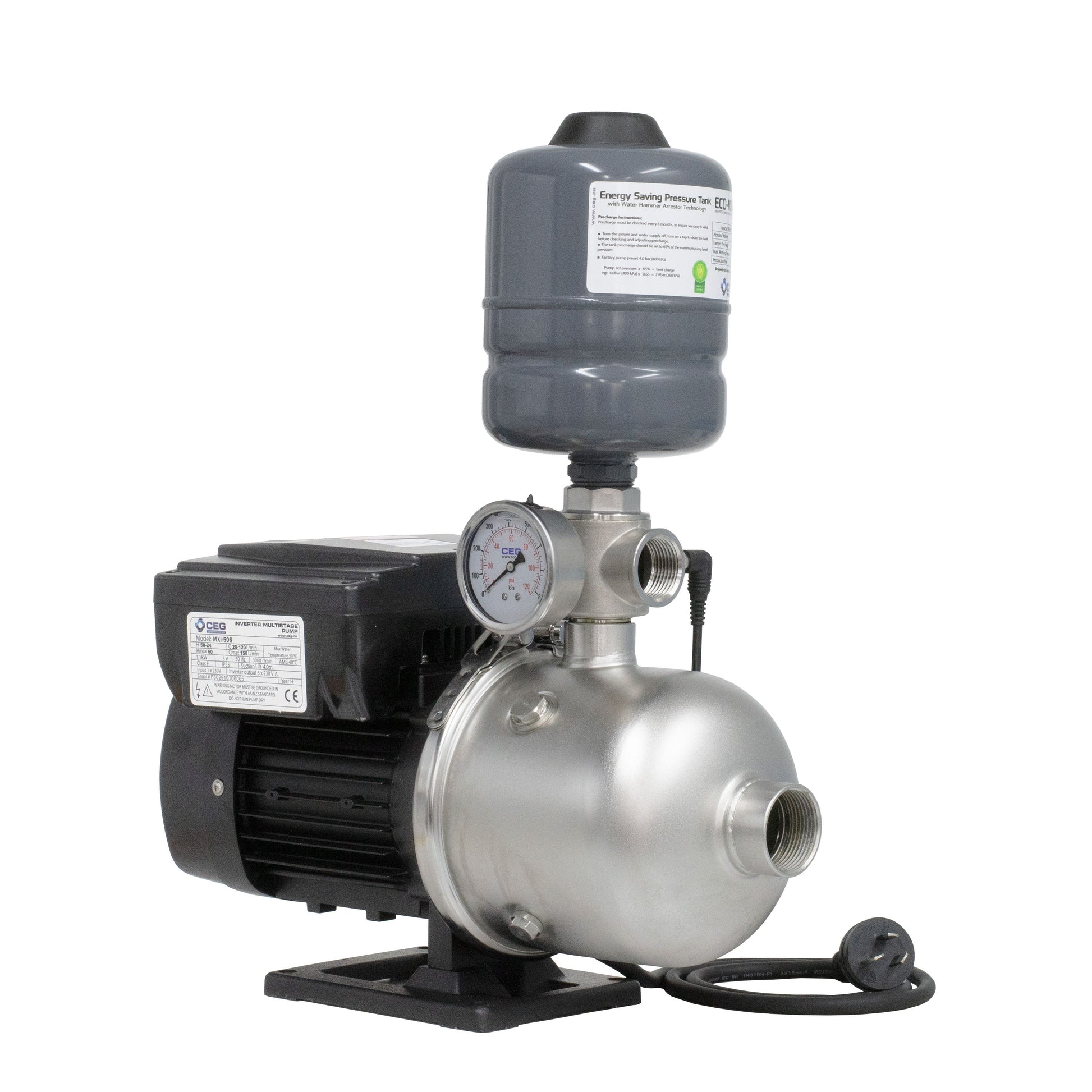

ECO MXI 206 Inverter – 0.75 kW (1 hp) Multistage Pump with Inverter Controller & 2 L Tank

The ECO MXI 206 is a fully integrated, intelligent variable-frequency (inverter) multistage pump system designed to deliver settable, consistent water pressure. Supplied with an inverter controller, a stainless steel water pump, and a 2 L pressure tank that can be set to maintain the required pressure, it’s suitable for small to multiple dwellings. The system provides a maximum vertical suction lift of 4 metres, includes thread tape for installation, and connects via 25 mm inlet / 25 mm outlet.

Features & Specifications

• Motor Power: 0.75 kW (1 hp), multistage, inverter/variable speed

• Pressure Range: 150–500 kPa (settable via controller/tank)

• Max Flow: 70 L/min

• Max Vertical Suction Lift: 4 m

• Connections: 25 mm inlet / 25 mm outlet

• System Components: Inverter controller, stainless steel pump, 2 L pressure tank

• Suitability: Small to multiple dwellings

• Accessories: Thread tape included

• Warranty: 2 years

Why Choose This

An all-in-one inverter package that’s simple to install and operate—delivering adjustable 150–500 kPa pressure, efficient multistage performance, and compact 25/25 mm connections with a 2 L tank—ideal for homes needing reliable, set-and-forget water pressure.

FAQs

Q: Can it maintain constant pressure?
A: Yes—the inverter controller and 2 L tank can be set to maintain the required pressure (150–500 kPa).

Q: What are the connection sizes?
A: 25 mm inlet and 25 mm outlet.

Q: What is the maximum vertical suction lift?
A: 4 metres.

Q: What’s the maximum flow rate?
A: Up to 70 L/min.

Q: What’s included in the package?
A: Inverter controller, stainless steel multistage pump, 2 L pressure tank, and thread tape.

Q: What is the warranty period?
A: 2 years.
