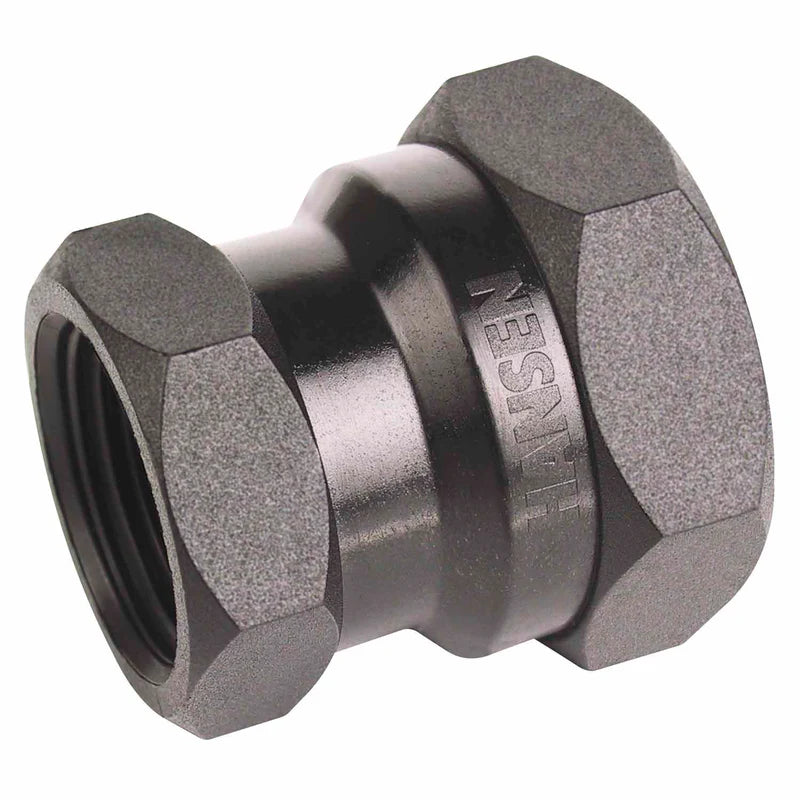

Hansen Reducing Hex Socket – Female BSPT x Female BSPT

The Hansen True Fit Reducing Hex Socket is used to join two male BSPT-threaded fittings of different sizes. Made in New Zealand from UV-stabilised, glass-reinforced nylon, these durable sockets provide strong, leak-resistant connections in plumbing, irrigation, and water systems — ideal for both above- and below-ground installations.

With a hexagonal body for easy tool grip, these fittings are engineered for high pressure and long service life in tough environments.

Product Codes & Sizes:

• HSRS2015 – 20mm x 15mm (3/4” x 1/2”)

• HSRS2515 – 25mm x 15mm (1” x 1/2”)

• HSRS2520 – 25mm x 20mm (1” x 3/4”)

• HSRS3220 – 32mm x 20mm (1 1/4” x 3/4”)

• HSRS3225 – 32mm x 25mm (1 1/4” x 1”)

• HSRS4020 – 40mm x 20mm (1 1/2” x 3/4”)

• HSRS4025 – 40mm x 25mm (1 1/2” x 1”)

• HSRS4032 – 40mm x 32mm (1 1/2” x 1 1/4”)

• HSRS5020 – 50mm x 20mm (2” x 3/4”)

• HSRS5025 – 50mm x 25mm (2” x 1”)

• HSRS5032 – 50mm x 32mm (2” x 1 1/4”)

• HSRS5040 – 50mm x 40mm (2” x 1 1/2”)

• HSRS6540 – 65mm x 40mm (2 1/2” x 1 1/2”)

• HSRS6550 – 65mm x 50mm (2 1/2” x 2”)

• HSRS8050 – 80mm x 50mm (3” x 2”)

• HSRS8065 – 80mm x 65mm (3” x 2 1/2”)

• HSRS10065 – 100mm x 65mm (4” x 2 1/2”)

• HSRS10080 – 100mm x 80mm (4” x 3”)

Features:

• Female BSPT thread on both ends in reducing configuration

• Made from UV-stabilised, glass-reinforced nylon

• Excellent chemical and impact resistance

• High pressure rated – up to 16 bar at 20 °C

• Hex body for easy installation

• Made in New Zealand

Ideal For:
Connecting male-threaded fittings of different sizes in water supply lines, filtration systems, and irrigation setups
