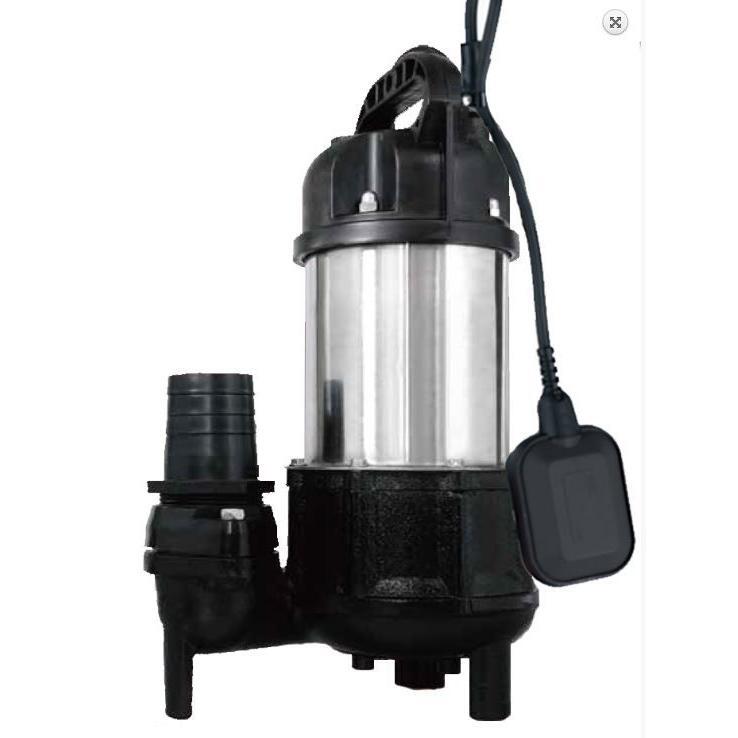

Trevoli BAV-250A – 0.25kW Submersible Vortex Pump
Trevoli BAV-250A – 0.25kW Submersible Vortex Pump
Couldn't load pickup availability
- Easy Returns
- Fast Shipping
The Trevoli BAV-250A is a lightweight yet heavy-duty submersible pump designed for a wide range of applications including effluent, dirty water, septic systems, aerated sewage, drainage, and grey water pumping.
Fitted with an anti-clogging vortex impeller, it handles solids up to 25mm, while an optional strainer is available to reduce the maximum particle size to 10mm for finer applications. Built with a solid cast iron body and impeller, the BAV-250A offers long-lasting reliability for New Zealand homes, farms, and lifestyle blocks.

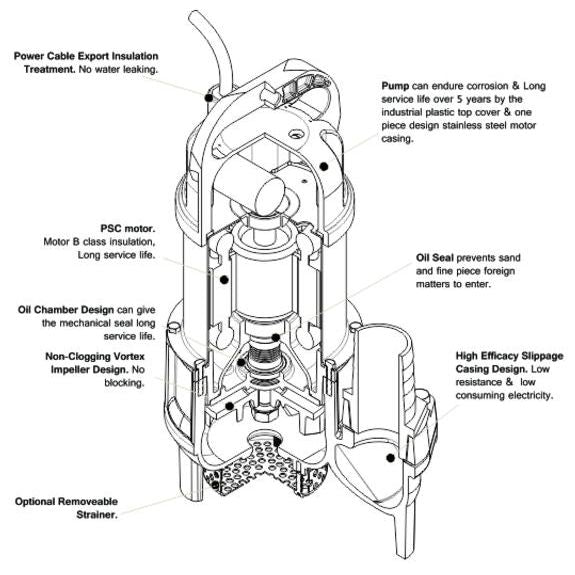

Features
-
Anti-Clogging Vortex Impeller – Pumps solids up to 25mm (10mm with strainer)
-
Float Switch Included – Automatic operation and run-dry protection
-
Durable Build – Cast iron body and impeller for extended service life
-
Double Mechanical Seals – With lip seal and oil chamber for added protection
-
Continuous Duty Rated – Reliable performance for ongoing applications
-
Thermal Overload Protection – Safeguards motor from overheating
-
10m Power Cable – Supplied with plug for easy setup
-
Max Immersion Depth – 8m for versatile installation
-
Versatile Applications – Effluent, dirty water, septic, drainage, and grey water
-
2-Year Warranty – Confidence in quality and performance
Specifications

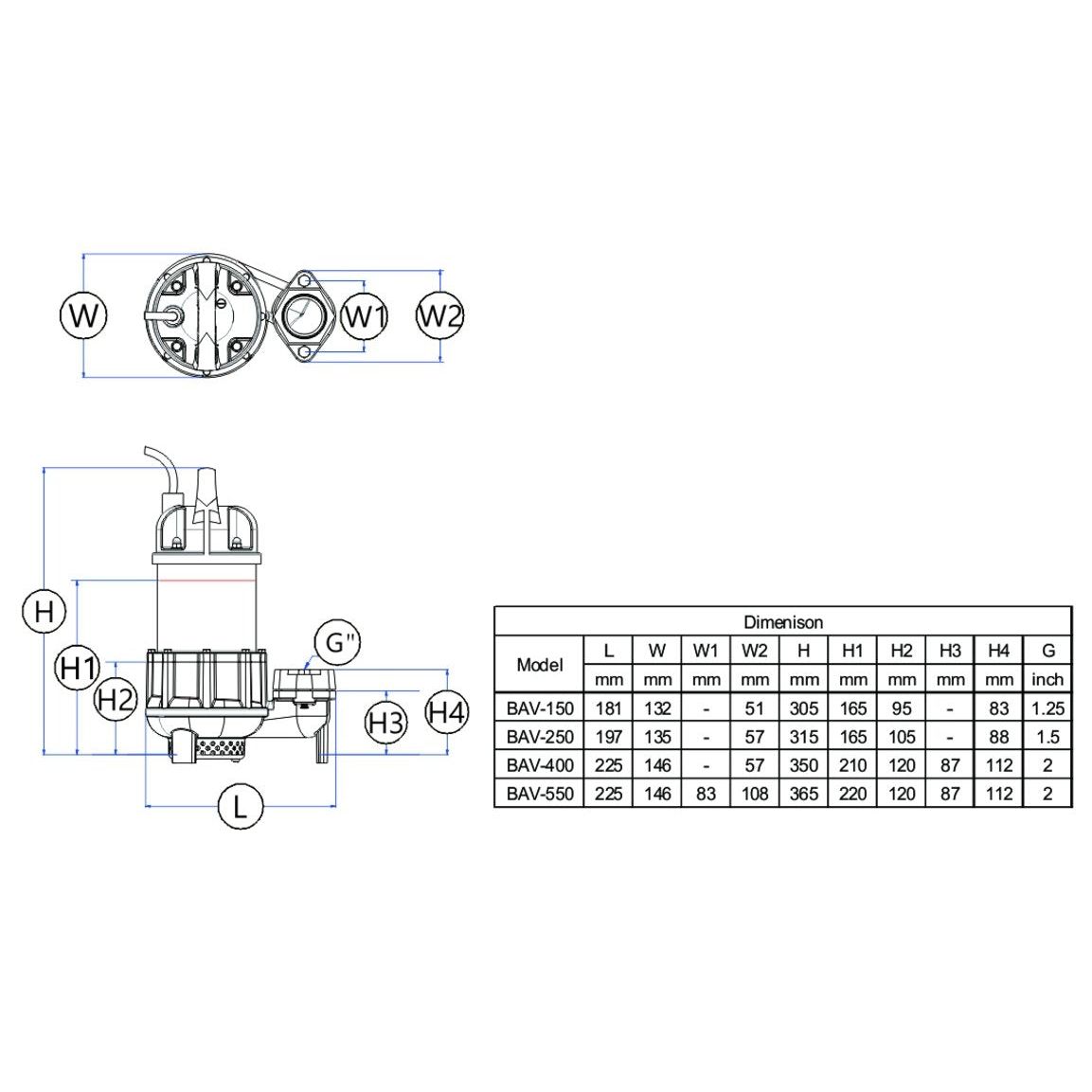

| Model | Motor Power (hp / kW) | Outlet Size | Phase | Voltage | Max Solids | With Strainer | Dimensions (L × W × H) | Weight |
|---|---|---|---|---|---|---|---|---|
| BAV-250A | 0.33 hp / 0.25 kW | 40mm | 1 | 220–240 V | 25mm | 10mm | 197 × 135 × 315 mm | 9 kg |
Technical Features
-
Liquid Temperature: 0°C – 40°C
-
Protection Class: IP68 (fully submersible)
-
Maximum Immersion Depth: 8m
-
pH Range: 6 – 8
-
Duty: Continuous use rated
Why Choose the Trevoli BAV Series?
Compact but durable, the Trevoli BAV-250A is designed to be a go-to pump for multiple drainage and effluent jobs. Its cast iron build, non-clogging impeller, and optional strainer make it a versatile and reliable choice for NZ conditions.
FAQs
Q: What size solids can it handle?
A: Up to 25mm, or 10mm with the optional strainer.
Q: Does it include a float switch?
A: Yes – for automatic operation and dry-run protection.
Q: Can it run continuously?
A: Yes – the pump is continuous duty rated.
Q: What’s the warranty?
A: The Trevoli BAV-250A comes with a 2-year warranty.
