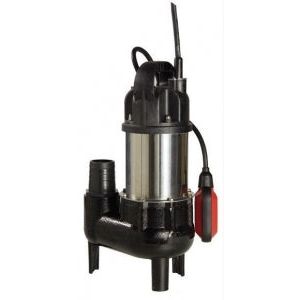

Trevoli BCV Series – Heavy-Duty Submersible Vortex Pumps

Trevoli BCV Series – Heavy-Duty Submersible Vortex Pumps

$690.00 NZD
$0.00 NZD $690.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Easy Returns
  • Fast Shipping

The Trevoli BCV Series are robust cast iron submersible pumps designed for effluent, sewage, grey water, dirty water, drainage, and irrigation applications. Equipped with a non-clogging vortex impeller, they can handle solids up to 50mm, making them a reliable solution for farms, lifestyle blocks, and households across New Zealand.

Built with cast iron body and impeller, double mechanical seals with oil chamber, and thermal overload motor protection, the BCV Series is engineered for continuous duty in tough environments. Both models come with a float switch for automatic operation and run-dry protection.

Features

  • Anti-Clogging Vortex Impeller – Handles solids up to 50mm

  • Float Switch – Automatic start/stop and run-dry protection

  • Heavy-Duty Build – Solid cast iron body and impeller for long-term durability

  • Advanced Sealing – Double mechanical seals with lip seal and oil chamber (silicon/ceramic)

  • Thermal Overload Protection – Motor safeguarded against overheating

  • Continuous Duty Rated – Built for ongoing, heavy-use operation

  • 10m Power Cable – Supplied with 3-pin plug for easy installation

  • Maximum Immersion Depth: 8m – Reliable performance even at depth

Specifications

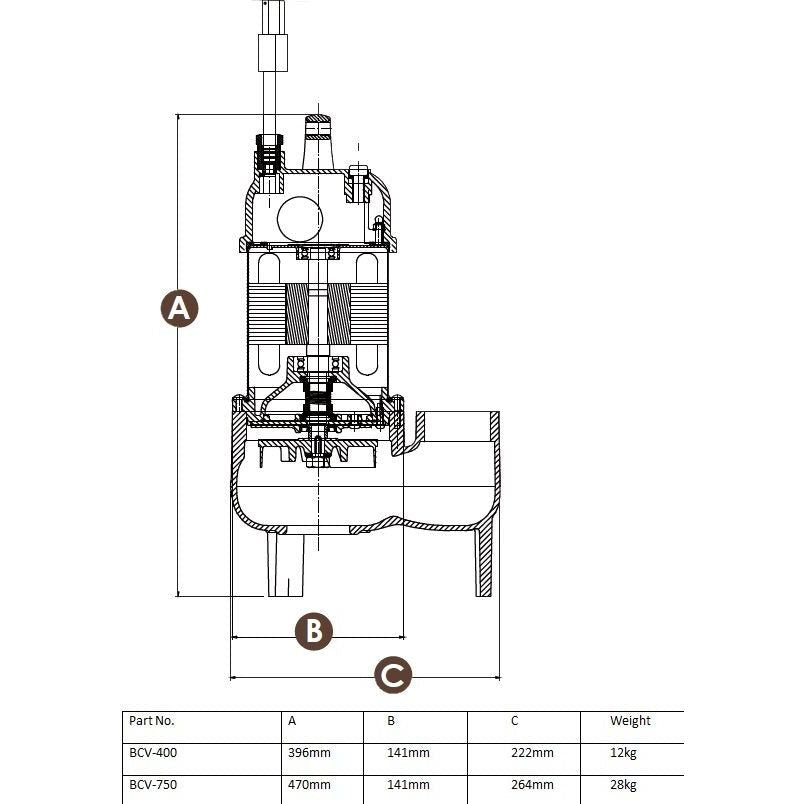

Model Motor Power (hp / kW) Outlet Size Phase Voltage Max Solids Dimensions (A × B × C) Weight
BCV-400A 0.5 hp / 0.4 kW 50mm 1 220–240 V 50mm 396 × 141 × 222 mm 12 kg
BCV-750A 1.0 hp / 0.7 kW 50mm 1 220–240 V 50mm 470 × 141 × 264 mm 28 kg

Technical Features

  • Liquid Temperature: 0 – 40°C

  • Protection Class: IP68 (fully submersible)

  • Maximum Immersion Depth: 8m

  • pH Range: 6 – 8

  • Duty: Continuous rated

Why Choose the Trevoli BCV Series?

The BCV Series is a heavy-duty, no-fuss submersible pump designed to take on the toughest water transfer and effluent jobs in NZ. With vortex impeller technology, cast iron durability, and protection features built-in, it’s the perfect pump for dairy sheds, septic systems, effluent disposal, and drainage tasks.

FAQs

Q: How large are the solids these pumps can handle?
A: Up to 50mm solids, thanks to the vortex impeller design.

Q: Do they come with a float switch?
A: Yes – both models include a float switch for automatic operation and run-dry protection.

Q: Are these pumps continuous duty rated?
A: Yes – the BCV Series is built for ongoing heavy-duty use.

Q: What’s the warranty?
A: The Trevoli BCV Series comes with a 2-year warranty
