Trevoli Sentry Systems – Whole House Water Filtration & UV Disinfection

Trevoli Sentry Systems – Whole House Water Filtration & UV Disinfection

$1,490.00 NZD
$0.00 NZD $1,490.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Easy Returns
  • Fast Shipping

The Trevoli Sentry Systems are premium all-in-one water filtration and UV treatment units designed to provide safe, clean, and great-tasting water for New Zealand homes of all sizes.

Each system combines multi-stage filtration with powerful 48W UV sterilisation, effectively removing sediment, odour, taste, and colour issues, while inactivating harmful microorganisms such as E. coli, Giardia, Cryptosporidium, and Campylobacter.

Constructed with stainless steel housings, the Sentry range comes fully assembled for simple plug-and-play installation. Just wall-mount, connect, and enjoy complete protection for your household water supply.

Models & Filtration Stages

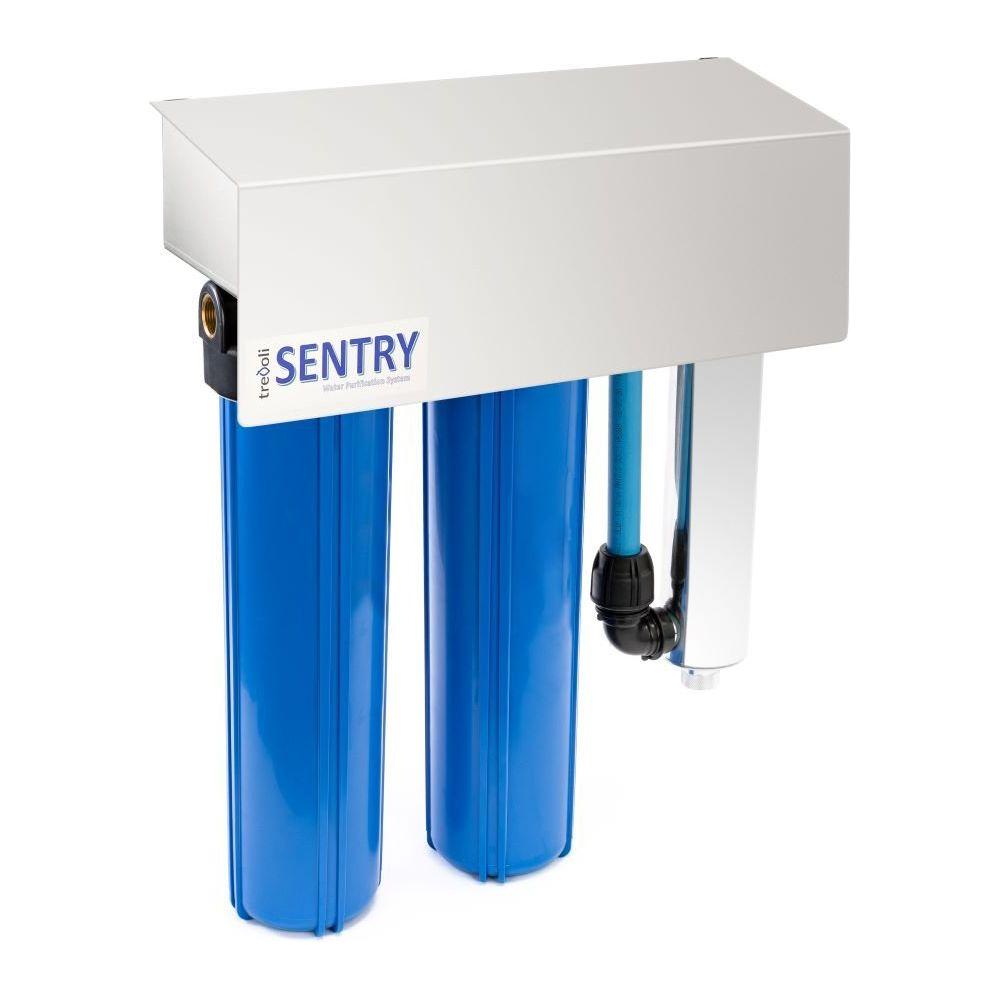

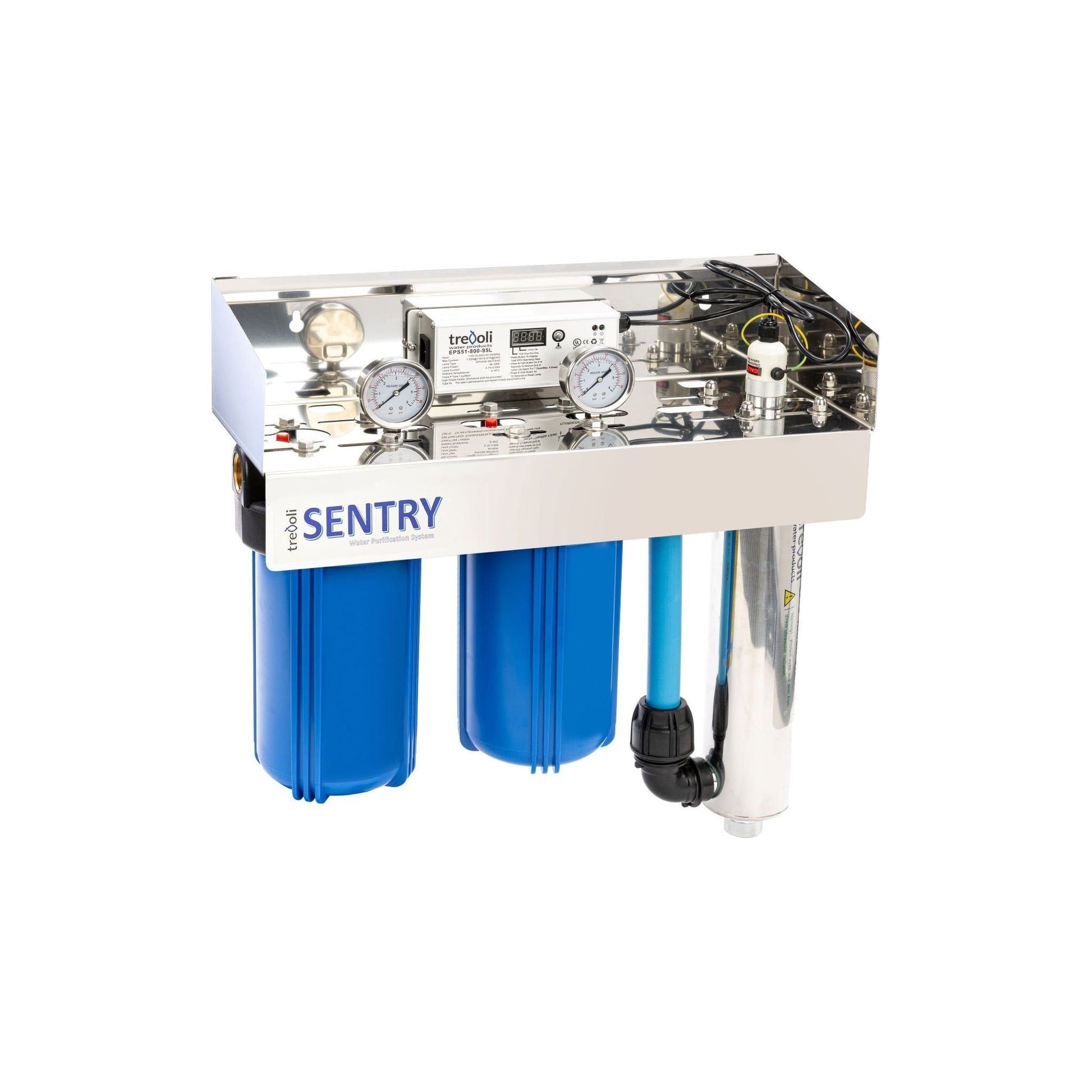

  • Sentry 102 / 202 (3-Stage)

    • Stage 1: Jumbo Pleated 20 micron filter

    • Stage 2: Jumbo Polyspun 1 micron filter

    • Stage 3: 48W High Intensity UV Lamp

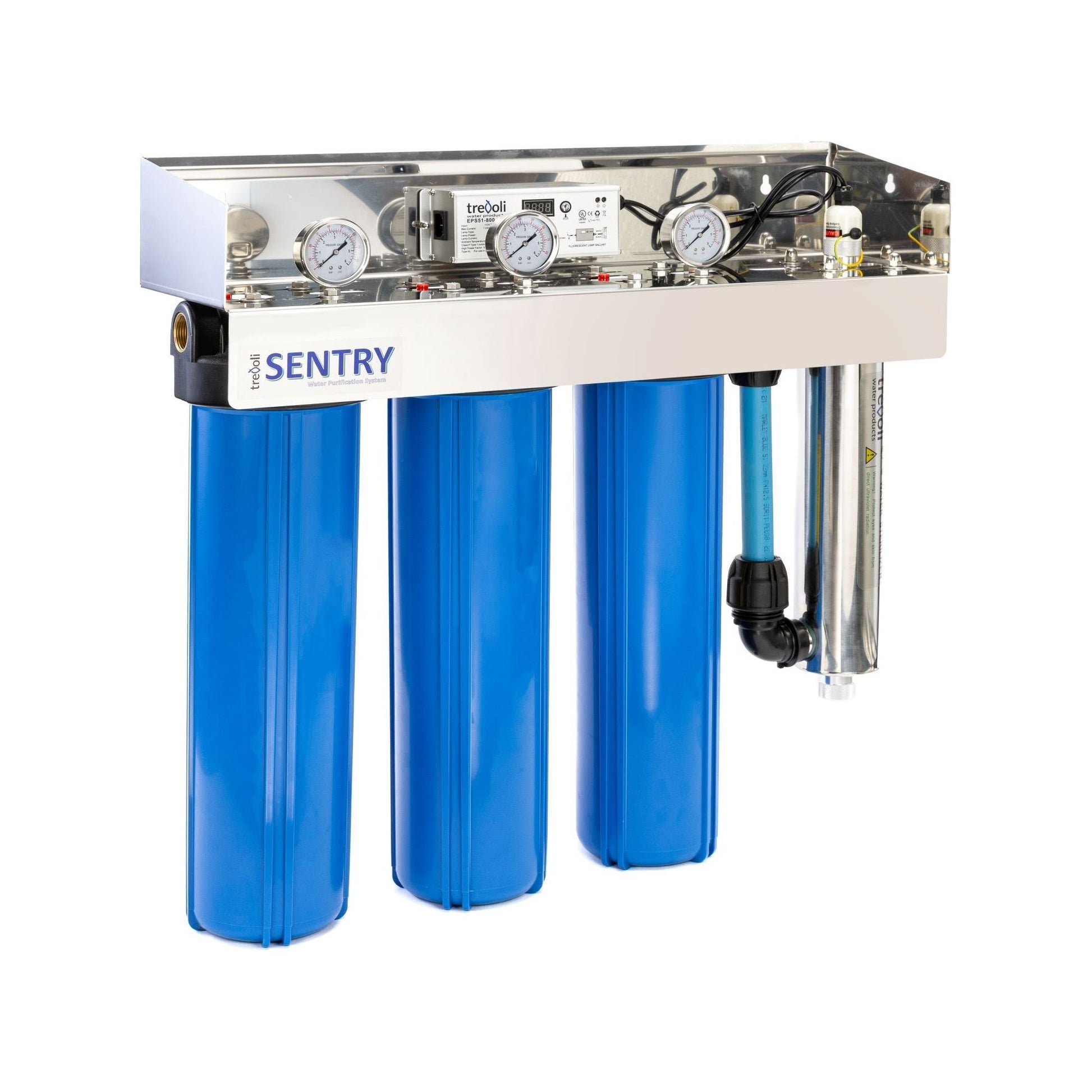

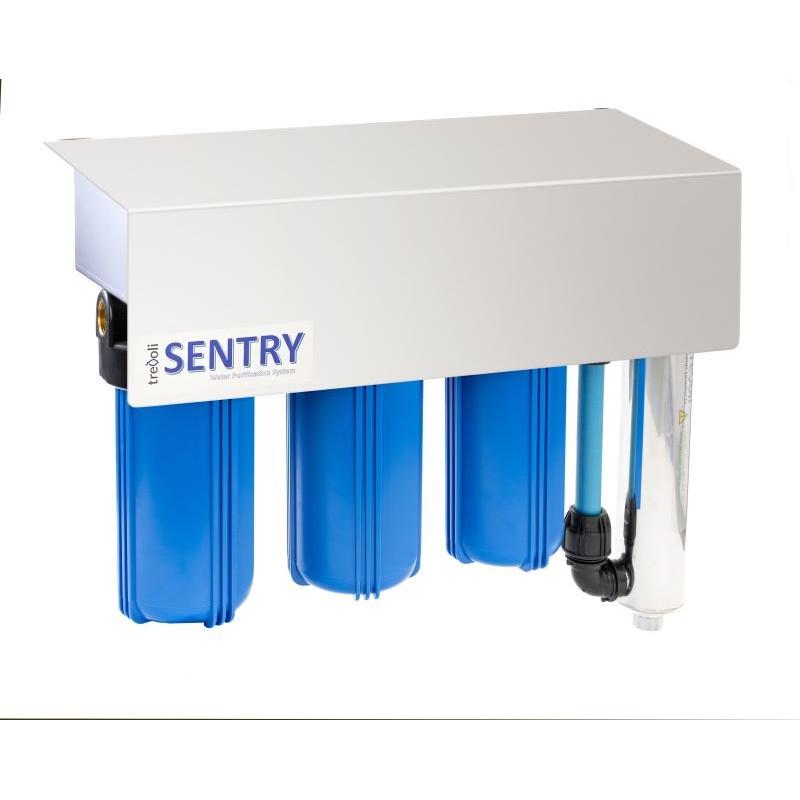

  • Sentry 103 / 203 (4-Stage)

    • Stage 1: Jumbo Pleated 20 micron filter

    • Stage 2: Jumbo Polyspun 1 micron filter

    • Stage 3: Jumbo Carbon Block 5 micron filter

    • Stage 4: 48W High Intensity UV Lamp

Features

  • Complete Protection – Sediment, chlorine, odour, taste, and pathogen removal

  • UV Disinfection – Destroys harmful bacteria, protozoa, and viruses

  • Stainless Steel Housing – Strong, durable, and built for NZ conditions

  • Fully Assembled – Ready to install with UV lamp, quartz sleeve, and ballast

  • Automatic Ballast with Countdown Timer – Tracks UV lamp life (365 days)

  • Pressure Gauges – Monitor filter performance at a glance

  • Included Accessories – Filter housing spanner + spare O-ring

  • Left or Right Entry Options – Flexible installation to suit your plumbing

  • 3-Year Warranty – Peace of mind protection

UV Specifications

  • Council Recommended Level: 75 LPM (40mJ/cm²)

  • Nominal Recommended Flow: 94 LPM (30mJ/cm²)

  • Maximum Flow Rate: 132 LPM (16mJ/cm²)

Specifications

Model Filter Size Max Flow Max Pressure Inlet/Outlet Max Temp Dimensions (L × W × H) Weight Stages
Sentry 102 10” 132 LPM 125 psi 25mm 40°C 580 × 220 × 580 mm 17.5kg 3
Sentry 103 10” 132 LPM 125 psi 25mm 40°C 755 × 220 × 580 mm 20kg 4
Sentry 202 20” 132 LPM 125 psi 25mm 40°C 580 × 220 × 725 mm 21.4kg 3
Sentry 203 20” 132 LPM 125 psi 25mm 40°C 755 × 220 × 725 mm 28.9kg 4

Why Choose the Trevoli Sentry Systems?

With their premium stainless steel build, multi-stage filtration, and powerful UV protection, the Sentry Systems provide peace of mind for NZ households. Perfect for rural and urban supplies, they are designed to tackle contamination from roof runoff, livestock waste, and natural water sources, ensuring safe and great-tasting water.

FAQs

Q: What’s the difference between the 10” and 20” models?
A: The 20” models (Sentry 202/203) have larger filters, providing longer service life and reduced maintenance compared to the 10” units.

Q: What’s the difference between the “2” and “3” series?
A: The Sentry 103/203 add a carbon block filter for extra chlorine, taste, and odour removal.

Q: Is this system easy to install?
A: Yes – it comes fully assembled, requiring only wall mounting and plumbing connections.

Q: How often do filters and lamps need replacing?
A: Filters typically last 6–12 months, while UV lamps should be replaced annually.

Q: What’s the warranty?
A: All Trevoli Sentry Systems include a 3-year warranty.
