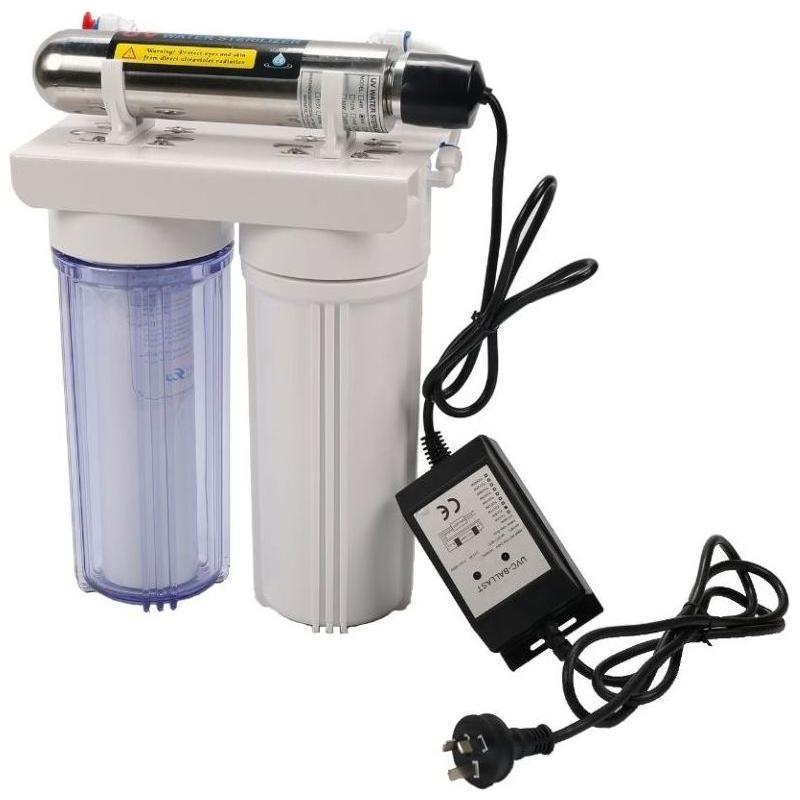

Trevoli Underbench 3-stage Filtration & UV System

The Underbench 3-Stage Filtration & UV System combines advanced filtration and UV sterilisation to provide clean and safe water for residential properties. Designed for both mains and rainwater supplies, this system effectively neutralises 99.9% of bacteria and parasites while reducing scale, sediment, silt, sand, and algae. Its compact underbench design ensures convenience without compromising on performance.

Key Features and Benefits

• Three-Stage Filtration:
  • Stage 1: Spun polypropylene (PP) filter removes visible particles such as sediment and silt.
  • Stage 2: Carbon block filter reduces chlorine, odour, and fine particulates like sand, salt, and rust.
  • Stage 3: UV steriliser neutralises 99.99% of harmful microorganisms, including E. coli and Salmonella.
• Environmentally Friendly: No chemicals added and no changes to water chemistry.
• Compact Design: Easily fits under kitchen benches for discreet and space-saving installation.
• Effective Protection: Dual filtration for enhanced sediment capacity and robust UV treatment.

Technical Information

• Maximum Working Pressure: 130 psi
• Operating Temperature: 4°C – 40°C
• Maximum Flow Rate: 9 Lpm
• Connection Size: 6mm
• UV Lamp Wattage: 6W

UV Dosage

• Flow Rate @ 40 mJ/cm²: 3 Lpm
• Flow Rate @ 30 mJ/cm²: 5 Lpm
• Flow Rate @ 16 mJ/cm²: 9 Lpm

Applications

• Suitable for residential properties using mains or rainwater supplies.
• Ideal for reducing harmful bacteria, parasites, and sediment for safe drinking water.
• Perfect for underbench installations in kitchens.
