Aquano Complete 40W UV Water Treatment System – 70 L/min

The Aquano CUVS40W is a complete ultraviolet (UV) water treatment system designed to provide chemical-free water disinfection.

Using UV light, the system helps inactivate microorganisms as water passes through the treatment chamber. This provides an additional treatment stage without adding chemicals or changing the taste and odour of the water.

With a maximum flow rate of 70 L/min, the Aquano CUVS40W is suitable for compatible water treatment installations requiring higher flow capacity.

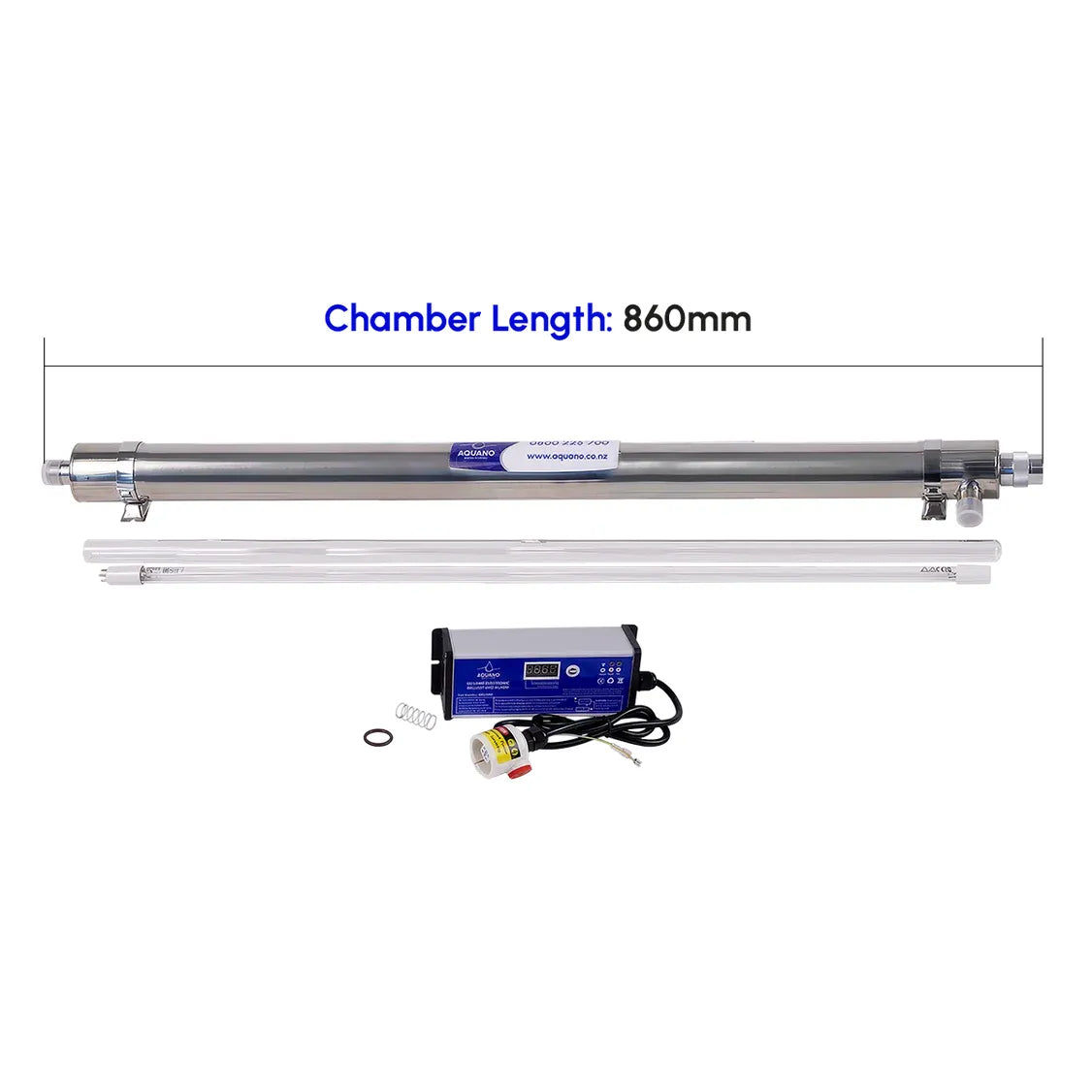

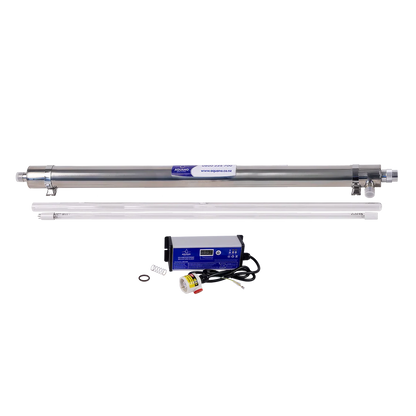

The complete system includes a UV chamber, countdown ballast, UV lamp, quartz tube and O-rings.

Why Choose the Aquano Complete UV System?

• Chemical-free UV water disinfection

• 40W UV system

• Maximum flow rate of 70 L/min

• Listed UV dose of 30 mJ/cm²

• UV transmittance specification above 75%

• Countdown ballast for lamp maintenance

• Four-pin UV lamp connection

• Maximum operating pressure of 800 kPa

• Complete UV treatment assembly

• Replaceable lamp, quartz tube and O-rings

• Does not add chemicals or affect water taste and odour

• Aquano Hassle Free Warranty

How It Works

The Aquano UV system uses ultraviolet light to treat water as it flows through the chamber.

Water enters the UV chamber and passes around a protective quartz tube containing the UV lamp. The quartz allows UV light to reach the water while keeping the lamp isolated from it.

UV light damages the genetic material of susceptible microorganisms, preventing them from reproducing.

Unlike conventional sediment and carbon filtration, UV treatment does not physically remove particles or dissolved chemicals. It provides a disinfection stage within the water treatment system.

Why Pre-Filtration Matters

UV performance depends on the quality and clarity of the incoming water.

Sediment, suspended particles and other substances can reduce UV transmission and shield microorganisms from the light.

Appropriate pre-filtration helps maintain the water clarity required for effective UV treatment.

Best Suited For

• Residential water treatment systems

• Compatible whole-house UV installations

• Rainwater treatment systems with appropriate pre-filtration

• Water supplies requiring an additional UV disinfection stage

• Systems with flow requirements up to 70 L/min

• Installations where chemical-free water treatment is preferred

Key Specifications

Important: The 70 L/min specification is the maximum system flow. The UV dose achieved in operation depends on flow rate, UV transmittance and operating conditions.

Countdown Ballast

The included countdown ballast provides control of the UV lamp and helps track its maintenance cycle.

UV lamps gradually lose their effective UV output during use, even when they continue to produce visible light.

The countdown function helps identify when lamp replacement is required to maintain the system's treatment performance.

Replacement Parts

The Aquano CUVS40W uses replaceable service components, allowing the system to be maintained without replacing the complete UV assembly.

Use the specified replacement parts for the CUVS40W system. UV lamps and quartz tubes from other system sizes should not be assumed to be interchangeable.

Installation

The Aquano CUVS40W is designed for installation within a compatible water treatment system.

The unit has ½" female and ¾" male connections and must be installed within its maximum operating pressure of 800 kPa.

For effective UV treatment, incoming water should meet the required water-quality conditions, including adequate UV transmittance and appropriate pre-filtration.

Allow enough clearance around the system for removing the UV lamp and quartz tube during servicing.

Installation should follow the applicable UV system instructions and electrical requirements.

Maintenance

Regular maintenance is important for maintaining UV treatment performance.

The UV lamp must be replaced in accordance with the system's maintenance instructions and countdown ballast indication.

The quartz tube should also be inspected and cleaned when required. Deposits on the quartz can reduce the amount of UV light reaching the water.

Inspect the O-rings during servicing and replace them when required to maintain an effective seal.

Always disconnect the electrical supply and isolate the water before opening or servicing the UV system. Never look directly at an operating UV lamp.

What's Included

• 1 × Aquano CUVS40W UV Chamber

• 1 × Countdown Ballast

• 1 × UV Lamp

• 1 × Quartz Tube

• O-rings

Warranty

Aquano Hassle Free Warranty.

FAQs

What is the maximum flow rate?

The CUVS40W has a maximum flow rate of 70 litres per minute.

What does the UV system do?

It uses ultraviolet light to inactivate susceptible microorganisms as water passes through the treatment chamber.

Does the UV system remove sediment?

No. UV treatment does not physically remove sediment or other suspended particles. Appropriate pre-filtration should be installed where required.

Does UV treatment change the taste of water?

No. UV treatment does not add chemicals or alter the taste and odour of the water.

What is the UV dose?

The listed UV dose is 30 mJ/cm². Actual treatment performance depends on flow rate, water UV transmittance and operating conditions.

Does the system include a UV lamp?

Yes. The complete system includes the UV lamp, chamber, countdown ballast, quartz tube and O-rings.

What replacement lamp does it use?

The replacement lamp code is TUV36T5HO.

What quartz tube does it use?

The replacement quartz tube is QT875.

Does the lamp need replacing if it still lights up?

Yes. UV output reduces as a lamp ages, even when visible light is still present. Follow the system's lamp maintenance instructions and countdown indication.

Does this system require pre-filtration?

Incoming water must have suitable clarity and UV transmittance for effective UV treatment. Sediment filtration may be required to achieve the necessary water quality.
