Genuine Davey 57-SERVKIT-RN UV Service Kit – Lamp, Sleeve & Filters

Keep your Davey UV water treatment system properly maintained with the Genuine Davey 57-SERVKIT-RN UV Service Kit.

Designed for the Davey KUV57A and UV57 systems with prefiltration, this complete service kit contains the key replacement components needed to refresh both the filtration and UV treatment stages.

The kit includes a replacement UV lamp, UV sleeve, O-rings, 20 micron pleated filter and 1 micron polyspun filter, giving you a convenient all-in-one solution for routine system servicing.

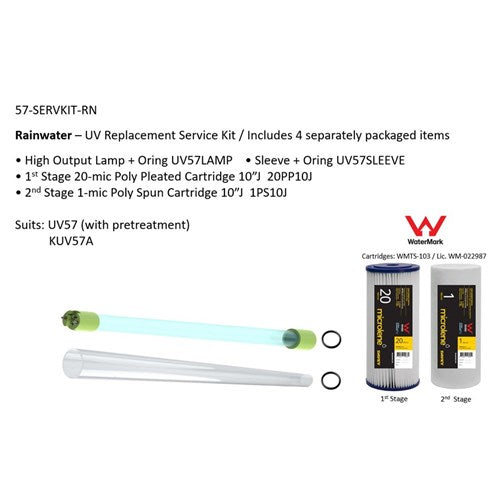

What's Included

The 57-SERVKIT-RN includes:

• 1 × UV57LAMP — Replacement UV Lamp
• 1 × UV57SLEEVE — Replacement UV Sleeve
• 2 × O-rings
• 1 × 20PP10 — 20 Micron Poly Pleated Water Filter Cartridge
• 1 × 1PS10 — 1 Micron Polyspun Water Filter Cartridge

Everything is supplied together as a Genuine Davey service kit.

Compatible Davey Systems

The 57-SERVKIT-RN suits:

• Davey KUV57A
• Davey UV57 with prefiltration

Always check the model of your existing Davey system before ordering to confirm compatibility.

Why Choose the Complete Service Kit?

A UV water treatment system relies on both effective prefiltration and UV treatment.

The two sediment filters progressively remove suspended particles before the water reaches the UV chamber, while the lamp and sleeve form the key service components of the UV treatment stage.

The 57-SERVKIT-RN allows you to replace these components together as part of a complete system service.

Complete Service in One Kit

The kit provides the filtration sequence:

20 Micron Poly Pleated → 1 Micron Polyspun → UV Treatment

along with the replacement UV sleeve and O-rings.

Genuine Davey Components

The 57-SERVKIT-RN is a Genuine Davey service kit, providing matched replacement components for compatible Davey KUV57A and UV57 systems.

Filtration + UV Maintenance

This is more than just a replacement UV lamp.

The kit refreshes both the prefiltration and UV treatment components, making routine maintenance easier and removing the need to purchase each service component separately.

How the Filtration Stages Work

Stage 1 — 20PP10 20 Micron Poly Pleated Filter

The 20PP10 20 micron poly pleated cartridge provides the first stage of filtration.

It captures larger suspended sediment and particles before the water reaches the finer second-stage filter.

The pleated media provides a large filtration surface area, making it well suited to first-stage sediment filtration.

Stage 2 — 1PS10 1 Micron Polyspun Filter

Water then passes through the 1PS10 1 micron polyspun cartridge.

This provides finer sediment filtration, capturing smaller suspended particles that pass through the first-stage cartridge.

Together, the two cartridges provide progressive filtration:

20 Micron Pleated → 1 Micron Polyspun

This prepares the water before it reaches the UV treatment stage.

UV Treatment Stage

After prefiltration, the water passes through the UV treatment stage.

The UV57LAMP produces ultraviolet light inside the UV chamber, while the UV57SLEEVE separates the lamp from the water while allowing the UV light to pass through.

Replacing the lamp and sleeve as part of a complete service helps keep the UV stage properly maintained.

Key Features

• Genuine Davey service kit
• Designed for KUV57A and UV57 with prefiltration
• Complete filtration and UV maintenance package
• Includes UV57LAMP replacement UV lamp
• Includes UV57SLEEVE replacement sleeve
• Includes 2 replacement O-rings
• Includes 20PP10 20 micron poly pleated cartridge
• Includes 1PS10 1 micron polyspun cartridge
• Progressive 20 micron → 1 micron prefiltration
• Services filtration and UV components together
• Convenient alternative to purchasing individual replacement components

Product Specifications

Best Suited For

The 57-SERVKIT-RN is ideal for:

• Davey KUV57A servicing
• Davey UV57 systems with prefiltration
• Routine UV-system maintenance
• Replacing the UV lamp and sleeve together
• Replacing prefilters during UV servicing
• Rainwater treatment systems
• Tank-water treatment systems
• Residential water treatment systems
• Customers wanting Genuine Davey replacement components
• Complete scheduled filtration and UV servicing

Installation

The 57-SERVKIT-RN contains components for both the filtration and UV sections of the system.

A typical service involves:

1. Turn off power to the UV system.
2. Isolate the water supply.
3. Release pressure from the filtration system.
4. Remove the existing filter cartridges.
5. Clean the filter housings as required.
6. Install the new 20PP10 20 micron pleated cartridge in the appropriate first-stage housing.
7. Install the new 1PS10 1 micron polyspun cartridge in the appropriate second-stage housing.
8. Carefully remove the existing UV lamp.
9. Remove the existing UV sleeve as required.
10. Install the new UV57SLEEVE and supplied O-rings.
11. Carefully install the new UV57LAMP.
12. Reassemble the system.
13. Slowly restore the water supply.
14. Check thoroughly for leaks.
15. Restore power and confirm correct system operation.

Follow the servicing procedure for your specific Davey system when installing the kit.

UV Lamp & Sleeve Handling

Take care when handling the replacement UV components.

Avoid touching the glass surface of the UV lamp with bare fingers. Oils and contaminants from your skin can remain on the lamp surface.

The UV sleeve is also fragile and should be handled carefully during removal and installation.

Ensure the supplied O-rings are correctly seated during reassembly to maintain a proper seal.

Why Replace the UV Sleeve?

The UV sleeve separates the lamp from the water while allowing ultraviolet light to pass into the treatment chamber.

Over time, deposits and fouling can build up on the sleeve and interfere with UV transmission.

The 57-SERVKIT-RN includes a new UV57SLEEVE, allowing the lamp and sleeve to be refreshed together as part of the same service.

Why Replace the Filters at the Same Time?

Effective prefiltration helps prepare the water before it enters the UV chamber.

The included filters provide progressive sediment filtration:

20PP10 — 20 Micron Poly Pleated

followed by:

1PS10 — 1 Micron Polyspun

The first cartridge captures larger suspended particles before the second cartridge provides finer 1 micron filtration.

Replacing both cartridges during UV servicing gives the filtration and UV stages a complete refresh at the same time.

What's Included — At a Glance

UV Components

1 × UV57LAMP
Replacement UV Lamp

1 × UV57SLEEVE
Replacement UV Sleeve

2 × O-Rings

Filtration Components

1 × 20PP10
20 Micron Poly Pleated Water Filter Cartridge

1 × 1PS10
1 Micron Polyspun Water Filter Cartridge

Frequently Asked Questions

Is the 57-SERVKIT-RN a genuine Davey product?

Yes. This is a Genuine Davey 57-SERVKIT-RN service kit.

What systems does the 57-SERVKIT-RN suit?

It suits:

• Davey KUV57A
• Davey UV57 with prefiltration

Does the kit include the UV lamp?

Yes. The kit includes 1 × UV57LAMP replacement UV lamp.

Does it include a replacement UV sleeve?

Yes. A UV57SLEEVE replacement sleeve is included.

Are O-rings included?

Yes. The service kit includes two O-rings.

Are the replacement filters included?

Yes. The kit includes both prefiltration cartridges:

1 × 20PP10 — 20 Micron Poly Pleated

1 × 1PS10 — 1 Micron Polyspun

What order do the filters go in?

The filtration sequence is:

20 Micron Poly Pleated → 1 Micron Polyspun → UV Treatment

The first filter captures larger suspended particles before the second stage provides finer 1 micron filtration.

Is this just a UV replacement lamp?

No. This is a complete UV and filtration service kit.

It includes the replacement UV lamp, sleeve, O-rings and both replacement prefilter cartridges.

Does this kit suit the Davey KUV57A?

Yes. The 57-SERVKIT-RN suits the Davey KUV57A.

Does it suit a Davey UV57?

It suits the Davey UV57 with prefiltration.

Check your existing system model before ordering to ensure you have the correct service kit.

Why replace the filters when servicing the UV system?

The filters remove suspended particles before the water reaches the UV treatment stage.

Using progressive 20 micron followed by 1 micron filtration helps prepare the water before UV treatment and allows the major service components to be replaced together.

Can I buy this instead of sourcing the components individually?

Yes. The 57-SERVKIT-RN combines the UV lamp, sleeve, O-rings and both replacement filters into one Genuine Davey service kit.

Does this include the complete UV water treatment system?

No. This is a replacement service kit for an existing compatible Davey system.

The UV chamber, controller, filter housings and other permanent system components are not included.
