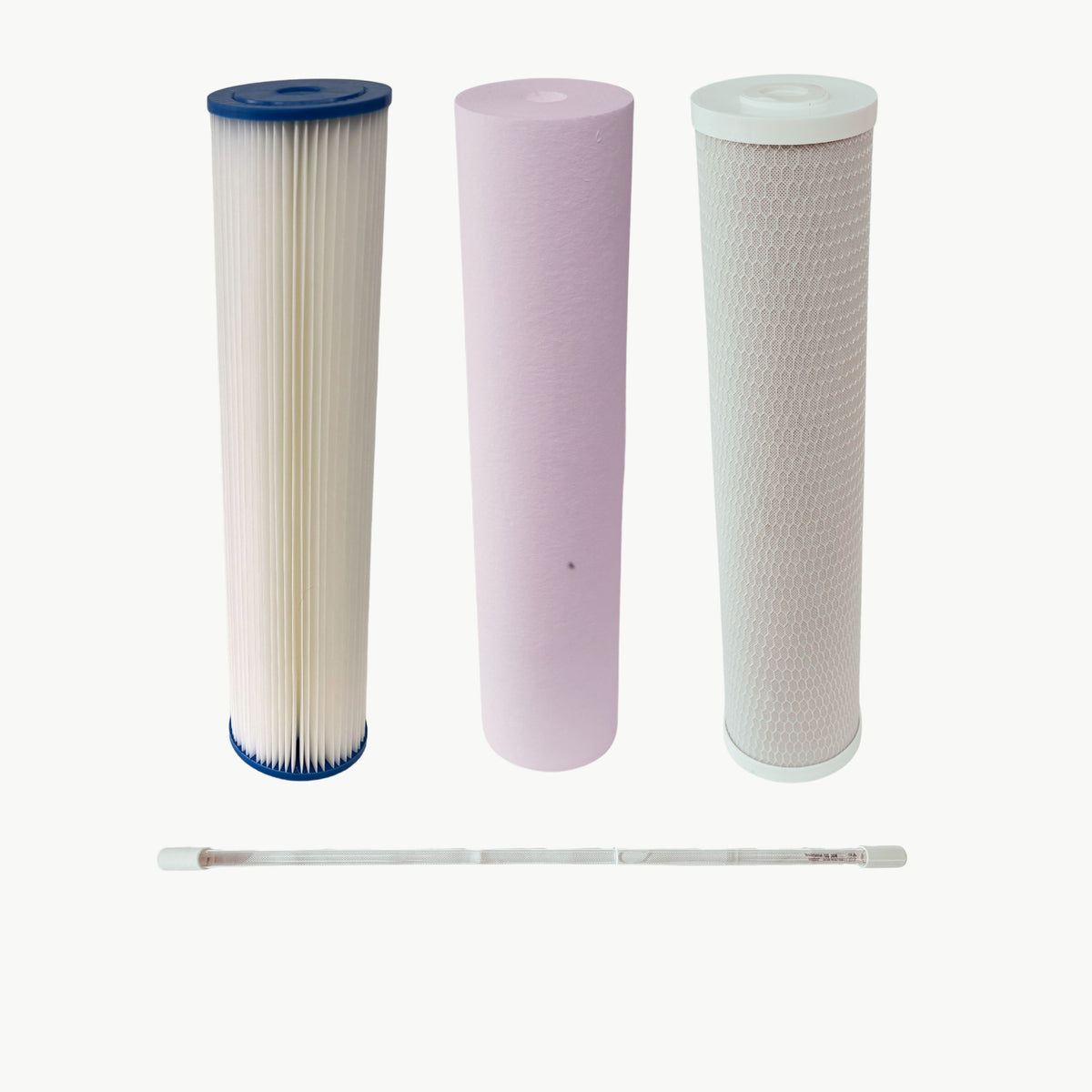

Greenway GAUV-15S UV Lamp & 20" Jumbo Triple Filter Replacement Kit

Keep your Greenway GAUV-15S UV water treatment system maintained with a complete replacement lamp and filter kit designed for the UV Option 6 Deluxe triple 20" Jumbo filter configuration.

This maintenance kit combines the replacement UV lamp, 20 micron pleated sediment cartridge, radial flow granular activated carbon cartridge and 1 micron depth sediment cartridge required for routine servicing of the system.

The Greenway UV Option 6 Deluxe is configured for surface-drawn water such as creek, spring or river water where colour is an issue, combining three stages of filtration with the higher-flow GAUV-15S UV system.

Choose between Genuine and Aftermarket options. The Genuine kit uses genuine replacement components, while the Aftermarket kit provides compatible replacements with the same 20" Jumbo size and filtration configuration without representing them as genuine branded cartridges.

Product Options

Both options maintain the same treatment sequence:

20 Micron Pleated → Radial Flow GAC → 1 Micron Depth → GAUV-15S UV Treatment

Genuine — Greenway GAUV-15S Replacement Kit

Choose the Genuine option for the genuine replacement lamp and filter configuration used with the Greenway GAUV-15S Option 6 Deluxe system.

What's Included

• 1 × Genuine Greenway GW_GUVL-15S UV Lamp
• 1 × Genuine 20BPF20 — 20 Micron Pleated 20" Jumbo Filter
• 1 × Genuine 20BRFGAC — Radial Flow GAC 20" Jumbo Filter
• 1 × Genuine 20BPX01 — 1 Micron Depth 20" Jumbo Filter

This provides the UV lamp and all three filtration stages together in one convenient replacement kit.

Aftermarket — Compatible Greenway GAUV-15S Replacement Kit

Choose the Aftermarket option for compatible replacement components that maintain the same 20" Jumbo size and filtration configuration.

What's Included

• 1 × Compatible GW_GUVL-15S UV Replacement Lamp
• 1 × Aftermarket 20 Micron Pleated 20" Jumbo Filter
• 1 × Aftermarket Radial Flow GAC 20" Jumbo Filter
• 1 × Aftermarket 1 Micron Depth 20" Jumbo Filter

The aftermarket components are compatible replacements and are not genuine Greenway/Pentair components.

The aftermarket filters are identified by their size and filtration function, rather than using the genuine 20BPF20, 20BRFGAC and 20BPX01 model numbers.

Why Choose This UV Lamp & Filter Kit?

• Complete UV lamp and triple-filter replacement kit
• Designed for the Greenway GAUV-15S
• Suits the UV Option 6 Deluxe / UV_OPT6-D
• Correct 3 × 20" Jumbo filter configuration
• 20 micron pleated filtration for first-stage sediment removal
• Radial flow GAC filtration for carbon treatment
• 1 micron depth filtration for finer sediment filtration
• Configured for surface-drawn water where colour is an issue
• Suitable for creek, spring and river water applications using the specified system
• Includes the replacement GAUV-15S UV lamp
• Choose between Genuine and Aftermarket
• Both options maintain the same filtration sequence
• Convenient way to replace the UV lamp and all three filters together

How It Works

The Greenway UV Option 6 Deluxe combines three stages of filtration followed by high-flow UV treatment.

Stage 1 — 20 Micron Pleated Sediment Filtration

The first stage uses a 20 micron pleated 20" Jumbo cartridge.

This provides initial sediment filtration, capturing particulate matter from the incoming surface water before it progresses to the carbon treatment stage.

Genuine: 20BPF20
Aftermarket: Compatible 20 Micron Pleated 20" Jumbo Filter

Stage 2 — Radial Flow Granular Activated Carbon

The second stage uses a 20" Jumbo radial flow granular activated carbon (GAC) cartridge.

This provides the dedicated carbon treatment stage in the Option 6 Deluxe configuration.

Granular activated carbon provides treatment for taste, odour and colour-causing organic compounds, making this stage particularly useful for surface-drawn water where colour is an issue.

Genuine: 20BRFGAC
Aftermarket: Compatible Radial Flow GAC 20" Jumbo Filter

Stage 3 — 1 Micron Depth Sediment Filtration

The third filtration stage uses a 1 micron depth 20" Jumbo cartridge.

This provides finer particulate filtration before the water reaches the UV treatment system.

Genuine: 20BPX01
Aftermarket: Compatible 1 Micron Depth 20" Jumbo Filter

Stage 4 — GAUV-15S UV Treatment

Following all three filtration stages, water passes through the existing Greenway GAUV-15S UV system for ultraviolet treatment.

Treatment Path

20 Micron Pleated Sediment → Radial Flow GAC → 1 Micron Depth Sediment → GAUV-15S UV Treatment

Designed for Surface-Drawn Water Where Colour Is an Issue

The Greenway UV Option 6 Deluxe is configured for surface-drawn water applications including:

• Creek water
• Spring water
• River water
• Surface water where colour is an issue

The key difference in this configuration is the addition of the radial flow GAC carbon stage between the initial sediment filter and finer 1 micron filter.

This gives the system a comprehensive treatment sequence:

Sediment → Carbon → Fine Sediment → UV

About the Radial Flow Carbon Stage

The Genuine Option 6 Deluxe uses the 20BRFGAC radial flow granular activated carbon cartridge.

The radial flow design provides the benefits of granular activated carbon filtration while maintaining relatively low pressure drop for higher-flow applications.

The GAC stage provides treatment for:

• Taste
• Odour
• Colour-causing organic compounds

For the Aftermarket kit, a compatible 20" Jumbo radial flow GAC cartridge is supplied to maintain the same filtration function without representing it as the genuine 20BRFGAC cartridge.

Why Prefiltration Matters for UV Treatment

The Option 6 Deluxe progressively treats incoming surface water before it reaches the UV stage.

The treatment sequence is:

20 Micron → GAC → 1 Micron → UV

The 20 micron pleated cartridge provides initial sediment filtration.

The radial flow GAC cartridge provides the carbon treatment stage.

The 1 micron depth cartridge then provides finer sediment filtration before water enters the GAUV-15S UV system.

Both Genuine and Aftermarket kits maintain this same treatment sequence.

About the Greenway GAUV-15S Option 6 Deluxe

The Greenway UV Option 6 Deluxe configuration uses:

• Greenway GAUV-15S UV unit
• 3 × 20BWH 20" Jumbo filter housings
• 1 × 20BPF20
• 1 × 20BRFGAC
• 1 × 20BPX01
• Surge protector

This replacement kit replaces the primary lamp and filter service components while retaining your existing GAUV-15S UV system and filter housings.

High-Flow GAUV-15S Configuration

The Option 6 Deluxe uses the larger GAUV-15S UV unit.

The complete system is specified at:

Recommended Flow: 92 L/min @ 30 mJ/cm²
Peak Flow: 174 L/min @ 16 mJ/cm²

These figures describe the complete Greenway Option 6 Deluxe system rather than the replacement lamp and filter kit itself.

GAUV-15S Replacement Lamp

The GAUV-15S uses the GW_GUVL-15S replacement UV lamp.

Genuine Lamp

Greenway GW_GUVL-15S

• 40W
• 893mm long
• Standard 4-pin connection
• Designed for the GAUV-15S
• Replacement lamp for UV_OPT5-D to UV_OPT6-D

Aftermarket Lamp

The Aftermarket kit includes a compatible replacement lamp matching the required:

• 40W
• 893mm length
• Standard 4-pin connection
• GAUV-15S compatibility

The aftermarket lamp is a compatible replacement and is not a genuine Greenway-manufactured lamp.

UV Lamp Replacement

The UV lamp should be replaced every 12 months as part of routine UV system maintenance.

A UV lamp can continue to produce visible light even as its effective germicidal UV output declines.

For this reason, replace the lamp according to the annual replacement schedule rather than waiting for it to stop glowing.

Genuine vs Aftermarket

Both options provide the same basic replacement configuration:

1 × UV Lamp + 1 × 20 Micron Pleated + 1 × Radial Flow GAC + 1 × 1 Micron Depth

Choose Genuine If:

You want the genuine replacement components:

• Genuine Greenway GW_GUVL-15S UV Lamp
• Genuine 20BPF20 20 Micron Pleated Filter
• Genuine 20BRFGAC Radial Flow GAC Filter
• Genuine 20BPX01 1 Micron Depth Filter

Choose Aftermarket If:

You want compatible replacement components maintaining the same filtration configuration:

• Compatible GW_GUVL-15S 40W UV Replacement Lamp
• Aftermarket 20 Micron Pleated 20" Jumbo Filter
• Aftermarket Radial Flow GAC 20" Jumbo Filter
• Aftermarket 1 Micron Depth 20" Jumbo Filter

The aftermarket cartridges match the required 20" Jumbo size and filtration stages, but are not sold as genuine 20BPF20, 20BRFGAC or 20BPX01 cartridges.

Best Suited For

• Greenway GAUV-15S
• UV Option 6 Deluxe
• UV_OPT6-D
• Triple 20" Jumbo filter configurations
• Creek water treatment
• Spring water treatment
• River water treatment
• Surface-drawn water
• Water where colour is an issue
• Sediment filtration
• Taste and odour treatment
• Carbon filtration
• Fine sediment filtration before UV
• Higher-flow water treatment applications
• Annual UV lamp replacement
• Routine filter servicing

Key Specifications

Compatibility

This replacement kit is configured for:

Greenway GAUV-15S

UV Option 6 Deluxe / UV_OPT6-D

Triple 20" Jumbo Filter Configuration

The Genuine option uses:

20BPF20 + 20BRFGAC + 20BPX01

The Aftermarket option maintains the same:

• 20" Jumbo cartridge size
• 20 micron pleated first stage
• Radial flow GAC carbon stage
• 1 micron depth final filtration stage

without representing the aftermarket cartridges as genuine branded models.

Installation

1. Isolate the incoming water supply.
2. Switch off and isolate electrical power to the UV system.
3. Depressurise the filter housings.
4. Remove the existing filter cartridges.
5. Install the new 20 micron pleated 20" Jumbo cartridge in the first stage.
6. Install the new radial flow GAC 20" Jumbo cartridge in the second stage.
7. Install the new 1 micron depth 20" Jumbo cartridge in the third stage.
8. Carefully remove and replace the GAUV-15S UV lamp according to the system servicing procedure.
9. Reassemble the filter housings and UV system.
10. Slowly restore the water supply.
11. Check the housings and connections for leaks.
12. Restore power once the system has been correctly reassembled.

Avoid touching the UV lamp glass directly with bare hands during installation.

Maintenance

UV Lamp: Replace every 12 months.

Filter cartridge service life will depend on:

• Incoming water quality
• Sediment loading
• Organic loading
• Water colour
• Water consumption
• Operating flow
• Frequency of use
• Seasonal changes in the surface water source

Surface-drawn water conditions can vary, so filter condition and system performance should be monitored and cartridges replaced as required.

What's Included

Genuine Option

• 1 × Genuine Greenway GW_GUVL-15S 40W UV Lamp
• 1 × Genuine 20BPF20 20 Micron Pleated 20" Jumbo Filter
• 1 × Genuine 20BRFGAC Radial Flow GAC 20" Jumbo Filter
• 1 × Genuine 20BPX01 1 Micron Depth 20" Jumbo Filter

Aftermarket Option

• 1 × Compatible GW_GUVL-15S 40W UV Replacement Lamp
• 1 × Aftermarket 20 Micron Pleated 20" Jumbo Filter
• 1 × Aftermarket Radial Flow GAC 20" Jumbo Filter
• 1 × Aftermarket 1 Micron Depth 20" Jumbo Filter

The complete GAUV-15S UV system, UV chamber, controller, surge protector and filter housings are not included.

Frequently Asked Questions

Which Greenway system does this kit fit?

This kit is configured for the Greenway GAUV-15S UV Option 6 Deluxe / UV_OPT6-D using three 20" Jumbo filter housings.

What is included in the Genuine kit?

The Genuine option includes:

• 1 × Genuine Greenway GW_GUVL-15S UV Lamp
• 1 × Genuine 20BPF20 20 Micron Pleated Filter
• 1 × Genuine 20BRFGAC Radial Flow GAC Filter
• 1 × Genuine 20BPX01 1 Micron Depth Filter

What is included in the Aftermarket kit?

The Aftermarket option includes:

• 1 × Compatible GW_GUVL-15S 40W UV Lamp
• 1 × Aftermarket 20 Micron Pleated 20" Jumbo Filter
• 1 × Aftermarket Radial Flow GAC 20" Jumbo Filter
• 1 × Aftermarket 1 Micron Depth 20" Jumbo Filter

Are the aftermarket filters 20BPF20, 20BRFGAC and 20BPX01?

No. Those are the genuine cartridge references.

The aftermarket kit uses compatible cartridges matching the same required 20" Jumbo size and filtration configuration.

Do Genuine and Aftermarket use the same filtration stages?

Yes. Both configurations use:

20 Micron Pleated → Radial Flow GAC → 1 Micron Depth → UV

The difference is the brand/manufacturer of the replacement components.

What does the radial flow carbon filter do?

The GAC cartridge provides a dedicated carbon treatment stage for taste, odour and colour-causing organic compounds.

Why does Option 6 have three filters?

Option 6 adds a radial flow GAC carbon stage between the sediment filters.

This gives the treatment sequence:

Sediment → Carbon → Fine Sediment → UV

Which filter goes first?

The correct sequence is:

20 Micron Pleated → Radial Flow GAC → 1 Micron Depth → GAUV-15S UV

Which UV lamp does Option 6 use?

The GAUV-15S uses the GW_GUVL-15S replacement lamp.

It is a 40W, 893mm standard 4-pin UV lamp.

Is the aftermarket UV lamp genuine Greenway?

No. It is a compatible aftermarket replacement.

How often should I replace the UV lamp?

Replace the UV lamp every 12 months.

Is this kit suitable for creek, spring and river water?

Yes. The Option 6 Deluxe configuration is designed for surface-drawn creek, spring or river water where colour is an issue.

Does this include the complete filtration system?

No. This is a replacement lamp and filter kit for an existing compatible system.

The GAUV-15S UV unit, filter housings, controller and other system hardware are not included.
