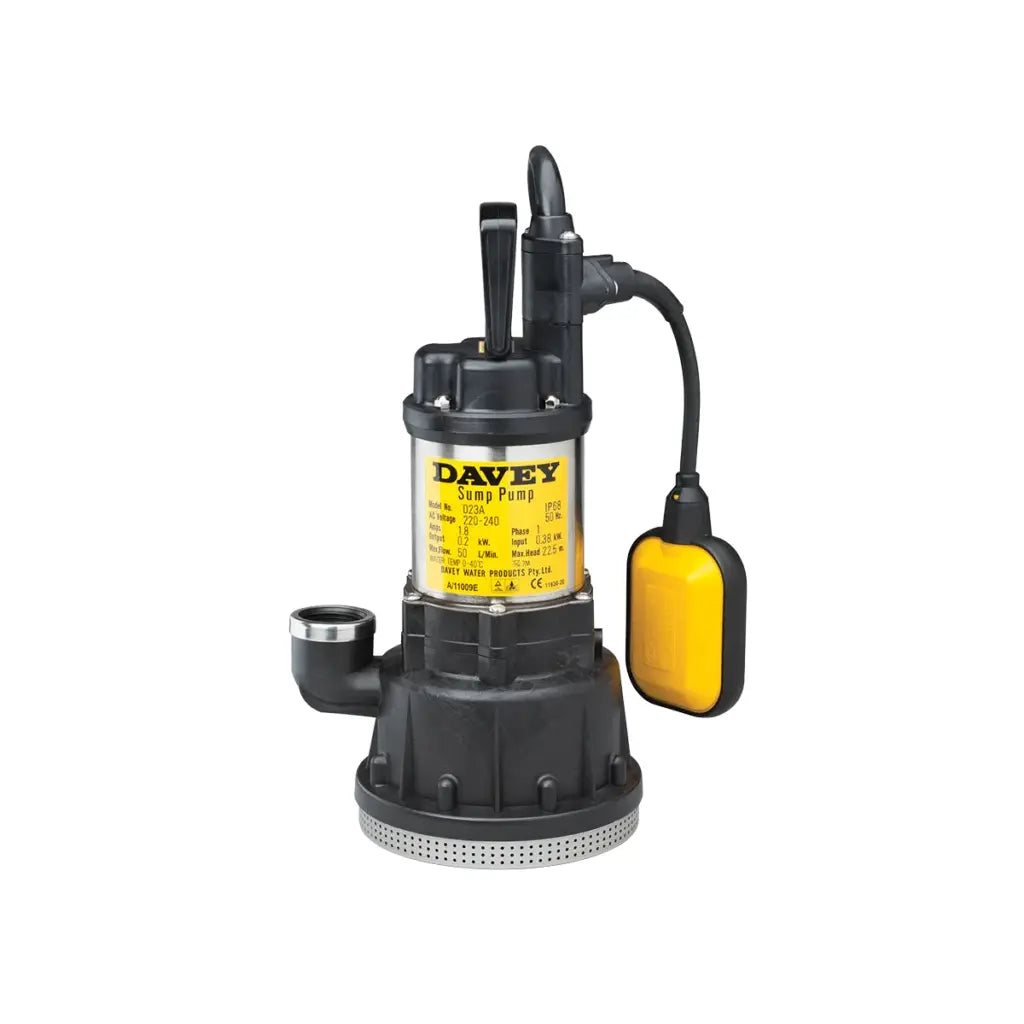

Davey D23A/B submersible high head drainage pump

Davey

Davey D23A/B Submersible High Head Drainage Pump – 0.2kW

$832.60incl. GST

Our promise: if it's not right, we'll put it right.

Need a hand choosing a pump?

Email us a photo of your current pump or setup and we’ll help you find the right one.

Call us on 0800 209 829 Email a photo

Mon–Fri, 8am–4pmsales@filtrationstation.co.nz

Brand
Davey
Type
Tank & Rainwater Submersible Pumps
SKU
D23A/B
Stock
In stock

Fit check

Is it right for my water supply?

A quick check before you buy.

  • Rainwater and irrigation

    Good fit

    Davey high head drainage pumps suit rainwater, lawn and garden irrigation, sump emptying to higher heads and water transfer from wells.

  • Lifting water a long way

    Good fit

    Davey's multistage impellers are built for low flow and higher head, so they suit long or uphill discharge runs.

  • Dirty water, sewage or solids

    Not this one

    Clean water of neutral pH with up to 1% small solids. For dirty water and solids, see Davey's dewatering, vortex or sewage pumps.

  • Automatic float

    Good fit

    The D23A/B has a float switch to start the pump as water rises and stop it at a safe level. Leave room for the float to move freely.

  • Emptying a swimming pool

    Consider

    Emptying pools is another use. They're not for recirculating or filtering pools or spas, and never with people in the water.

Specs

Specs

Model
D23A/B (automatic float switch)
Pump type
Submersible multistage high head drainage pump
Motor output
0.2 kW P2 (0.38 kW P1)
Max flow
NZ product page: 50 lpm; datasheet: 52 lpm
Max head
22.5 m
Max submergence
7 m
Max water temperature
40 °C
Suitable fluids
Clean water of neutral pH with up to 1% small solids
Power supply
220–240 V, 50 Hz, single phase
Current
1.8 A run, 14 A locked rotor
Speed
2 pole, 2,850 rpm
Power lead
10 m HO7RN-F with 3-pin plug
Outlet
1" F BSP
Float
Float switch for automatic operation
Protection
Automatic thermal overload, IPX8
Seals
Double mechanical seal (silicon carbide/ALOX motor side in oil bath, carbon/ALOX pump side)
Materials
Polycarbonate and fibreglass impeller; polyoxymethylene and fibreglass casing; 304 stainless steel motor shell and fasteners
Weight
6.25 kg
Warranty
24 months

Compare

Compare the Davey high head drainage pumps

Figures for each model.

Common questions

Does it switch itself on and off?

Yes. The D23A/B has a float switch that starts the pump as water rises and stops it when it has pumped down to the pump's safe operating level.

What water can it pump?

Clean water of neutral pH containing up to 1% small solids. Sand, grit and hard solids will wear the pump faster. It's not for sewage or dirty water with solids.

How much water can it move?

NZ product page: capacities to 50 lpm; datasheet: 52 lpm. We quote 50 lpm. Maximum total head is 22.5 m.

What warranty does it have?

The D23A/B comes with a 24-month warranty.

Still not sure?

Tell us about your home and water supply and we'll point you to the right pump.

Help me chooseEmail us a photo

Full product details

Read the full description

Davey's D23A/B is the smallest of its high head drainage pumps, built for low flow jobs. It suits rainwater, lawn and garden irrigation and sump emptying to low heads. It has a float switch for automatic operation, a double mechanical seal, a 304 stainless steel shaft, motor shell and fasteners, and a 10 m oil resistant lead with a 3-pin plug.

The D23A/B is rated at 0.2 kW output (0.38 kW input) on 220–240 V single phase, with a 22.5 m maximum total head, 7 m maximum submergence and a 1" F BSP outlet. NZ product page: capacities to 50 lpm; datasheet: 52 lpm. We quote 50 lpm. It handles clean water of neutral pH with up to 1% small solids, and weighs 6.25 kg.

It comes with a 24-month warranty. It's not for sewage or dirty water with solids.

Need more power? See the Davey D42A/B.
