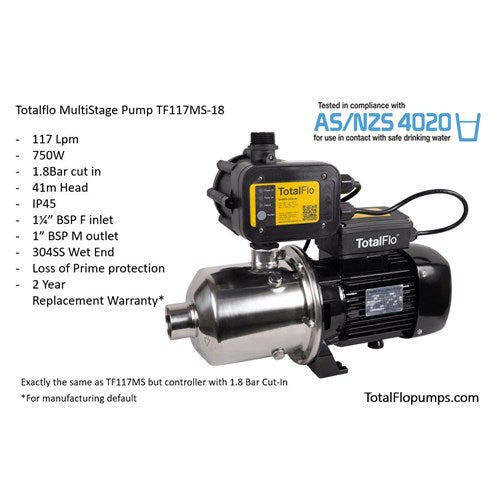

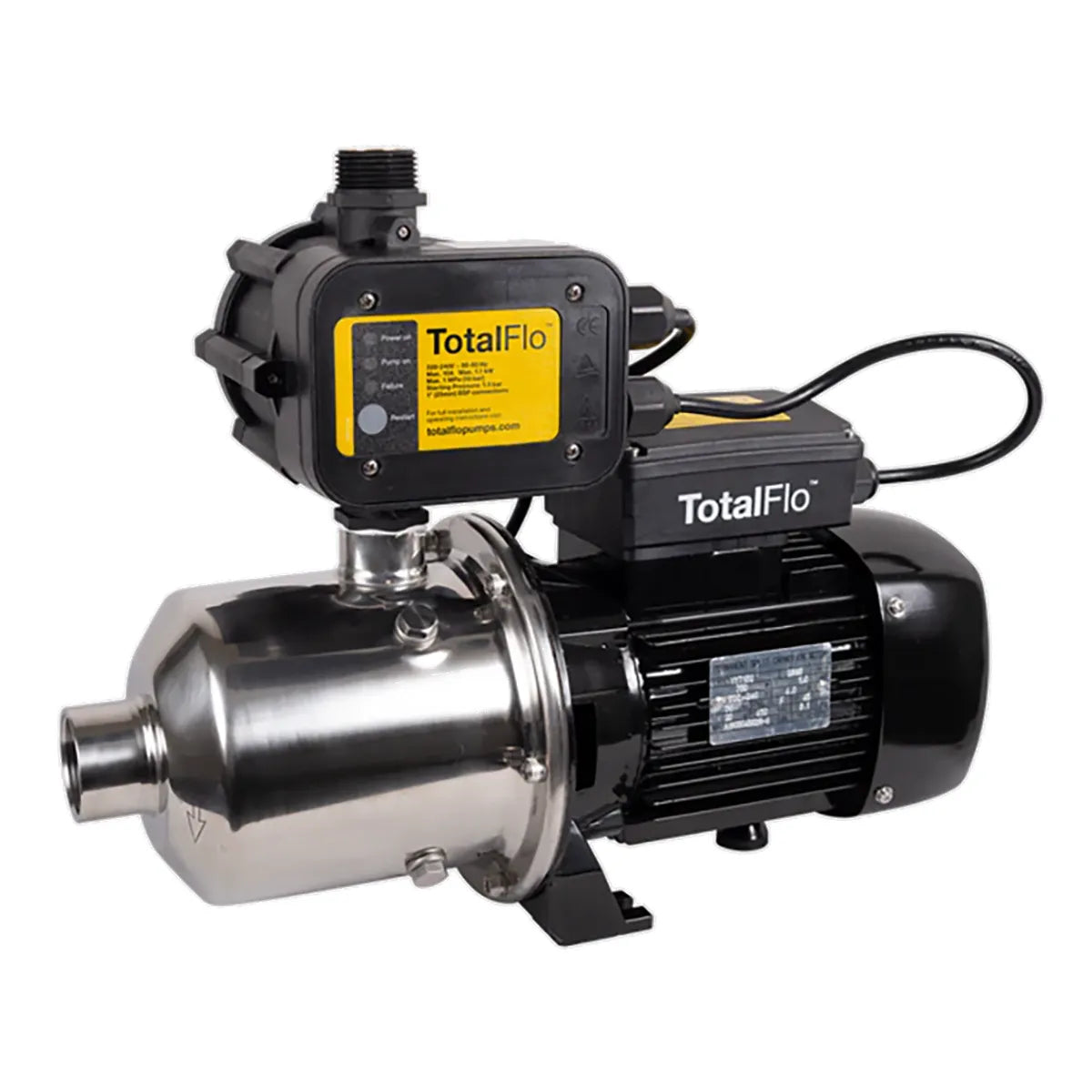

Davey TotalFlo TF117MS-18 Multistage Pump with Controller

Davey

Davey TotalFlo TF117MS-18 Multistage Pump with Controller

Suits a medium to large homeHelp me choose

What size is my home? Small to medium: 1–2 bathrooms, up to 3 bedrooms. Medium to large: 2+ bathrooms, 4+ bedrooms.

$1,036.15incl. GST

Our promise: if it's not right, we'll put it right.

Need a hand choosing a pump?

Email us a photo of your current pump or setup and we’ll help you find the right one.

Call us on 0800 209 829 Email a photo

Mon–Fri, 8am–4pmsales@filtrationstation.co.nz

Brand
Davey
Type
Multistage Pumps
SKU
TF117MS-18
Stock
In stock

Fit check

Is it right for my water supply?

A quick check before you buy.

  • Medium and larger pressure boosting

    Good fit

    The multistage pump is ideal for medium and larger pressure boosting applications or for poor mains pressure.

  • Boost mains or tank pressure

    Good fit

    TotalFlo improves mains and tank pressure.

  • Water source below the pump

    Good fit

    TotalFlo suits suction lift or flooded suction installs.

  • Water up to 35ºC

    Consider

    The maximum water temperature is 35ºC.

Specs

Specs

Model
TotalFlo TF117MS-18 with controller
Pump type
Multistage pump
Motor size
750W
Max flow
117 lpm
Cut-in pressure
180 kPa (1.8 bar)
Current
4.0 A
Nominal speed
2,860 rpm
Power supply
220-240V, 50Hz, single phase
Power lead
1.8 m with C38 3-pin plug
Outlet
1" BSP (M)
Protection
IP45, Class F insulation
Noise rating
67.8 dB
Max water / ambient temperature
35ºC / 40ºC
Wet end casing
304 stainless steel
Warranty
2 year replacement guarantee (Davey)

Compare

Compare the TotalFlo models

Figures for each model.

Common questions

TF40J-18, TF50J-18 or TF117MS-18?

The TF40J-18 jet pump is rated at 370 W and 40 lpm, the TF50J-18 jet pump at 600 W and 50 lpm, and the TF117MS-18 multistage at 750 W and 117 lpm. The jet pumps suit gardens and small houses and the multistage suits medium and larger pressure boosting or poor mains pressure.

Can it lift water from a tank below the pump?

The TotalFlo range suits both suction lift and flooded suction installs.

When does the pump start?

The cut-in pressure is 180 kPa (1.8 bar). The controller includes loss of prime protection.

What warranty does it have?

TotalFlo has a 2 year manufacturer's replacement guarantee for manufacturing defects, with no serviceable spare parts or in-field service.

Still not sure?

Tell us about your home and water supply and we'll point you to the right pump.

Help me chooseEmail us a photo

Full product details

Read the full description

The TotalFlo TF117MS-18 multistage pump is ideal for medium and larger pressure boosting, or for poor mains pressure. It suits both suction lift and flooded suction, and improves mains or tank pressure.

It has a 750 W motor at 2,860 rpm and is rated at up to 117 lpm. The controller starts the pump at 180 kPa (1.8 bar) and has loss of prime protection. It runs on 220–240 V, 50 Hz single phase, with a 1" BSP male outlet, an IP45 Class F motor, a 304 stainless steel wet end casing and a 67.8 dB noise rating.

TotalFlo has 2 years' manufacturer's replacement cover for manufacturing defects. If you drink your tank water, pair it with filters plus UV.

We're NZ owned in Te Rapa, Hamilton. If it's not right, we'll put it right.
