Clean, filtered and UV-treated water throughout your home

The Waimana Pure II is a compact whole-house water filtration system designed to deliver clean, UV-treated water to every tap in smaller homes, holiday homes and rural properties.

Combining two stages of sediment filtration with a powerful 33W UV chamber, the Pure II helps remove sediment while providing chemical-free protection against harmful microorganisms. With a flow rate of up to 30 litres per minute, it's an excellent choice for mains water, rainwater tanks and bore water supplies serving smaller households.

The system arrives fully assembled on a heavy-duty wall bracket and connects using standard 1-inch / 25mm BSP fittings with a standard 240V power supply.

---

Choose Your Configuration

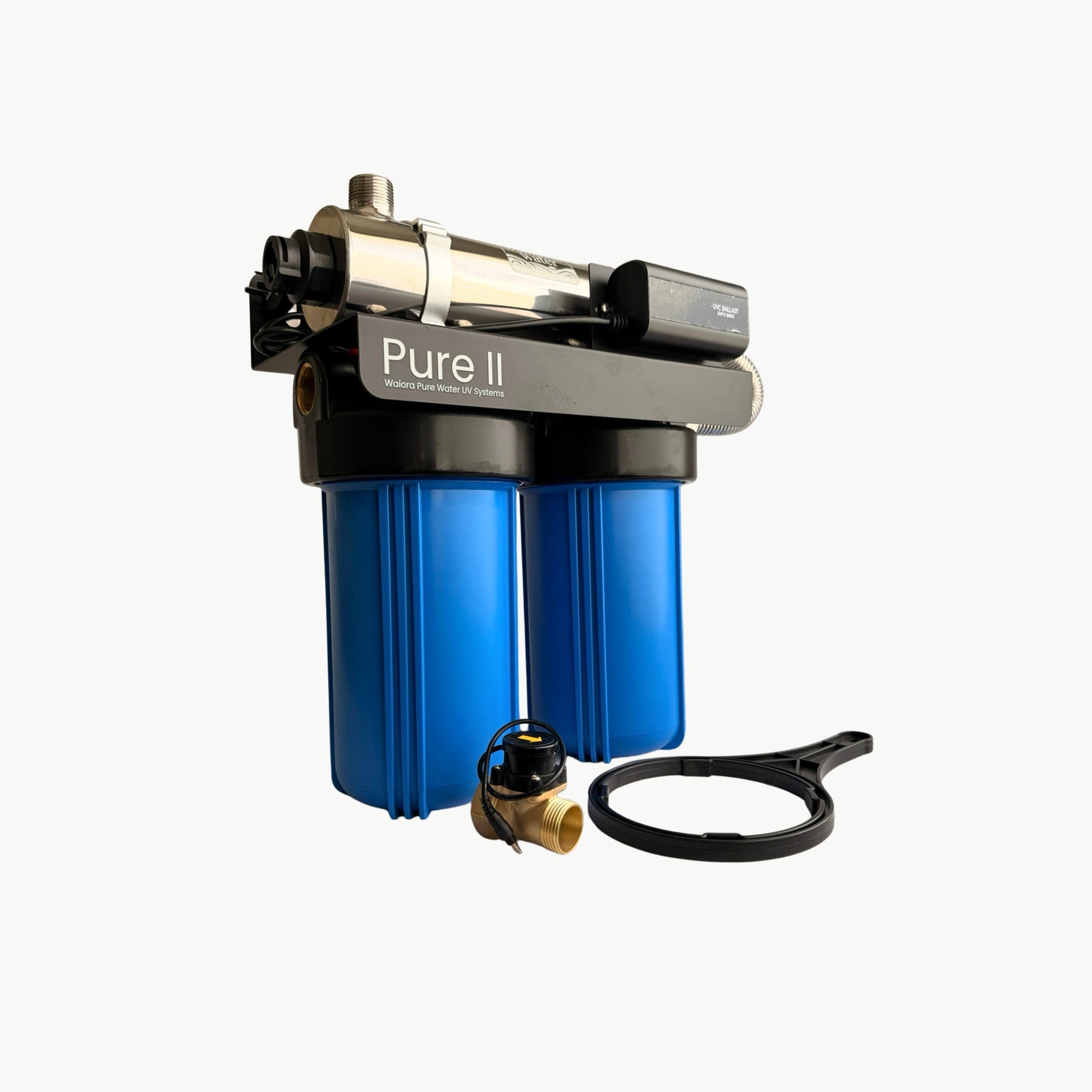

Pure II

The standard Pure II is designed for indoor or sheltered installations.

Its compact wall-mounted design provides reliable whole-house sediment filtration and UV protection while remaining easy to service.

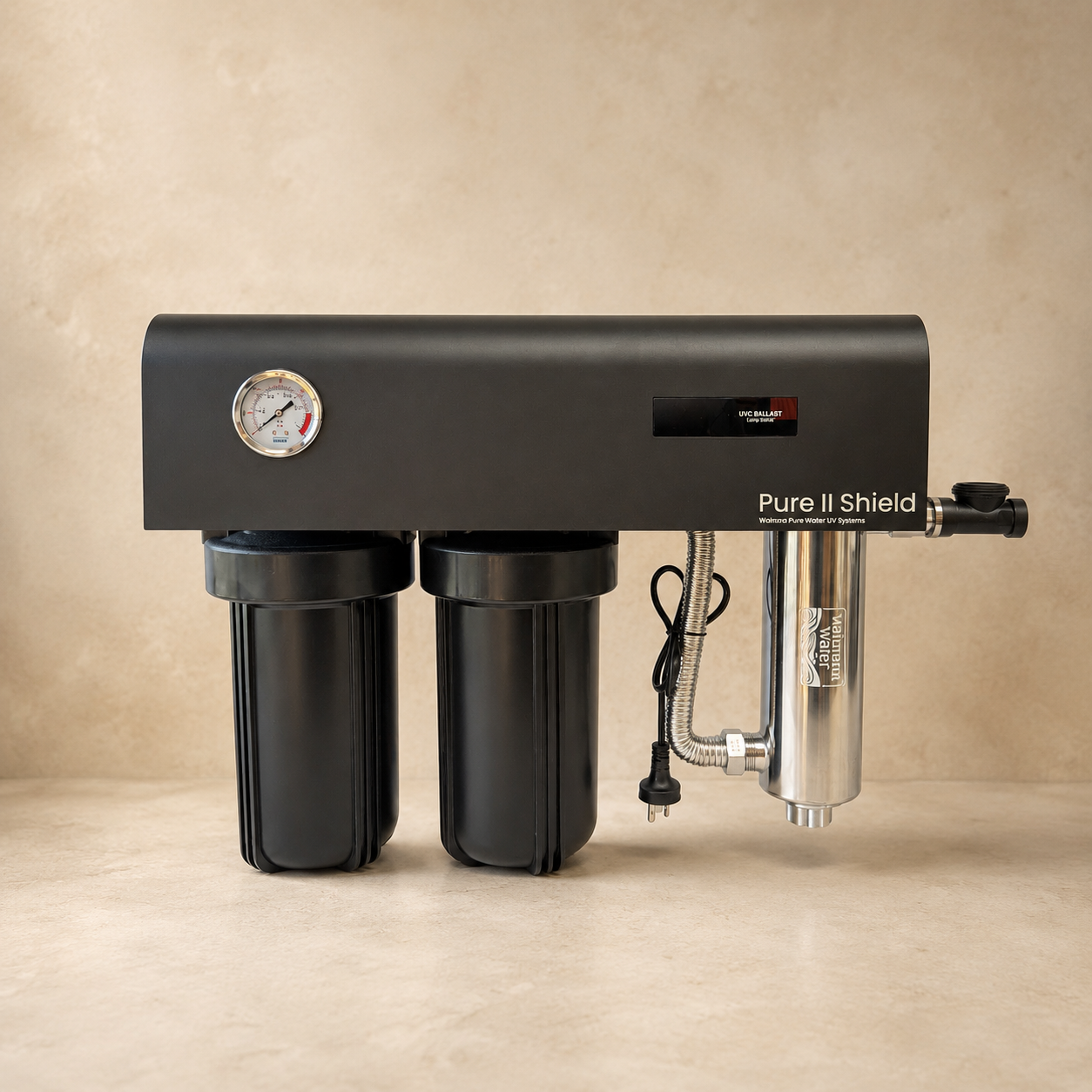

Pure II Shield

The Pure II Shield provides the same filtration performance, UV treatment and flow rate while adding:

• Protective enclosure
• Pressure gauge
• Suitable for indoor and outdoor installation

The pressure gauge allows you to monitor filter performance and provides an early indication when cartridges are becoming loaded and ready for replacement.

Both systems deliver identical water treatment performance. The only differences are the enclosure and pressure monitoring.

---

Why Choose the Waimana Pure II?

Designed for smaller homes

The Pure II is ideally suited to smaller households, holiday homes and properties with lower water demand while still delivering whole-house UV protection.

Two-stage sediment filtration

Two high-capacity sediment filters help reduce dirt, rust, silt and suspended particles before water reaches the UV chamber.

Chemical-free UV protection

The 33W UV chamber helps protect your household water against harmful microorganisms without adding chlorine or treatment chemicals.

Flow-Activated UV Technology

Unlike conventional UV systems, the Pure II only powers the UV lamp when water is flowing.

Benefits include:

• Lower electricity consumption
• Extended UV lamp life
• Prevents water warming inside the chamber
• Treatment only when required

Compact wall-mounted design

The compact footprint makes installation simple while still providing excellent whole-house filtration performance.

Designed for New Zealand water supplies

Suitable for:

• Mains water
• Rainwater tanks
• Bore water
• Holiday homes
• Smaller family homes

Three-year manufacturer's warranty

The Pure II is backed by a 3-year manufacturer's warranty covering the UV chamber, filter housings and workmanship.

---

How the Treatment Stages Work

Stage 1 — 20 Micron Polypleated Sediment Cartridge

Captures larger sediment, dirt, rust and suspended particles before they reach the finer filtration stage.

Stage 2 — 1 Micron Polyspun Sediment Cartridge

Removes finer sediment, silt and suspended particles down to 1 micron, helping improve water clarity before UV treatment.

Stage 3 — 33W UV Treatment

The filtered water then passes through the 33W UV chamber, delivering chemical-free microbiological treatment before reaching every tap in your home. The technical specification lists a 33W UV lamp with a 30mJ/cm² UV dose.

---

Best Suited For

The Pure II is ideal for:

• Smaller homes
• 1–2 person households
• Holiday homes
• Rainwater tank supplies
• Bore water supplies
• Mains water
• Homes wanting reliable sediment filtration and UV protection

If you're looking to improve water taste and odour as well as sediment removal, consider the Pure III, which adds a carbon block filtration stage.

---

Key Specifications

---

Pure II vs Pure II Shield

---

Installation

The Pure II arrives pre-assembled on its wall bracket for easier installation.

It connects using standard 1-inch / 25mm BSP fittings and requires a standard 240V power supply.

A licensed plumber is recommended. Isolation and bypass valves are also recommended to make future servicing quicker and easier. These are not included.

---

Maintenance

Routine maintenance is straightforward.

• Replace filter cartridges approximately every 6–12 months, depending on water quality and usage.
• Clean the quartz sleeve whenever the UV lamp is inspected.
• The flow-activated UV system only operates while water is flowing, which can significantly extend lamp life compared with conventional continuously operating UV systems.
• Replace the UV lamp according to its condition, performance and Waimana's servicing guidance rather than automatically replacing it every 12 months.

---

What's Included

• Heavy-duty wall bracket
• Two filter cartridges
• 33W UV lamp
• Flow-activated ballast
• Flow switch
• Filter wrench
• Thread tape

Pure II Shield also includes:

• Protective cover
• Pressure gauge

Connecting fittings and bypass valves are not included.

---

Frequently Asked Questions

What's the difference between the Pure II and Pure II Shield?

Both systems provide identical filtration performance, UV treatment and flow rate. The Shield adds a protective enclosure and pressure gauge, making it suitable for outdoor installation.

Is the Pure II suitable for rainwater and bore water?

Yes. The Pure II is suitable for mains water, rainwater tanks and bore-water supplies operating within the specified pressure and temperature limits.

What does the flow-activated UV system do?

The UV lamp only operates when water is flowing, helping reduce electricity consumption, extend lamp life and prevent water warming inside the chamber.

Does UV add chemicals to the water?

No. UV treatment disinfects water without adding chlorine or other treatment chemicals.

How often should the filter cartridges be replaced?

Typically every 6–12 months, depending on water quality and household water usage.

Can the standard Pure II be installed outdoors?

No. The standard model should be installed indoors or in a sheltered location. Choose the Pure II Shield for outdoor installations.
