Aquano KlearFlow 17" 1 Micron Underbench Water Filter Kit – Puretec PureMix Z7 Alternative

The Aquano KlearFlow KF17KIT is a complete underbench water filtration system designed for homes with high sediment levels and challenging water quality.

Ideal for mains, rainwater, tank and bore water supplies, the system combines 1 micron filtration with activated carbon, KDF media, antibacterial technology and scale control. It helps reduce sediment, chlorine, certain heavy metals, unpleasant taste and odour while helping to prevent limescale build-up.

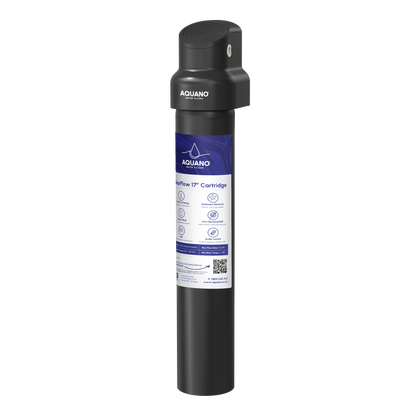

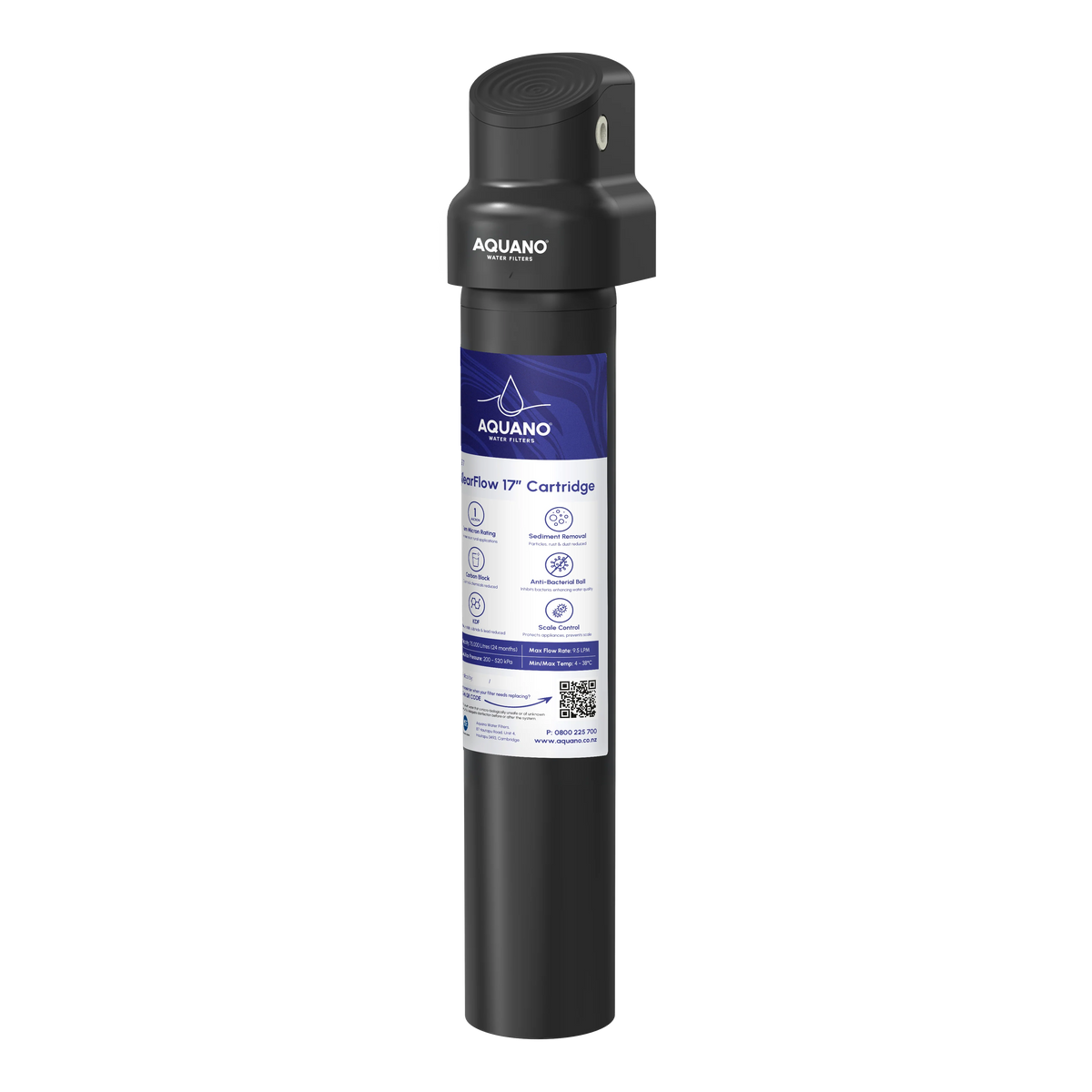

The larger 17" cartridge provides a rated capacity of up to 75,000 litres, with a maximum flow rate of 9.5 L/min. Its quick-twist design and built-in filter-head valve make cartridge changes straightforward.

The KF17KIT is a complete alternative to the Puretec PureMix Z7 underbench filtration system. It connects to your existing kitchen mixer tap, so no separate drinking-water tap is required.

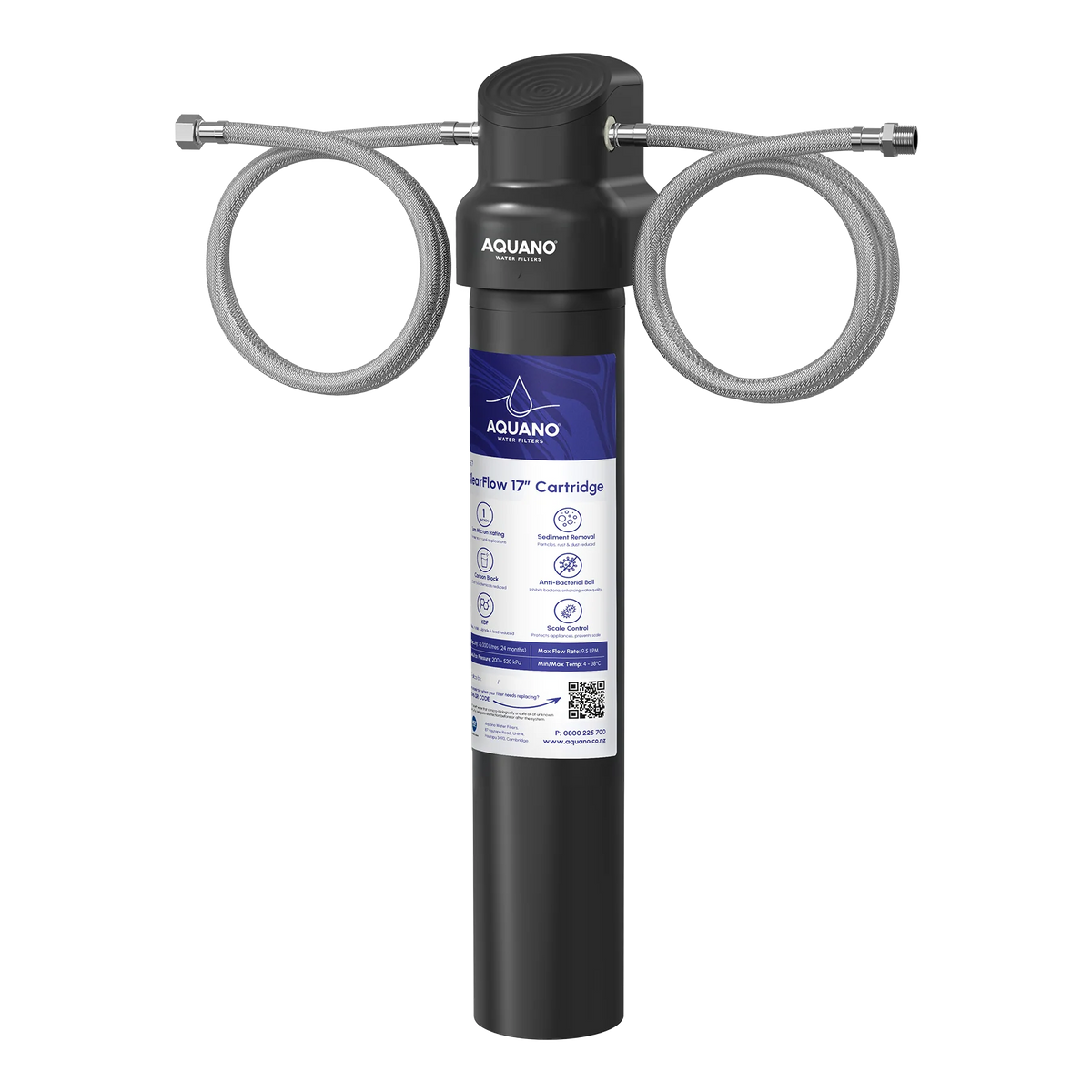

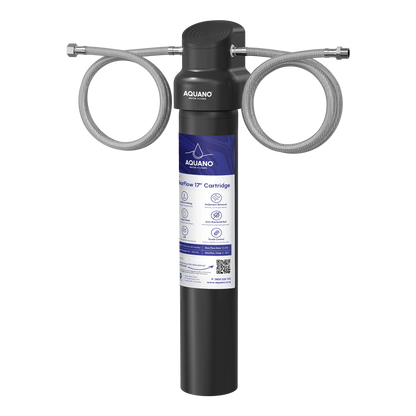

The kit includes the filter head, cartridge, pressure limiting valve, flexible braided hose and installation hardware.

Why Choose the Aquano KlearFlow KF17KIT?

• Complete underbench water filtration kit

• Alternative to the Puretec PureMix Z7 system

• Large 17" replacement cartridge

• 1 micron filtration for fine sediment reduction

• Reduces chlorine, taste and odour

• KDF media for additional water treatment

• Antibacterial technology within the cartridge

• Scale-control treatment to help reduce limescale build-up

• Maximum flow rate of 9.5 L/min

• Rated capacity of up to 75,000 litres

• Quick-twist cartridge replacement

• Built-in filter-head valve for easier servicing

• Connects to a compatible existing kitchen mixer tap

• Pressure limiting valve included

• Aquano Hassle Free Warranty

How It Works

The KlearFlow combines several filtration and water-treatment technologies within a single cartridge.

1. Sediment Filtration

The 1 micron filtration stage helps reduce fine suspended particles, sediment, dirt, dust and rust.

This makes the system particularly useful for homes with older plumbing, rural water supplies or higher sediment levels.

2. Activated Carbon Filtration

The carbon block reduces chlorine and unwanted chemicals that can affect drinking-water taste and odour.

3. KDF Media

KDF media provides additional treatment for certain heavy metals, including lead, and sulphide compounds.

4. Scale Control & Antibacterial Technology

Scale-control treatment helps inhibit mineral deposits and limescale build-up in household plumbing and appliances.

The cartridge also incorporates antibacterial technology designed to inhibit bacterial growth within the filtration media.

Scale control does not remove all dissolved hardness minerals, and antibacterial media protection is not a substitute for dedicated water disinfection.

Best Suited For

• Homes replacing a Puretec PureMix Z7 filtration system

• Underbench kitchen water filtration

• Mains and council water supplies

• Compatible rainwater and tank water supplies

• Bore water applications

• Homes with high sediment levels

• Rural properties and older plumbing systems

• Households wanting chlorine, taste and odour reduction

• Kitchens where a separate filtered-water tap is not wanted

Key Specifications

Compatibility

The Aquano KF17KIT is a complete underbench filtration system that can be used as an alternative to the Puretec PureMix Z7.

It connects to a compatible kitchen mixer tap, allowing filtered water to be supplied through your existing tap without requiring a separate drinking-water faucet.

Replacement cartridge: Aquano KF17.

Easy Cartridge Replacement

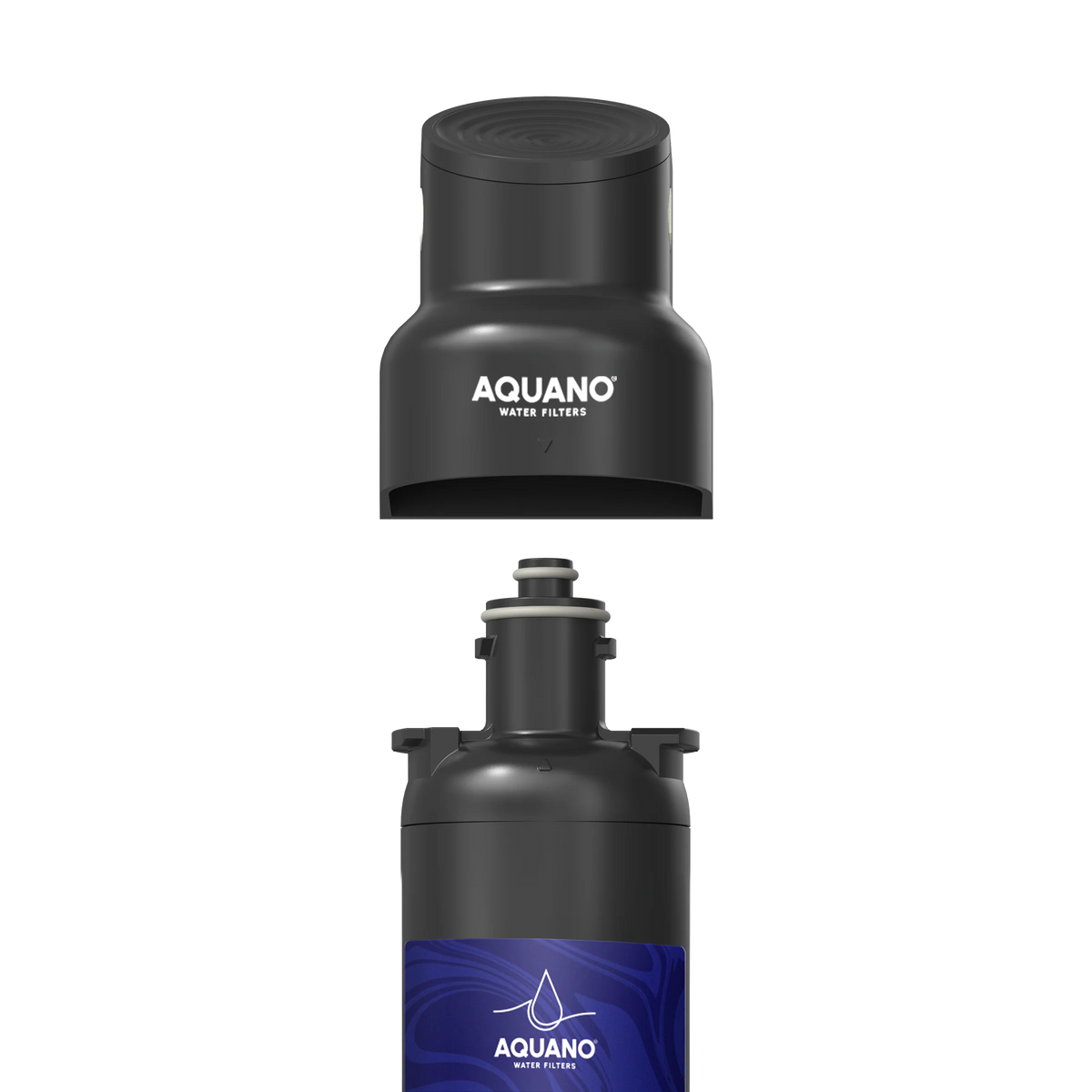

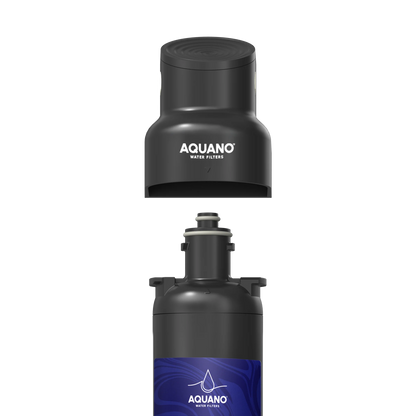

The KlearFlow features a quick-twist cartridge connection and an integrated valve in the filter head.

The valve automatically isolates water at the filter head during cartridge replacement, allowing the cartridge to be changed without turning off the main water supply.

When replacement is required, remove the existing cartridge and fit a new Aquano KF17.

Installation

The KF17KIT is designed for underbench installation and connection to a compatible kitchen mixer tap.

The complete kit includes the filter head, 17" cartridge, pressure limiting valve, flexible braided hose and installation hardware.

The filter must be installed within its specified operating pressure and temperature limits.

Allow sufficient space beneath the bench for the 17" cartridge and future filter changes.

Maintenance

The included KF17 cartridge has a rated capacity of up to 75,000 litres, with a stated service period of 24 months.

Actual cartridge life depends on incoming water quality, sediment levels and household water use.

High sediment concentrations may cause the cartridge to become blocked before its rated treatment capacity is reached.

Replace the cartridge when its service life or treatment capacity has been reached, or sooner if water flow or filtration performance deteriorates.

What's Included

• 1 × Aquano KlearFlow Filter Head Connector

• 1 × Aquano KF17 17" Filter Cartridge

• 1 × Pressure Limiting Valve

• 1 × Flexible Braided Hose

• Installation Hardware

FAQs

Is this a complete underbench water filter kit?

Yes. The KF17KIT includes the filter head, 17" cartridge, pressure limiting valve, flexible braided hose and installation hardware.

Can it replace a Puretec PureMix Z7 system?

Yes. The Aquano KlearFlow KF17KIT is a complete alternative to the Puretec PureMix Z7 underbench filtration system.

Does it need a separate drinking-water tap?

No. It is designed to connect to a compatible existing kitchen mixer tap.

What is the micron rating?

The included KF17 cartridge has a 1 micron filtration rating.

What does the filter reduce?

It reduces sediment, dirt, rust, chlorine, unpleasant taste and odour, and certain heavy metals. It also includes scale-control treatment.

What is the maximum flow rate?

9.5 litres per minute.

How long does the cartridge last?

The cartridge has a rated capacity of up to 75,000 litres and a stated service period of 24 months. Actual service life depends on water quality and usage.

What replacement cartridge does it use?

The Aquano KF17 17" quick-twist cartridge.

Can it be used with rainwater or bore water?

The system is designed for compatible mains, council, tank and bore water supplies. If the water supply may contain harmful microorganisms, appropriate testing and additional disinfection may be required.

Does the kit include a pressure limiting valve?

Yes. A pressure limiting valve is included.
