Davey D150G & D150GA Submersible Grinder Pump – 1.5kW

The Davey D150G and D150GA are powerful submersible grinder pumps suited for demanding sewage, effluent and trade waste applications. Built with a durable cast iron body and stainless steel motor shell, they include a high-performance grinder and shredder ring to process soft solids and discharge via small-bore pipework.

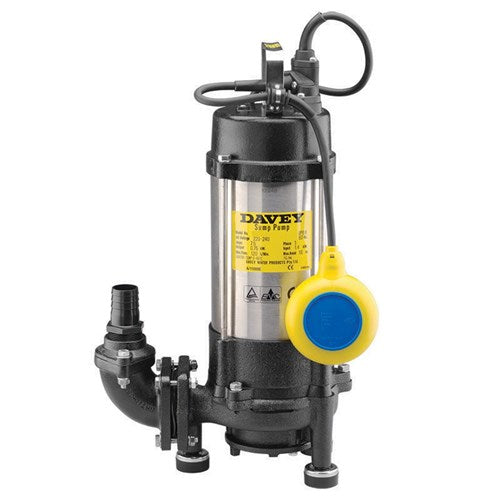

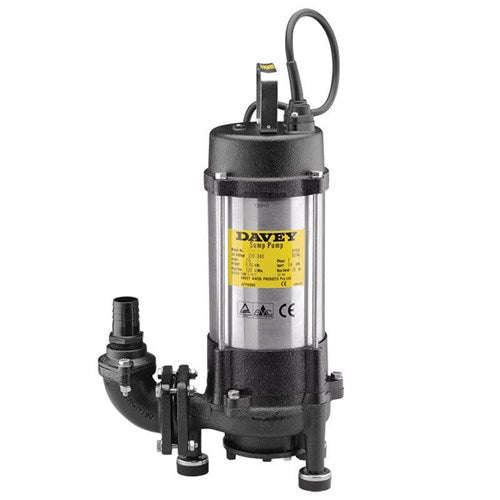

The D150G is a manual model, and the D150GA includes a float switch for automatic operation.

Applications:

• Commercial grey/black water systems

• Trade waste and septic tank discharge

• Pressure sewer network connections

Specifications:

• Power: 1.5kW

• Max Flow: 290 L/min

• Max Head: 26m

• Inlet/Outlet: 1¼" BSPF

• Cable: 10m HO7RN-F

• Construction: Cast iron & stainless steel

• Float: D150G (Manual), D150GA (Automatic)

• Max Temp: 40°C

• Max Submergence: 20m
