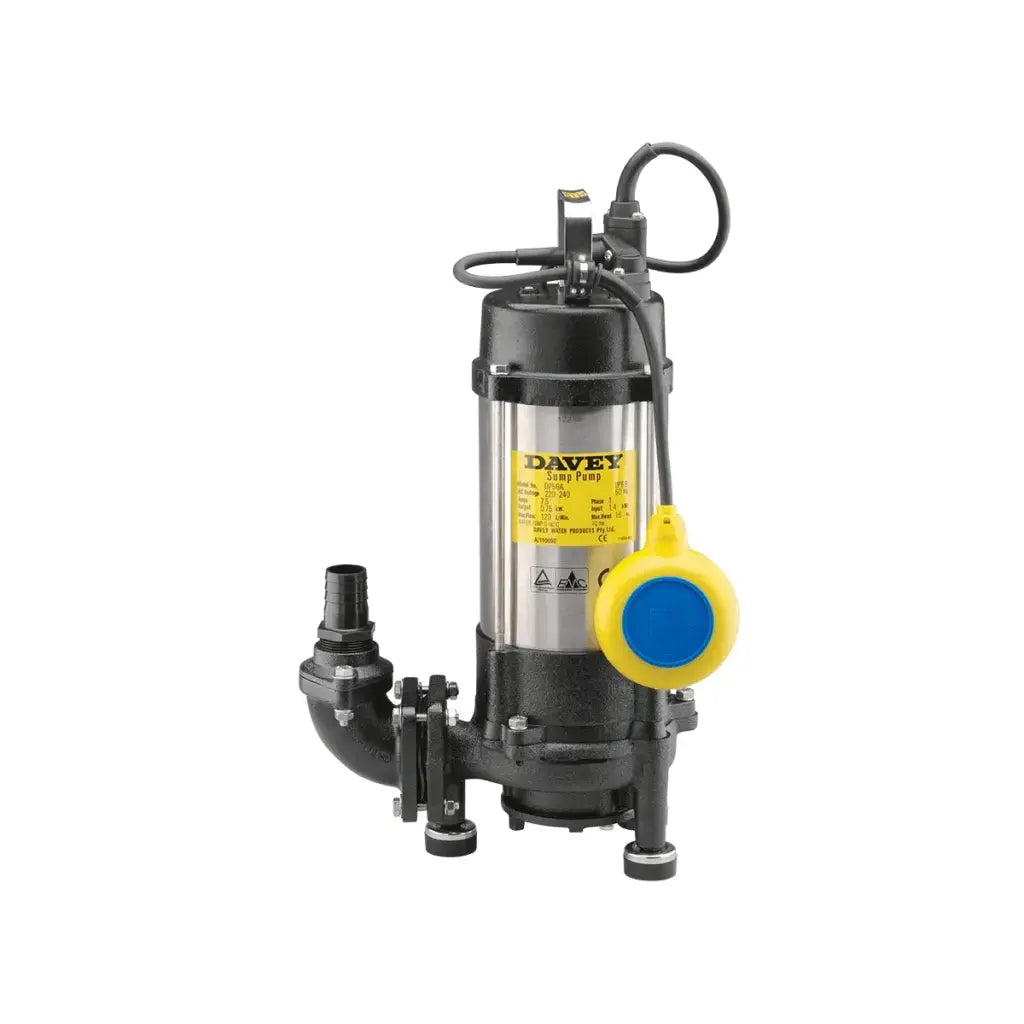

Davey D75GA Submersible Grinder Pump – 0.75kW with Float Switch

The Davey D75GA is a compact submersible grinder pump designed for residential and light commercial wastewater applications. Equipped with a hardened grinder and shredder ring, the D75GA efficiently macerates soft solids, sanitary products, and light textiles into a slurry for discharge through narrow pipework.

This model includes an automatic float switch for level-based operation, making it ideal for sump, grey water, or sewage transfer where automatic control is required. Built with a durable cast iron casing and stainless steel motor shell, the D75GA offers dependable performance in demanding conditions.

Applications:

• Domestic sewage and grey water systems

• Pressure sewer applications

• Septic tank discharge

• Small commercial wastewater systems

Specifications:

• Power: 0.75kW

• Max Flow: 290 L/min

• Max Head: 14m

• Inlet/Outlet: 1¼" BSPF

• Operation: Automatic (float switch included)

• Cable: 10m HO7RN-F

• Solids Handling: Via internal grinder and shredder ring

• Construction: Cast iron body, 304 stainless steel motor shell

• Max Fluid Temp: 40°C

• Max Submergence: 20m
