The Aquano Klarify M-210 is a high-performance 2-stage whole house mains water filtration system designed for small to medium-sized homes.

Combining 5 micron sediment filtration with carbon block filtration, the M-210 helps reduce sediment, chlorine, chemicals, pesticides, unpleasant taste and odour before water is distributed throughout the home.

Choose between two system versions:

Premium — AKM210 provides the complete package with pressure gauges, pressure regulating valve and weather-protection housing covers.

Standard — AKTEM210 provides the same core two-stage filtration setup in a streamlined package without the additional premium accessories.

Both systems provide a maximum flow rate of 30 L/min, use 1" BSP connections and feature durable anti-corrosion metal construction.

Product Options

Option Name: System Version

Premium — Aquano Klarify M-210 AKM210

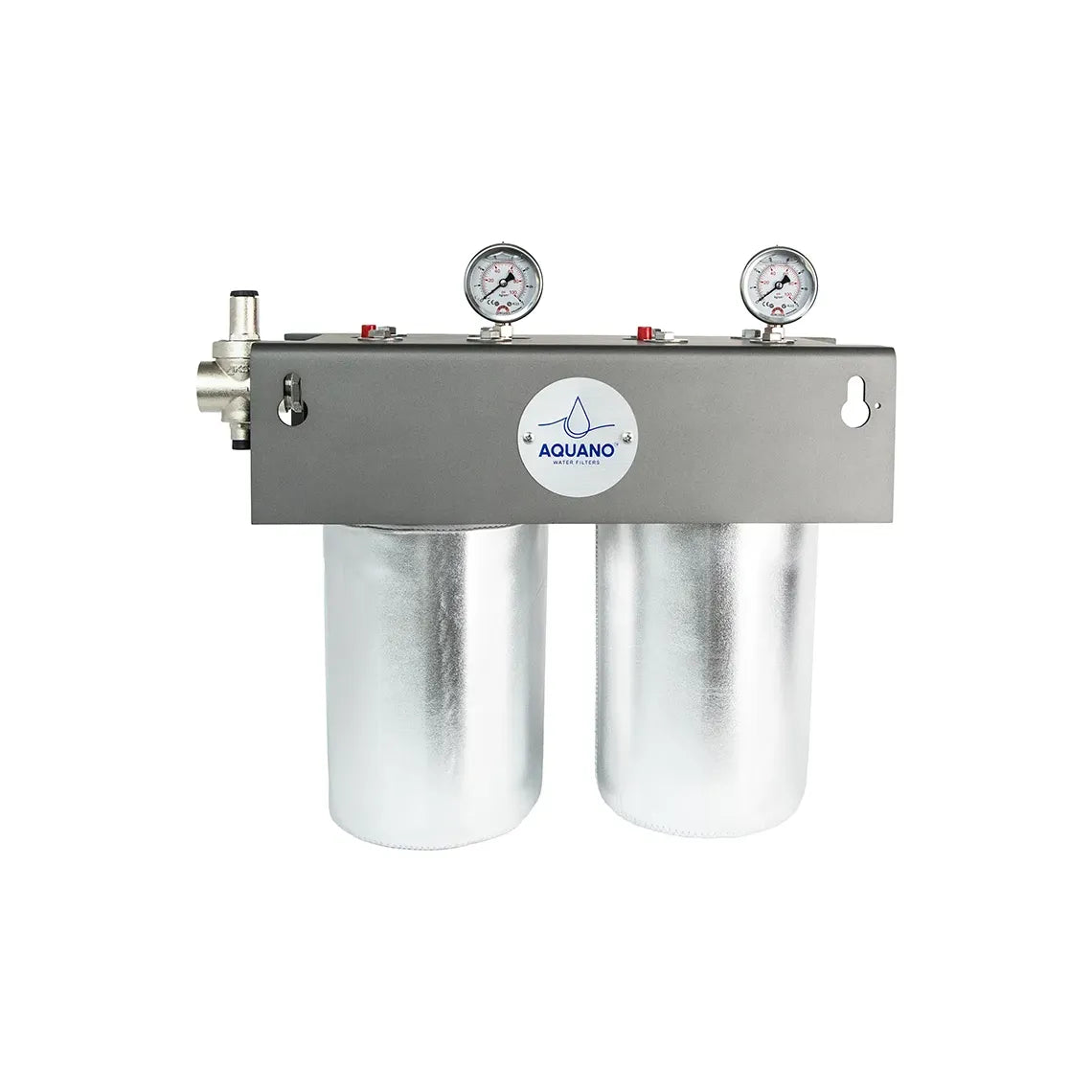

The Premium Aquano Klarify M-210 is the complete version of the system, combining two-stage whole-house filtration with additional accessories for system monitoring, pressure management and weather protection.

Along with the core filtration system, the Premium AKM210 includes:

• Pressure gauges
• Pressure regulating valve
• Weather-protection housing covers

This makes the Premium version ideal for customers wanting the more complete M-210 package with the additional equipment already included.

Stage 1 — PS1005J 5 Micron Polyspun Sediment Filter

The first filtration stage uses the Aquano PS1005J graded-density polyspun sediment cartridge.

It provides 5 micron depth filtration, helping capture sediment such as dirt, rust, silt and sand before water reaches the carbon stage.

Removing sediment first also helps protect the downstream carbon cartridge from excessive particulate loading.

Stage 2 — CB1010J Carbon Block Filter

Water then passes through the Aquano CB1010J carbon block cartridge.

This stage helps reduce chlorine, chemicals, pesticides, unpleasant taste and odour, improving the quality and taste of mains water supplied throughout the home.

Premium M-210 Specifications

Model / SKU: AKM210
System Version: Premium
Filtration: 2 Stage
Sediment Filter: PS1005J
Carbon Filter: CB1010J
Maximum Flow Rate: 30 L/min
Connections: 1" BSP
Operating Pressure: 200–875 kPa
Operating Temperature: 0–52°C
Pressure Gauges: Included
Pressure Regulating Valve: Included
Weather-Protection Housing Covers: Included

Standard — Aquano Klarify M-210 AKTEM210

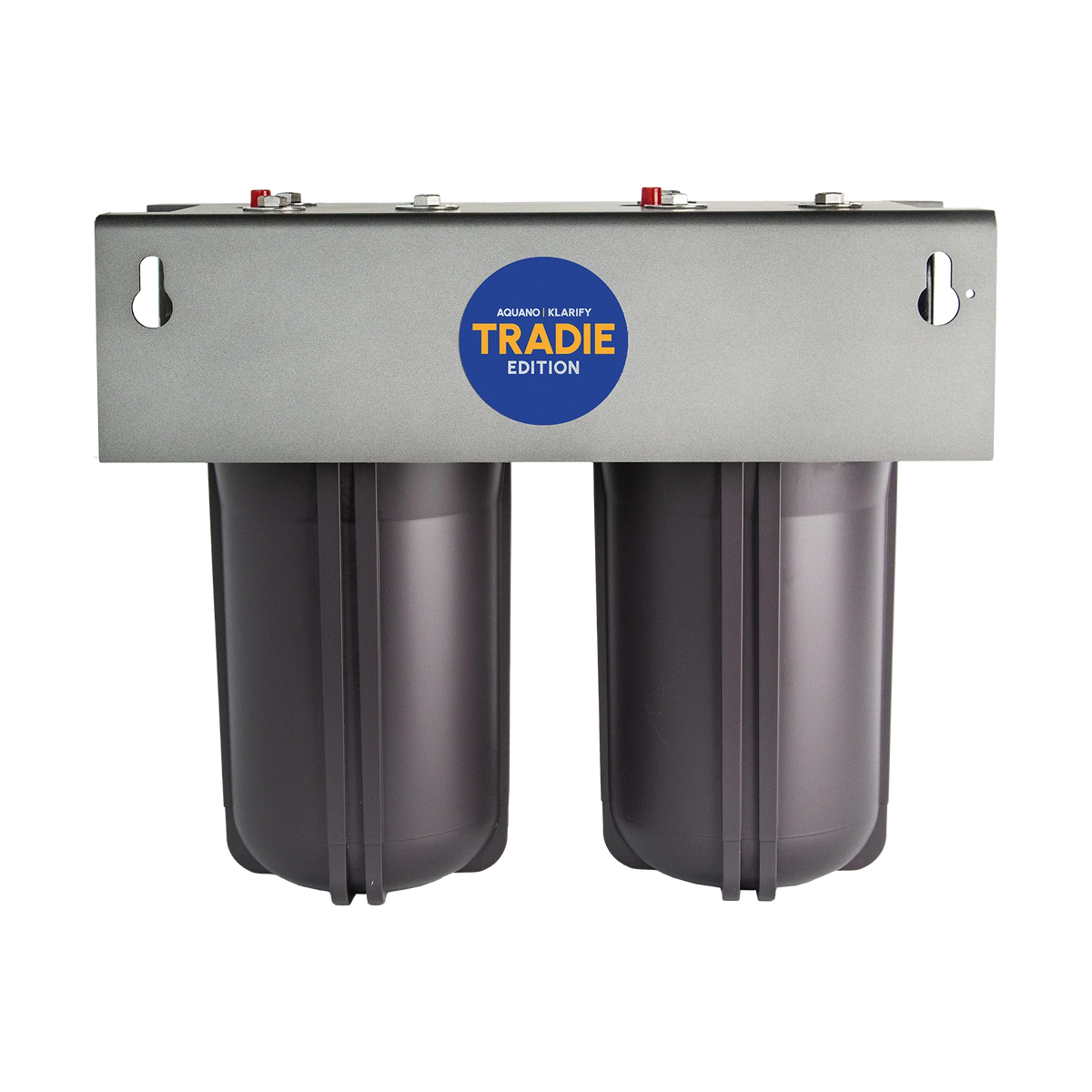

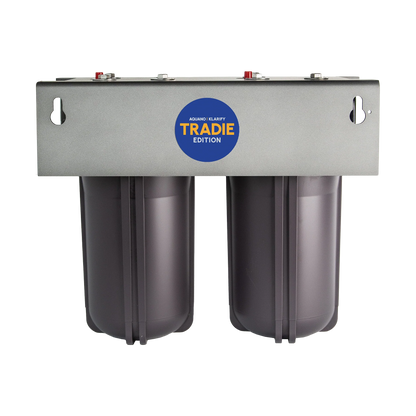

The Standard Aquano Klarify M-210 provides the core two-stage M-210 filtration system in a streamlined package.

Aquano identifies this model as the Tradie Edition M-210, and it is designed for customers and installers who want the essential filtration setup without the additional accessories included with the Premium AKM210.

It retains the core 5 micron sediment + carbon block filtration configuration and provides a maximum flow rate of 30 L/min.

Stage 1 — PS1005J 5 Micron Polyspun Sediment Filter

The first stage helps capture dirt, rust, silt, sand and other sediment down to 5 microns.

Stage 2 — CB1010J Carbon Block Filter

The second stage provides carbon filtration to help reduce chlorine, chemicals, pesticides, unpleasant taste and odour.

Standard M-210 Specifications

Model / SKU: AKTEM210
System Version: Standard / Tradie Edition
Filtration: 2 Stage
Sediment Filter: PS1005J
Carbon Filter: CB1010J
Maximum Flow Rate: 30 L/min
Connections: 1" BSP
Operating Pressure: 200–875 kPa
Operating Temperature: 0–52°C
Pressure Gauges: Not Included
Pressure Regulating Valve: Not Included
Weather-Protection Housing Covers: Not Included

Premium vs Standard

Which Version Should I Choose?

Choose the Premium AKM210 if you want the complete M-210 package with pressure gauges, a pressure regulating valve and weather-protection housing covers already included.

Choose the Standard AKTEM210 if you want the essential M-210 two-stage filtration system in a simpler, more economical package and do not require the additional premium accessories.

The filtration configuration remains centred around the same PS1005J sediment and CB1010J carbon block cartridges.

Why Choose the Aquano Klarify M-210?

• 2-stage whole house mains water filtration
• Designed for small to medium-sized homes
• 5 micron sediment filtration
• Helps capture dirt, rust, silt and sand
• Carbon filtration for chlorine reduction
• Helps reduce chemicals and pesticides
• Improves unpleasant taste and odour
• Maximum flow rate of 30 L/min
• Durable anti-corrosion metal construction
• 1" BSP plumbing connections
• Reversible installation for plumbing flexibility
• Initial sediment and carbon cartridges included
• Choice of Premium or Standard
• Premium version available with gauges, pressure regulation and weather protection
• Aquano Hassle Free Warranty

How the 2-Stage Filtration Works

The Aquano Klarify M-210 uses two complementary filtration stages to treat mains water before it is distributed throughout the home.

Stage 1 — 5 Micron Sediment Filtration

Water first passes through the PS1005J polyspun sediment cartridge.

Its graded-density construction provides depth filtration down to 5 microns, helping capture dirt, rust, silt, sand and other particulate matter.

This initial sediment stage also helps protect the downstream carbon cartridge from excessive sediment loading.

Stage 2 — Carbon Block Filtration

After sediment filtration, water passes through the CB1010J carbon block cartridge.

The carbon stage helps reduce chlorine, chemicals, pesticides, unpleasant taste and odour, improving the quality and taste of the water supplied throughout the home.

Filtration Process

Mains Water → 5 Micron Sediment Filtration → Carbon Block Filtration → Filtered Water Throughout the Home

Whole House Mains Water Filtration

The Klarify M-210 is designed to treat the incoming mains water supply rather than filtering water at only one individual tap.

When correctly installed on the incoming water line, the system filters water before it is distributed throughout the home.

This provides a whole-house approach to mains water filtration, helping improve water quality across multiple outlets.

Best Suited For

• Small to medium-sized homes
• Mains water supplies
• Whole-house water filtration
• Chlorinated mains water
• Water with unpleasant taste or odour
• Sediment reduction
• Dirt, rust, silt and sand
• Chlorine reduction
• Reducing selected chemicals and pesticides
• Protecting downstream equipment from sediment
• Customers wanting a compact two-stage filtration system
• Customers wanting a choice between a full-accessory and streamlined system

Key Specifications

System Dimensions

430 × 350 × 210 mm

The compact configuration keeps both filtration stages together in a convenient whole-house assembly.

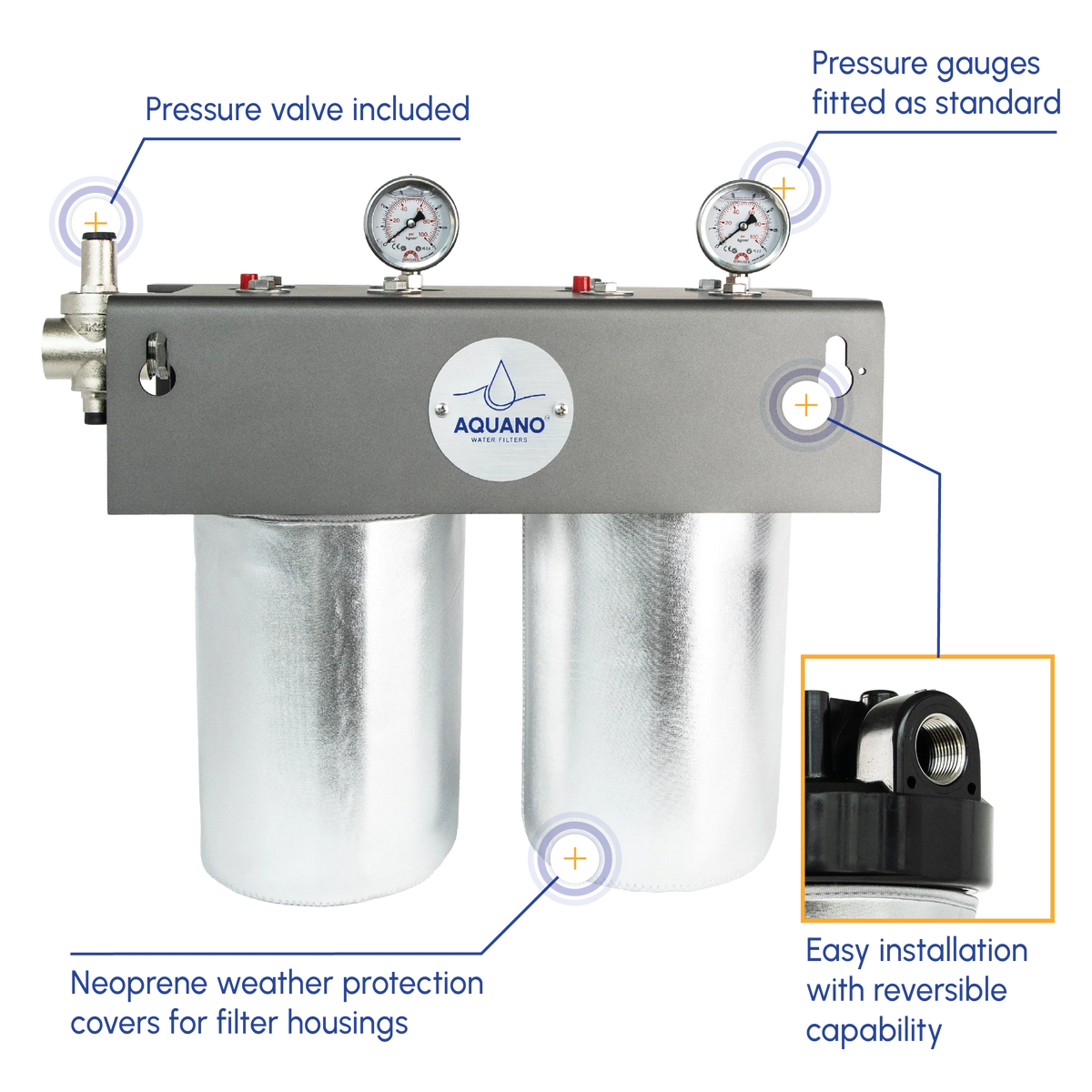

Premium Accessory Package

The Premium AKM210 adds three important accessories to the core M-210 filtration system.

Pressure Gauges

The Premium system includes pressure gauges, providing convenient pressure monitoring at the filtration system.

Pressure Regulating Valve

A pressure regulating valve is included with the Premium system for pressure management as part of the installation.

Weather-Protection Housing Covers

The Premium system also includes weather-protection housing covers, providing additional protection for the filter housings.

These accessories make the AKM210 the more complete option for customers who want the full M-210 package.

Reversible Installation

The Klarify M-210 features reversible installation capability, providing greater flexibility when integrating the system into existing plumbing.

This can be particularly useful where incoming pipe direction or available installation space affects the preferred orientation of the filtration system.

Installation

The Klarify M-210 is designed for installation on a mains water supply using its 1" BSP connections.

Installation should account for water-flow direction, suitable mounting position, operating pressure and sufficient clearance around the filter housings for future cartridge replacement.

The system operates within a specified pressure range of 200–875 kPa and temperature range of 0–52°C.

Professional installation is recommended where required to ensure the system is correctly integrated with the property's mains water plumbing.

Filter Maintenance

Both the Premium and Standard systems use the same core replacement cartridges:

Stage 1: Aquano PS1005J — 5 Micron Polyspun Sediment Cartridge
Stage 2: Aquano CB1010J — Carbon Block Cartridge

Replacement frequency will depend on incoming water quality, household consumption, sediment loading and local mains-water conditions.

Monitor water flow and filtration performance and replace cartridges when required.

What's Included

Premium — AKM210

Premium M-210 system including:

• Aquano Klarify M-210 two-stage filtration system
• PS1005J 5 Micron Polyspun Sediment Cartridge
• CB1010J Carbon Block Cartridge
• Pressure gauges
• Pressure regulating valve
• Weather-protection housing covers

Standard — AKTEM210

Standard M-210 system including:

• Aquano Klarify M-210 two-stage filtration system
• PS1005J 5 Micron Polyspun Sediment Cartridge
• CB1010J Carbon Block Cartridge

The Standard version is the trimmed-down system package and does not include the Premium model's pressure gauges, pressure regulating valve or weather-protection housing covers.

Frequently Asked Questions

What is the difference between Premium and Standard?

The Premium AKM210 is the full-accessory M-210 and includes pressure gauges, a pressure regulating valve and weather-protection housing covers.

The Standard AKTEM210 is the streamlined version without those additional premium accessories.

Do both versions use the same filters?

Yes. Both use the PS1005J 5 micron polyspun sediment cartridge and CB1010J carbon block cartridge.

Does the Standard version provide the same type of filtration?

Both versions use the same core two-stage sediment and carbon filtration configuration. The main difference is the additional equipment included with the Premium package.

What does the system help filter?

The M-210 helps reduce sediment, dirt, rust, silt, sand, chlorine, chemicals, pesticides, unpleasant taste and odour.

What is the maximum flow rate?

The stated maximum flow rate is 30 L/min.

Is the M-210 for mains water?

Yes. The Klarify M-210 is designed for mains water filtration.

What size home is it designed for?

The M-210 is designed for small to medium-sized homes.

What plumbing connections does it use?

The system uses 1" BSP connections.

Can the system be installed in either direction?

The M-210 has a reversible installation design, providing flexibility when integrating it with existing plumbing.

Are the initial filters included?

Yes. Both versions include the initial sediment and carbon filter cartridges.

Which version should I buy?

Choose Premium if you want the full package with pressure monitoring, pressure regulation and weather-protection accessories.

Choose Standard if you want the core M-210 filtration system in a simpler, more economical package.
