The Aquano Klarify R-210 is a compact, high-flow 2-stage whole house rainwater filtration system designed for medium homes.

Using 10" Jumbo filter housings, the R-210 combines a 20 micron washable pleated sediment filter with a 1 micron graded-density polyspun filter to provide progressive coarse-to-fine sediment filtration.

With a maximum flow rate of 75 L/min, 1" BSP connections, durable anti-corrosion metal construction and reversible installation capability, the R-210 is designed to filter sediment from collected rainwater before it is distributed throughout the home.

Choose between two versions:

Premium — AKR210 provides the complete R-210 package with pressure gauges, housing spanners and weather-protection covers included.

Standard — AKTER210 is the more affordable Tradie Edition, providing the same core filtration configuration and performance in a streamlined package.

Product Options

Option Name: System Version

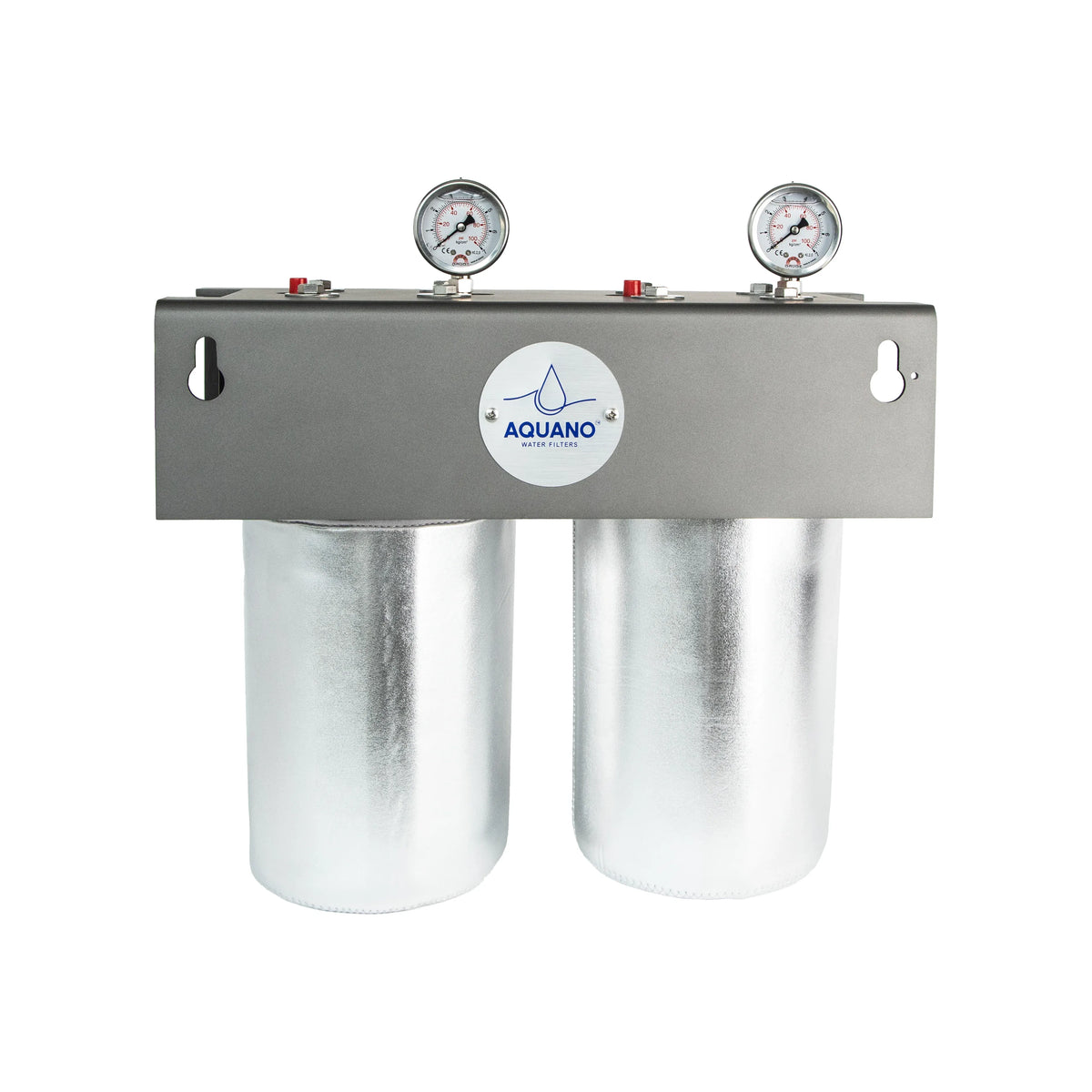

Premium — Aquano Klarify R-210 AKR210

The Premium Aquano Klarify R-210 provides the complete 10" Jumbo two-stage rainwater filtration package.

It combines progressive 20 micron to 1 micron sediment filtration with additional accessories for pressure monitoring, servicing and weather protection.

The Premium version includes:

• Pressure gauges
• Housing spanners
• Weather-protection covers

Stage 1 — PC1020J 20 Micron Pleated Sediment Filter

Incoming rainwater first passes through the Aquano PC1020J 10" Jumbo pleated sediment cartridge.

Its 20 micron pleated media provides a large filtration surface and helps capture larger suspended particles such as:

• Dirt
• Rust
• Silt
• Sand
• Other suspended sediment

The PC1020J is washable and reusable, making it particularly useful as a first-stage rainwater filter where heavier sediment loading can occur.

Stage 2 — PS1001J 1 Micron Polyspun Sediment Filter

Water then passes through the Aquano PS1001J 10" Jumbo polyspun sediment cartridge.

Its graded-density construction provides 1 micron depth filtration, capturing finer suspended particles that pass through the first-stage pleated filter.

Premium R-210 Specifications

Model / SKU: AKR210
System Version: Premium
Water Source: Rainwater
Housing Size: 10" Jumbo
Filtration Stages: 2
Stage 1: PC1020J — 20 Micron Pleated Sediment
Stage 2: PS1001J — 1 Micron Polyspun Sediment
Maximum Flow Rate: 75 L/min
Connections: 1" BSP
Operating Pressure: 200–875 kPa
Operating Temperature: 0–52°C
System Dimensions: 430 × 350 × 210 mm
Pressure Gauges: Included
Housing Spanners: Included
Weather-Protection Covers: Included
Warranty: Aquano Hassle Free Warranty

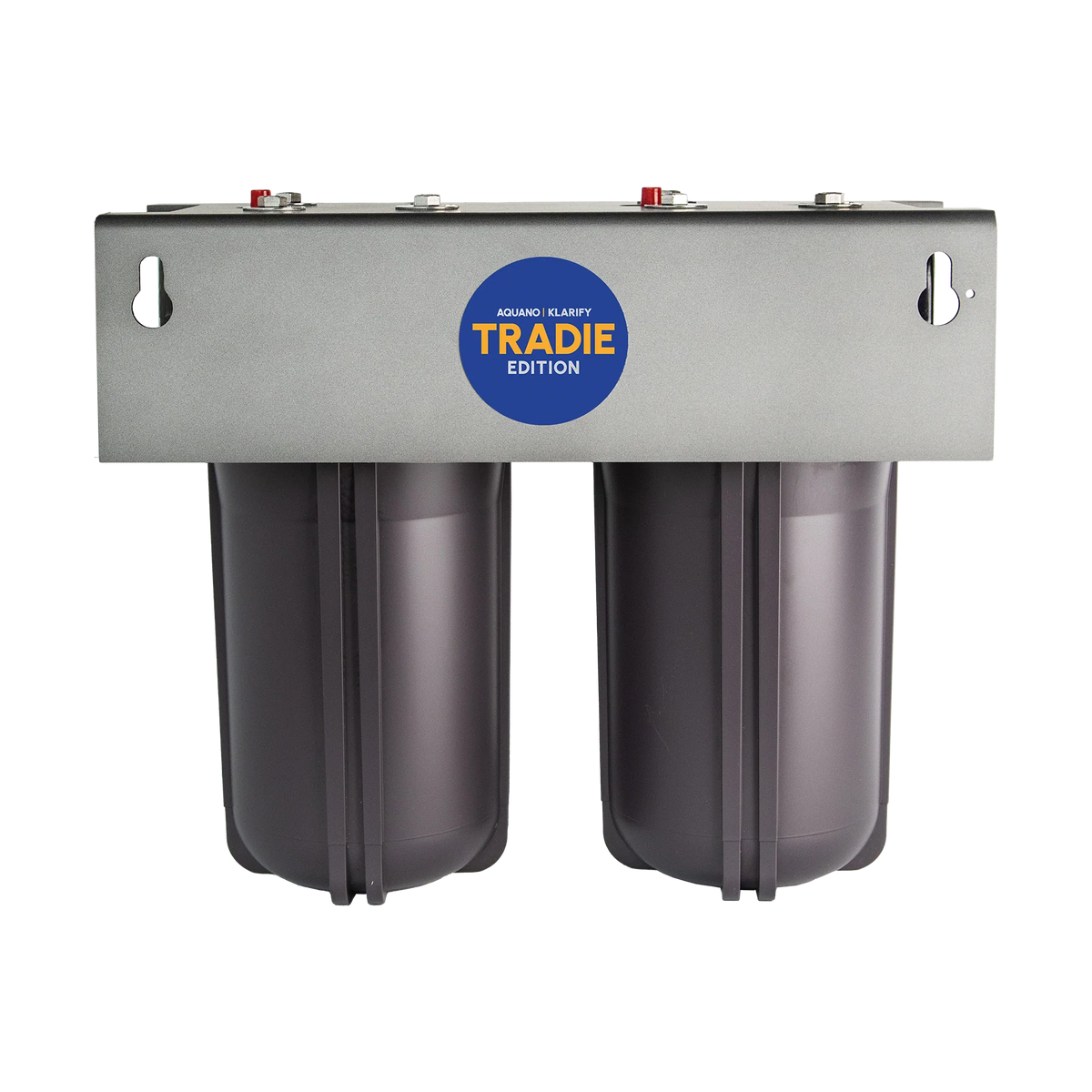

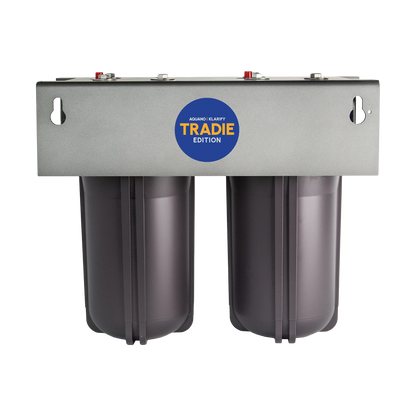

Standard — Aquano Klarify Tradie Edition R-210 AKTER210

The Standard Aquano Klarify Tradie Edition R-210 provides the same core 10" Jumbo two-stage rainwater filtration system in a streamlined, more affordable package.

It uses the same PC1020J 20 micron washable pleated sediment filter followed by the PS1001J 1 micron graded-density polyspun filter.

The Standard version maintains the same 75 L/min maximum flow rate, 1" BSP connections, pressure range, temperature range and reversible installation capability.

Stage 1 — PC1020J 20 Micron Pleated Sediment Filter

The first stage captures larger suspended sediment at 20 microns.

Its pleated design provides a large filtration surface, while its washable and reusable construction makes it particularly useful for the variable sediment loads commonly encountered in rainwater systems.

Stage 2 — PS1001J 1 Micron Polyspun Sediment Filter

The second stage provides 1 micron graded-density depth filtration, capturing finer suspended particles after the water has passed through the coarser first-stage cartridge.

Standard R-210 Specifications

Model / SKU: AKTER210
System Version: Standard / Tradie Edition
Water Source: Rainwater
Housing Size: 10" Jumbo
Filtration Stages: 2
Stage 1: PC1020J — 20 Micron Pleated Sediment
Stage 2: PS1001J — 1 Micron Polyspun Sediment
Maximum Flow Rate: 75 L/min
Connections: 1" BSP
Operating Pressure: 200–875 kPa
Operating Temperature: 0–52°C
System Dimensions: 430 × 350 × 210 mm
Warranty: Aquano Hassle Free Warranty

Premium vs Standard

Which Version Should I Choose?

Choose Premium — AKR210 if you want the complete R-210 package with pressure gauges, housing spanners and weather-protection covers.

Choose Standard — AKTER210 if you want the same core two-stage rainwater filtration performance in Aquano's streamlined Tradie Edition package.

Both systems use the same PC1020J + PS1001J filter combination and provide the same 75 L/min maximum flow rate.

Why Choose the Aquano Klarify R-210?

• Dedicated whole-house rainwater filtration
• Designed for medium homes
• Compact 10" Jumbo filtration system
• 2-stage progressive sediment filtration
• 20 micron washable pleated first stage
• Fine 1 micron polyspun second stage
• Helps capture dirt, rust, silt, sand and suspended sediment
• Maximum flow rate of 75 L/min
• 1" BSP plumbing connections
• Durable anti-corrosion metal construction
• Reversible installation capability
• Initial filter cartridges included
• Housing spanners included with both versions
• Premium includes pressure gauges and weather-protection covers
• Aquano Hassle Free Warranty

How the 2-Stage Filtration Works

The Aquano Klarify R-210 uses a coarse-to-fine filtration sequence.

This allows the first filter to handle larger suspended particles before the water reaches the much finer second-stage cartridge.

Stage 1 — 20 Micron Pleated Pre-Filtration

Rainwater Supply → PC1020J

Incoming water first passes through the PC1020J 20 micron pleated sediment filter.

This stage helps capture larger:

• Dirt
• Sand
• Silt
• Rust
• Suspended particulate matter

The pleated design provides a large filtration surface and is washable and reusable.

Stage 2 — 1 Micron Depth Filtration

PC1020J → PS1001J

Water then passes through the PS1001J 1 micron polyspun sediment filter.

Its graded-density construction provides depth filtration, capturing finer suspended particles that pass through the first stage.

Complete Filtration Sequence

Rainwater Supply → 20 Micron Pleated Sediment → 1 Micron Polyspun Sediment → Filtered Water Throughout the Home

Progressive 20 Micron to 1 Micron Filtration

The R-210's two cartridges are arranged deliberately from coarse to fine.

20 Micron First Stage

The PC1020J captures larger sediment first, reducing the particulate load placed on the fine filter.

Its washable construction also makes it practical for rainwater supplies where sediment levels can vary.

1 Micron Second Stage

The PS1001J then provides much finer filtration using graded-density polyspun media.

Together, the two cartridges create a:

20 Micron → 1 Micron

progressive filtration sequence.

Designed for Rainwater Supplies

The R-210 is specifically configured for rainwater filtration.

Collected rainwater can carry sediment and suspended particulate matter from roofs, gutters, tanks and associated plumbing.

The R-210 helps capture this material before the water is distributed throughout the home using two progressively finer sediment filtration stages.

10" Jumbo Whole House Filtration

The R-210 uses 10" Jumbo cartridges, providing a compact whole-house solution while maintaining a maximum system flow rate of:

75 L/min

This makes the R-210 particularly well suited to medium homes where a compact system footprint is desirable.

Actual installed water flow will also depend on incoming pressure, plumbing configuration, cartridge condition and sediment loading.

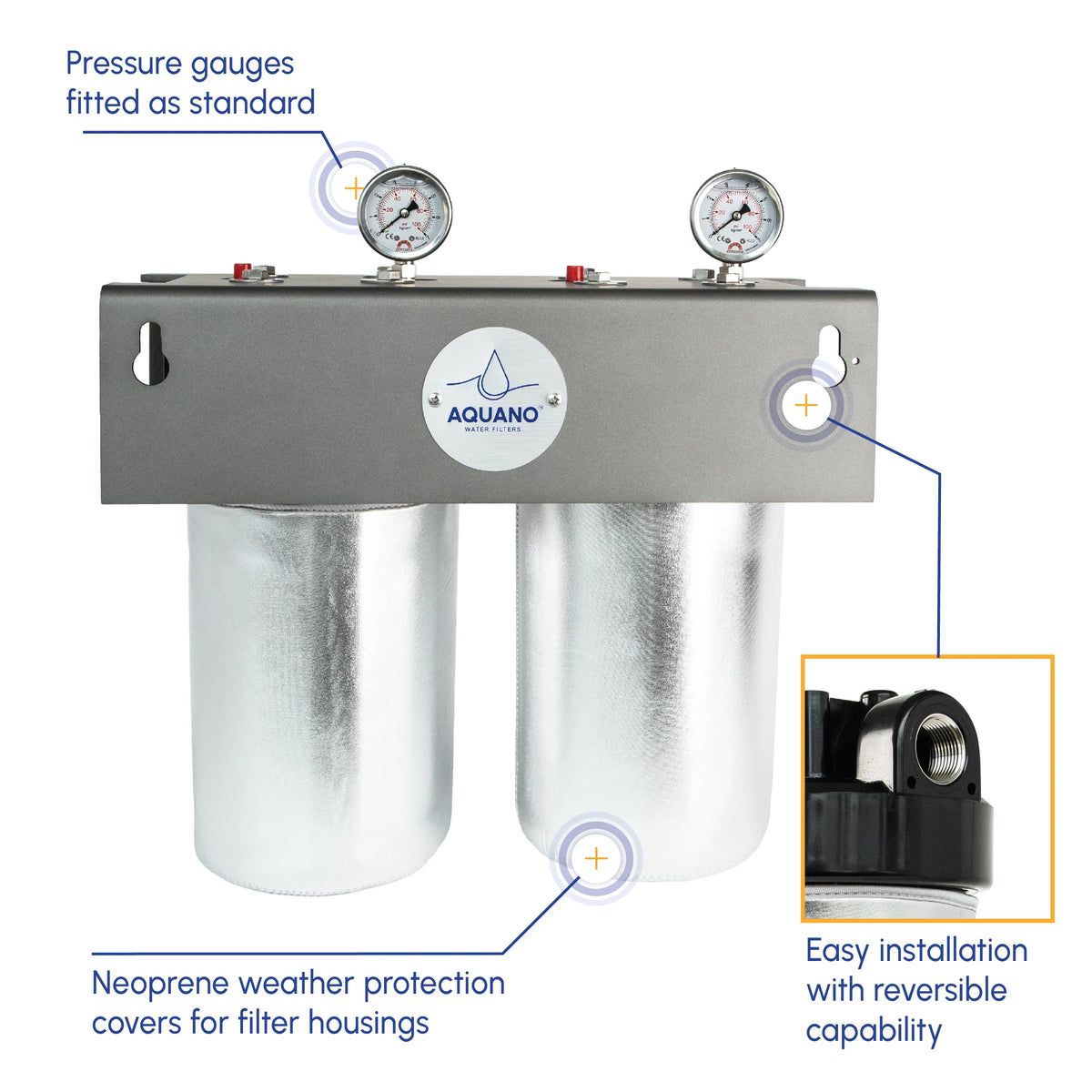

Premium Pressure Gauges

The Premium AKR210 includes pressure gauges.

These provide convenient pressure monitoring at the filtration system and can help make changes in system pressure easier to identify as cartridges accumulate sediment.

The Standard AKTER210 does not include the Premium pressure gauges.

Housing Spanners Included

Both the Premium AKR210 and Standard AKTER210 include housing spanners.

The housing spanners assist with opening the 10" Jumbo housings during cartridge cleaning and replacement.

Premium Weather-Protection Covers

The Premium AKR210 includes weather-protection covers for the filter housings.

These provide additional protection around the filtration equipment when installed in an appropriate outdoor location.

The streamlined Standard AKTER210 does not include the Premium weather-protection covers.

Best Suited For

• Medium homes
• Collected rainwater supplies
• Whole-house rainwater filtration
• Sediment-heavy rainwater
• Dirt and suspended particles
• Silt
• Sand
• Rust particles
• Properties requiring filtration down to 1 micron
• Customers wanting 10" Jumbo filtration
• Homes wanting a washable first-stage cartridge
• Customers choosing between Premium and Tradie Edition packages

Key Specifications

System Dimensions

430 × 350 × 210 mm

The compact twin-housing configuration accommodates two 10" Jumbo cartridges while keeping both filtration stages together in one whole-house assembly.

Reversible Installation

The R-210 features reversible installation capability, providing additional flexibility when integrating the system with existing rainwater plumbing.

This can be particularly useful where pipe direction or available installation space determines the preferred orientation.

Installation

The Aquano Klarify R-210 is designed for installation on the property's rainwater supply using 1" BSP connections.

Installation should provide:

• Correct water-flow direction
• Suitable mounting and support
• Adequate clearance beneath the housings
• Access for cartridge servicing
• Appropriate isolation valves
• Operation within the specified pressure range
• Suitable environmental protection

Operating Range

Pressure: 200–875 kPa
Water Temperature: 0–52°C

Professional installation is recommended where required to ensure the system is correctly integrated with the property's plumbing.

Filter Maintenance

Both versions use the same replacement filter combination:

Stage 1: PC1020J — 10" Jumbo 20 Micron Pleated Sediment Filter
Stage 2: PS1001J — 10" Jumbo 1 Micron Polyspun Sediment Filter

Maintenance frequency depends on factors including:

• Incoming rainwater quality
• Roof and gutter condition
• Tank cleanliness
• Sediment loading
• Household water consumption
• Cartridge condition
• Changes in water flow or pressure

PC1020J Maintenance

The first-stage PC1020J is washable and reusable.

It can be removed and cleaned when sediment accumulates, then eventually replaced when cleaning no longer restores satisfactory performance or the cartridge reaches the end of its usable life.

PS1001J Maintenance

The second-stage PS1001J is a polyspun depth filter.

It is replaced when loaded rather than washed for reuse.

What's Included

Premium — AKR210

• 1 × Aquano Klarify R-210 Premium System
• 1 × PC1020J 10" Jumbo 20 Micron Pleated Sediment Cartridge
• 1 × PS1001J 10" Jumbo 1 Micron Polyspun Sediment Cartridge
• Pressure gauges
• Housing spanners
• Weather-protection covers

Standard — AKTER210

• 1 × Aquano Klarify Tradie Edition R-210 System
• 1 × PC1020J 10" Jumbo 20 Micron Pleated Sediment Cartridge
• 1 × PS1001J 10" Jumbo 1 Micron Polyspun Sediment Cartridge
• Housing spanners

Frequently Asked Questions

What is the difference between Premium and Standard?

Both versions use the same 10" Jumbo housings, PC1020J + PS1001J filter combination and 75 L/min maximum flow rate.

The Premium AKR210 additionally includes pressure gauges and weather-protection covers.

Both versions include housing spanners.

Do both versions use the same filters?

Yes. Both use:

PC1020J — 20 micron pleated sediment filter
PS1001J — 1 micron polyspun sediment filter

Do both versions include housing spanners?

Yes. Housing spanners are included with both versions.

Which version includes pressure gauges?

The Premium AKR210 includes pressure gauges.

The Standard AKTER210 does not.

Which version includes weather-protection covers?

The Premium AKR210 includes weather-protection covers.

The Standard Tradie Edition does not include them.

What is the maximum flow rate?

Both versions have a maximum system flow rate of 75 L/min.

Is the R-210 designed for rainwater?

Yes. Both configurations are designed for rainwater supplies.

What size filters does it use?

Both stages use 10" Jumbo cartridges.

Does it filter down to 1 micron?

Yes. The second-stage PS1001J provides 1 micron filtration.

Is the first filter washable?

Yes. The PC1020J 20 micron pleated cartridge is washable and reusable.

Does the R-210 include UV treatment?

No. The R-210 is a two-stage sediment filtration system. UV treatment is not part of this model.

Does the R-210 soften water?

No. The supplied filtration stages are designed for sediment filtration rather than water softening.

Are the initial filters included?

Yes. Both versions include the initial PC1020J and PS1001J cartridges.

Which version should I choose?

Choose Premium if you want the complete package with pressure gauges, housing spanners and weather-protection covers.

Choose Standard if you want the same core filtration configuration in the streamlined Tradie Edition package.
