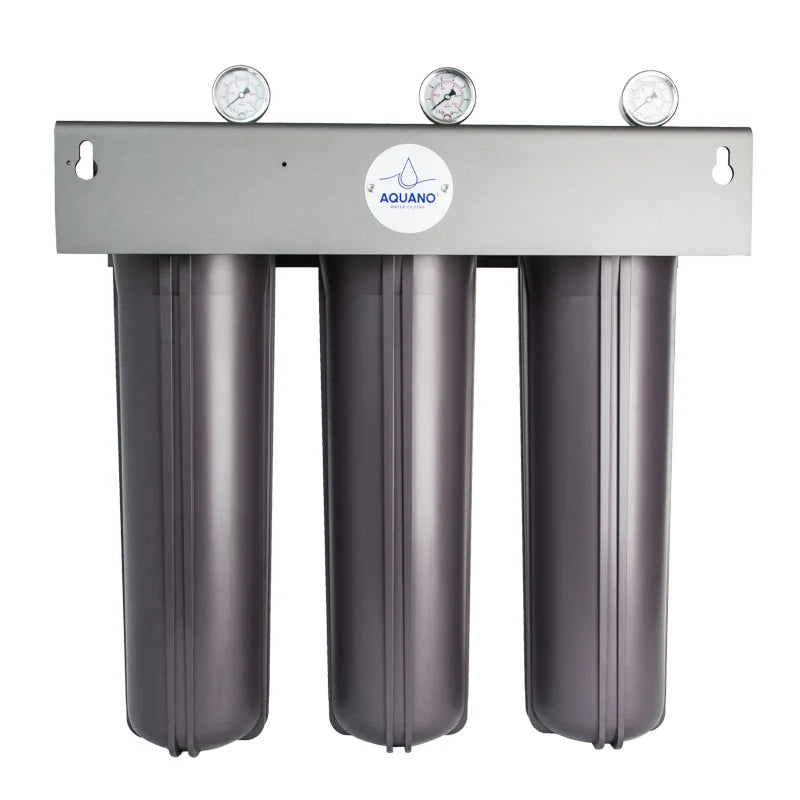

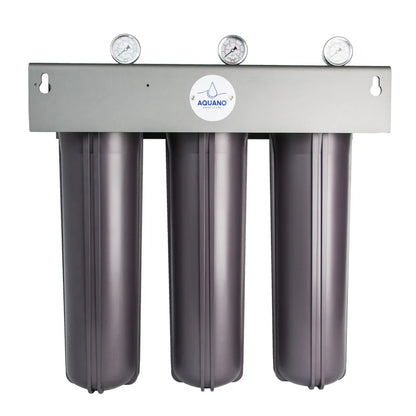

Aquano Klarify R-320 Triple-Stage Whole House Rainwater Filtration System

Enjoy cleaner, clearer rainwater throughout your home with the Aquano Klarify R-320.

Designed for medium to large New Zealand homes using rainwater or bore water, this three-stage whole-house filtration system progressively reduces sediment, dirt, rust, unwanted chemicals, unpleasant taste and odour before the water reaches your taps, showers and appliances. Its three 20-inch Jumbo housings and maximum flow rate of 120 litres per minute provide the capacity needed for homes where several outlets may be used at once.

The R-320 combines a washable pleated cartridge, a fine polyspun sediment cartridge and a carbon-impregnated cartridge. Together, these stages provide progressive filtration down to 1 micron while helping improve the appearance, taste and smell of household rainwater.

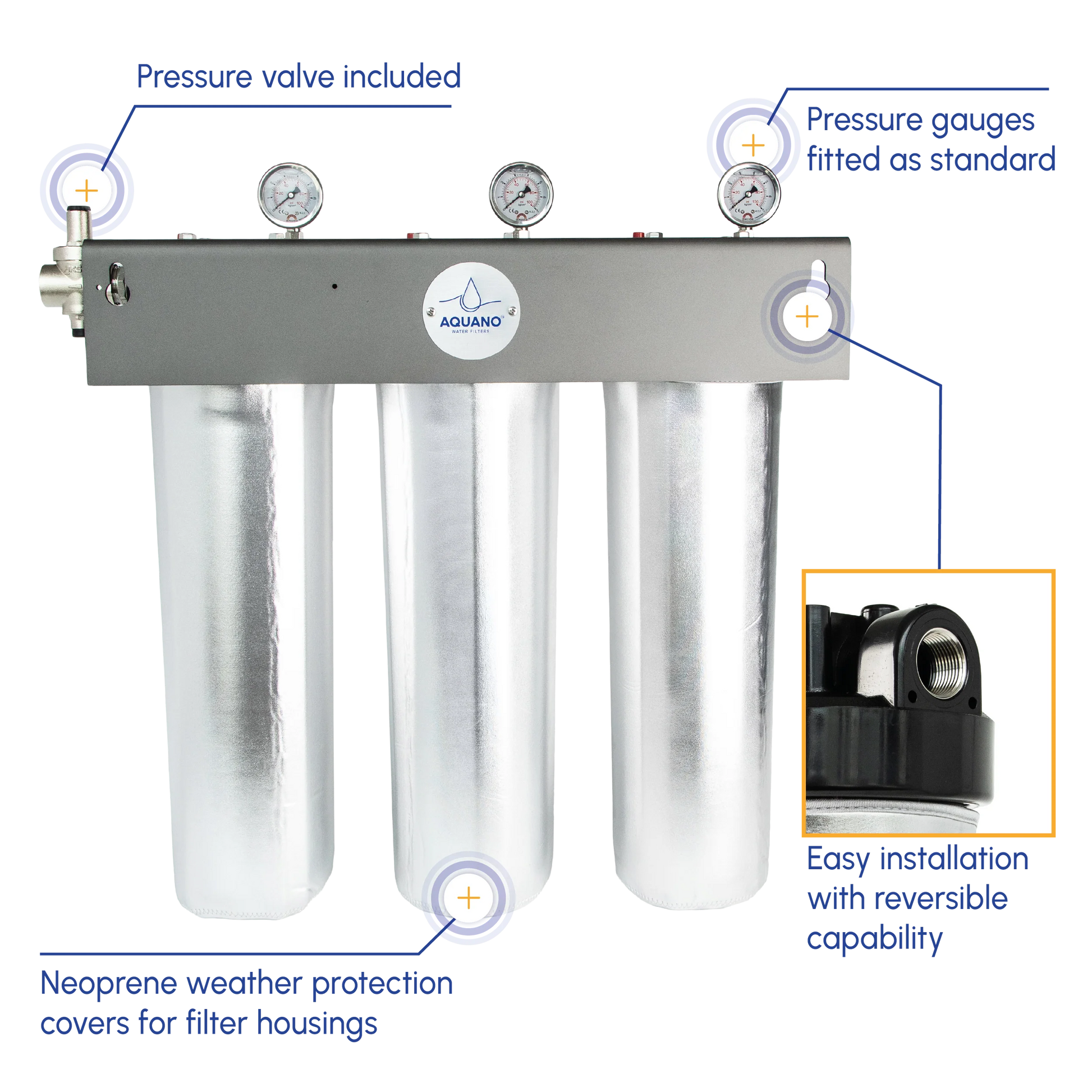

The system arrives pre-assembled and includes three replaceable filter cartridges, pressure gauges, housing spanners and neoprene weather-protection covers. Its durable anti-corrosion metal construction and reversible installation capability make it practical to install, monitor and maintain.

Why Choose the Aquano Klarify R-320?

Filter Rainwater Throughout the Whole Home

Installed at the point where the rainwater or bore water supply enters the property, the R-320 filters water before it is distributed around the house. This allows the benefits to extend beyond a single drinking-water tap to showers, kitchen taps, bathroom taps and water-using appliances.

Three Dedicated Filtration Stages

Rather than relying on one cartridge to manage every water-quality issue, the R-320 uses three separate stages to progressively remove larger debris, capture fine sediment and reduce unwanted taste and odour.

Designed for Medium to Large Homes

The system uses three 20-inch Jumbo housings and has a maximum flow rate of 120 L/min, giving it the capacity needed for medium to large homes with higher simultaneous water demand.

Washable First-Stage Filter

The first pleated cartridge can be washed when required, helping capture larger sediment before it reaches the finer disposable cartridges downstream.

Fine Filtration Down to 1 Micron

The polyspun sediment stage is designed to capture fine suspended particles down to 1 micron, helping improve water clarity and protect the final carbon stage.

Easier Performance Monitoring

The three pressure gauges provide a visible way to monitor pressure through the filtration stages. A growing pressure difference may indicate that a cartridge is becoming restricted and needs cleaning or replacement.

Suitable for Indoor or Outdoor Installation

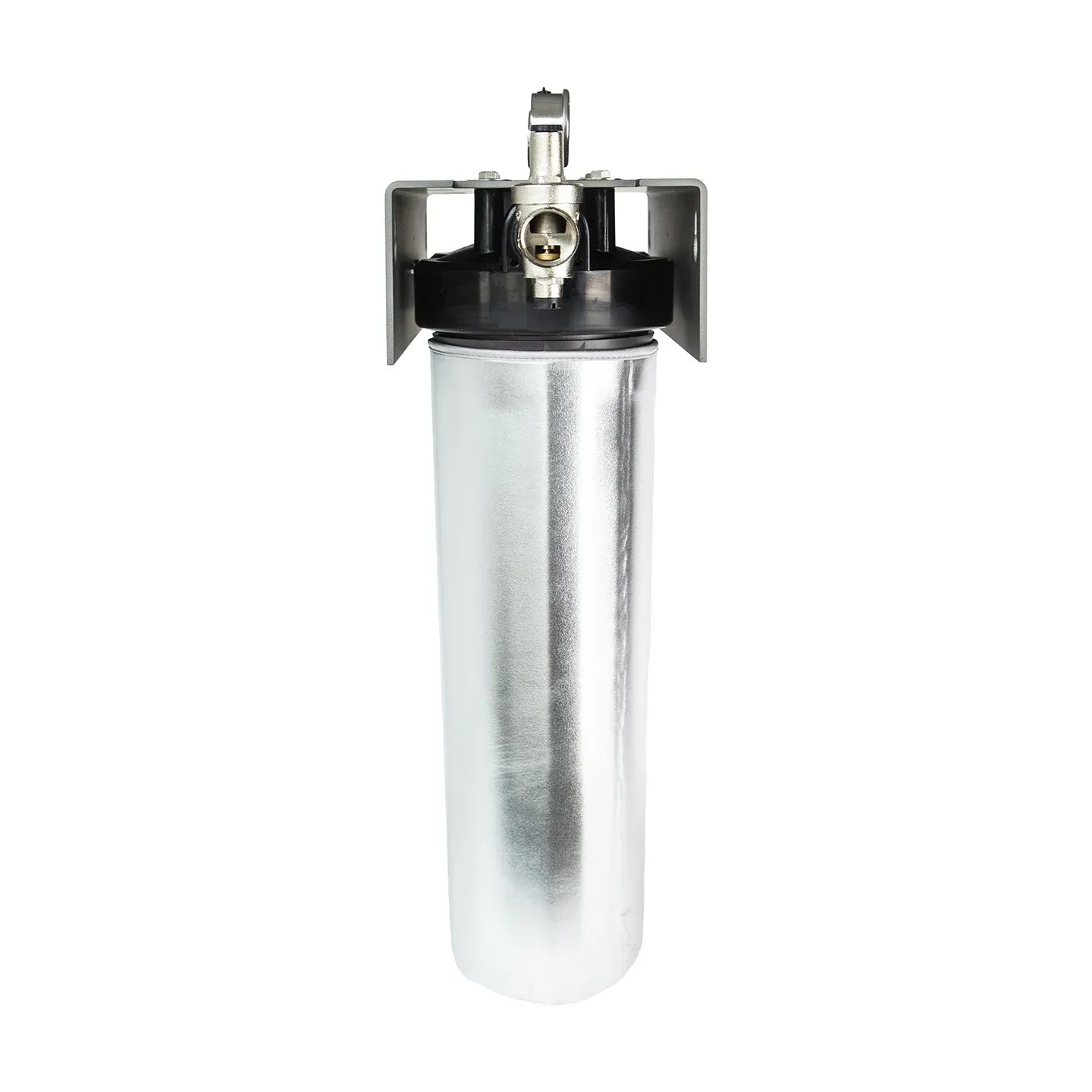

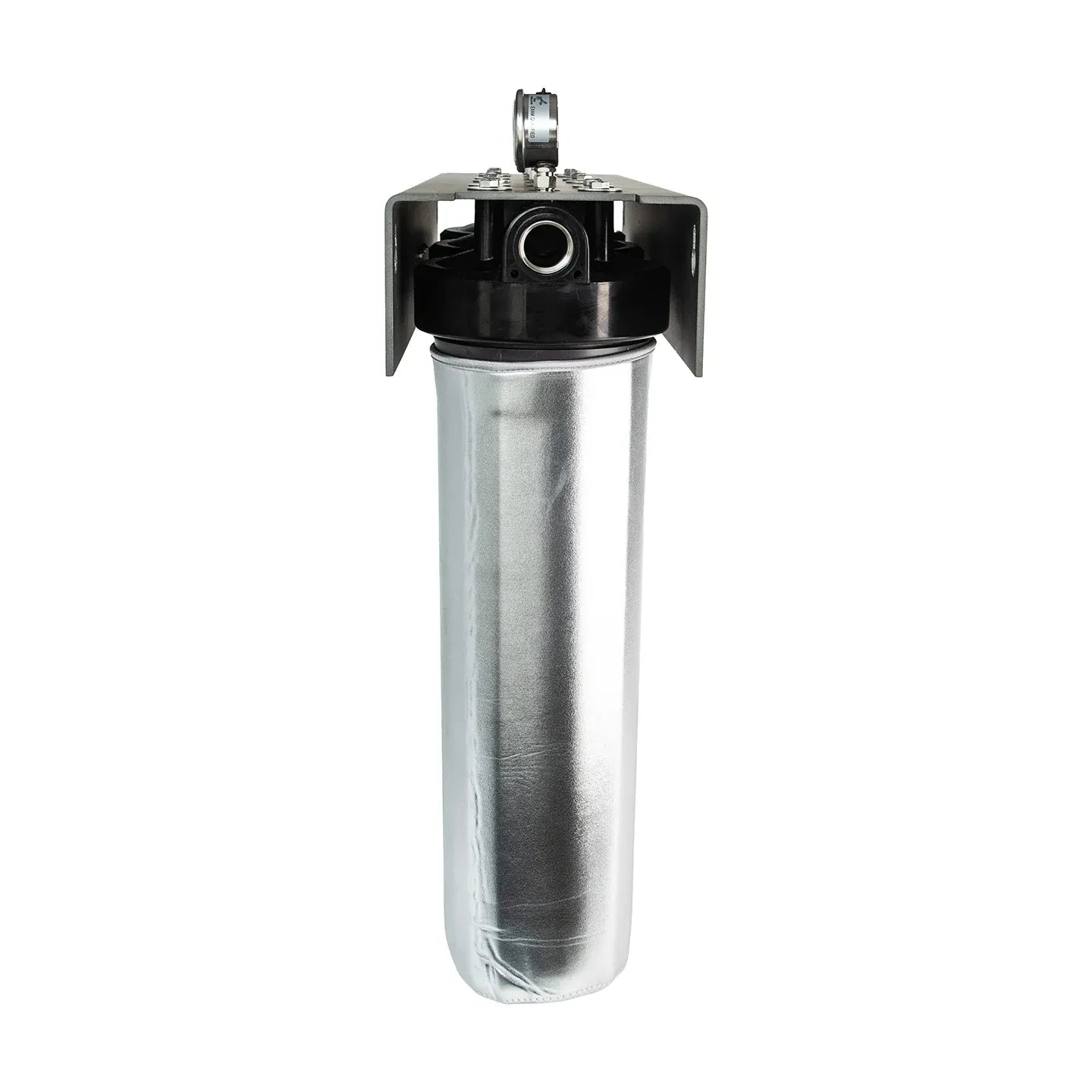

The R-320 may be installed indoors or outdoors. For outdoor installations, the supplied neoprene covers must be fitted to protect the housings from frost, direct sunlight and water exposure. The system must also be protected from freezing.

Supplied Ready for Installation

The complete unit arrives pre-assembled and includes its cartridges, housing spanners and weather-protection covers, making installation and future servicing straightforward.

How It Works

Water passes through three filtration stages before entering the home’s plumbing system.

Stage 1: Washable Pleated Sediment Filtration

The first PC2020J pleated cartridge captures larger particles and suspended material commonly found in rainwater systems, including leaves, dirt, grit, rust and tank sediment.

Because the cartridge is washable, it can be cleaned as required to help extend its service life. Removing larger debris first also helps protect the finer cartridges that follow.

Stage 2: Fine Polyspun Sediment Filtration

The second PS2001J polyspun cartridge captures finer dirt, sand, silt, rust and suspended particles down to 1 micron.

This stage helps improve water clarity while preventing fine sediment from prematurely loading the final carbon cartridge.

Stage 3: Carbon-Impregnated Filtration

The final CIM20J carbon-impregnated rainwater cartridge helps reduce remaining sediment, unwanted taste and odour.

It acts as the final polishing stage before filtered water is distributed throughout the home.

Best Suited For

The Aquano Klarify R-320 is best suited to:

• Medium to large homes
• Properties supplied by rainwater tanks
• Homes using bore water
• Households concerned about dirt, rust, sand, silt or tank sediment
• Homes experiencing unpleasant water taste or odour
• Properties requiring filtration throughout the whole house
• Indoor installations
• Appropriately protected outdoor installations
• Households wanting a high-capacity, serviceable filtration system

This product is a filtration system rather than a microbiological disinfection system. It must not be used with microbiologically unsafe water, or water of unknown quality, unless suitable disinfection is also installed.

Key Features

• Advanced three-stage rainwater and bore water filtration
• Treats water throughout the home
• Three 20-inch Jumbo filter housings
• Maximum flow rate of 120 L/min
• Washable first-stage pleated cartridge
• Fine sediment filtration down to 1 micron
• Reduces sediment, unwanted taste and odour
• Three pressure gauges for system monitoring
• Pressure relief valve included
• Durable anti-corrosion metal construction
• Reversible installation capability
• Suitable for indoor or outdoor use when correctly protected
• Replaceable filter cartridges
• Pre-assembled system
• Housing spanners included
• Neoprene weather-protection covers included

Key Specifications

Installation

Installation must be completed by a licensed plumber and comply with applicable New Zealand plumbing requirements. The unit is installed on the cold-water supply at the point of entry so rainwater or bore water is filtered before being distributed throughout the home.

Installation requirements include:

• Mounting the unit securely to a solid surface
• Installing where leaks or spills will not cause property damage
• Providing adequate clearance beneath the housings for cartridge removal
• Installing an upstream isolation valve for servicing
• Supporting connected pipework so its weight does not stress the system
• Protecting the unit from water hammer
• Using unions to simplify future servicing
• Using approved piping, fittings and thread sealants
• Installing an approved pressure-limiting valve where line pressure exceeds 500 kPa
• Installing an approved dual-check backflow prevention device for point-of-entry installations
• Protecting the system from freezing
• Using the supplied neoprene covers when installed outdoors
• Avoiding overtightening, which may damage the filter head

Allow sufficient space around and beneath the system so each housing can be removed without dismantling the surrounding pipework.

Maintenance

Aquano recommends replacing the filter cartridges every 6–12 months. Actual service life will depend on incoming water quality, household consumption and the amount of sediment being collected.

The washable pleated cartridge may require more frequent cleaning where rainwater contains a high sediment load.

During servicing:

1. Shut off the incoming water supply.
2. Open a downstream tap.
3. Press the red pressure-release buttons to depressurise the system.
4. Remove each housing using the supplied spanner if required.
5. Remove the cartridges.
6. Wash the reusable pleated cartridge where it remains serviceable.
7. Replace disposable cartridges as required.
8. Clean the filter housings.
9. Inspect the O-rings and replace any that are damaged.
10. Lubricate suitable O-rings with food-grade silicone.
11. Fit the cartridges centrally and in the correct order.
12. Refit the housings without overtightening.
13. Restore the water supply slowly.
14. Open a downstream tap to purge trapped air.
15. Flush the system for 2–10 minutes.
16. Check all joints and housings for leaks.

The pressure gauges should also be checked periodically. A noticeable pressure drop through the system may indicate that the pleated cartridge requires cleaning or that one or more cartridges need replacing.

What's Included

• Aquano Klarify R-320 pre-assembled filtration system
• Three 20-inch Jumbo filter housings
• Three pressure gauges
• Pressure relief valve
• PC2020J washable pleated sediment cartridge
• PS2001J fine polyspun sediment cartridge
• CIM20J carbon-impregnated rainwater cartridge
• Housing spanners
• Neoprene weather-protection covers
• Metal mounting assembly

Plumbing fittings, isolation valves, backflow prevention devices, pressure-limiting equipment, pumps, UV disinfection equipment and installation labour are not included.

Frequently Asked Questions

Does the R-320 filter rainwater throughout the entire house?

Yes. It is a point-of-entry filtration system installed on the incoming rainwater or bore water supply, allowing filtered water to be delivered to every outlet throughout the home.

Is the R-320 suitable for a large household?

Yes. The R-320 is designed for medium to large homes and features three 20-inch Jumbo housings with a maximum flow rate of 120 L/min.

Can it be used with bore water?

Yes. The R-320 is suitable for both rainwater and bore water supplies.

Is the first cartridge washable?

Yes. The first-stage pleated cartridge is washable and can be cleaned to extend its service life.

What sediment does it remove?

The filtration stages remove leaves, dirt, rust, grit, sand, silt and fine suspended sediment commonly found in rainwater systems.

What is the finest filtration rating?

The system filters particles down to 1 micron.

Does it improve taste and odour?

Yes. The final carbon-impregnated cartridge helps improve unpleasant taste and odour.

Does the R-320 remove bacteria and viruses?

No. The R-320 is a filtration system only. If your rainwater is intended for drinking, an appropriately sized UV disinfection system is recommended.

Can it be installed outside?

Yes. The supplied neoprene covers must be fitted to protect the housings from sunlight, frost and weather exposure.

How often should the cartridges be replaced?

Aquano recommends replacing the disposable cartridges every 6–12 months, while the washable pleated cartridge should be cleaned as required depending on water quality.

Does it require a plumber?

Yes. Installation should be completed by a licensed plumber.

What happens if the household water pressure exceeds 500 kPa?

An approved pressure-limiting valve should be installed where line pressure exceeds 500 kPa.

Are the cartridges replaceable?

Yes. All three cartridges are serviceable. The first-stage pleated cartridge is washable, while the remaining cartridges are replaced as part of routine maintenance.
