Waimana WaterWaiora Clarity Replacement Filter Kit by Waimana, 10" or 20"Subscribe & save up to 15%From$75.00
10" JumboWaimana Water
Waiora Clarity I + Waimana UV 33W Whole House Bundle
Suits a small to medium home · 10" JumboHelp me choose
What size is my home? Small to medium: 1–2 bathrooms, up to 3 bedrooms. Medium to large: 2+ bathrooms, 4+ bedrooms.
$895.00incl. GST
Our promise: if it's not right, we'll put it right.
Need a hand picking the right system?
Email us a photo of your current setup or water source and we’ll point you to the right system.
- NZ owned & operated
- Most orders dispatched same or next day
- Click & collect from Te Rapa, Hamilton
- Brand
- Waimana Water
- Size
- 10" Jumbo
- Type
- Whole House Filters with UV
- SKU
- Clarity I + UV 33w System
- Stock
- In stock
What it removes
Filtered and UV-treated water at every tap
The Clarity I filter takes out the sediment, then the Waimana UV 33W treats the water before it reaches your taps.
-
Dirt and debris
Dirt, debris, leaves and organic matter from your tank.
-
Bacteria and viruses
The UV stage treats bacteria, viruses and other micro-organisms, with no chemicals added.
Fine silt too? The Clarity II + UV 33W adds a 1 micron stage.
How it works
One stage, then UV
Tank water passes through the Clarity I filter, then the UV unit, before it reaches every tap in the house.
- Tank water in
Stage 1
Coarse sediment
Pleated sediment cartridge
10" Jumbo20 micronWaimana 10PL20
Catches dirt, debris, leaves and organic matter from your tank.
Stage 2
UV treatment
Waimana UV 33W unit
30 mJ/cm²Flow-activated
The filtered water passes through the UV chamber, which treats it for bacteria, viruses and other micro-organisms with no chemicals added. The lamp only runs while water is flowing.
- Filtered, UV-treated water to every tap
UV treatment
Flow-activated 33W UV
The 33W lamp delivers a 30 mJ/cm² UV dose at up to 30 L/min. It treats the water for bacteria, viruses and other micro-organisms without adding chemicals.
-
Runs only when needed
The flow switch turns the lamp on when water flows and off when it stops.
-
Longer lamp life
The lamp only runs while water is flowing.
-
Lower power use
The lamp is off between uses.
-
No warm water in the chamber
Water doesn't sit and warm in the chamber between uses.
- UV lamp
- 33W
- UV dose
- 30 mJ/cm²
- Max flow
- 30 L/min
- Activation
- Flow switch, on when water flows, off when it stops
- Power supply
- 240V
- Warranty
- 3 years (the lamp is a consumable)
Looking after the UV
- Clean the quartz sleeve whenever the UV lamp is inspected.
- Replace the UV lamp every 12 months. UV output drops before the lamp visibly fails.
- UV needs clear water. The filter stages before it remove the sediment that would block the UV light.
- The UV unit goes after the Clarity I filter, as the last stage before water enters the home.
Fit check
Is it right for my home?
A quick check before you buy.
-
On rainwater or tank water
Good fitSuits tank and rainwater supplies.
-
Flow rate
Good fitThe 33W UV unit handles up to 30 L/min.
-
Installing outdoors
Not this oneInstall both units indoors or somewhere protected from the weather. For outdoor installs, the Pure II Shield has a protective cover and the same 33W UV.
Pure II Shield
$2,170.00
See the Pure II Shield
Compare
Compare the Clarity + UV 33W bundles
10" Jumbo filter plus a 33W UV unit. More stages take out finer silt, then tastes and odours.
-
You're viewing
Clarity I + UV 33W
$895.00
Stages 1 + UVCartridge size 10" JumboUV lamp 33WMax flow 30 L/minWhere it goes Indoors or protectedPre-assembled No, ships as 2 unitsYou're viewing -
$1,010.00
Stages 2 + UVCartridge size 10" JumboUV lamp 33WMax flow 30 L/minWhere it goes Indoors or protectedPre-assembled No, ships as 2 units -
$1,160.00
Stages 3 + UVCartridge size 10" JumboUV lamp 33WMax flow 30 L/minWhere it goes Indoors or protectedPre-assembled No, ships as 2 units
Running costs
What it costs to run
One Clarity I replacement kit changes the cartridge. The UV lamp is a separate part.
Clarity I replacement kit
$75.00per kit, incl. GST
- 1x Waimana 10PL20 – 20 micron polypleated sediment (10" Jumbo)
Change the cartridge every 12 months, when you change the UV lamp.
Rather not remember? Set up a 12 month subscription and your kit arrives before your filters need changing.
Replacement UV lamp 33W
$170.00each, incl. GST
UV output drops before the lamp visibly fails, so don't wait for it to stop working.
Specs
Specs and what's in the box
- Stages
- 1 + UV
- Filter housing
- 10" Jumbo
- Filter
- 20 micron pleated sediment
- UV lamp
- 33W
- UV dose
- 30 mJ/cm²
- Max flow (UV)
- 30 L/min
- Connections
- 25mm BSP
- Max pressure
- Filter 125 PSI (8.5 bar), UV 116 PSI (8 bar)
- Power supply
- 240V
- Cartridge life
- 12 months
- Bracket
- Powder-coated steel (filter)
- Where it goes
- Indoors or protected from the weather
- Ships as
- 2 units: filter system and UV unit
- Warranty
- 3 years on each unit
What's in the box
- Clarity I filter system (pre-assembled)
- 20 micron pleated sediment cartridge
- Powder-coated steel bracket
- Housing spanner
- Waimana UV chamber (stainless steel)
- 33W UV lamp
- Quartz sleeve
- Ballast with power lead and 3-pin plug
- Flow switch
- Spring and O-rings
Common questions
Why do I need both filtration and UV?
Filtration removes sediment and particles. UV treats bacteria, viruses and other micro-organisms. UV needs clear water to work, so the filter goes first and the UV unit is the last stage before water enters the home.
Can the bundle go outdoors?
Install both units indoors or somewhere protected from the weather.
How often do I change the cartridges and the lamp?
Change the cartridge and the UV lamp every 12 months. UV output drops before the lamp visibly fails.
What does the warranty cover?
Both units carry a 3-year manufacturer's warranty. Filter cartridges and the UV lamp are consumables and aren't covered.
Still not sure?
Tell us about your home and water supply and we'll point you to the right system.
Full product details
Read the full description

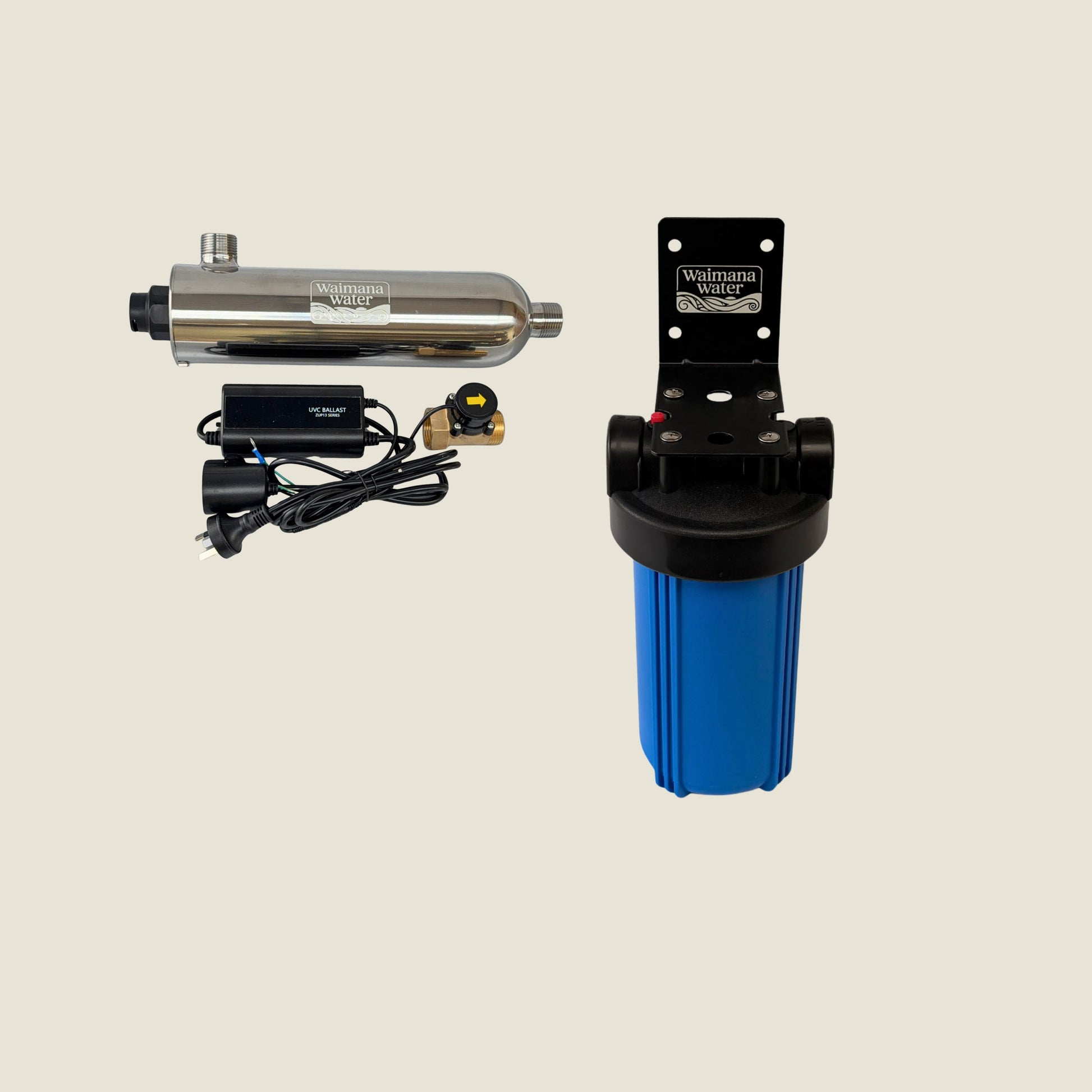

This bundle pairs the Waiora Clarity I whole house filter, made by Waimana, with a Waimana 33W UV unit, for rural and tank water. It ships as two items.
The filter has one 20 µm pleated cartridge in a 10" jumbo housing. The UV unit is rated at 30 L/min with a dose of 30 mJ/cm², and a flow switch means it only runs when water flows. Both use 25 mm BSP ports. The filter is on a powder-coated steel bracket, and we recommend 85 psi, with 125 psi the maximum for the housings.
Change the filter cartridges and the UV lamp every 12 months. The filter housing has a 3-year warranty, and our listing gives the UV chamber 3 years too.
We're NZ owned in Te Rapa, Hamilton. If it's not right, we'll put it right.
