Waiora Clarity Plus II + Waimana UV 48W Bundle - High Flow Filtration & UV Treatment NZ

Complete whole house filtration and UV treatment for tank and bore water — in a high-capacity 20 inch jumbo format. The Waiora Clarity Plus II handles two stages of sediment removal in larger 20 inch housings for higher flow rates and longer cartridge life, and the Waimana UV 48W unit treats water against bacteria, viruses, and microbes as it flows through at up to 45 L/min.

The UV unit's flow-activated design means the lamp only runs when water is moving — no power wasted, no water warming in the chamber between uses.

Suited to medium to large New Zealand homes on tank or rainwater supply with higher flow demand. Note: bore water quality varies significantly — we recommend testing your bore water before purchasing to ensure this configuration suits your supply. Get in touch and we'll help.

Ships as two separate items: the Clarity Plus II filter system and the UV 48W unit arrive independently.

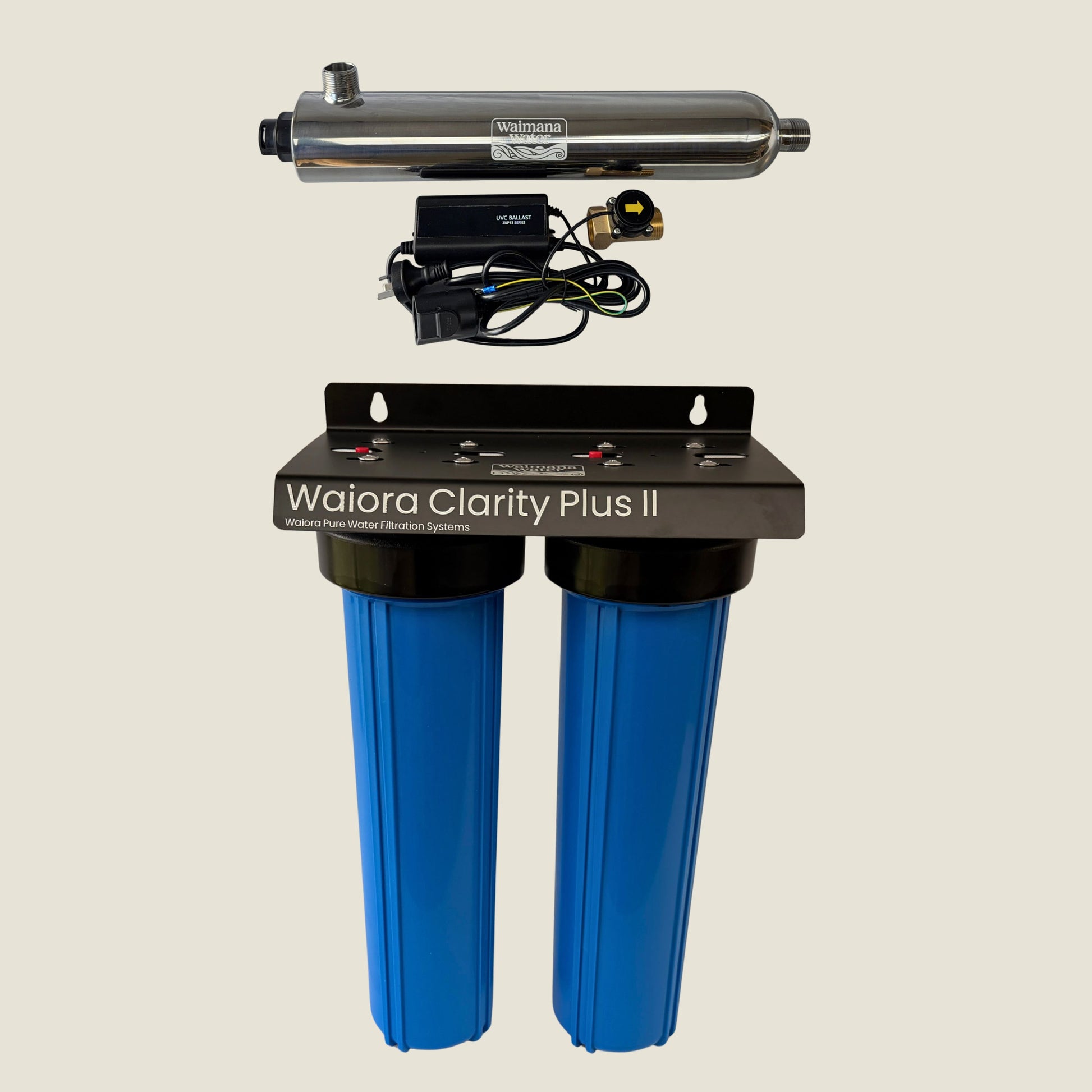

What's in the bundle

Waiora Clarity Plus II — 20 Inch 2-Stage Whole House Filter

• Stage 1: 20 micron polypleated sediment filter (20" jumbo) — removes coarse sediment, silt, and particles. Greater capacity and longer cartridge life than a 10 inch cartridge.
• Stage 2: 1 micron polyspun fine sediment filter (20" jumbo) — removes fine particles and physically blocks Giardia cysts
• 20" jumbo housings with stainless threaded 25mm BSP ports
• High-flow 20 inch housing for larger homes and increased water demand
• Powder-coated steel bracket (stainless upgrade available)
• Housing spanner included
• 3-year warranty

Waimana UV 48W — Flow-Activated UV Unit

• 48W UV chamber with integrated flow switch
• UV dose: 30 mJ/cm² at 45 L/min
• Treats water against bacteria, viruses, and microbes without chemicals
• Flow-activated — lamp runs only when water is flowing
• Connection: 25mm BSP
• Includes: UV lamp, quartz sleeve, ballast, flow switch, spring, O-rings
• 3-year warranty

How the system works together

Stage 1 — Coarse Sediment (Clarity Plus II)

The 20 micron polypleated filter removes larger particles, silt, and organic matter. The 20 inch format holds more sediment than a 10 inch cartridge, reducing the frequency of changes. Cleanable and reusable — rinse between replacements.

Stage 2 — Fine Sediment (Clarity Plus II)

The 1 micron polyspun filter removes fine particles and physically blocks Giardia cysts. Clear water at this stage is essential for effective UV treatment downstream.

Stage 3 — UV Treatment (UV 48W)

Water flows through the UV chamber where the 48W lamp treats it against bacteria, viruses, and microbes at a dose of 30 mJ/cm² at up to 45 L/min. The flow switch activates the lamp automatically when water moves and shuts it off when flow stops.

The sequence matters — sediment filtration before UV ensures clear water enters the chamber, which is what makes UV treatment effective.

Why Clarity Plus II over Clarity II

The Clarity Plus II uses 20 inch jumbo housings instead of 10 inch. More filter media means greater sediment holding capacity, longer cartridge life, and better performance at higher flow rates. It's the better choice for medium to large homes or properties with higher daily water demand. The matched 48W UV unit handles the higher flow rate of 45 L/min.

A note on bore water

Bore water quality varies significantly from site to site. We recommend having your bore water tested before selecting a filtration system — the mineral content, bacterial load, and other characteristics of your bore will determine whether this configuration is appropriate or whether additional stages are needed. Get in touch and we'll help you interpret the results.

Key specs at a glance

	Clarity Plus II	UV 48W
Housing size	20 inch jumbo	—
Filtration stages	2	UV only
Stage 1	20 µm polypleated	—
Stage 2	1 µm polyspun	—
UV lamp	—	48W
UV dose	—	30 mJ/cm²
Max flow rate	High-flow 20" housing	45 L/min
Connection	25mm BSP	25mm BSP
Max pressure	125 PSI (8.5 bar)	116 PSI (8 bar)
Recommended pressure	85 PSI (6 bar)	—
Power supply	—	240V
Cartridge life	6–12 months	—
UV lamp life	—	Varies with usage
Warranty	3 years	3 years

Maintenance

Clarity Plus II cartridges: replace every 6–12 months. The Stage 1 polypleated cartridge can be rinsed and reused between replacements — replace when it no longer recovers after cleaning.

UV lamp: replace based on usage. UV output degrades before the lamp visibly fails — replace on schedule and clean the quartz sleeve at each lamp change.

What's in the box

Clarity Plus II (ships separately):

• Waiora Clarity Plus II filter system (pre-assembled)
• 20 micron polypleated cartridge (20" jumbo)
• 1 micron polyspun cartridge (20" jumbo)
• Powder-coated steel bracket
• Housing spanner

UV 48W (ships separately):

• Waimana UV chamber (stainless steel)
• 48W UV lamp
• Quartz sleeve
• Ballast with power lead and 3-pin plug
• Flow switch
• Spring
• O-rings

Frequently asked questions

Why do I need both filtration and UV?

Filtration removes sediment and particles. UV treats water against bacteria, viruses, and microbes. They address different things — filtration alone does not treat microbiological contamination, and UV alone cannot work effectively if the water is turbid or contains sediment. Together they provide comprehensive whole house treatment for tank and bore water.

Why choose the Clarity Plus II over the Clarity II bundle?

The Clarity Plus II uses 20 inch jumbo housings for greater filter capacity and longer cartridge life. The matched 48W UV unit handles a higher flow rate of 45 L/min — better suited to medium to large homes with higher simultaneous water demand. If you have a smaller household, the Clarity II + UV 33W bundle may be the better fit.

Why does the order matter?

UV treatment requires clear water. If sediment reaches the UV chamber, it blocks UV light from reaching micro-organisms — reducing or eliminating treatment effectiveness. The Clarity Plus II's two sediment stages ensure clean, clear water arrives at the UV chamber every time.

Does the 1 micron filter remove Giardia?

At 1 micron, the polyspun filter physically blocks Giardia cysts, which are typically 8–12 microns in size. UV treatment provides an additional layer of protection against microbiological contamination.

Is this suitable for bore water?

It can be, but bore water varies significantly from site to site. We recommend testing your bore water before ordering — get in touch and we'll help you confirm this is the right configuration for your supply.

Do the two items need to be installed at the same time?

They can be installed together or separately. The Clarity Plus II filter system is installed upstream and the UV unit downstream — the UV unit should always be the last stage before water enters the home.

Do I need a plumber to install it?

We recommend a licensed plumber for both components. The Clarity Plus II uses standard 25mm BSP fittings and arrives pre-assembled with a housing spanner. The UV unit uses 25mm BSP and plugs into a standard 240V outlet.

What warranty applies?

Both items carry a 3-year manufacturer's warranty. Filter cartridges and the UV lamp are consumables and are not covered.
