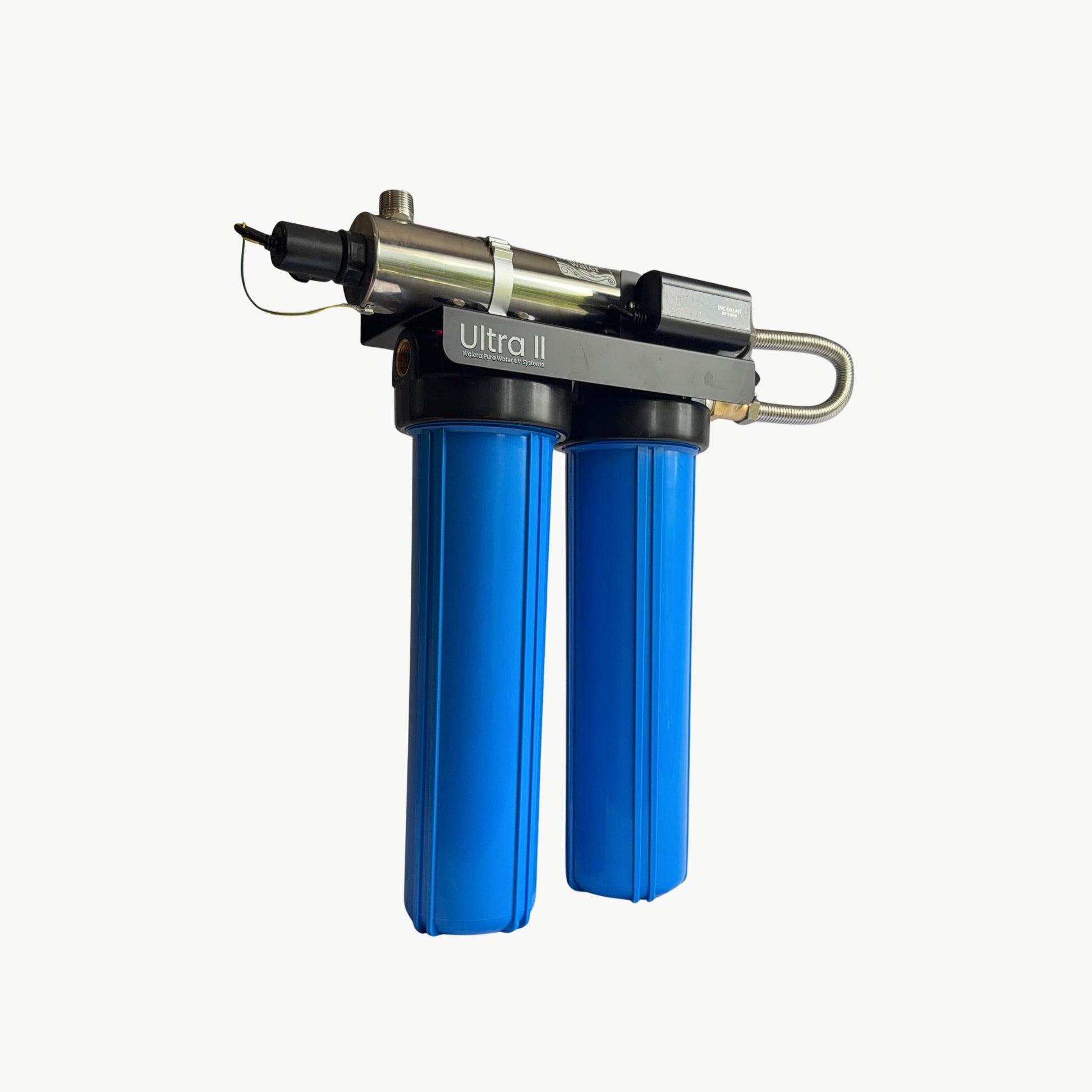

Waiora Ultra II Whole House UV Filter System by Waimana, angled view 20" Jumbo

Waimana Water

Waiora Ultra II Whole House UV Filter System by Waimana

Suits a medium to large home · 20" JumboHelp me choose

What size is my home? Small to medium: 1–2 bathrooms, up to 3 bedrooms. Medium to large: 2+ bathrooms, 4+ bedrooms.

$2,300.00incl. GST

Our promise: if it's not right, we'll put it right.

Need a hand picking the right system?

Email us a photo of your current setup or water source and we’ll point you to the right system.

Call us on 0800 209 829 Email a photo

Mon–Fri, 8am–4pmsales@filtrationstation.co.nz

Brand
Waimana Water
Size
20" Jumbo
Type
Whole House Filters with UV
SKU
Ultra II
Stock
In stock

What it removes

Filtered and UV-treated water at every tap

The Ultra II removes sediment and silt, then treats the water with UV before it reaches your taps.

  • Sediment, dirt and rust

    Larger sediment, dirt, rust and suspended particles.

  • Fine silt

    Fine sediment and silt down to 1 micron.

  • Bacteria and viruses

    The UV stage treats bacteria, viruses and other micro-organisms, with no chemicals added.

Taste or odour a concern? The Ultra III adds a carbon block stage.

How it works

Two stages, then UV

Water passes through each filter stage in order, then the UV chamber, before it reaches every tap in the house.

  1. Water in

  2. Stage 1

    Coarse sediment

    Pleated sediment cartridge

    20" Jumbo20 micronWaimana 20PL20

    Captures larger sediment, dirt, rust and suspended particles to protect the finer stages.

  3. Stage 2

    Fine sediment

    Polyspun sediment cartridge

    20" Jumbo1 micronWaimana 20PP01

    Captures the fine silt and particles that get past Stage 1, so the water is clear before it reaches the UV.

  4. Waimana Flow-Activated Whole House UV Unit – 33W or 48W

    Stage 3

    UV treatment

    48W UV chamber

    30 mJ/cm²Flow-activated

    The filtered water passes through the UV chamber, which treats it for bacteria, viruses and other micro-organisms with no chemicals added. The lamp only runs while water is flowing.

  5. Filtered, UV-treated water to every tap

UV treatment

Flow-activated 48W UV

The 48W lamp delivers a 30 mJ/cm² UV dose at up to 45 L/min. It treats the water for bacteria, viruses and other micro-organisms without adding chemicals.

  • Runs only when needed

    The flow switch turns the lamp on when water flows and off when it stops.

  • Longer lamp life

    The lamp only runs while water is flowing.

  • Lower power use

    The lamp is off between uses.

  • No warm water in the chamber

    Water doesn't sit and warm in the chamber between uses.

UV lamp
48W
UV dose
30 mJ/cm²
Max flow
45 L/min
Activation
Flow switch, on when water flows, off when it stops
Power supply
240V
Warranty
3 years (the lamp is a consumable)

Looking after the UV

  • Clean the quartz sleeve whenever the UV lamp is inspected.
  • Replace the UV lamp every 12 months.
  • UV needs clear water. The filter stages before it remove the sediment that would block the UV light.

Fit check

Is it right for my home?

A quick check before you buy.

  • On rainwater or tank water

    Good fit

    Suits rainwater tank supplies.

  • On bore water

    Good fit

    Suits bore-water supplies within the rated pressure and temperature limits.

  • On town (mains) water

    Good fit

    Suits mains water supplies.

  • Home size

    Good fit

    Medium to large family homes, including homes with multiple bathrooms. Up to 45 L/min.

  • Installing outdoors

    Not this one

    Install the standard Ultra II indoors or under cover. The Ultra II Shield adds a protective cover for outdoor installs.

    Ultra II Shield $2,690.00 See the Ultra II Shield

Compare

Compare the Ultra II options

Same filter stages and 48W UV. The Shield adds a protective cover and pressure gauge for indoor and outdoor installs. The bundle ships as two units.

  • Clarity Plus II + UV 48W

    $1,310.00

    Stages 2 + UV
    Cartridge size 20" Jumbo
    UV lamp 48W
    Max flow 45 L/min
    Where it goes Indoors or protected
    Pre-assembled No, ships as 2 units
    View Clarity Plus II + UV 48W
  • You're viewing

    Ultra II

    $2,300.00

    Stages 2 + UV
    Cartridge size 20" Jumbo
    UV lamp 48W
    Max flow 45 L/min
    Where it goes Indoors or under cover
    Pre-assembled Yes, on one wall bracket
    Connection hose 25mm, included
    You're viewing

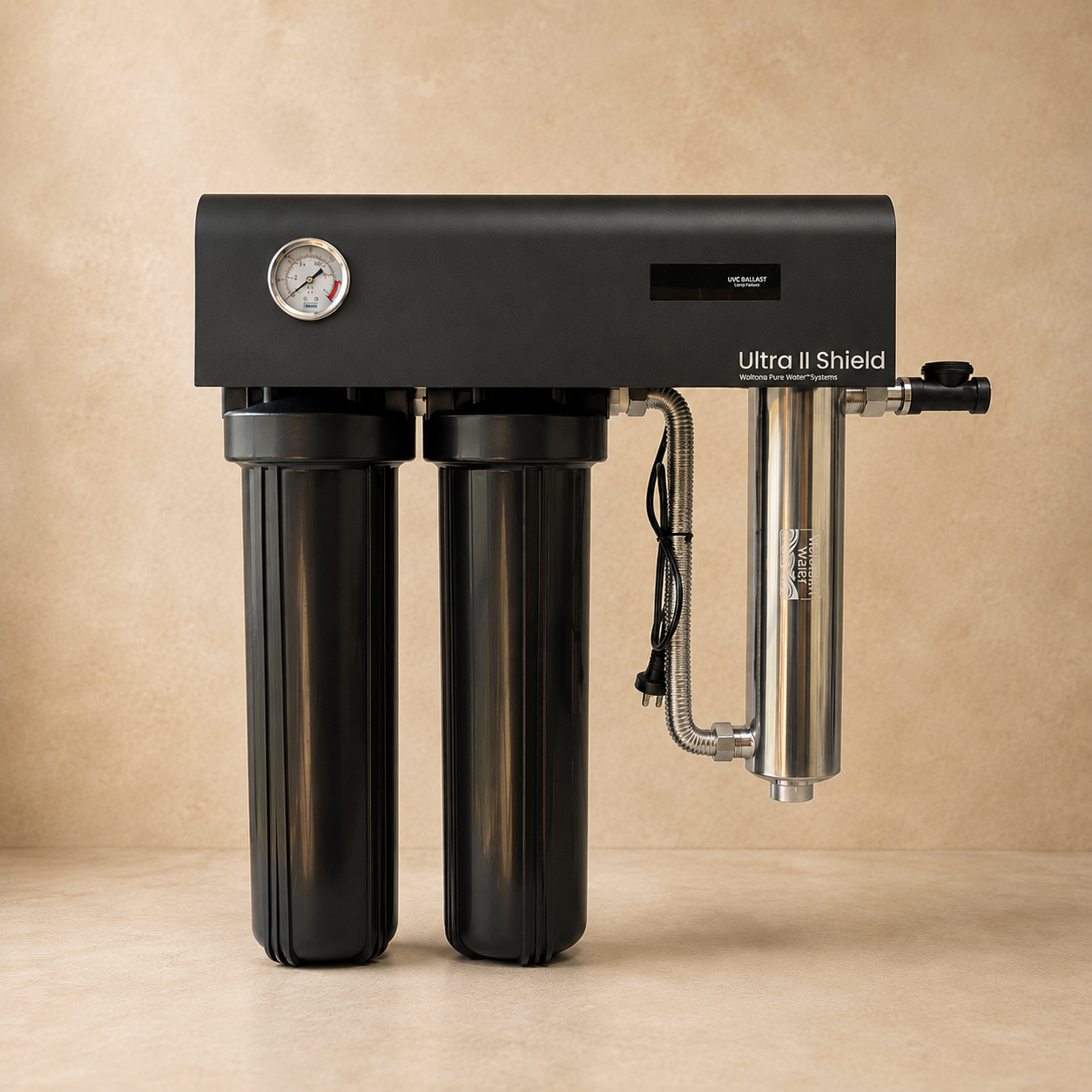

  • Ultra II Shield

    $2,690.00

    Stages 2 + UV
    Cartridge size 20" Jumbo
    UV lamp 48W
    Max flow 45 L/min
    Where it goes Indoors and outdoors
    Pre-assembled Yes, on one wall bracket
    Connection hose 25mm, included
    Extras Cover + pressure gauge
    View Ultra II Shield

Running costs

What it costs to run

One Ultra II service kit has the two cartridges and the 48W UV lamp.

Ultra II service kit

$300.00per kit, incl. GST

Change every 12 monthsAbout $300.00 a year

  • 1x Waimana 20PL20 – 20 micron polypleated sediment (20" Jumbo)
  • 1x Waimana 20PP01 – 1 micron polyspun sediment (20" Jumbo)
  • 1x 48W UV lamp

Fit a new service kit every 12 months, so the cartridges and the UV lamp are changed together. Clean the quartz sleeve at each lamp change.

View the replacement kit

Specs

Specs and what's in the box

Stages
2 + UV
Stage 1
20µm polypleated sediment
Stage 2
1µm polyspun sediment
Housing size
Two 20" Jumbo housings
UV lamp
48W
UV dose
30 mJ/cm²
Max flow
45 L/min
Max pressure
116 PSI / 8 bar
Operating temperature
2–40°C
Connections
1" / 25mm BSP
Power supply
240V
Mounting
Wall-mounted, arrives assembled
Dimensions
550 × 220 × 730mm
Where it goes
Indoors or under cover
Not included
Connecting fittings and bypass valves
Warranty
3 years

What's in the box

  • Heavy-duty wall bracket
  • Two 20" Jumbo filter cartridges
  • 48W UV lamp
  • Flow-activated ballast
  • Flow switch
  • 25mm connection hose
  • Filter wrench
  • Thread tape

Common questions

What is the difference between the Ultra II and the Ultra II Shield?

Both give the same filtration, UV treatment and flow rate. The Shield adds a protective cover and a pressure gauge, so it suits indoor and outdoor installation.

Can the standard Ultra II go outdoors?

No. Install it indoors or under cover. Choose the Ultra II Shield for an outdoor spot.

What does flow-activated UV do?

The lamp only switches on when water is flowing. That lowers power use, extends lamp life and stops water warming in the chamber.

Does UV change the taste of the water?

No. UV treats the water without adding chemicals or changing its taste.

How often do I change the cartridges and the lamp?

Every 12 months. The service kit has the cartridges and the UV lamp, so you change them together. Clean the quartz sleeve at each lamp change.

Still not sure?

Tell us about your home and water supply and we'll point you to the right system.

Help me chooseEmail us a photo

Full product details

Read the full description

The Waiora Ultra II, made by Waimana, filters your water in two stages, then treats it in a 48W UV chamber. It's rated at 45 L/min, which suits medium to large households.

The stages are a 20 µm polypleated cartridge and a 1 µm polyspun sediment cartridge, both 20" jumbo. The UV dose is 30 mJ/cm², and a flow switch helps stop the UV running when no water is flowing. Ports are 1 inch (25 mm) BSP, maximum pressure is 116 psi (8 bar), and it runs on 240 V.

Change the filter cartridges and the UV lamp every 12 months, and clean the quartz sleeve at each lamp change. 3-year manufacturer's warranty covering the UV chamber, housings and workmanship.

We're NZ owned in Te Rapa, Hamilton. If it's not right, we'll put it right.
